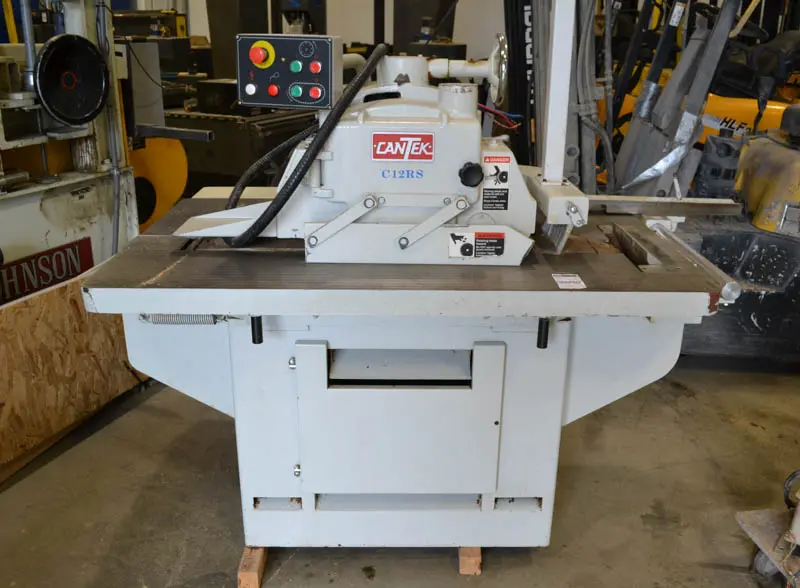

Cantek Straight Line Rip Saw
Comparable machines available now
The Cantek Straight Line Rip Saw shown here has sold — here are similar used machines we currently have in stock.
-
Cantek MRS-300 Gang Rip
CAD $32,500.00
-
Rockwell Delta 28-350 Bandsaw
Contact for price
-
Casadei KS3 Sliding Table Saw
Contact for price
-
Blue Elephant Sliding Saw
Contact for price
-
Rockwell Table Saw
Contact for price
-
Cantek Upcut Saw
Contact for price
-
SCM Si300s Sliding Table Saw
CAD $3,200.00
-
Lumber Bundle saw
CAD $4,500.00
Description
Manufacturer Description:
- Absolute straight line feeding
- A rigid machine body consists of a thick welded steel frame with an integral table which is fitted with a sturdy cast column
- Excellent precision work accuracy and durability
- Precision caterpillar chain and double “VEE” guide rails are made of special cast iron
- The chain connecting pins are made of high grade steel – heat treated & ground for high durability and low wear
- 8 hold-down rolls for increased control and precise straight line cutting (6 rows)
- Precision Built Saw Arbor constructed of nickel chrome steel, large diameter, accurately ground and dynamically balanced
- Arbor runs in precision angular contact type ball bearings (elminiates any radial run-out & axial thrust – V Belt driven from below

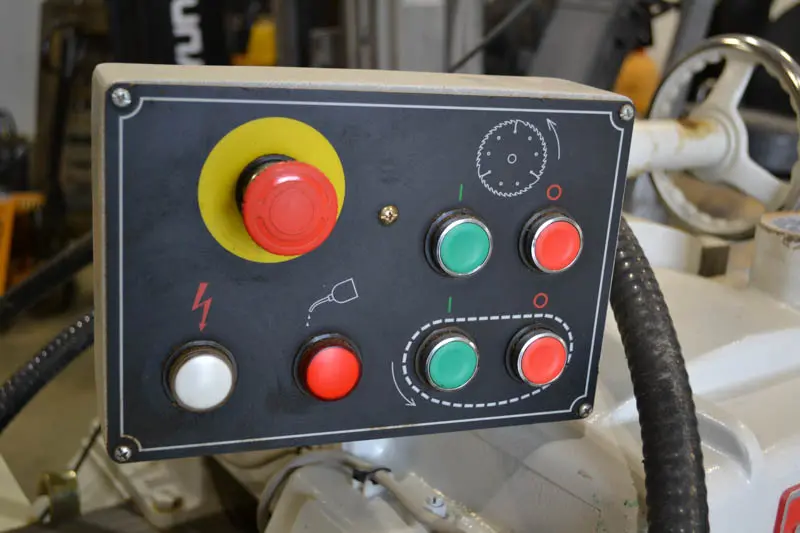

- Easy to access adjustments and controls
- Mechanical operation Chain Oiler (Best) provides consistent lubrication to the chain track and automatically adjusts to your feed speed. When oil runs out the machine track stops running to avoid damage to track. Also you can see the unit working which is important
Specifications
- Category
- Used Saws
- Sub Category
- Rip Saws
- Brand
- Cantek
- Model
- C12RS
- Voltage
- 230
- HP
- 1/6 HP
- Phase
- 3
- Serial
- 20521002
- Saw arbor diameter
- 1"
- Saw blade diameter
- 8 - 12"
- Saw arbor speed
- 4500 RPM
- Feed speeds variable
- 50 ~ 120 FPM
- Maximum workpiece thickness
- 3.35"
- Minimum workpiece length
- 8"
- Distance: saw and column
- 18"
