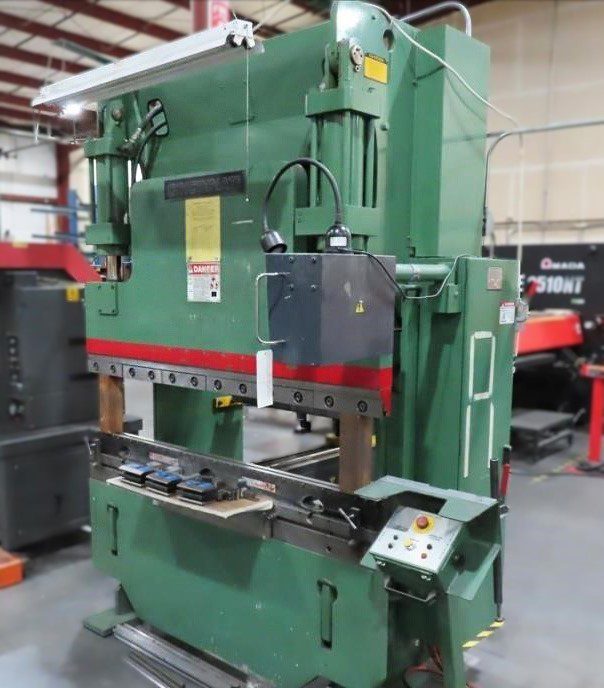

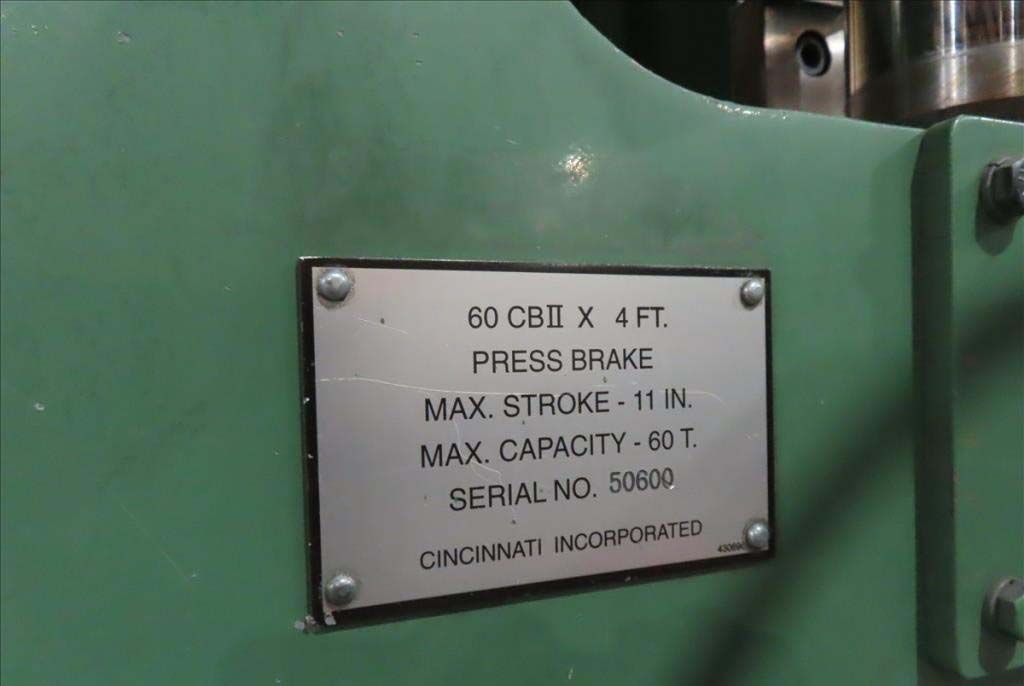

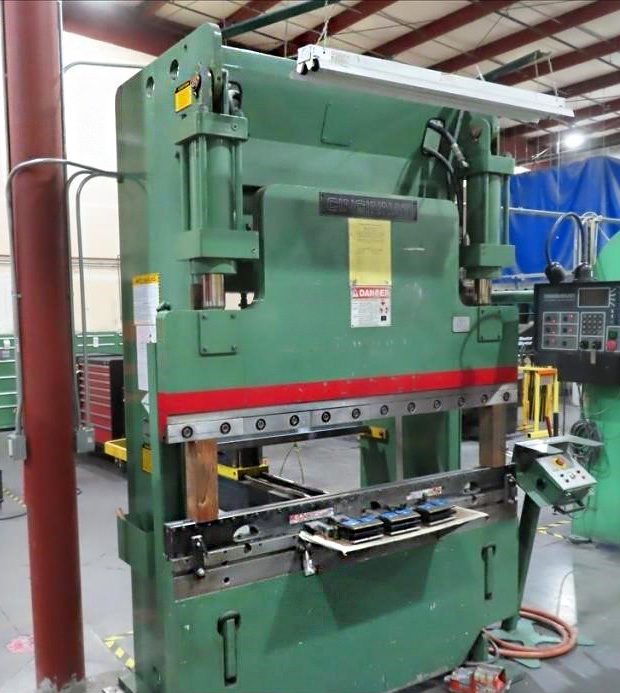

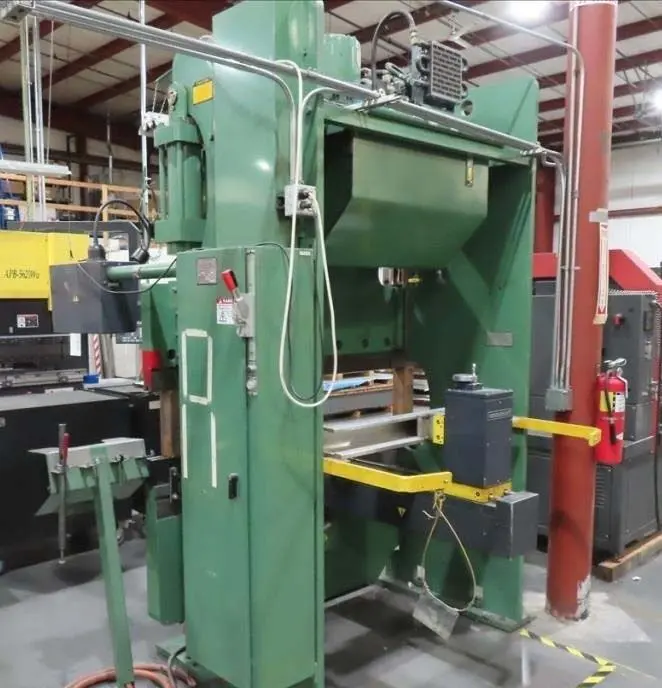

Cincinnati 60CB11 Press Brake

Specifications:

• Forming Capacity 60 Tons
• Overall Length 48 in (1,220 mm)
• Distance Between Housings Approximately 40 in (1,016 mm)
• Throat Depth 8 in (203 mm)
• Maximum Open Height 17–18 in
• Ram Stroke 11 in
• Approach Speed 100–150 ipm
• Press Speed 15–25 ipm
• Return Speed 100–150 ipm
• Main Motor 7.5 HP
• Hydraulic Pressure Approximately 2,500–3,000 psi
• Oil Reservoir Approximately 35–50 gal
• Machine Weight Approximately 7,500–9,000 lb (3,400–4,100 kg)

Features:

• Hydraulic dual-cylinder design
• Cincinnati CBII precision ram guidance
• CNC-ready hydraulic system

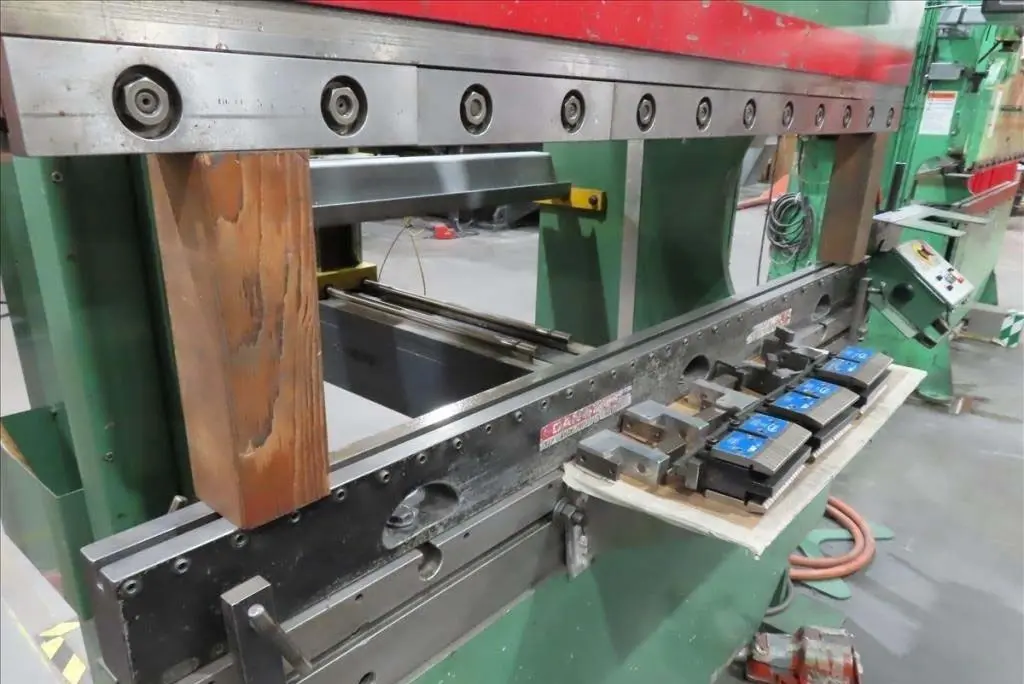

• American-style press brake tooling
• Mechanical ram stop adjustment
• Adjustable hydraulic pressure

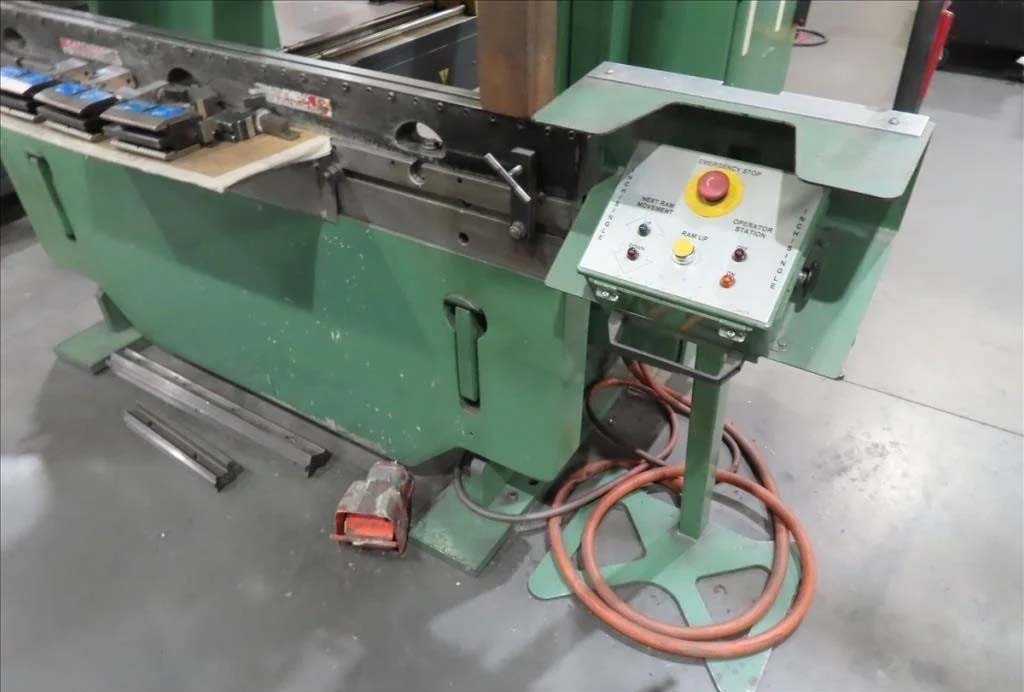

• Foot pedal operation

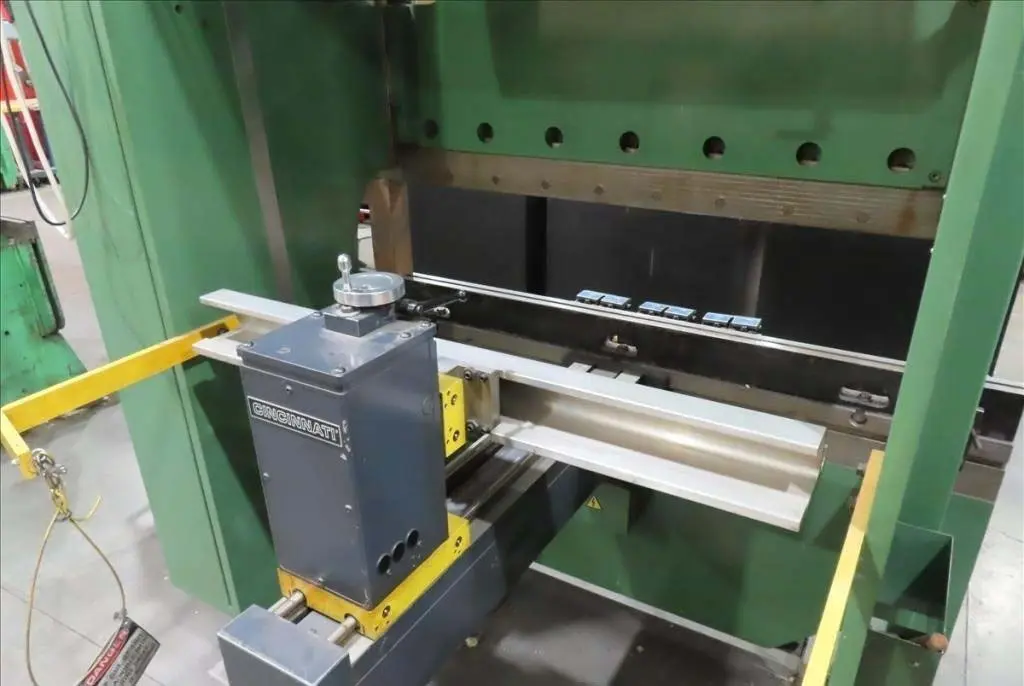

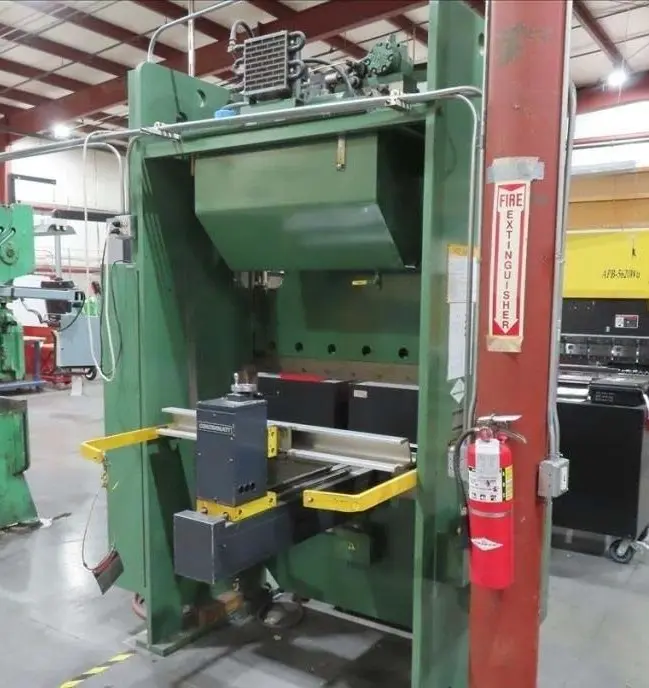

• Electric backgauge (if equipped)
• Precision-ground bed and ram
• Adjustable ram parallelism

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
