Holzher 7505 Dynestic 10.5_Push Edition (5' x 10')

Specifications

• 230V
• 3 Phase
• Mfg Year: 2017
• 5′ x 10.5′ Phenolic MATRIX Table for “Nested Base” Manufacturing.
• “X” Axis 121.8″ (3,705 mm), “Y” axis 61.45″ (1,561 mm), “Z” axis stroke is 12.4″ (317 mm).
• “X” & “Y” Axis 230 FPM (70 MPM), “Z” axis is 65 FPM (20 MPM).
• Flat table designed for “Nested Base Manufacturing”.
• (4) Pneumatically controlled reference stop pins with (3) in “Y” axis & (1) in “X” axis.
• 2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM; (18) independent vertical boring spindles with (12) spindles in the “X” axis & (6) spindles in the “Y” axis (typical – not verified).
• (6) Horizontal spindles with (2+2) in “X” axis & (1+1) in “Y” axis (typical – not verified).
• (1) “X” axis Saw for max 120 mm dia blade.
• (1) 15 HP (11 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 – 24,000 RPM.
• Linear ATC tool rack mounted to the machine base.
• PC Front-End with Holz-Her “CAMPUS V7” + Windows “7” operating system; 17″ Color monitor; standard keyboard, mouse & CD ROM for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement.

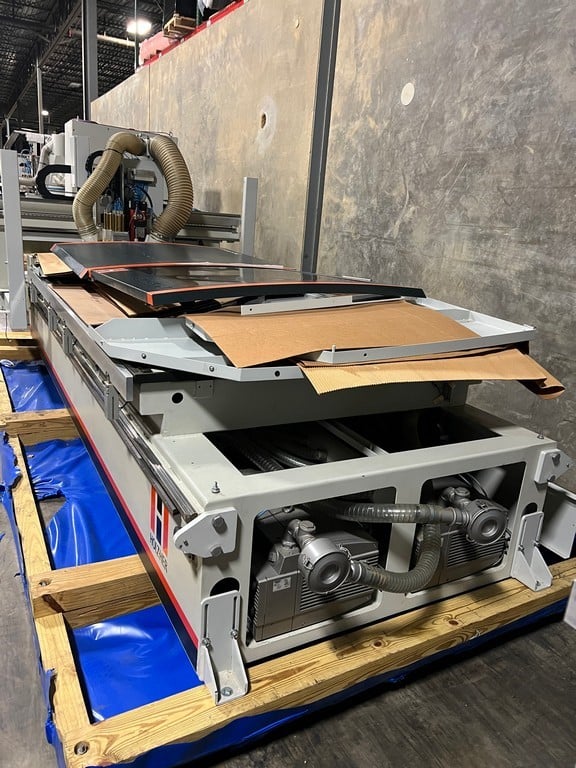

• (2) 250 m3/Hr BECKER Vacuum Pumps with ECO Vac Intelligent Vacuum that automatically turns on/off vacuum units in reference to required static negative pressure; “forced” lubrication system for guides & ball screw; sound absorbing protective head enclosure.

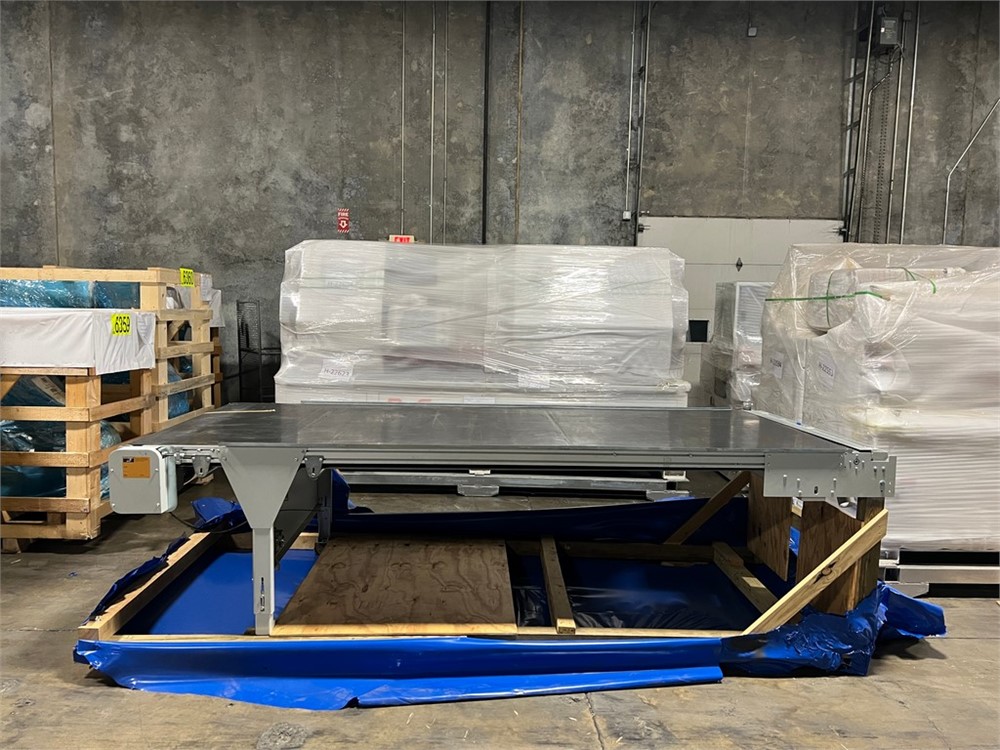

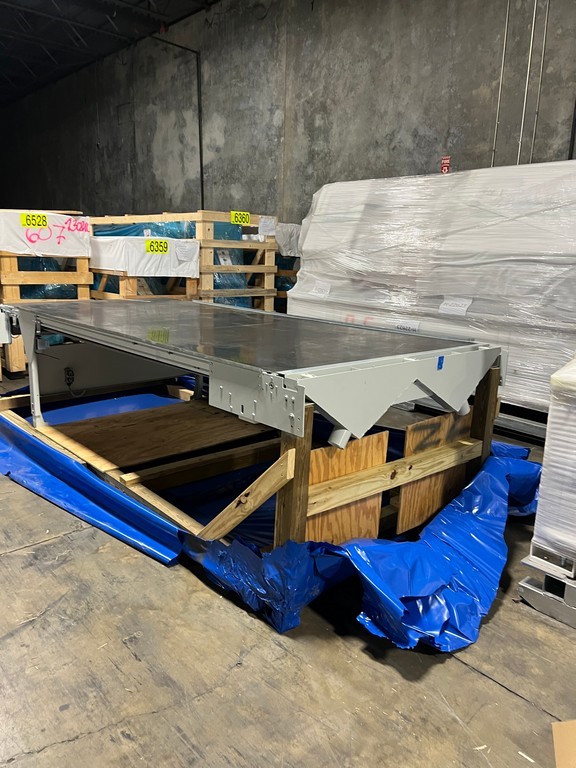

• Pusher/offload system, 63″ x 144″ Belt, Pusher/rake, vacuum evacuation for spoiler board, dust extraction from below

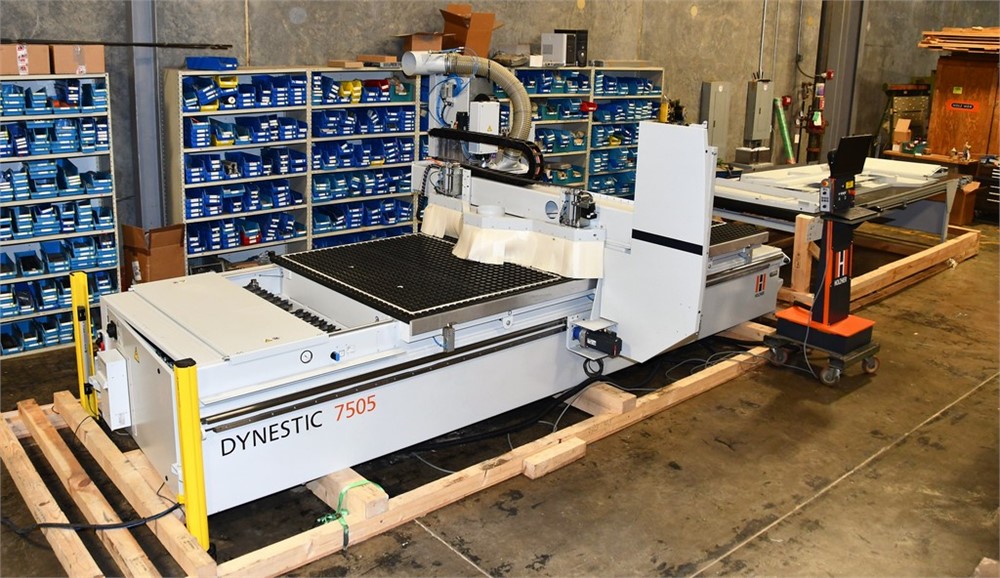

• Stock Photo for Main Product Image

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
