SKU: 425-23 CAD $40,000.00

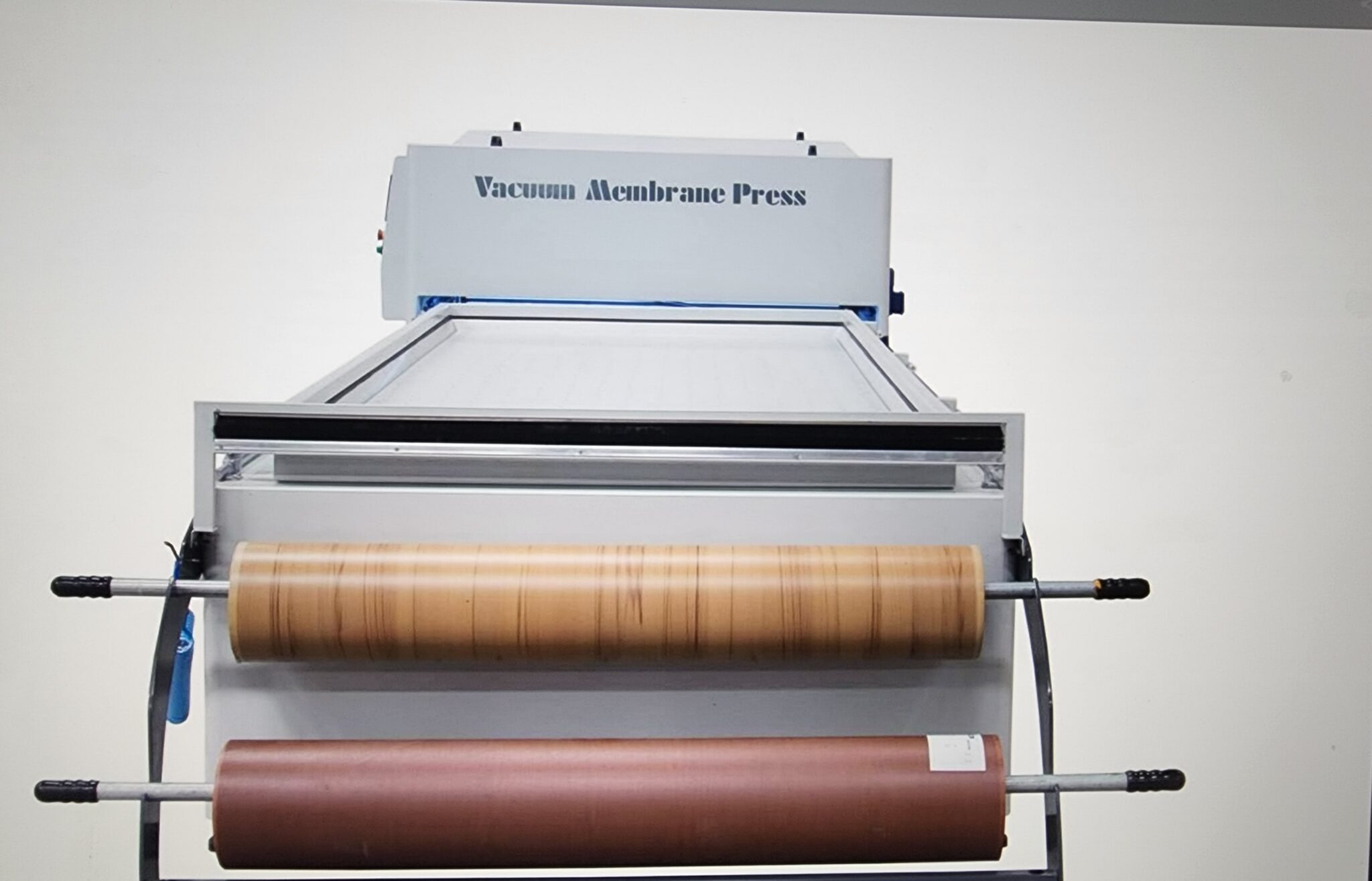

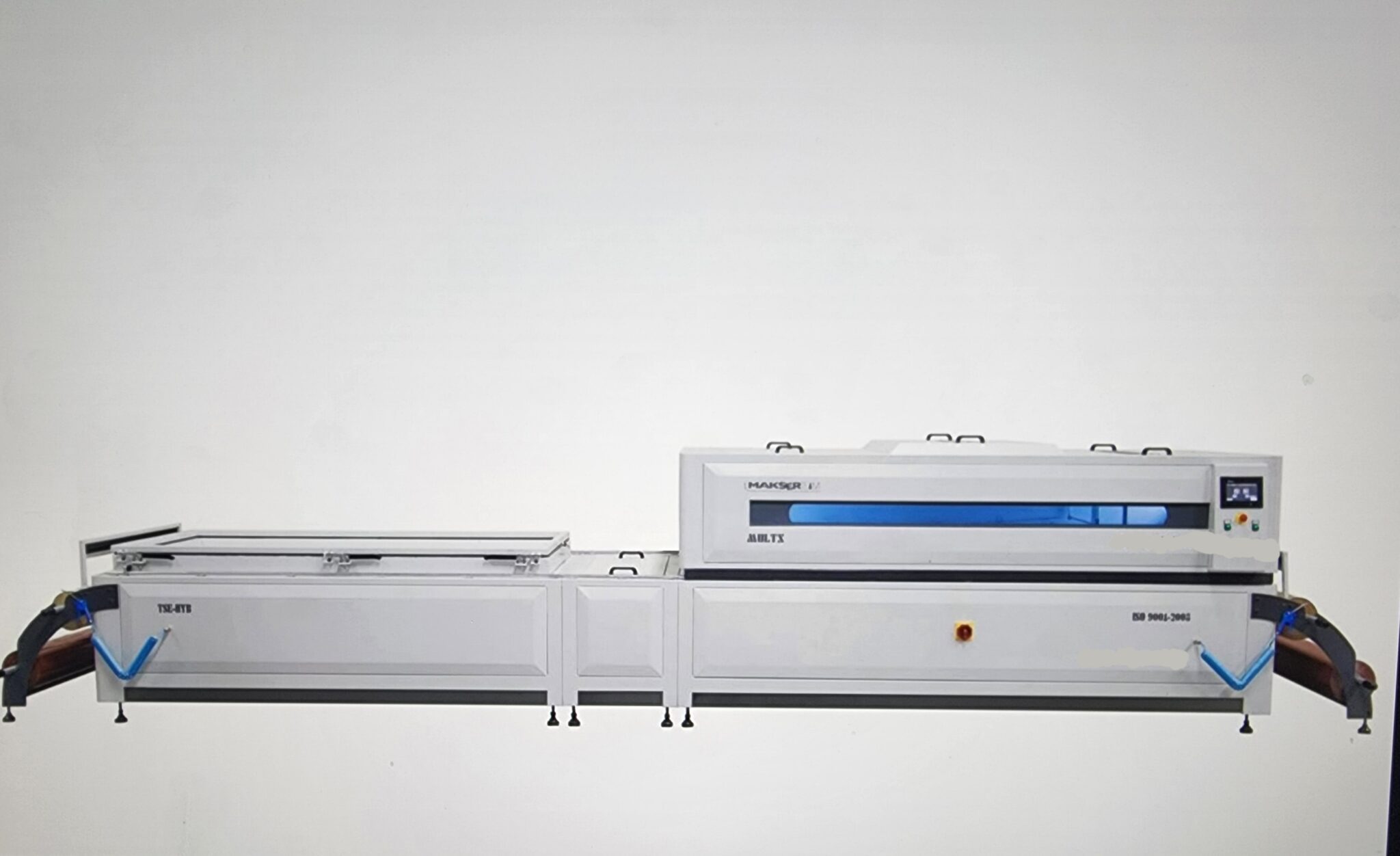

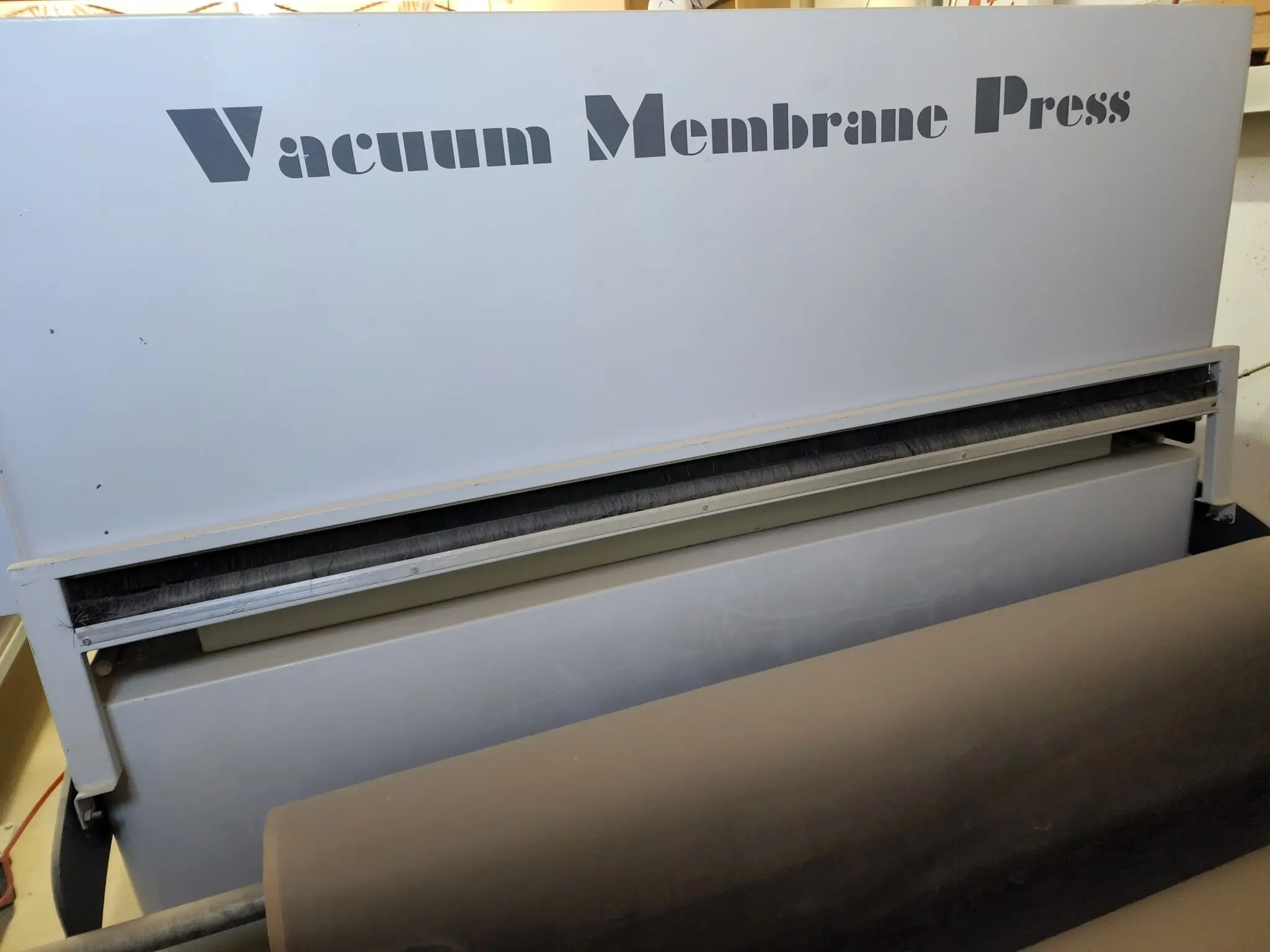

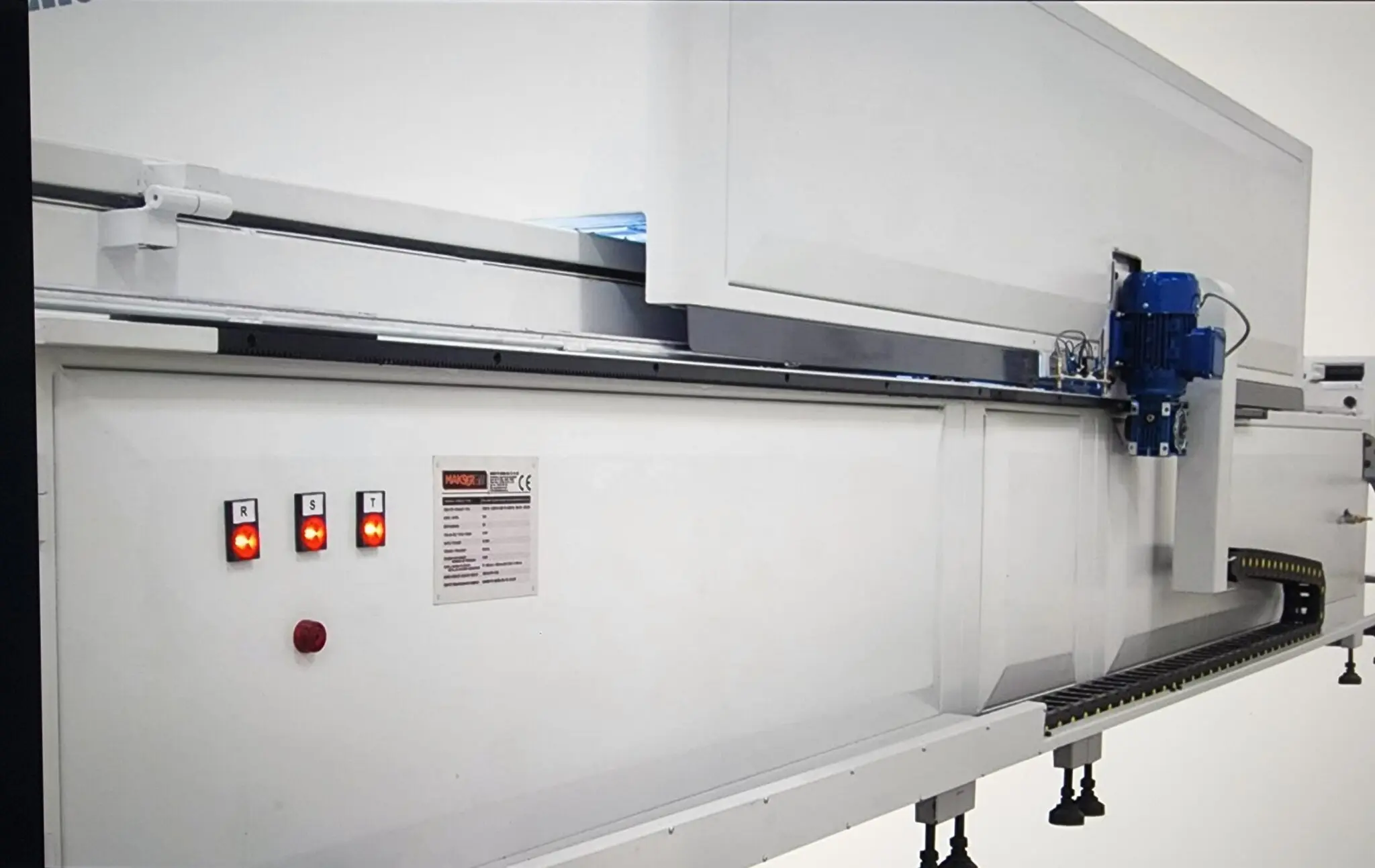

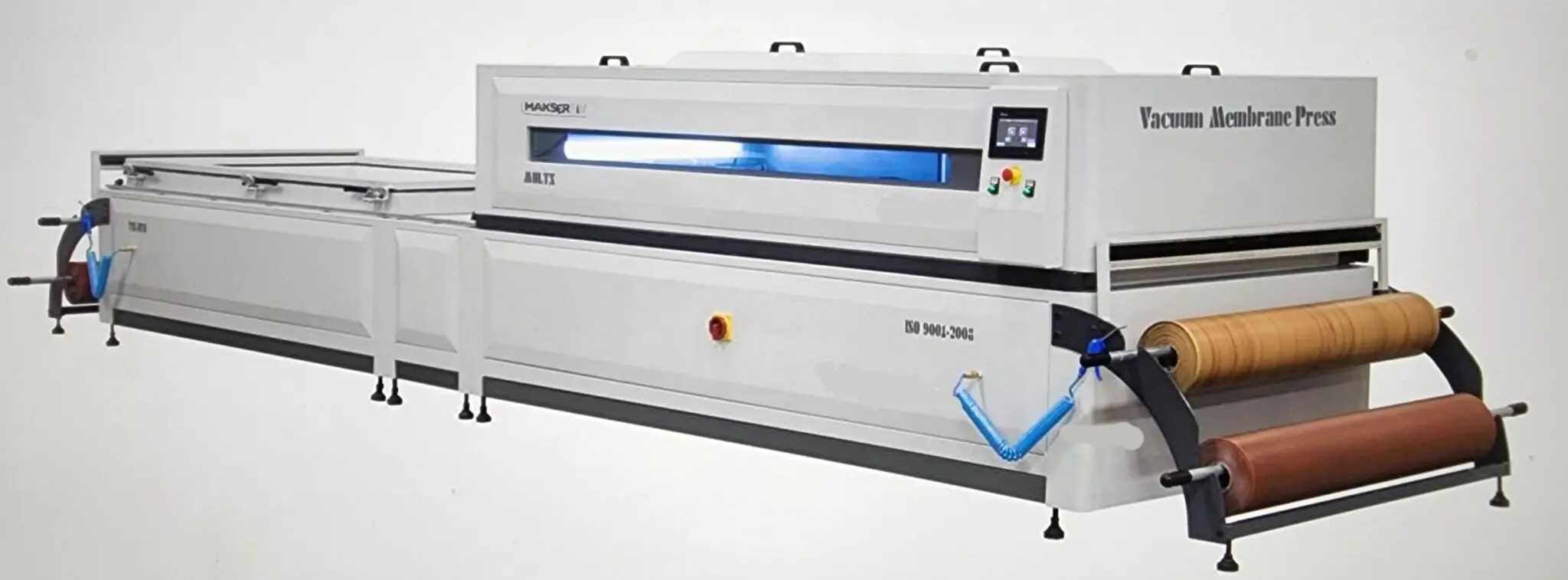

Makser Vacuum Press Wp 2 Otm

Specifications

  • Heating System Requirements: 220V 660 W
  • 620 mm Glass Tube Resistance
  • Electricity & Air Requirements: 380 V 30 KW  & 8 Bar Air
  • 3 Phase
  • Table 1 Dims: 1400mm x 2400mm – Depth:  75 mm
  • Table 2 Dims: 1400mm  x 3000mm – Depth: 45 mm
  • Vacuum System: 100 M3/Hour
  • Ulitmate Presure: 0.5 Bar
  • Heat Measurement Sensor Infrared Heat Sensor
  • PVC Loading Unit Special Design
  • Hardened Linear  Guide System

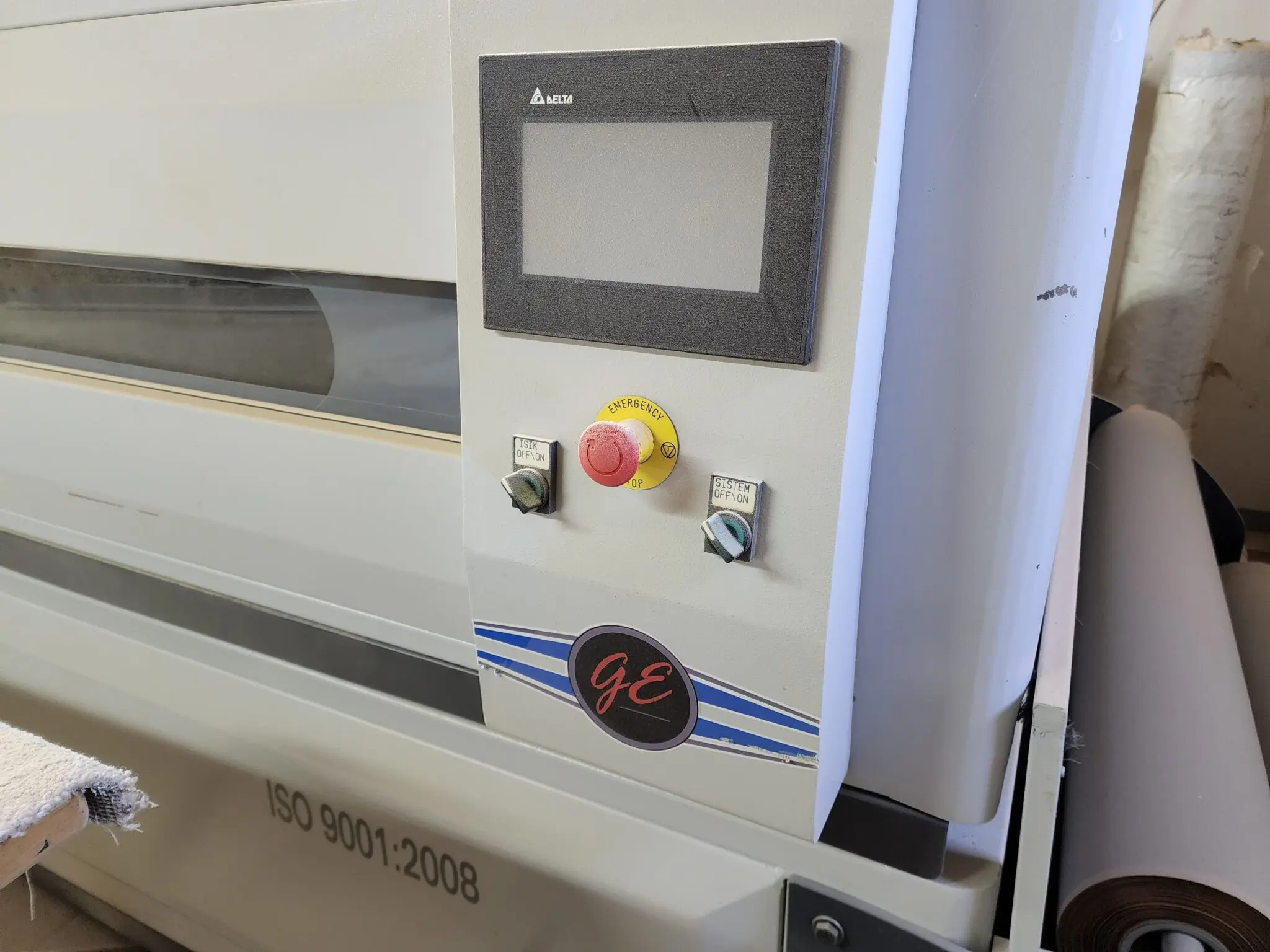

  • 7″ Touch Operator Panel
  • MOD2 20×20 Rack and Pinion Gear – Z:32 Gear System
  • Manual Table Frame
  • 0.37 KW 1400 DD R:1/10 S40 Turbine Motor
  • 3-4 Minutes Operating Time
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.





Weight 1587.57 lbs
Dimensions 228 × 70 × 78 in
