SKU: 535-20

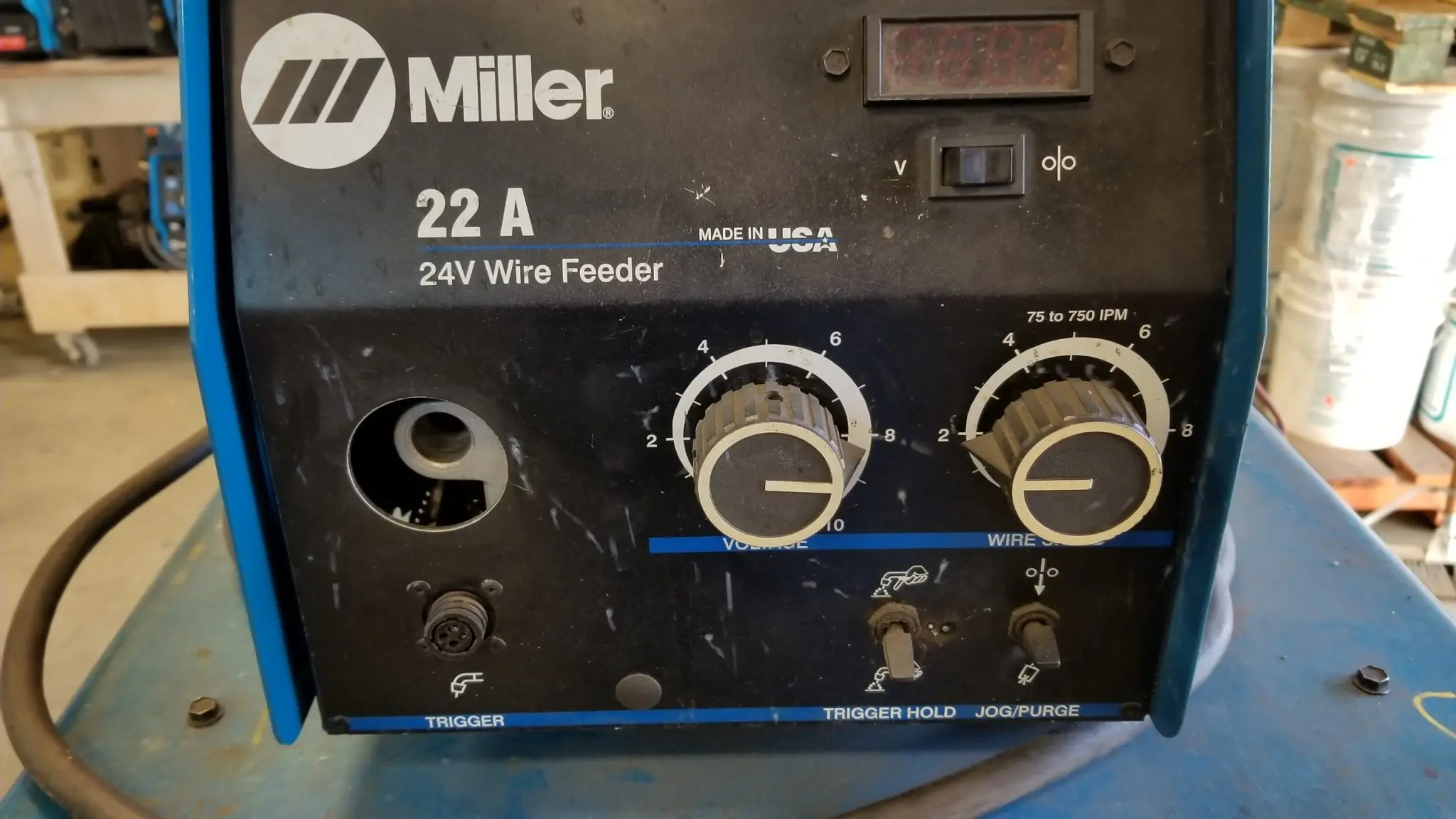

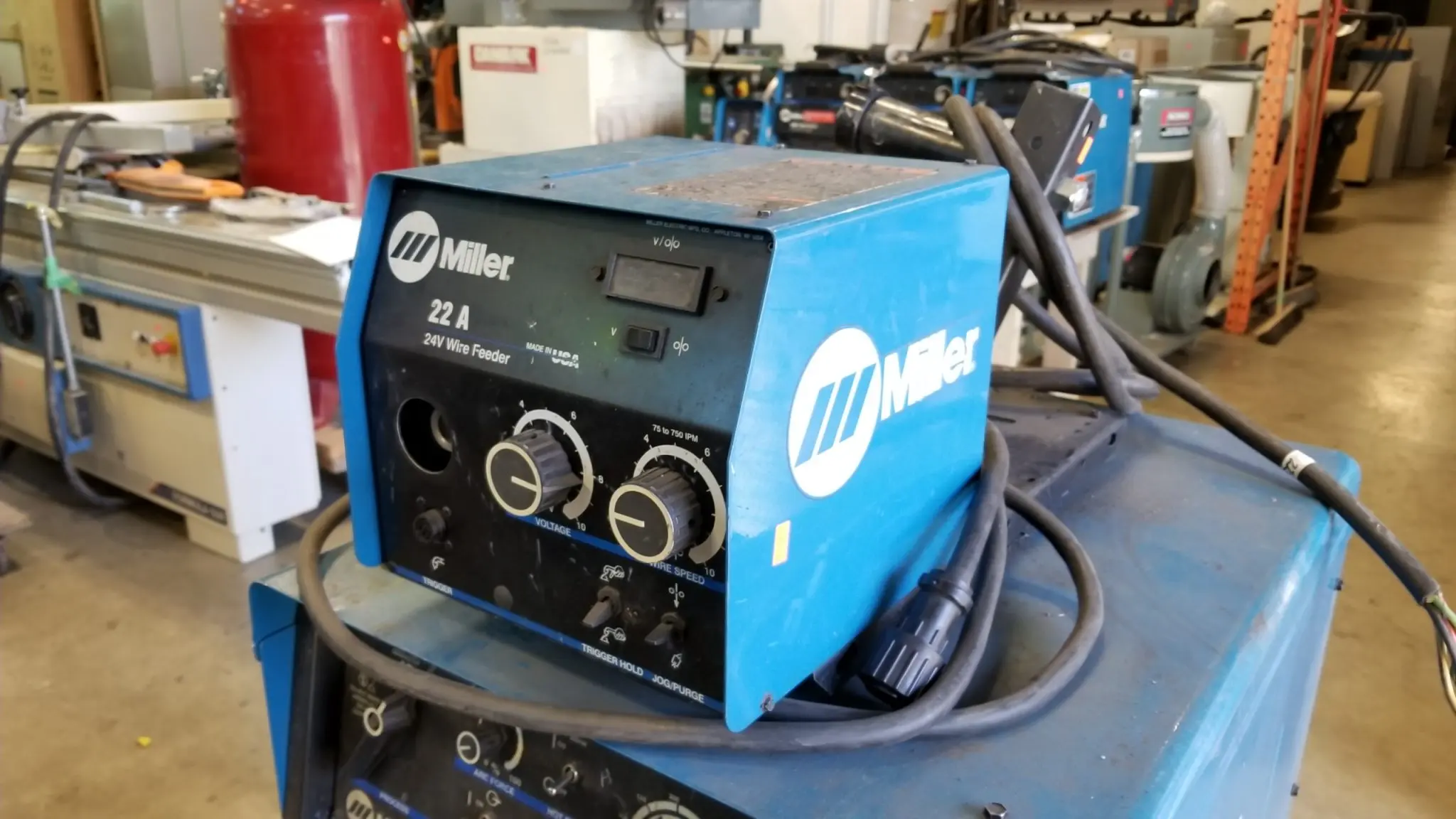

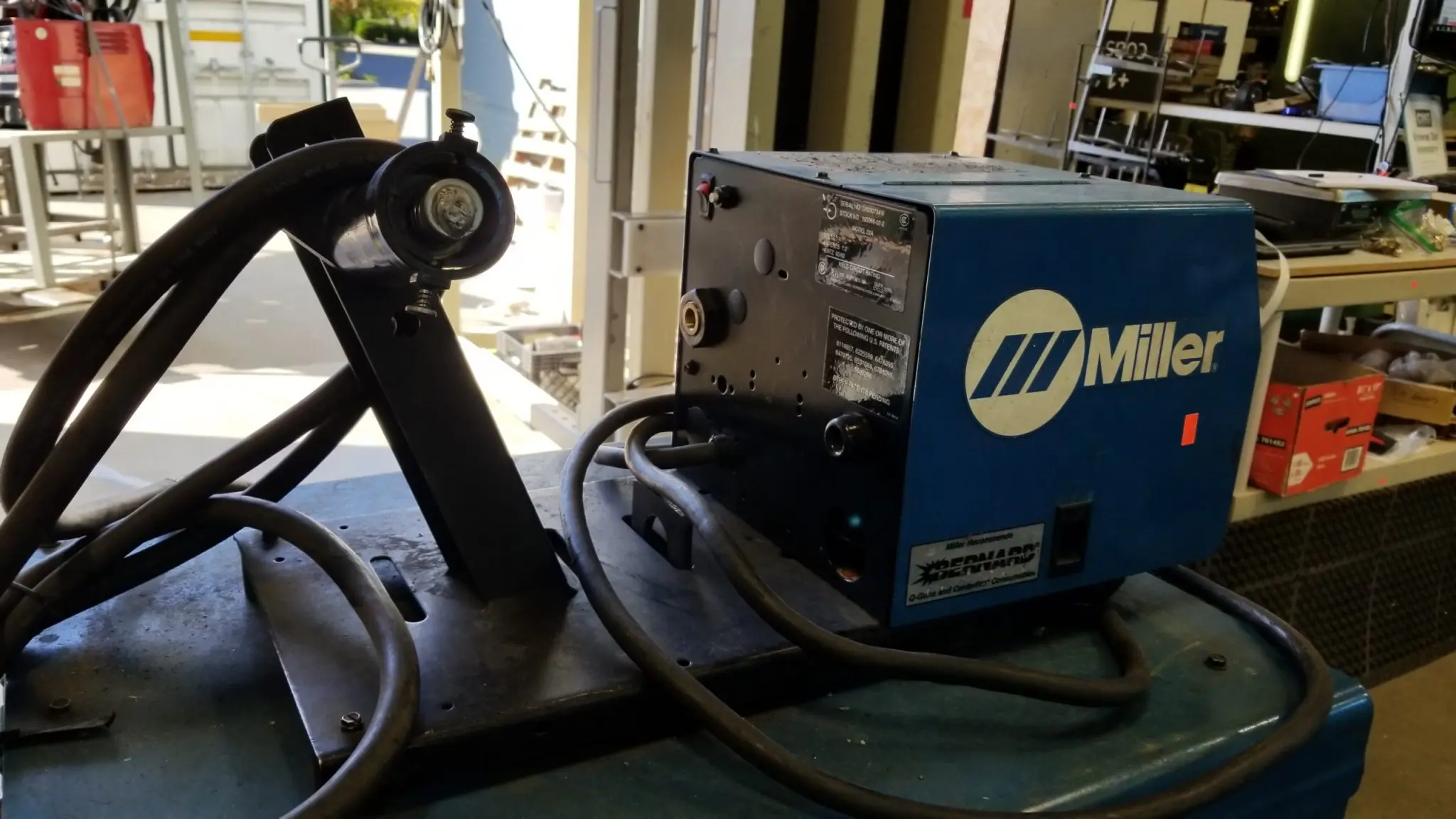

Miller 22A 24V Wirefeeder

Out of Stock But wait, we have similar products

Miller’s 22A  wire feeders are simple & cost-effective feeders for industrial manufacturing and fabricating.

Processes:

• MIG & Flux-Cored

22A Features:

• Wire feed speed range is 75 –750 IPM! This offers a wider operating range than the competition

• Trigger hold control allows operator to make long extended welds without having to hold gun trigger

• Gear-driven drive rolls offer smooth, positive and accurate wire feed with long, uninterrupted service life. 24A has four drive rolls for larger wire diameters

• On-board burnback and motor ramp control offers unmatched starting and stopping performance on a variety of power sources. This helps to ensure positive arc starting performance

• 16-gauge sheet metal housing is robust in rough service applications and less prone to damage

• Remote voltage control is standard on 24A. Parameter adjustments can be made in weld cell or at a remote location. Optional for 22A

• Adjustable run-in control is standard on 24A for better arc-starting performance on a variety of wires. Optional for 22A

Quick Specs:

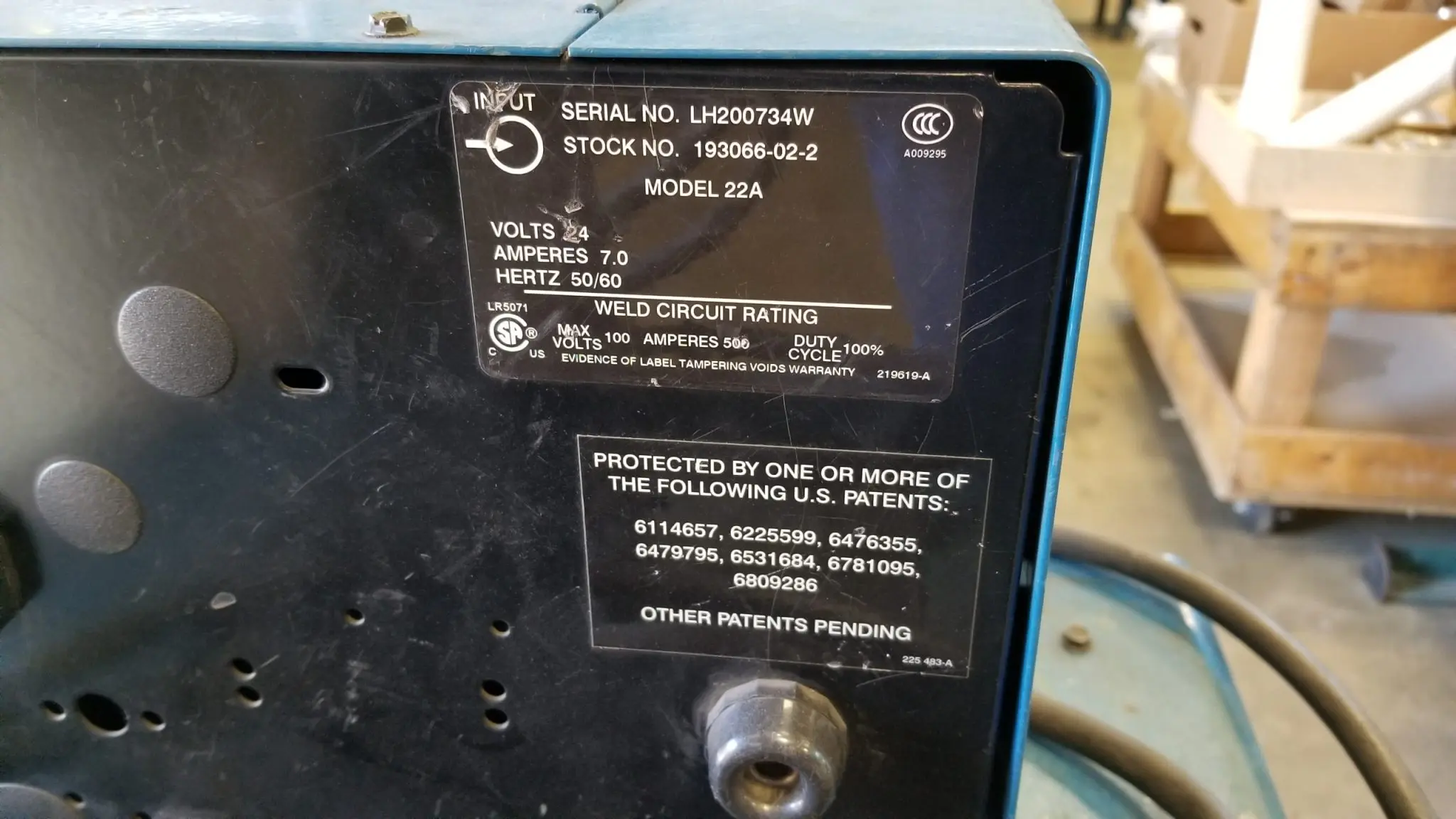

• Input Power: 24 VAC, 7 A, 50/60 Hz

• Wire Diameter Capacity: 22A – .023-5/64″
• Wire Feed Speed: 75-750 IPM

• Weight: 22A – 36lbs

• Dimensions: 11″ H x 10.75″ W x 23.5″ D

• Max Spool Size Capacity: 60 lb coil *



Please call for more information.

Weight 7.26 lbs
Dimensions 11 × 10.75 × 23.5 in
