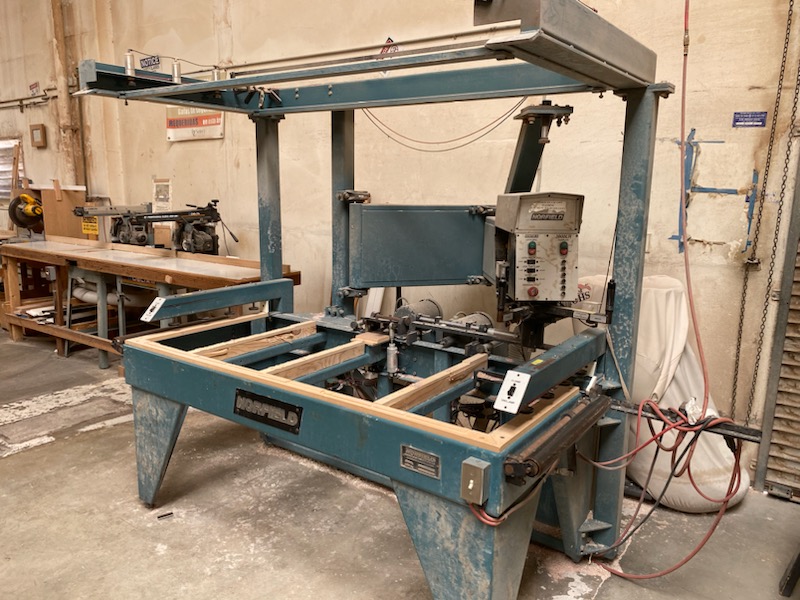

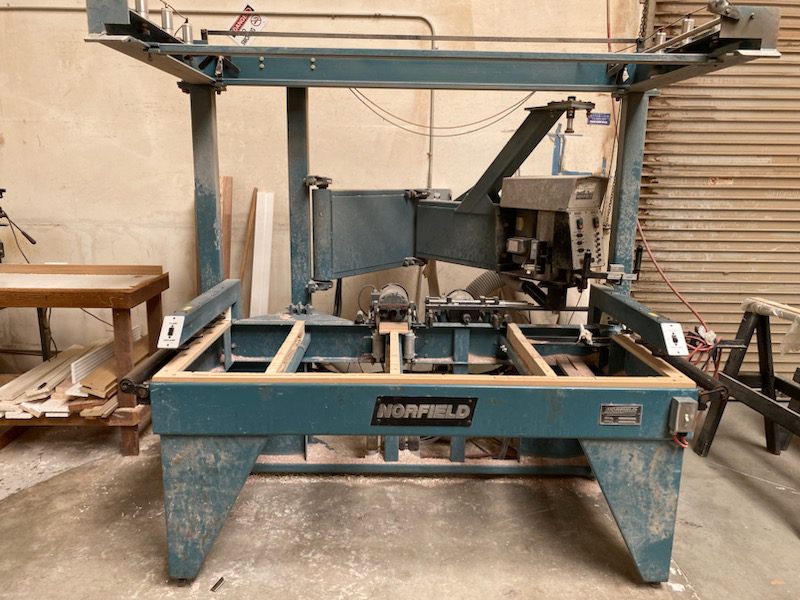

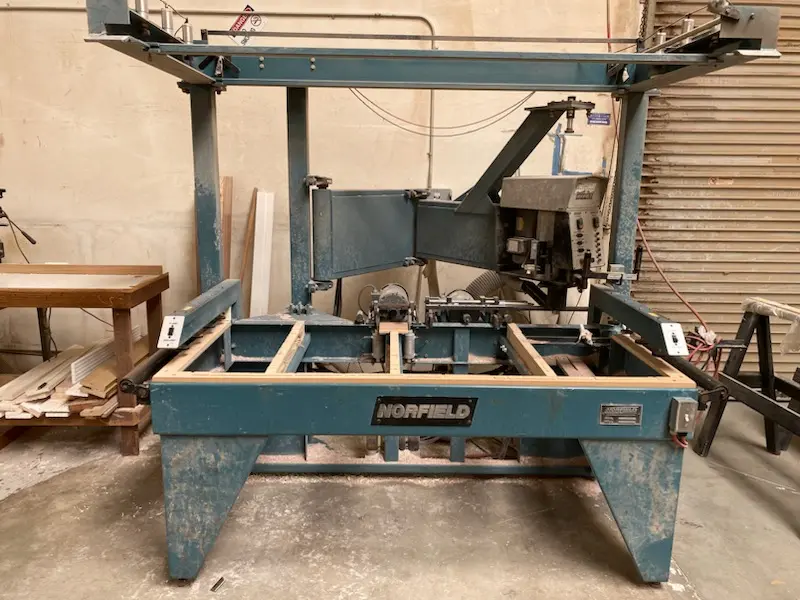

Norfield 3800 LRO Door Lite Machine

Specifications

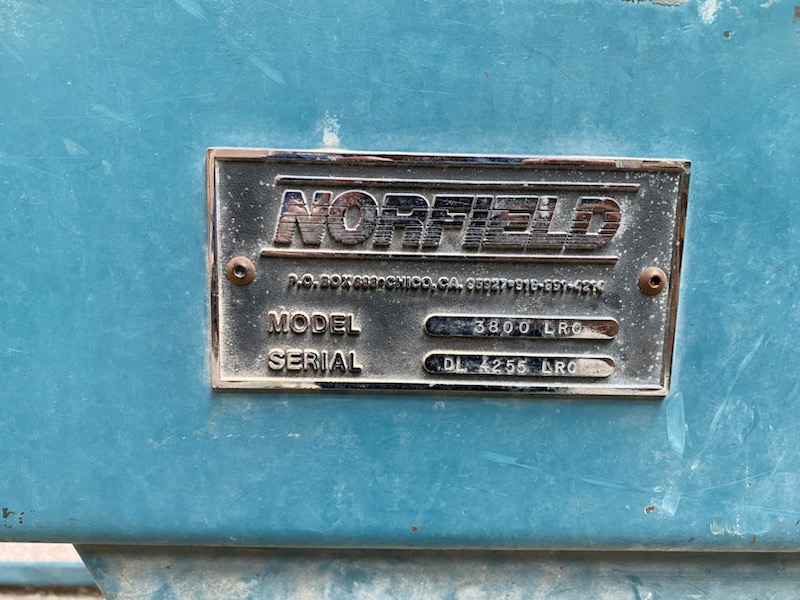

• S/N: DL 4255 LRO
• 208V /230V
• 3 Phase
• Process steel, fiberglass or wood doors.
• Cut any lite shape and prep for single or double lock. Compactmachine footprint saves shop space.
• Adjustable RPM speed control accommodates both wood and metal cutting
• Door width up to 3’0”
• Door height up to 8’0”* *May require re positioning
• Door thickness 1-3/8” to 1-3/4”
• Lock bore sizes 1-1/2”, 1-5/8”, 1-3/4”, 2-1/8”
• Lock backset 2-3/8” & 2-3/4”
• Faceplate width up to 1-1/8”
• Faceplate length up to 2-1/2”
• Steel door skin thickness up to 18 gauge (18 gauge requires 2 passes)
• Pneumatic 3 CFM @ 90 PSI

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
