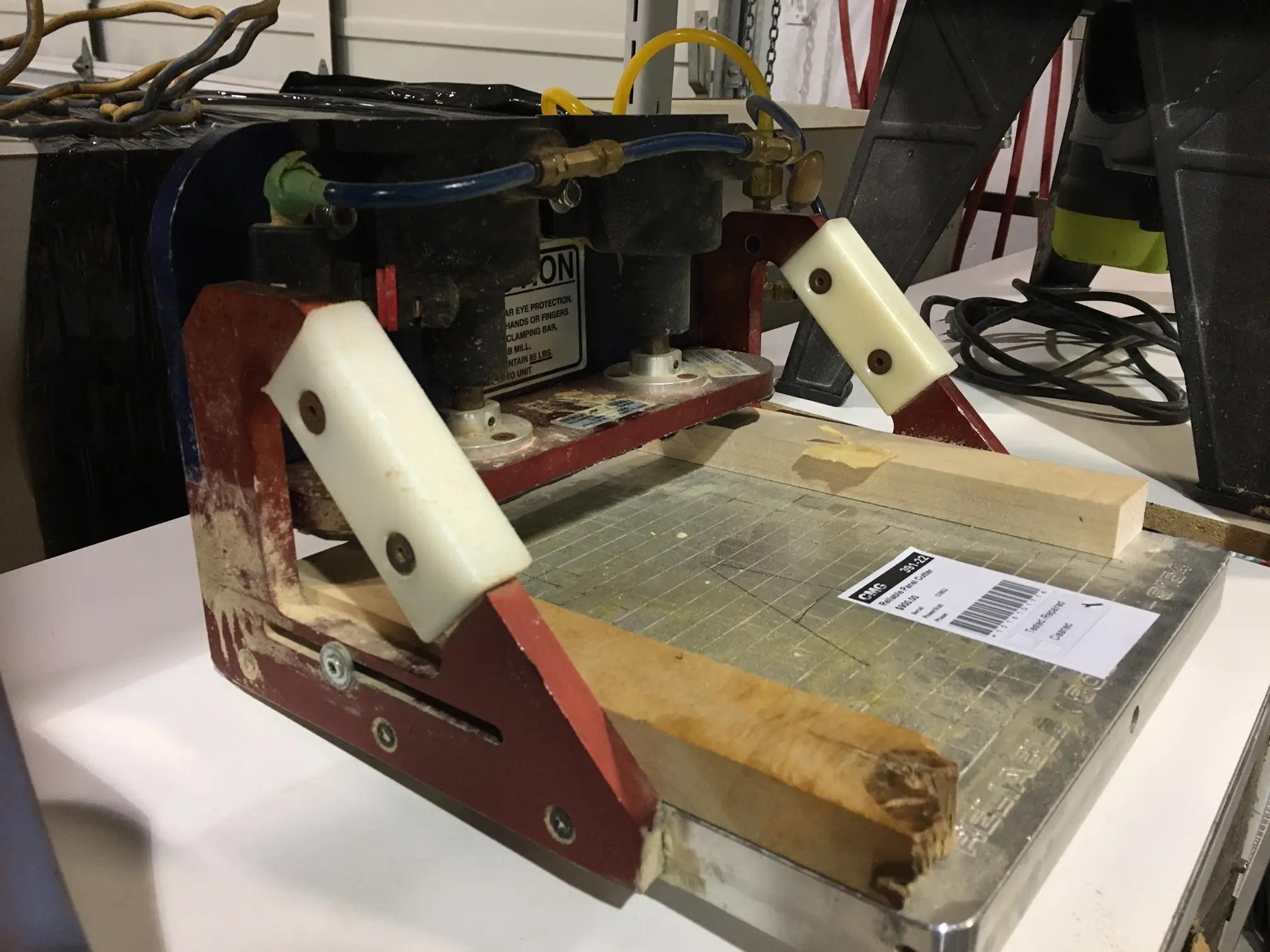

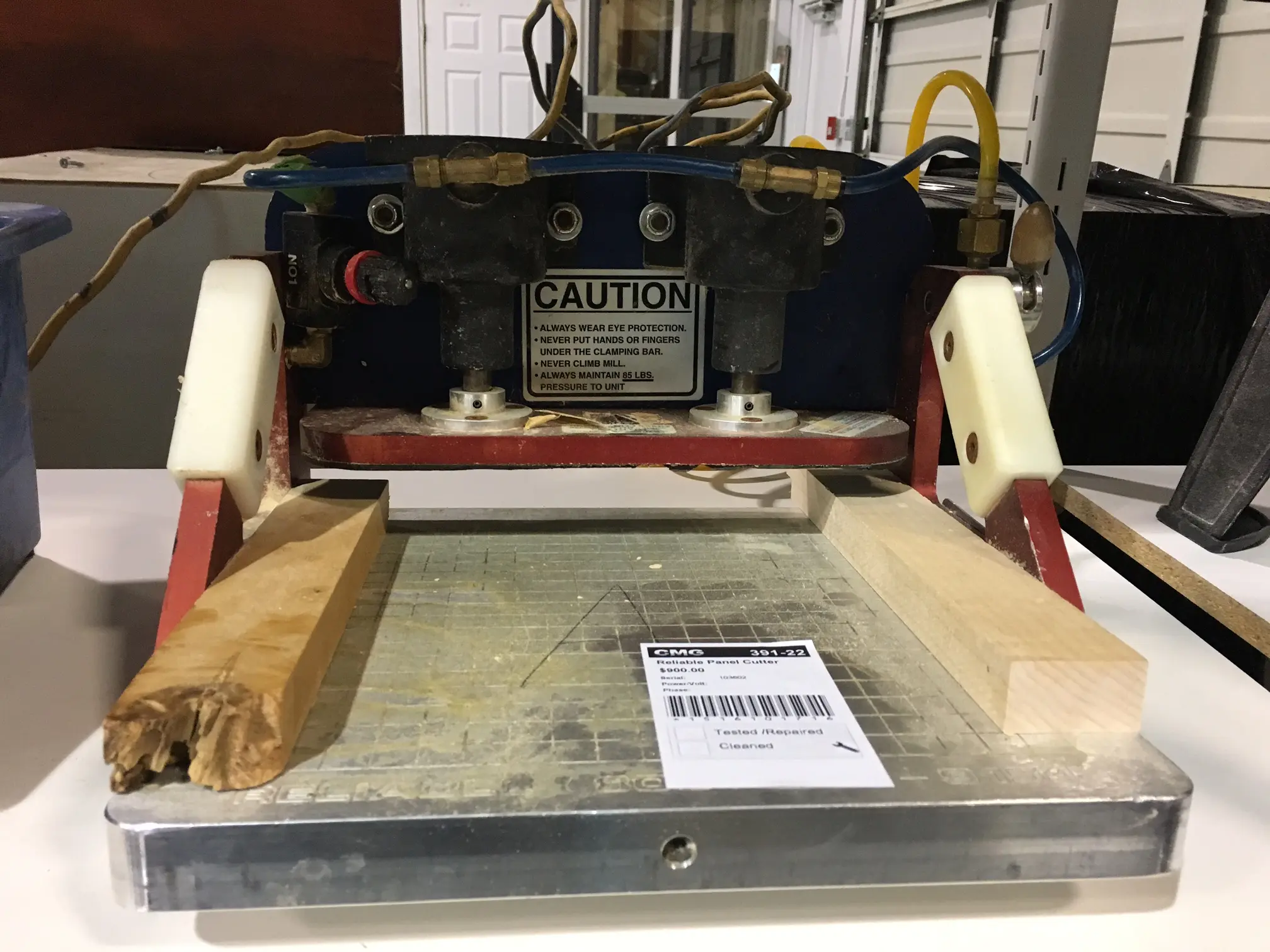

Reliable 11.5″ CC-10 Copecrafter

Manufacturer Description:
The original COPECRAFTER was designed by RELIABLE to complement the PANELCRAFTER for the shop that is attempting to obtain higher production. Tenoning has always presented a holding problem, as the material to be cut is invariable narrow and cross grained.
The Copecrafter comes equipped with two clamping cylinders for superior holding.

TWO methods of guiding the Copecrafter in a longitudinal plane across the shaper table:

1. A straight, Plexiglas template to guide on the vertical wood shaper fence or rub collar.
2. A 3/4″ wide steel bar that attaches to the base of the Copecrafter with two allen cap screws to guide in the miter slot on the saper table top.

Additional Information:

• Max. Width material clamping: 11-1/2″
• Max. Height material clamping: 2″
• 2 Clamping Cylinders
• Free Air Required: 1.0 CFM
• Air Flotation
• Weight: 31 lbs.
• 90-110 PSI
