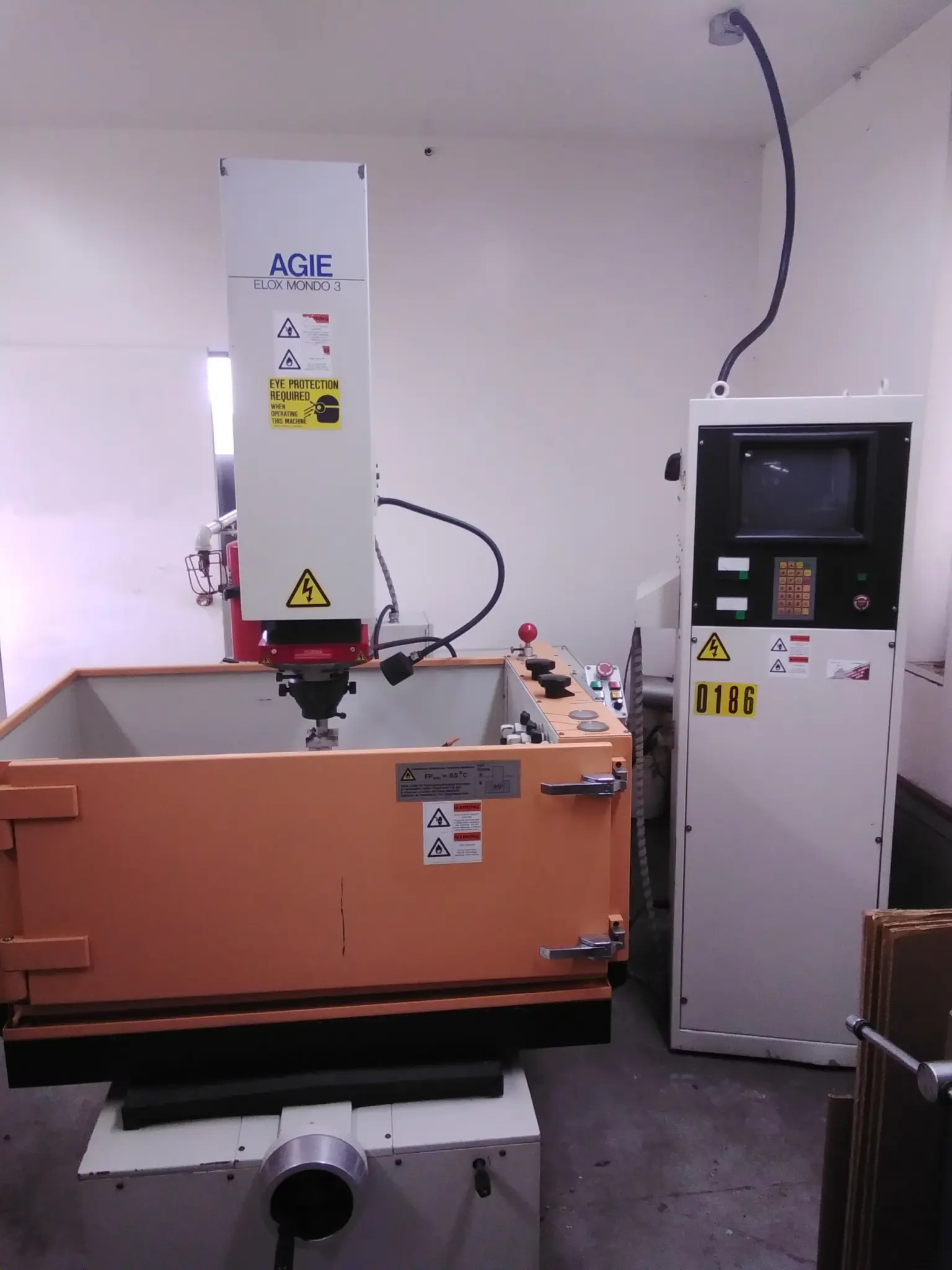

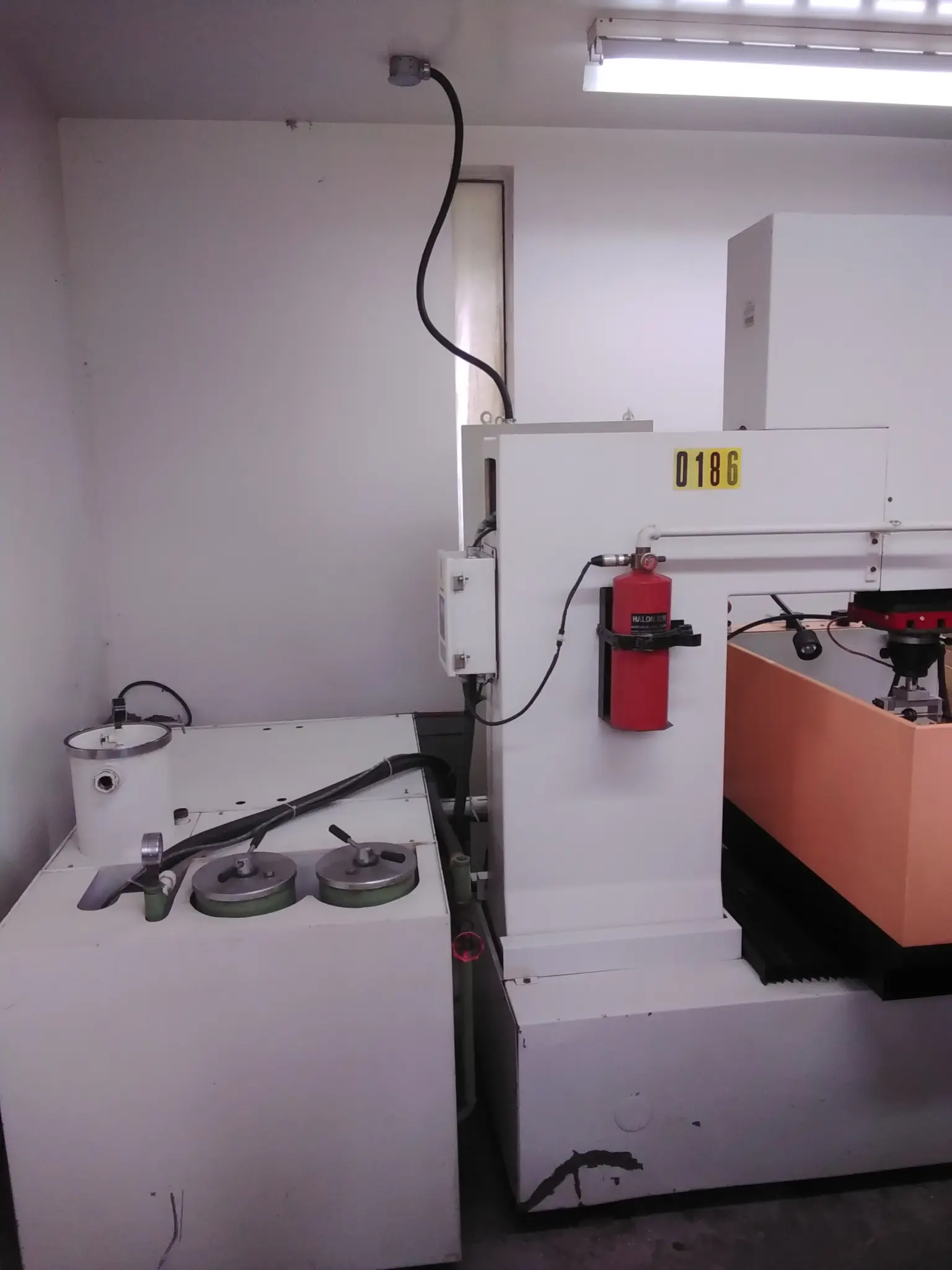

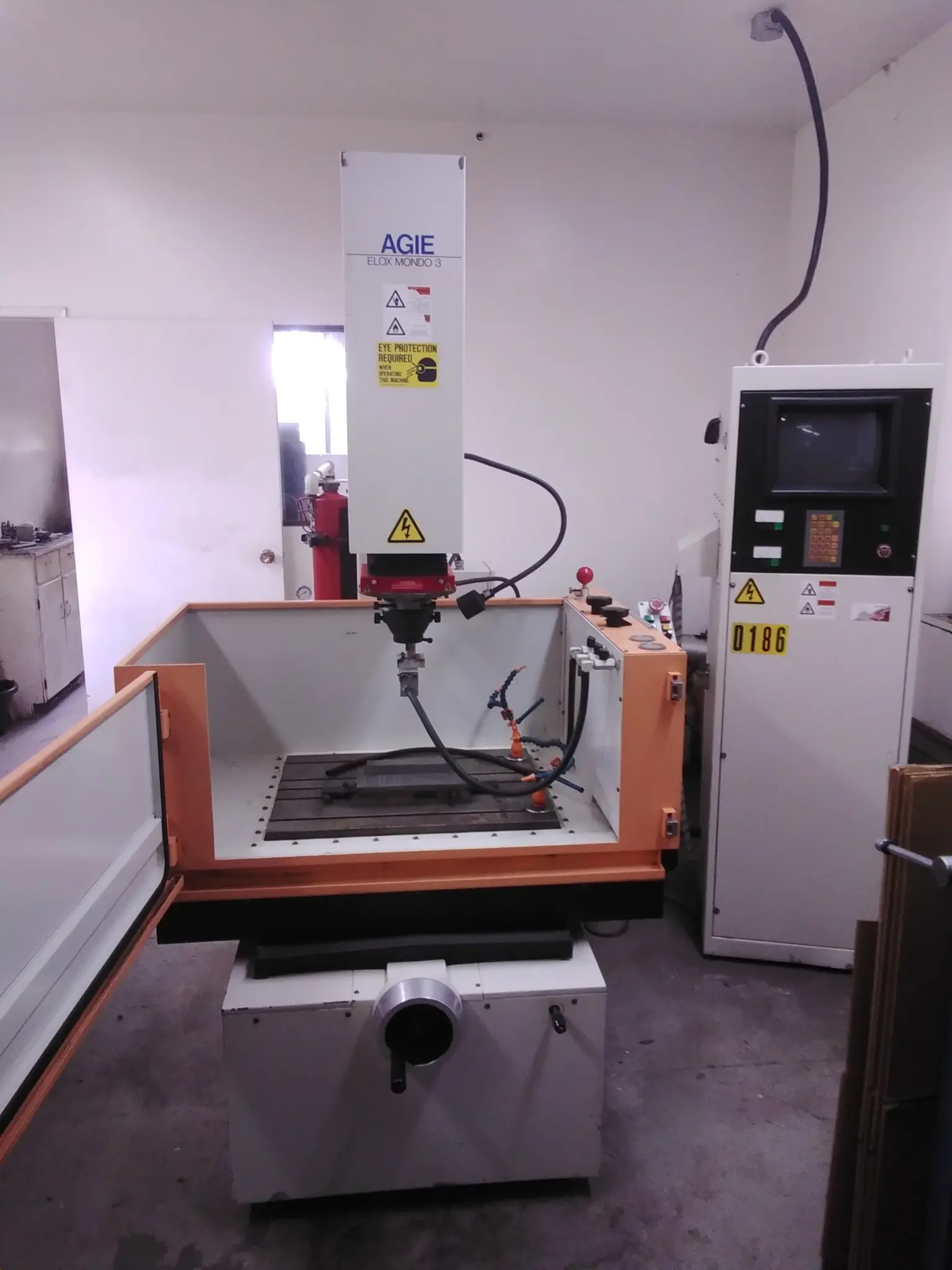

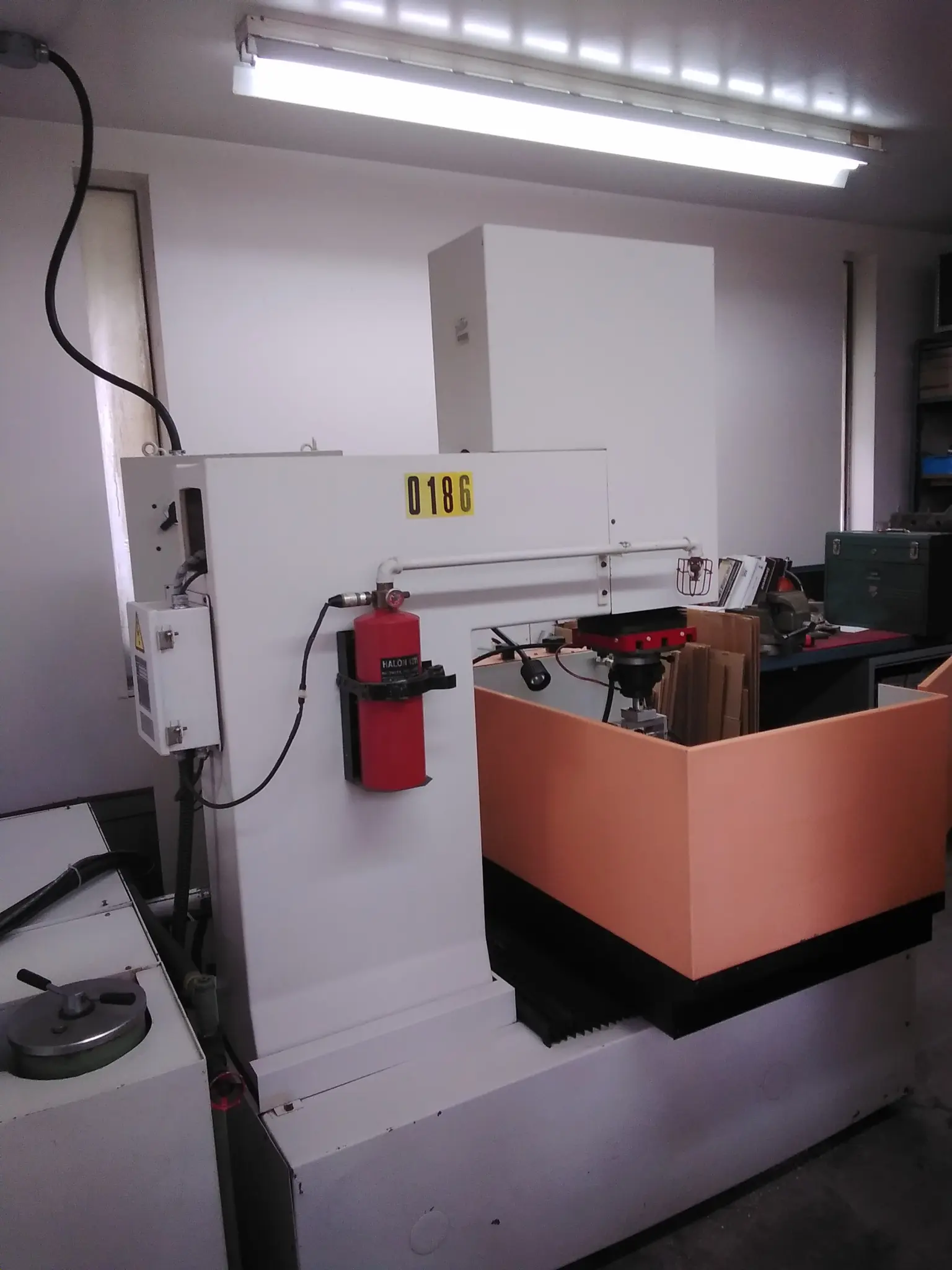

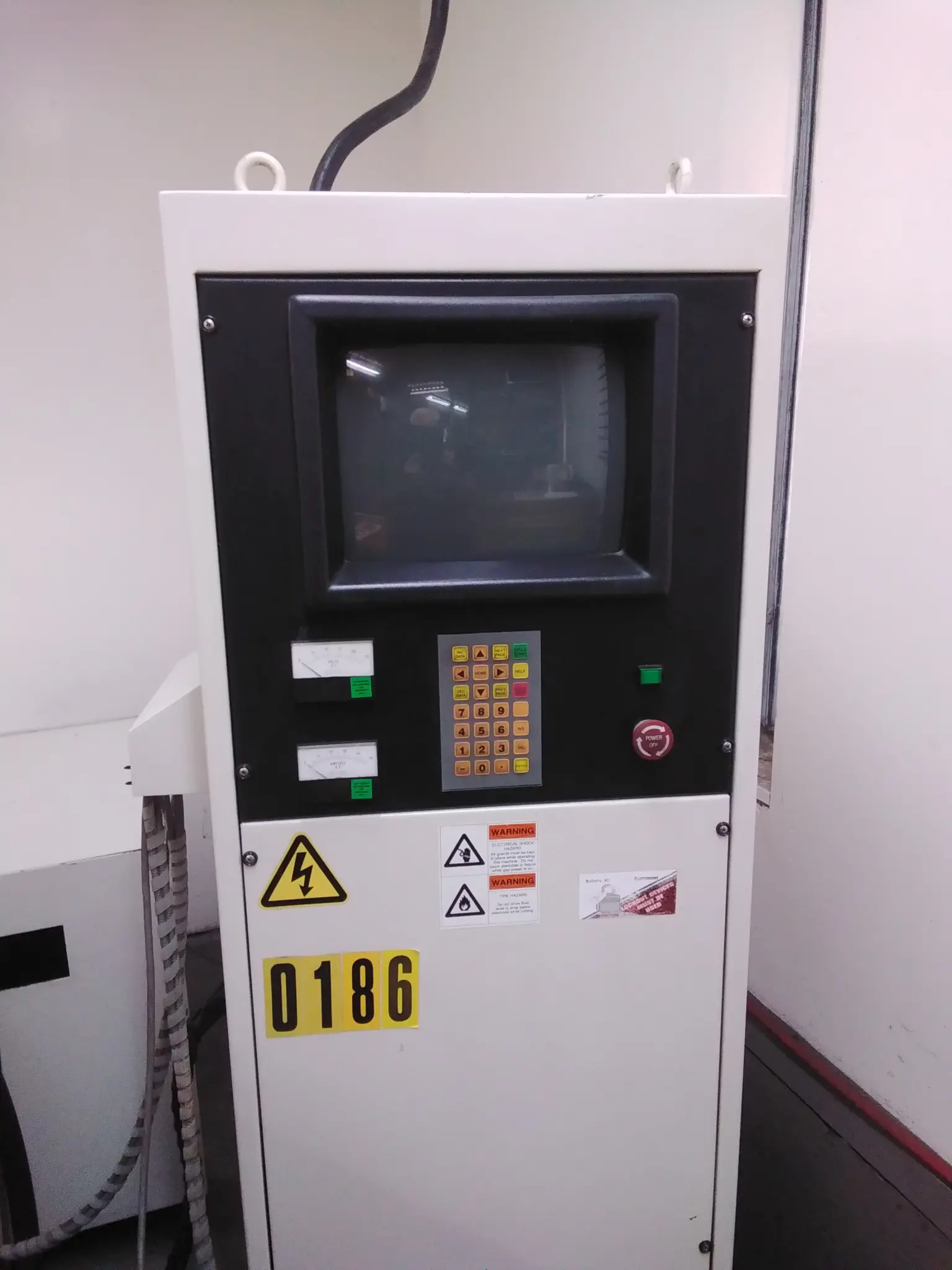

Agie Elox Mondo 3 EDM 50 Amps

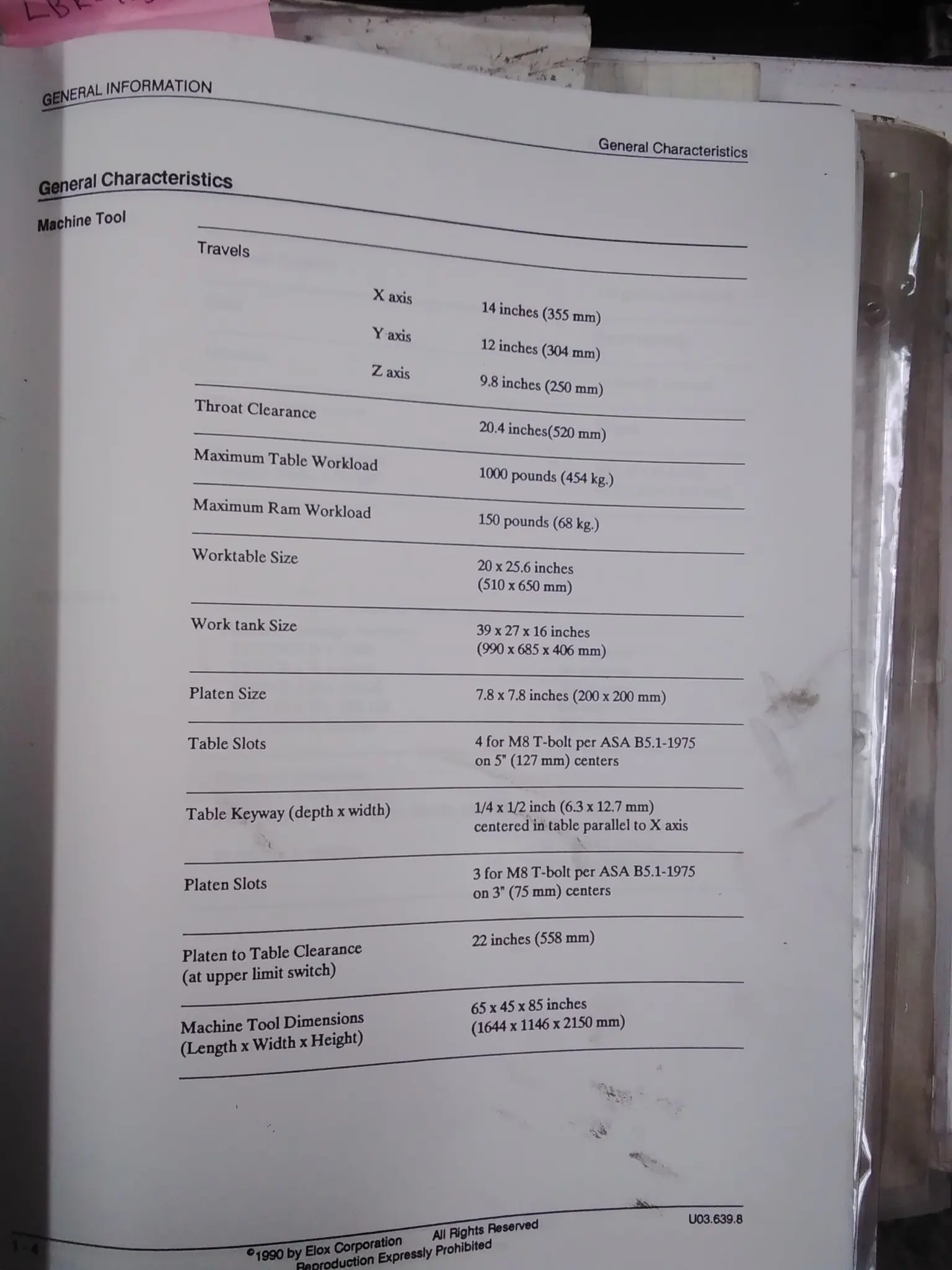

Specifications

Model: Futura II

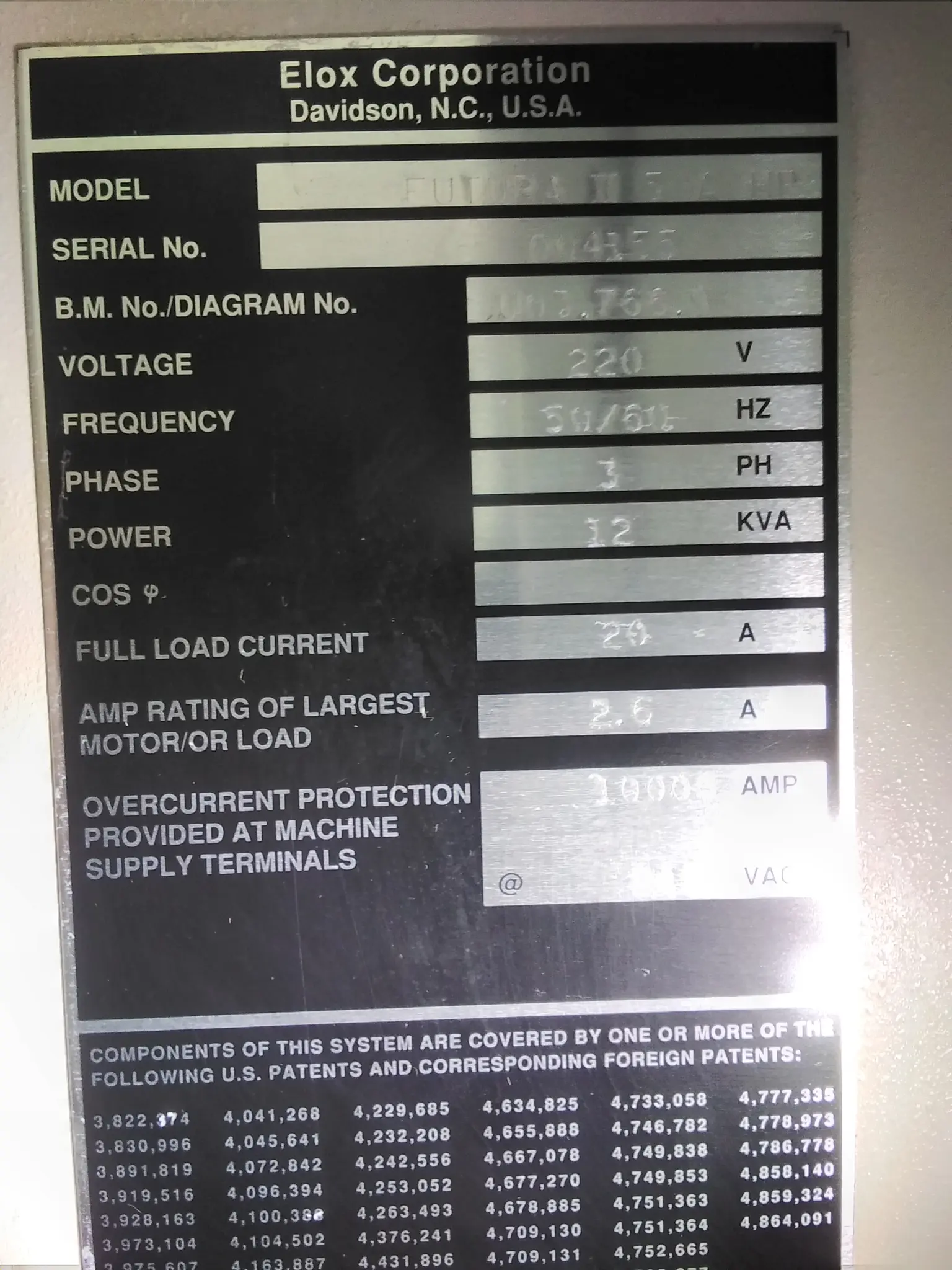

• 220V
• 3 Phase
• Travels:
• X Axis: 14″
• Y Axis: 12″
• Z Axis: 9.8″
• Throat Clearance: 20.4″
• Max Table Workload: 1000 lbs
• Max Ram Workload: 150 lbs
• Worktable Size: 20 x 25.6″
• Work Tank Size: 39″ x 27″ x 16″
• Platen Size: 7.8 x 7.8″
• Table Slots: 4 for M8 T-bolt per ASA B5.1-1975 on 5″ centers
• Table Keyway (depth x width) 1/4″ x 1/2″  centered in table parallel to X axis
• Platen Slots: 3 for M8 T-bolt ASA B5.1-1975 on 3″ centers
• Platen to Table Clearance:(at upper limits switch)  22″
• Machine Tool Dimensions: 65″ x 45″ x 85″

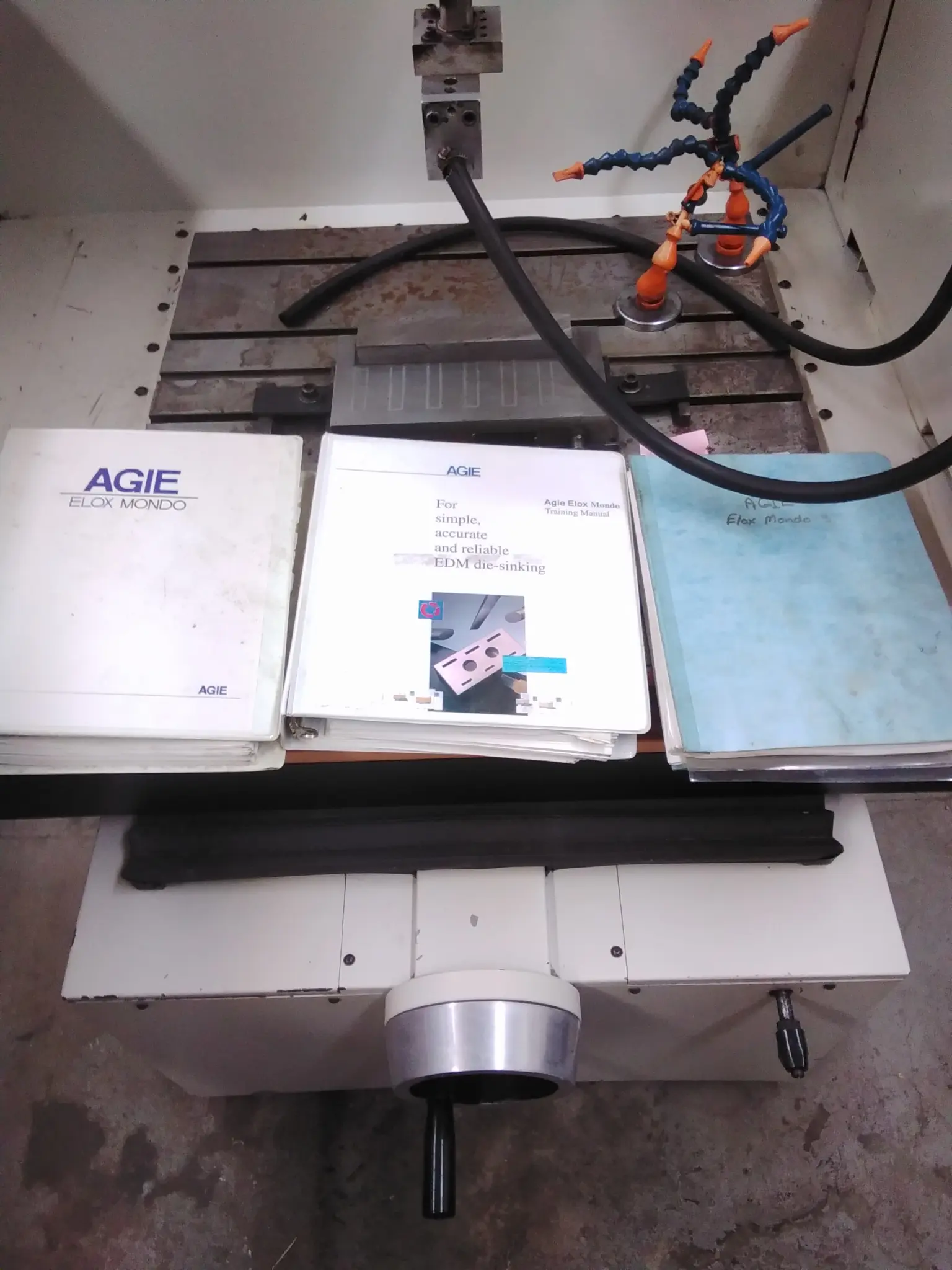

• Comes with Manuals
• Low Use

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
