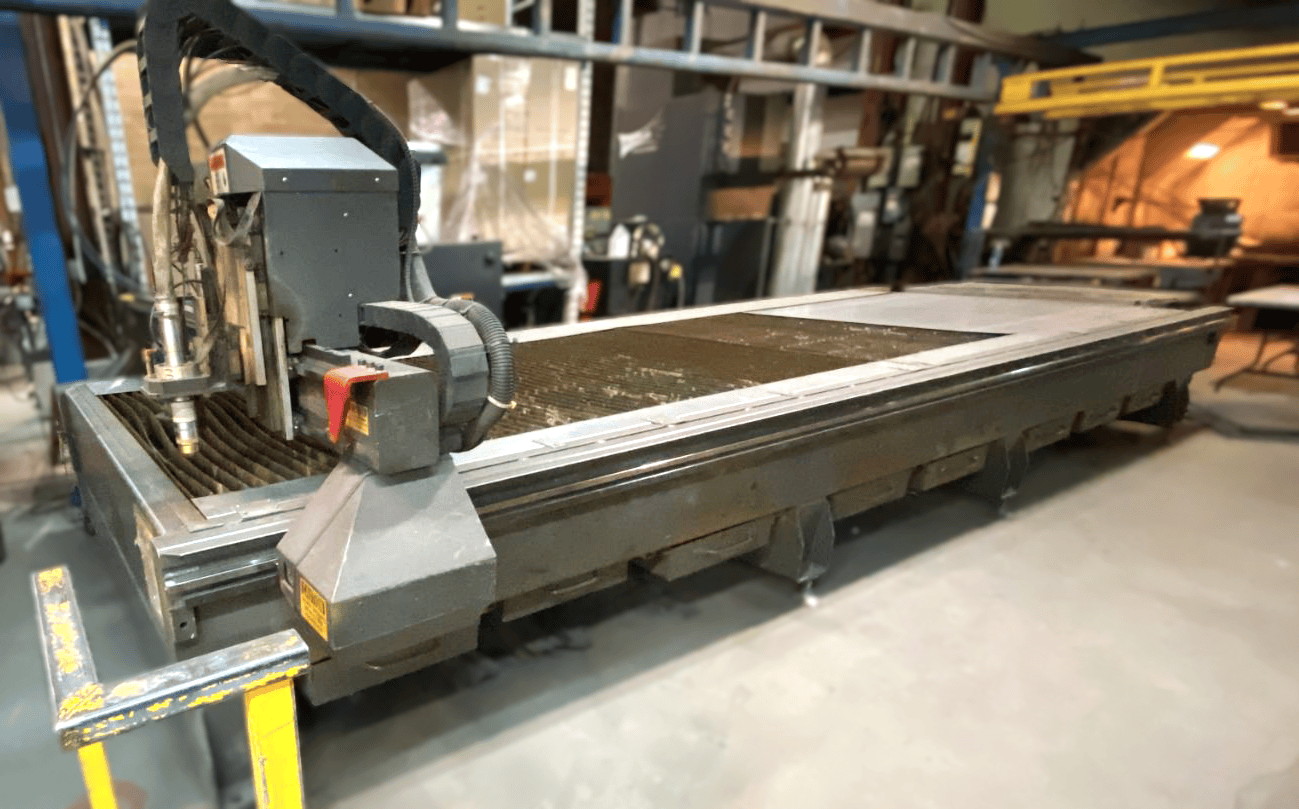

Multicam 3000 CNC Plasma

Information:

• Multicam Plasma CNC
• Includes Plasma system
• Micro Air filtration
• Power 460V (transformer available for any
• 3-phase
• Table Size: 5′ × 12′ (60″ × 144″)
• X Travel: 144″
• Y Travel: 60″
• Z Travel: 6″
• Drive System Brushless AC servo, rack & pinion
• Rapid Traverse Up to 2,300 IPM
• Cutting Speed Up to 1,000 IPM
• Repeatability ±0.001″
• Control MultiCam EZ Control
• Torch Height Control Automatic THC

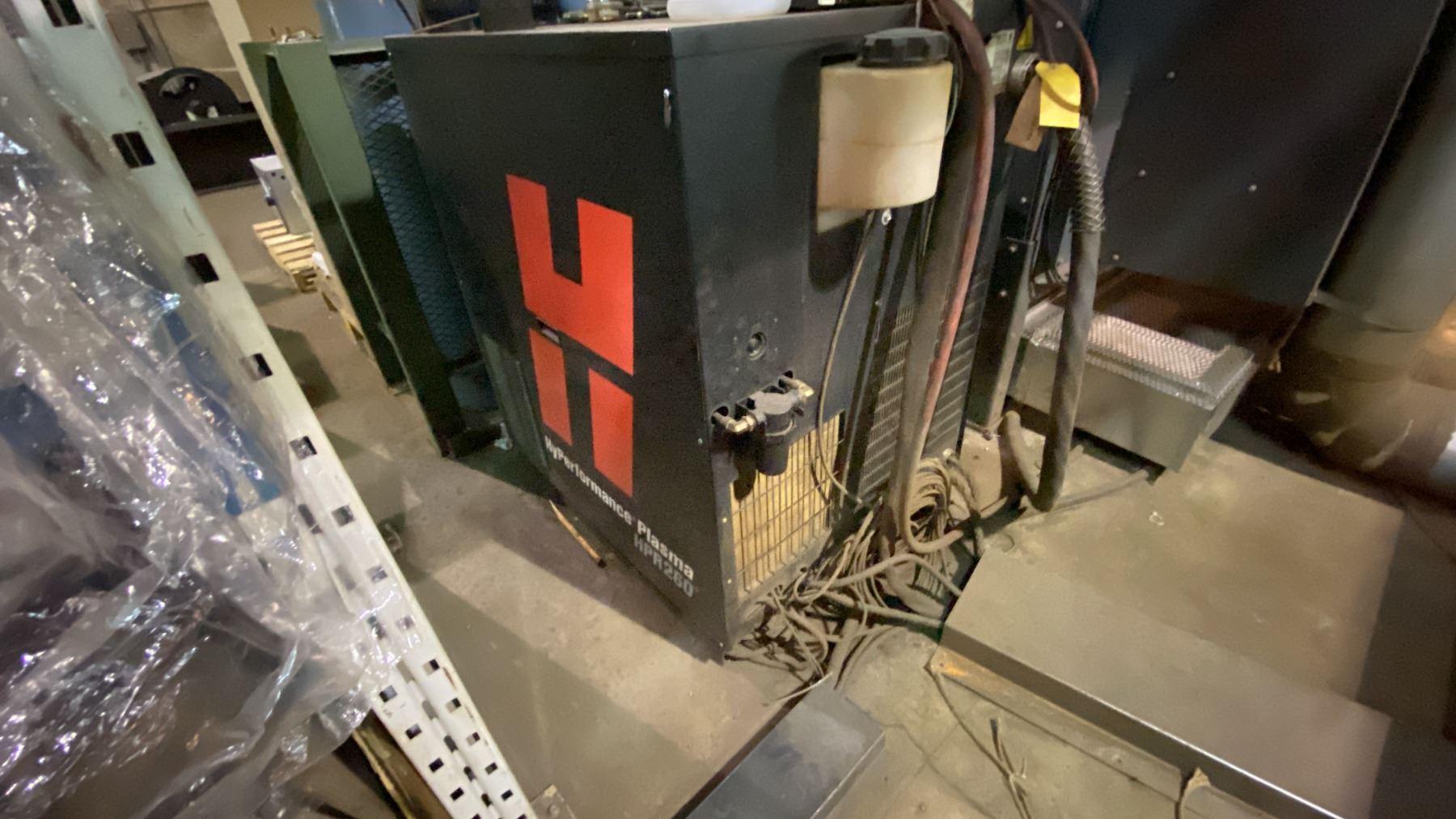

• Plasma Hypertherm HPR260XD
• Maximum Mild Steel Cut 2.5″
• Production Pierce 1.5″
• Dross-Free Production Cut 1.25″
• Machine Weight Approximately 9,000 lb

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
