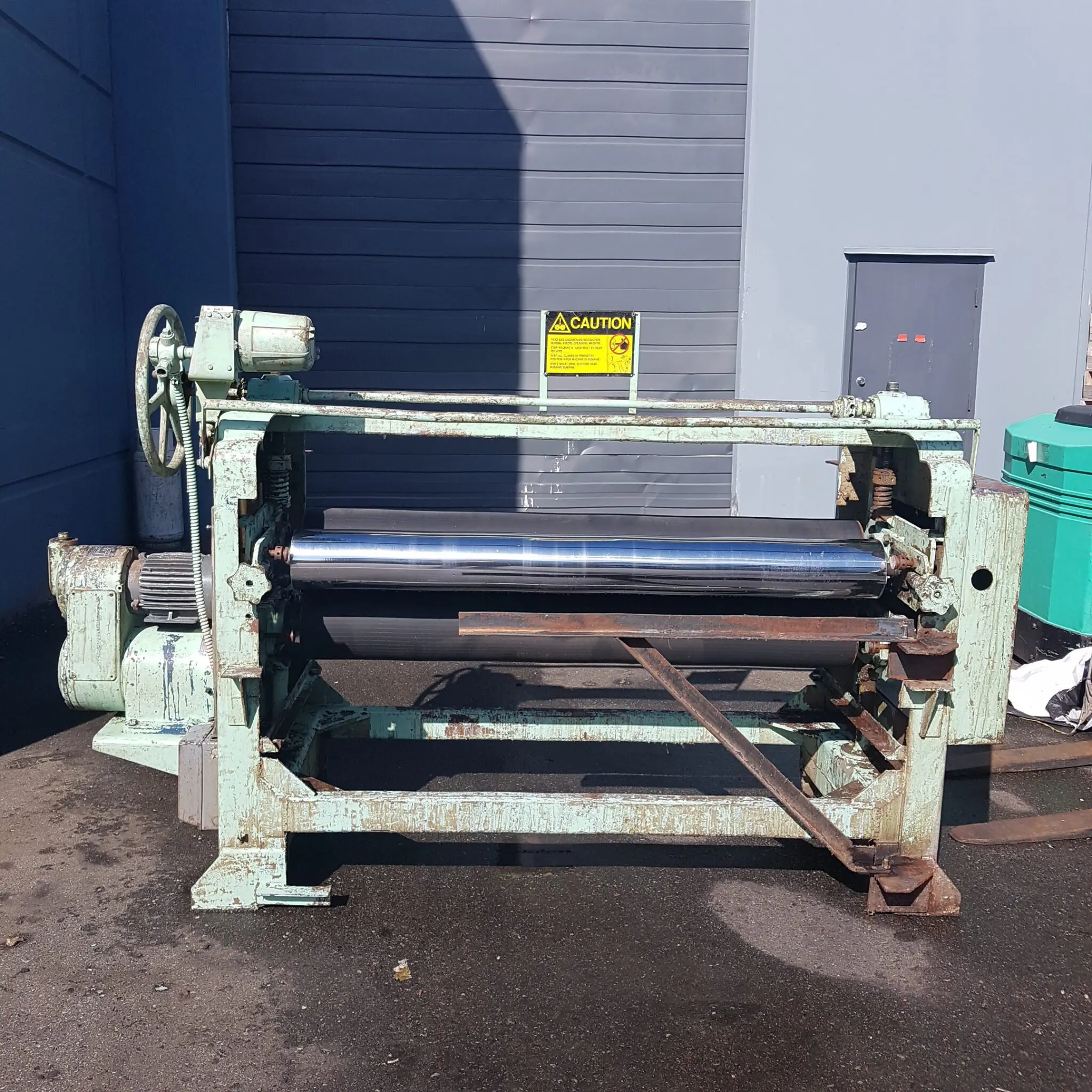

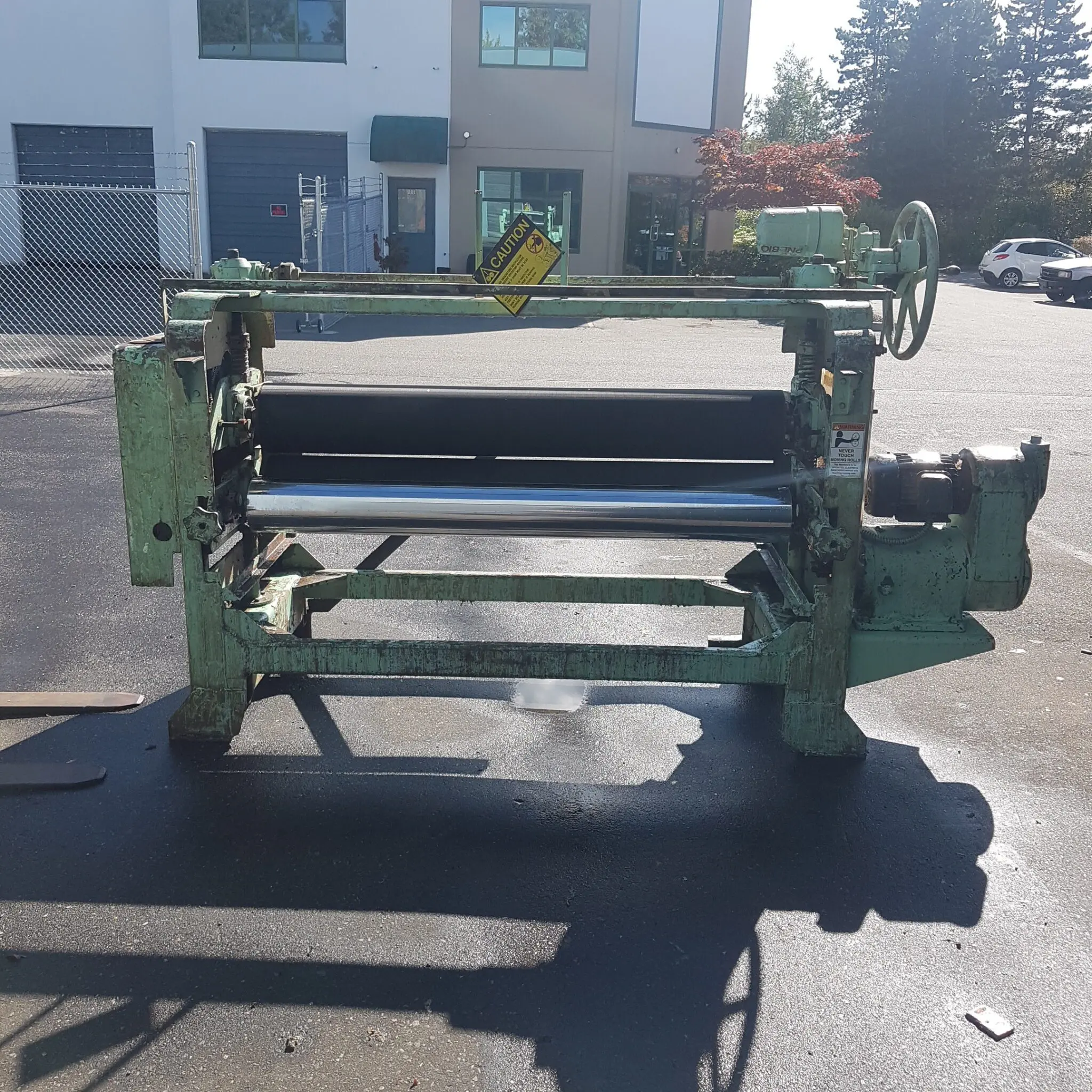

Black Brothers 22-D-1175-62 Glue Spreader
Langley, BC, Canada
Comparable machines available now
The Black Brothers 22-D-1175-62 Glue Spreader shown here has sold — here are similar used machines we currently have in stock.
-
Orma Hot Press NPR
CAD $21,500.00
-
Burkle Cold Press
Contact for price
-
Black Brothers Laminating Line
CAD $165,000.00
-
Custom Double Platen Pneumatic Press
CAD $14,000.00
-
Casati 3050 Veneer Guillotine
CAD $7,500.00
-
Tyler Cold Press
CAD $5,500.00
-
Lumber Press
Contact for price
-
Italpresse R3/130 Glue Spreader
Contact for price
Description
Specifications
- Make: Black Brothers
- Model: 22-D-1175-62
- Serial No: 91520
- 3 PHASE
- Voltage 230/460
- ESTIMATED DIMENSIONS 108″ x 48″ x 68″
- 62″ Working width cap.

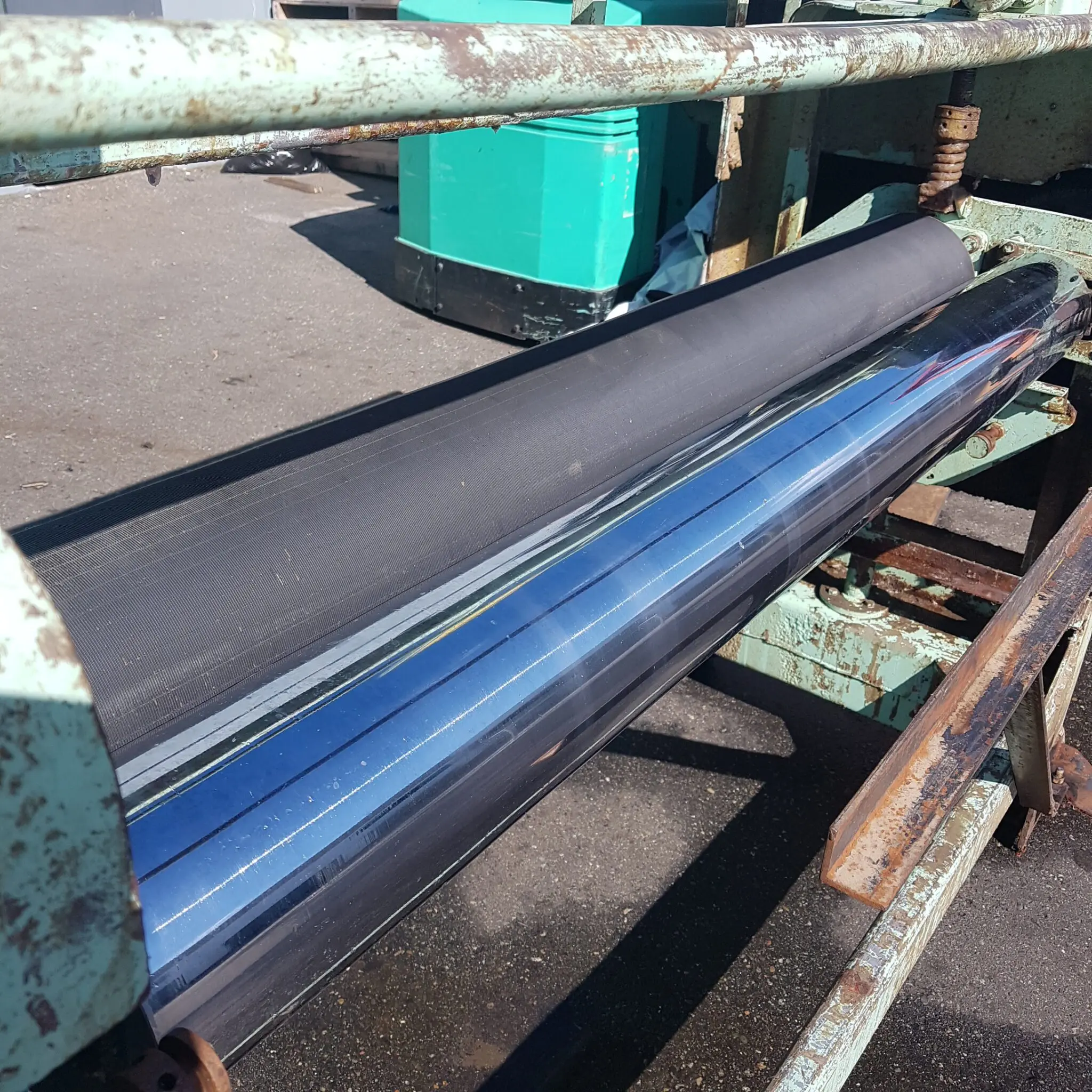

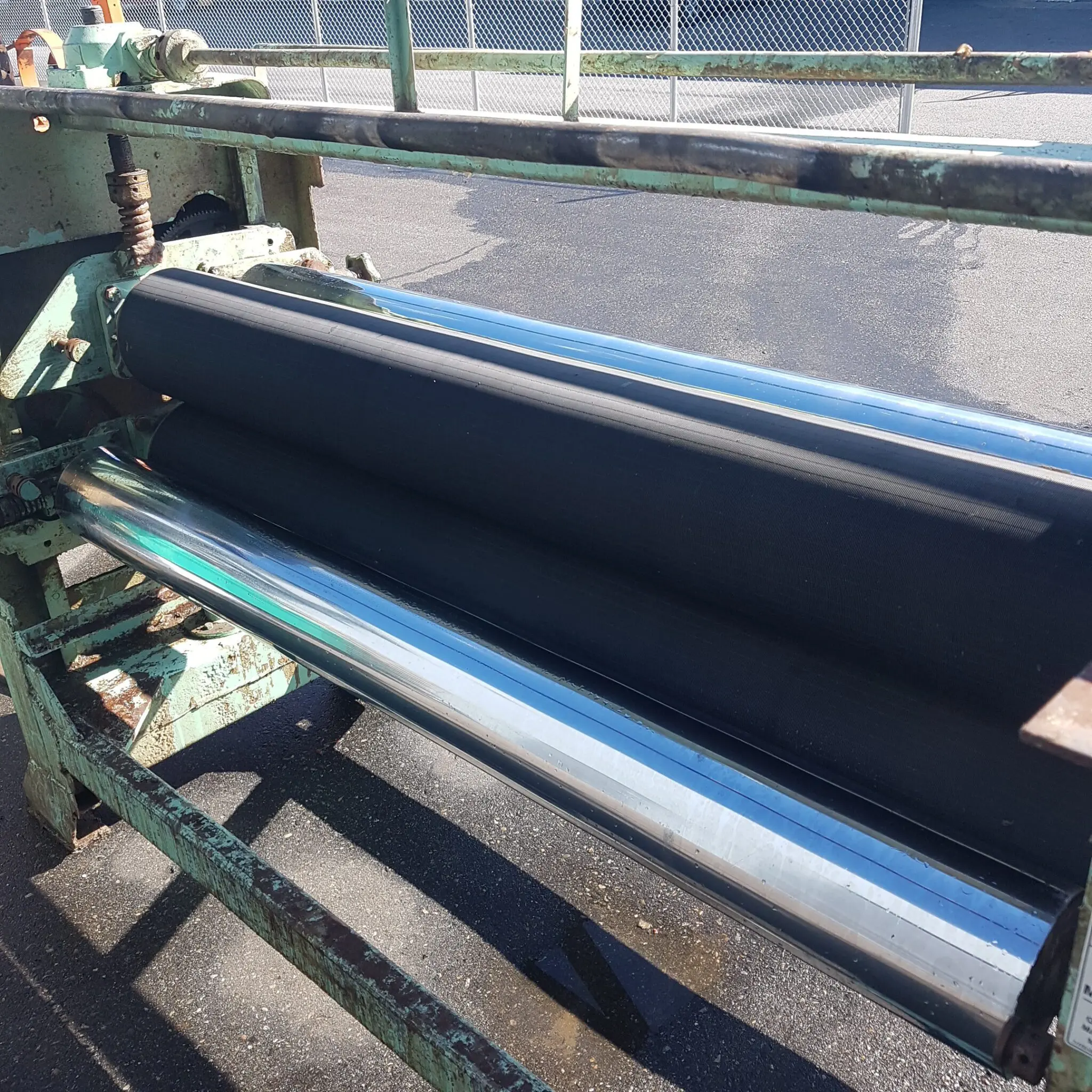

- 11-3/4″ dia. rubber-coated rolls, 8-1/2″ dia. chrome-plated doctor rolls.

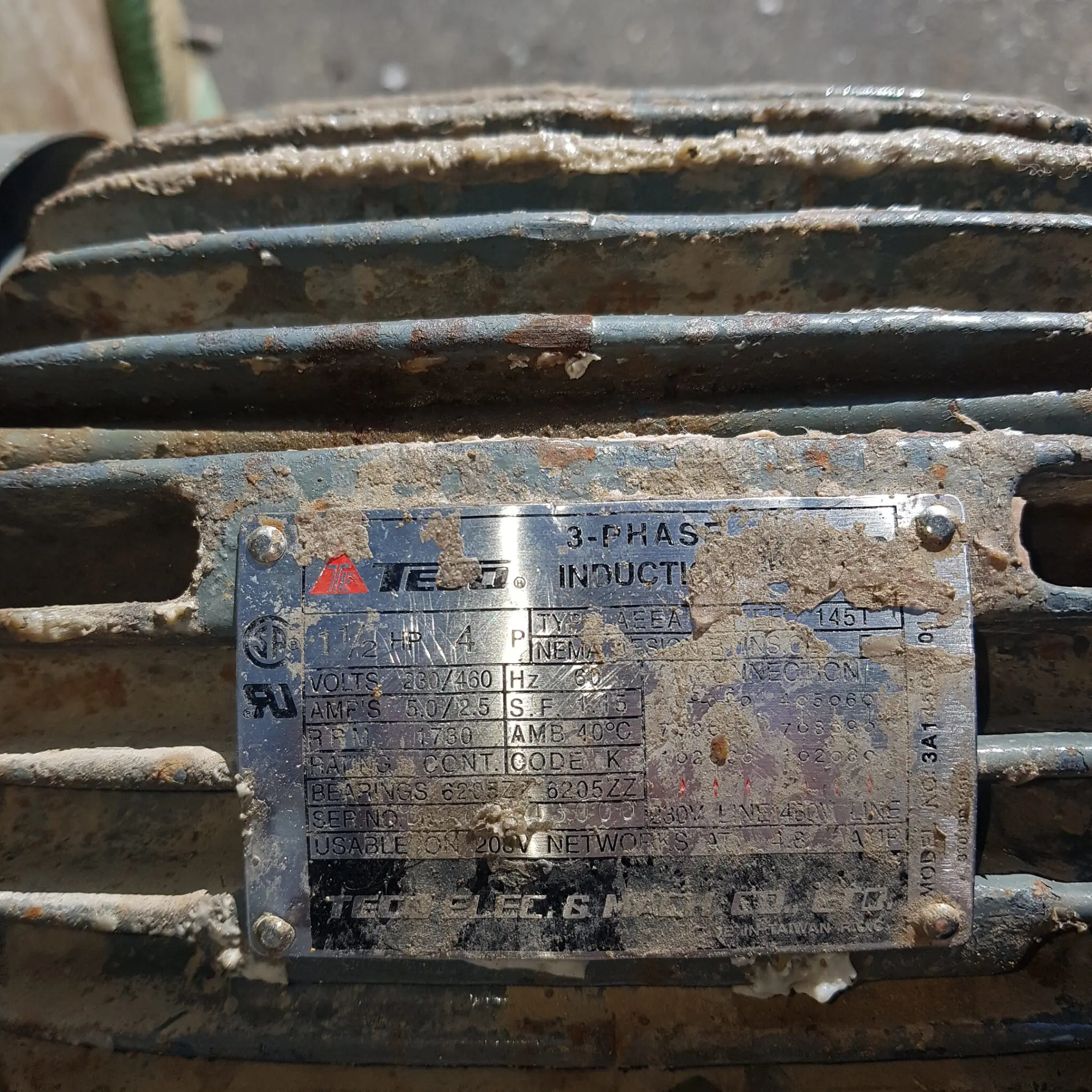

- Lower elevator opening 0″ – 4-1/2″; motor on left, hand wheel on right; 2 HP single-speed drive, 88 FPM;
- Roll opening indicator and reverse lock-out.
- Pan included, but not present in photos
Specifications
- Category
- Used Laminating
- Sub Category
- Pinch / Glue
- Brand
- Black Brothers
- Serial Number
- 91520 3
- Phase
- 3 Phase
- HP
- 2 HP
