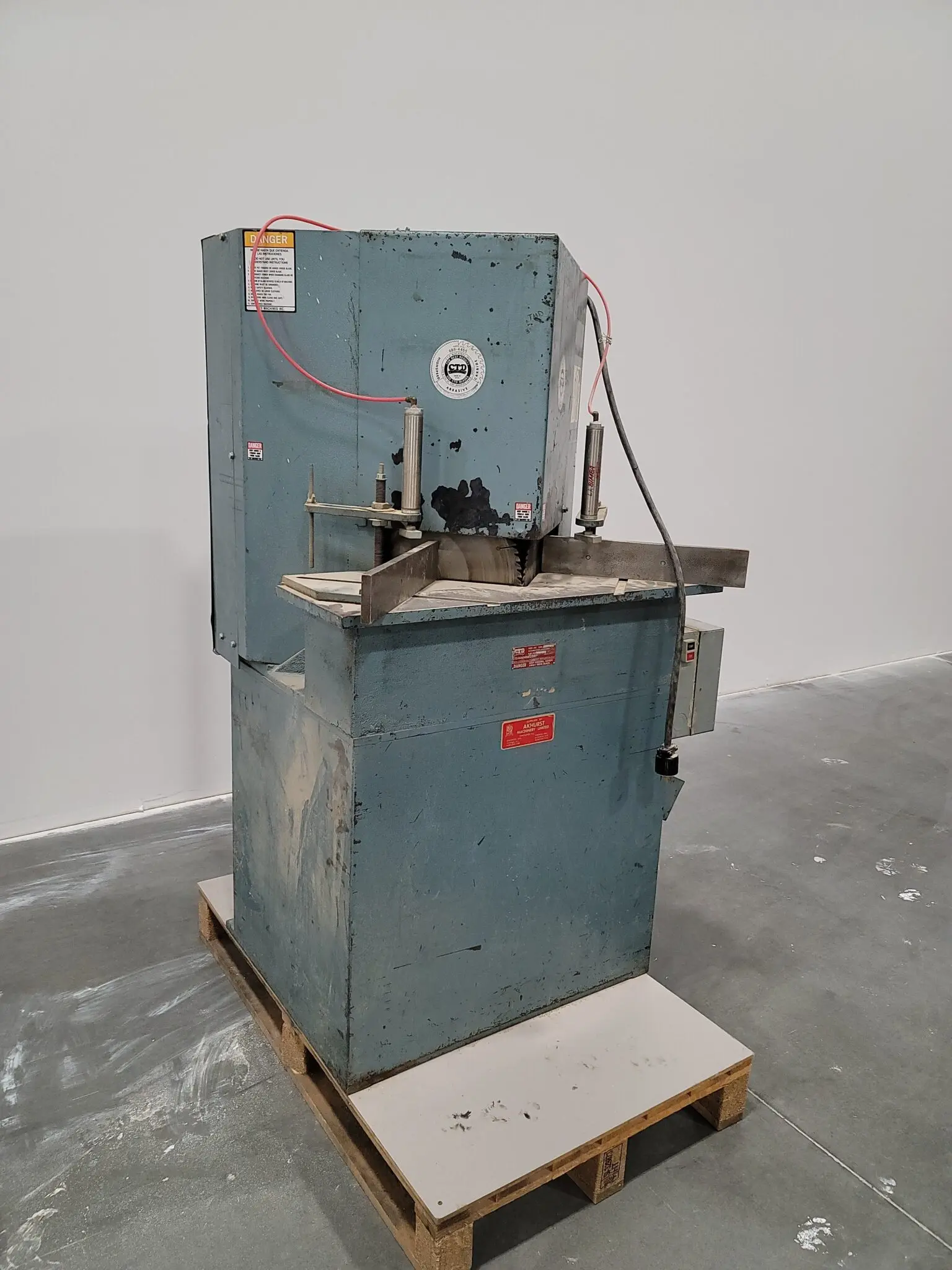

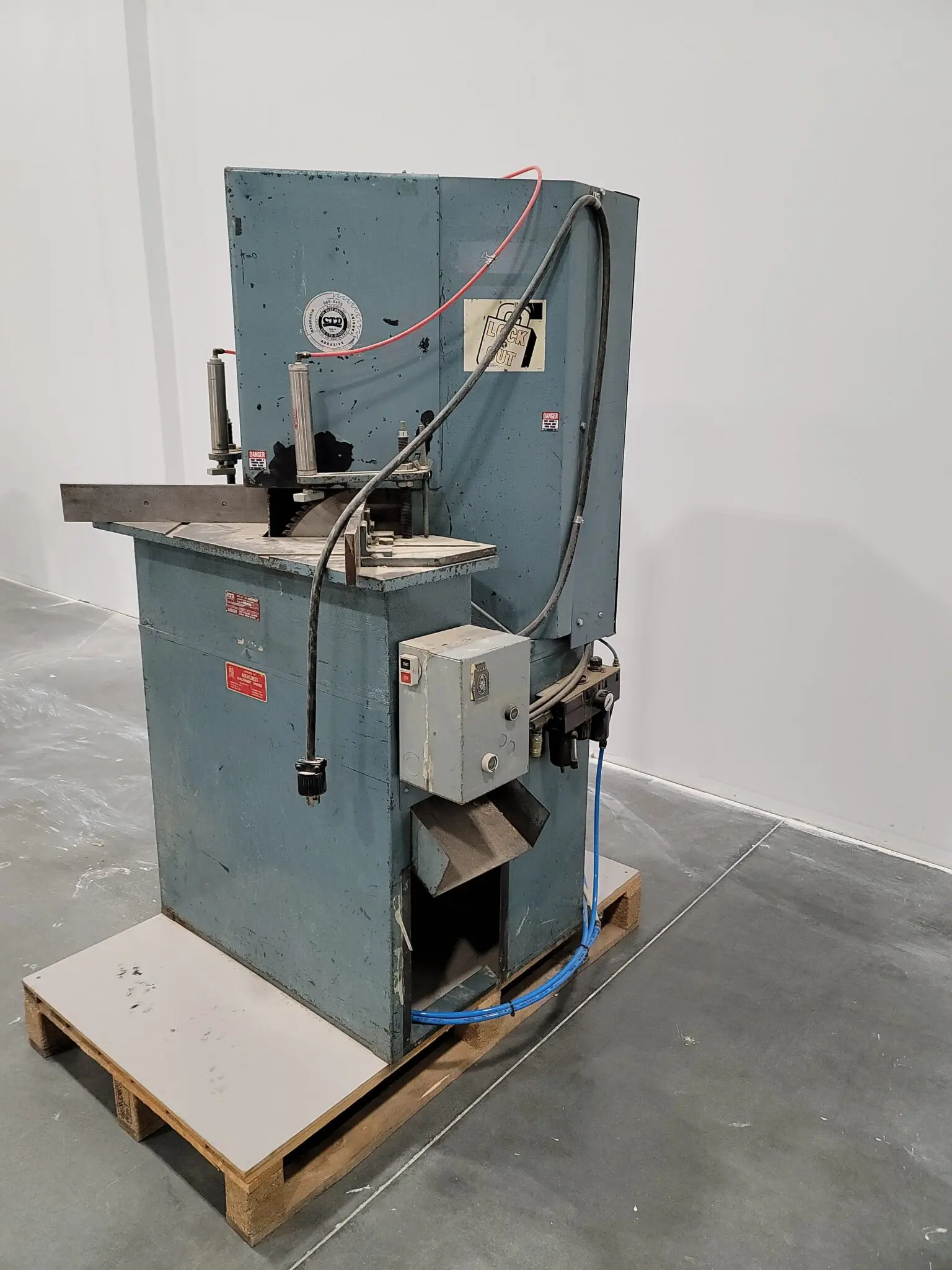

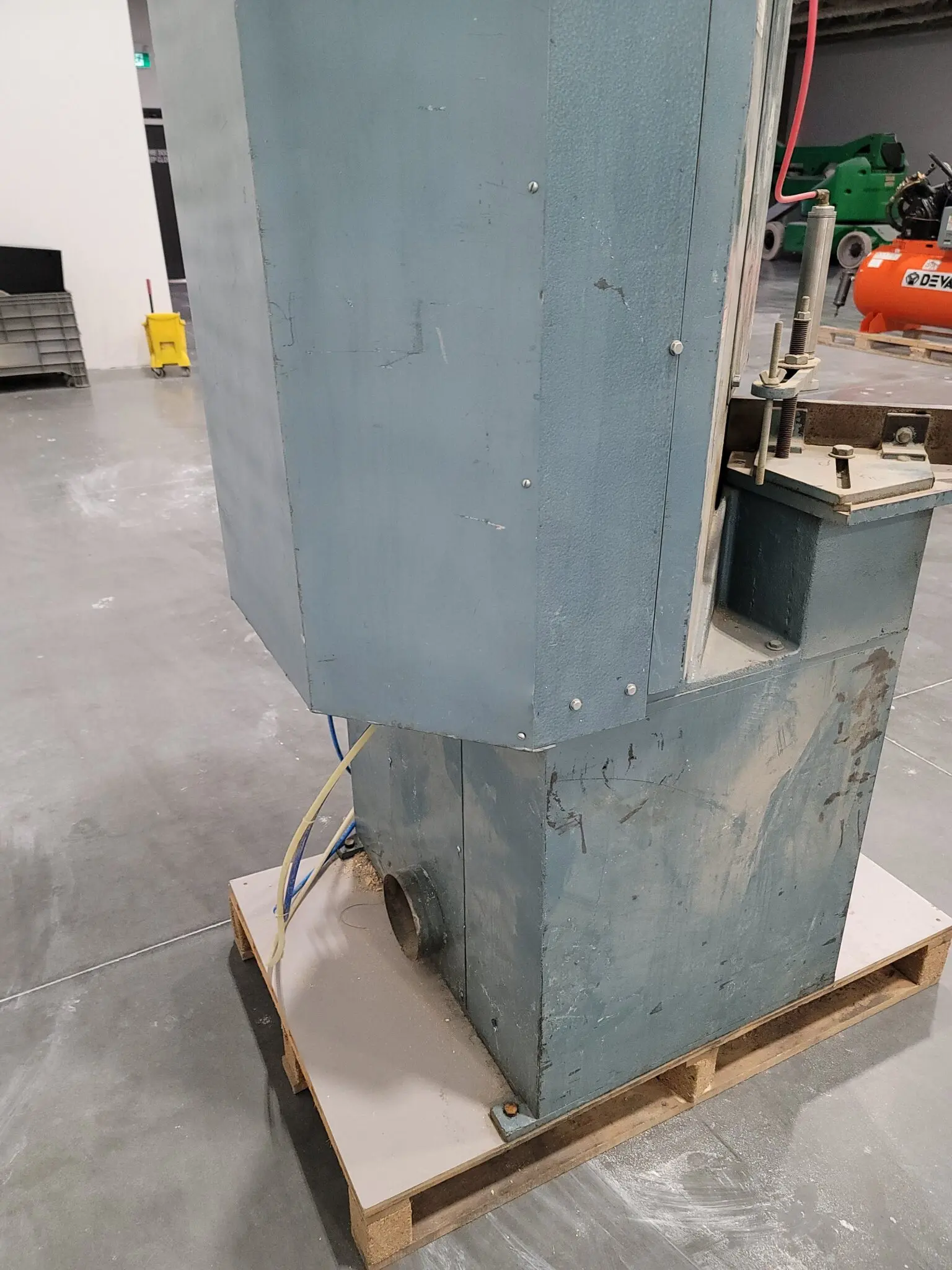

CTD Corner Saw

Abbotsford, BC, Canada

Comparable machines available now

The CTD Corner Saw shown here has sold — here are similar used machines we currently have in stock.

Browse all Saws

Description

Specifications

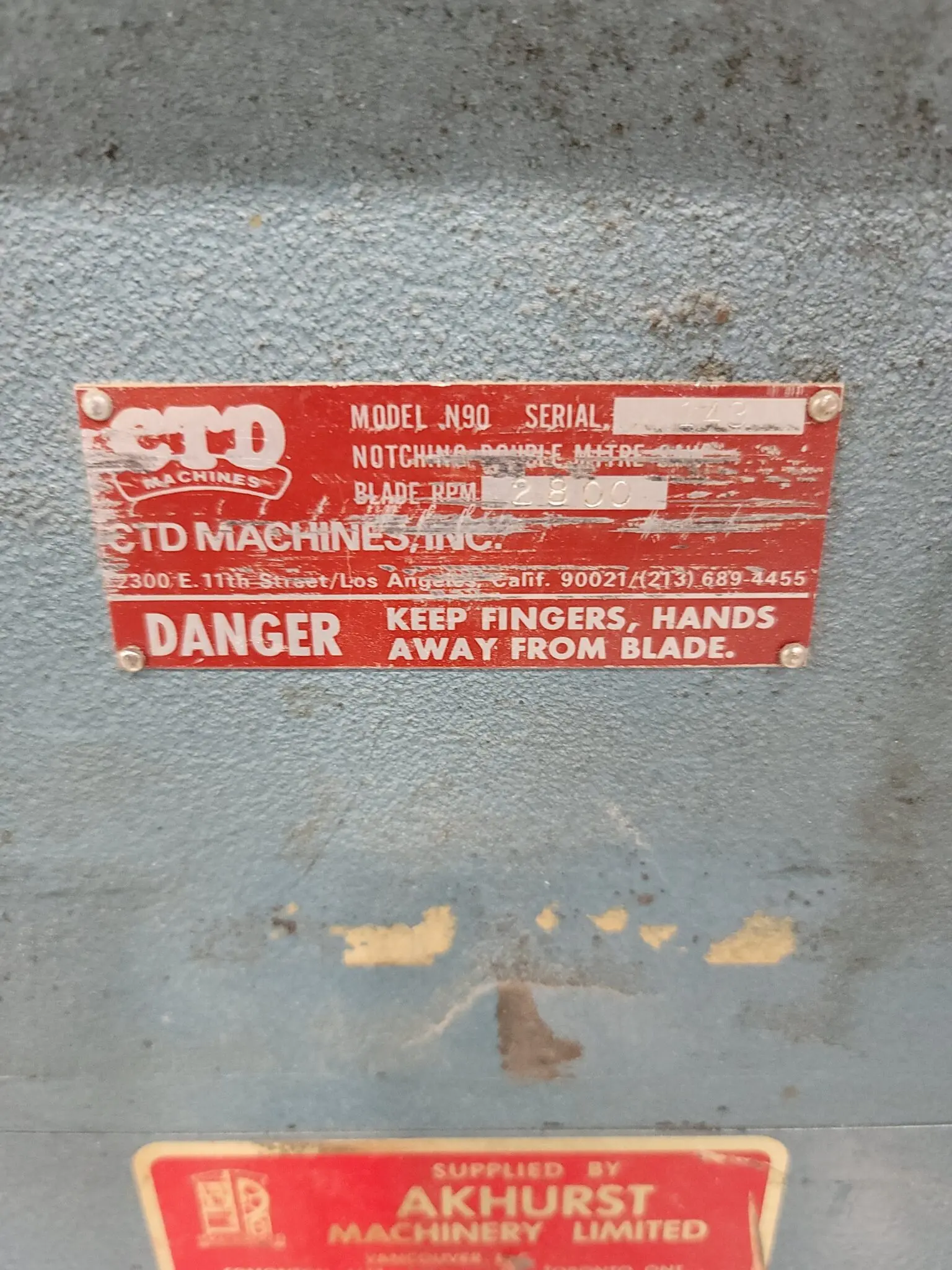

  • Model: N90
  • Vertical Frame and Notching Saw
  • Blade Capacity: 16″
  • 3 H.P. 3 phase

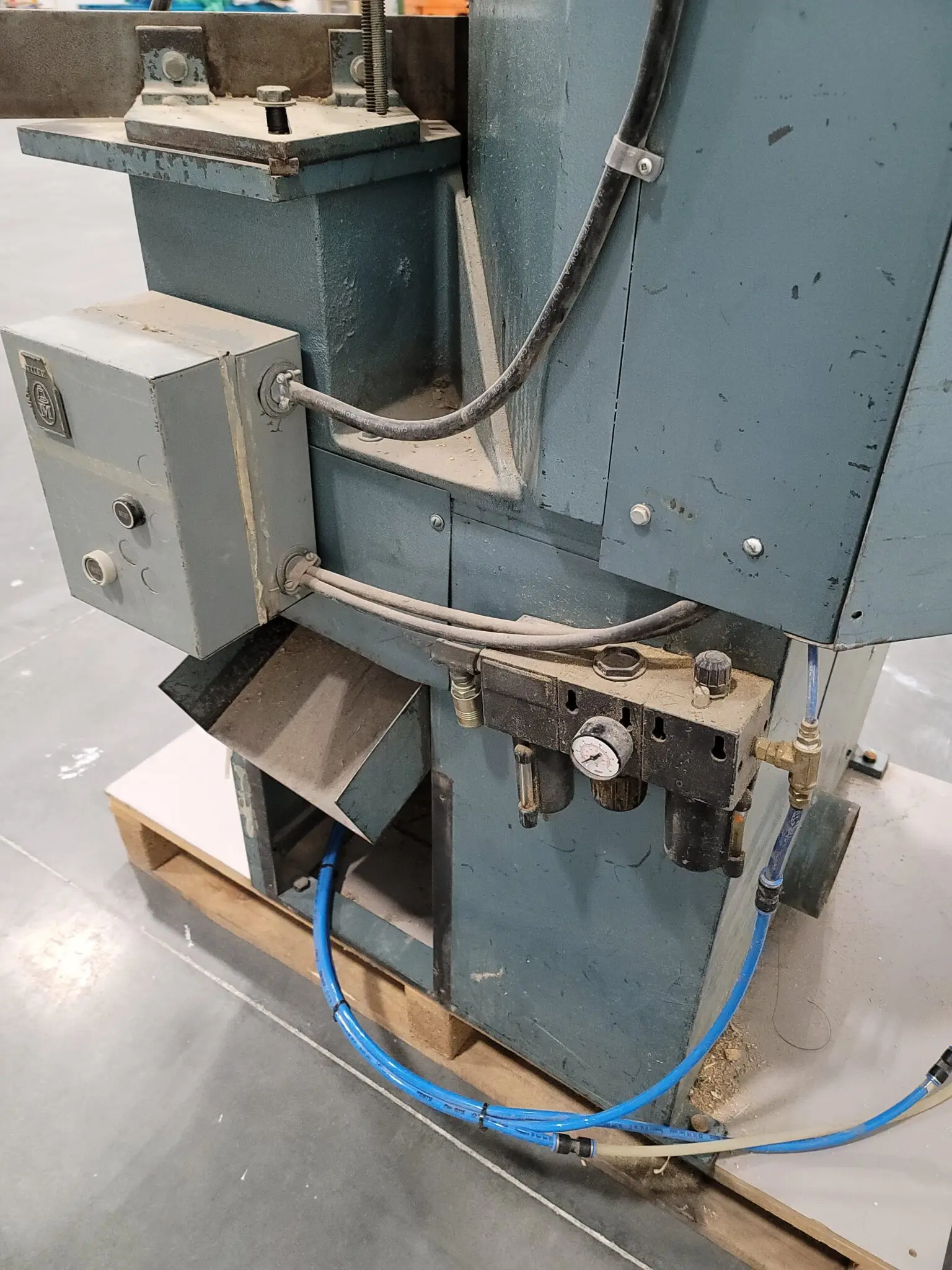

  • Magnetic Starter
  • 2800 RPM
  • Cutting Capacity
  • Toe Notch Con g.: 6″ X6″(deep)X 4″ (high)
  • Mitre: 4″(wide)X 4″ ( 4″ X 6″ available with extra charge)

Blade Capacity

  • 16″ OD (406mm); saw blades not included.
  • 18″ OD (457mm); optional

Arbor

  • 1″ (25mm) with 3-1/2″ (89mm) saw collars; mounted on preloaded and sealed bearings; 2-belt drive; 2800 RPM of spindle.

Motors & Voltages

  • Two, 3 H.P. 3 Phase 230/460 Volt Totally Enclosed Fan Cooled Motors, 60 Hz, 1725 RPM with Dual Magnetic Starter; 5 H.P. Motors available.

Cutting Capacity

  • Staggered Saw Blades/ Toe-Notch Configuration; 6″ (152mm) x 6″ (152mm) Deep x 4″ (102mm) High
  • Mitre Cutting/Staggered Saw Blades; 4-1/8″ (105mm) Wide x 4″ (102mm) High
  • Mitre Configuration/Non-Staggered Saw Blades; 4″ (102mm) Wide x 4″ (102mm) High; up to 6″ (152mm) High with special blade guard modification at extra charge.

Specifications

Category
Used Saws
Brand
CTD
Model
N90
Voltage
230/460 V
Phase
3 Phase
Cycle
60 Hz
RPM
2800 RPM
