SKU: 405-1

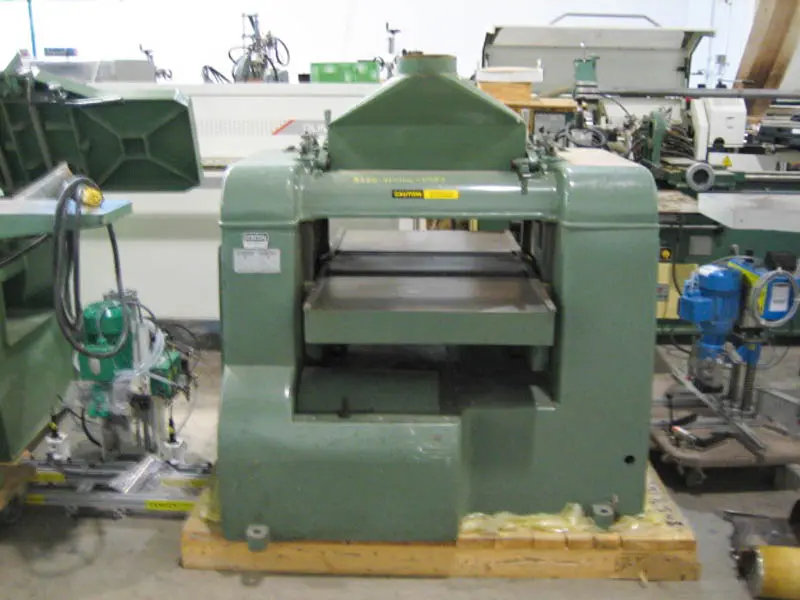

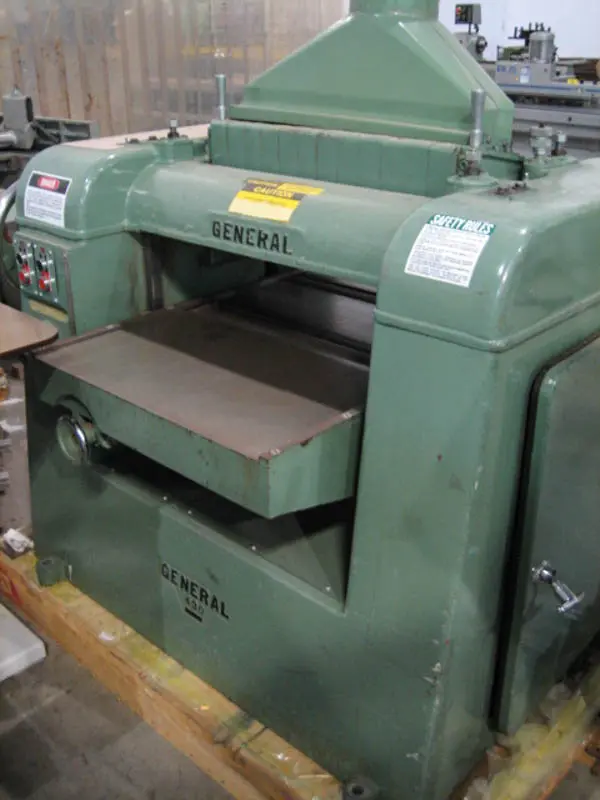

General 430 24″ Single Surface Planer

Out of Stock But wait, we have similar products

Sale!

General 430 24″ Single Surface Planer

General 430 24″ Single Surface Planer

General 430 24″ Single Surface Planer

General 430 24″ Single Surface Planer

General 430 24″ Single Surface Planer

Specifications

Capacity: Stock 1/8″ to 8″ thick-single single pieces 11 3/4″ long-min. Pieces 4″long butted.
Cutting circle: 4 1/2″ Diameter
Depth of Cut: 1/2″
Feed: variable feed from 20 to 60 FPM
Feed Rolls: 4″ Diameter. All feed rools both top and bottom are power driven, turning on antifriction bearings.
Cutter head: Alloy steel 4 1/2″ cutting circle for thin H.S. Knives 5/32″ x 1 1/4″ x 24 1/2″ and turns at 4000 RPM
Table: 25 3/4 x 45″ long
Floor space: 48″ x 58″ x 48″ high
Weight: 3600 lbs

Brand	General
Model	430
HP	7.5
Phase	3

Out of stock?

We have similar machines in used Woodworking Machines, Contact our used machienery experts for more details.
