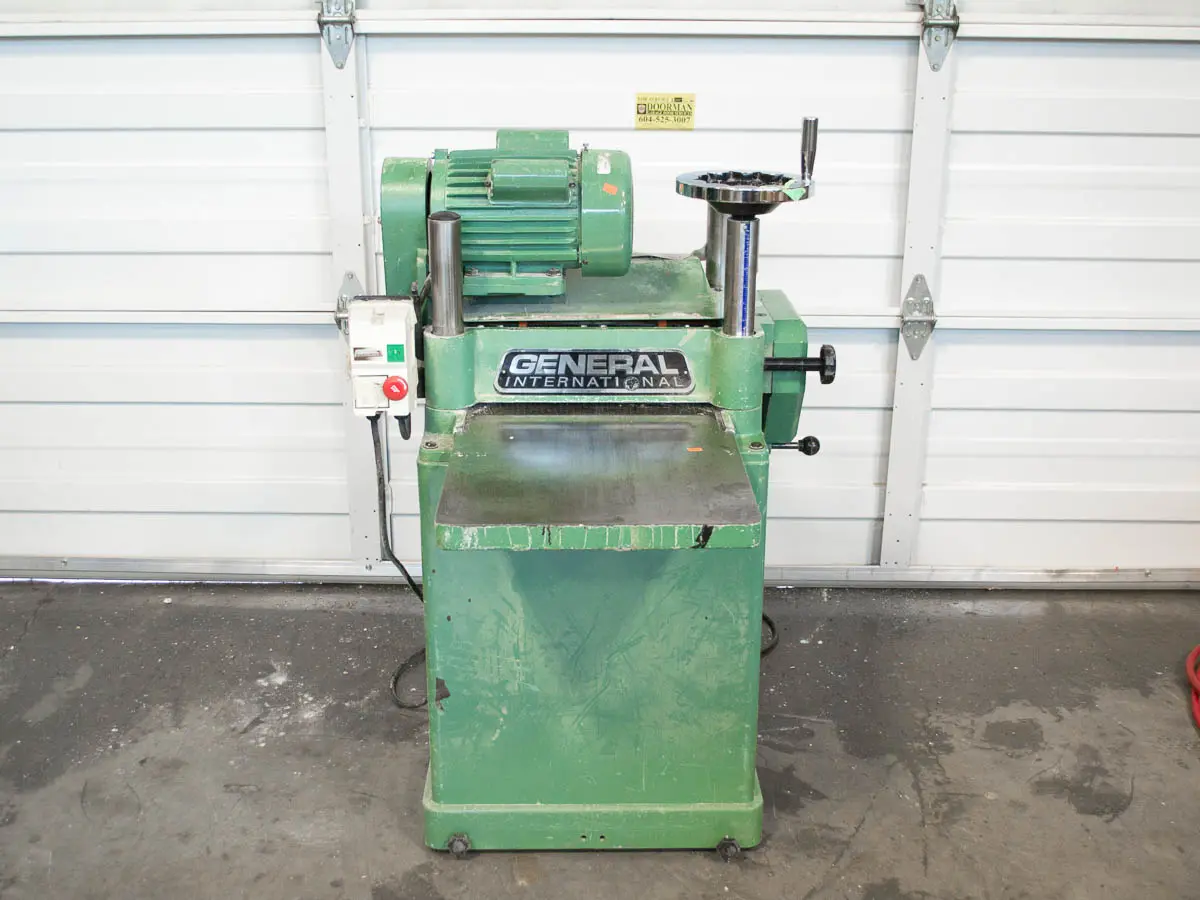

General International 30-115M1 Planer

Manufacturer Specifications:

• Table area with extensions: 15’’ x 47 3/4” (380 x 1210 mm)
• Maximum planing width: 15’’ (380 mm)
• Maximum thickness of stock: 6” (152 mm)
• Minimum thickness of stock: 1/8’’ (3 mm)
• Minimum length of stock: 6 1/2’’ (165 mm)
• Maximum depth of cut 1/8’’: (3 mm)
• Cutter head speed: 5000 rpm
• Feed speeds (2): 16 & 20 fpm (4.87 & 6.1 mpm)
• Cuts per inch (30-115 only)
• 78.13 at 16 fpm & 62.5 at 20 fpm
• Knives / inserts 3 – 30-115 / 42 – 30115HC
• Dust outlet: 4″ (102 mm)
• Base dimensions (l x w): 21 1/2” x 21” (546 x 533 mm)
