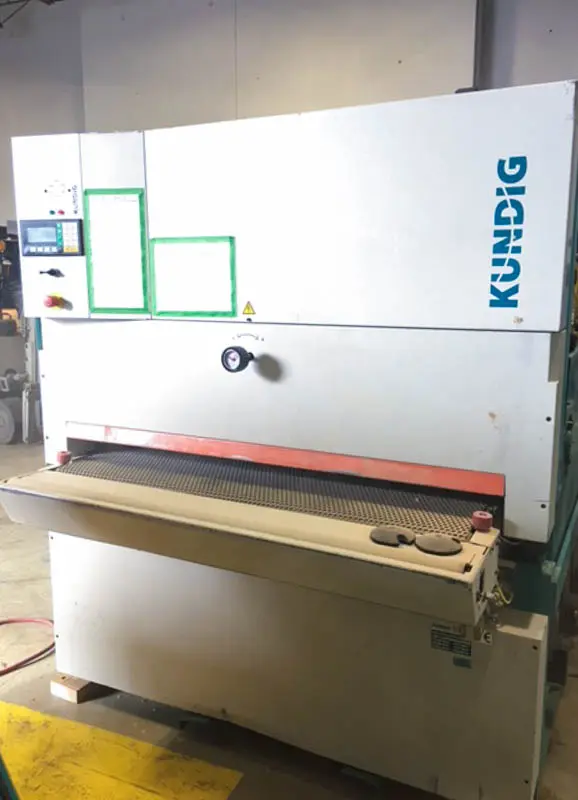

Kundig Triplex 52/RPP Veneer Sander

KÜNDIG widebelt sanding machines are noted for highest quality and precision. This KÜNDIG model range combines top technology with a maximum ease of operation. It is distinguished by its reliability and productivity.

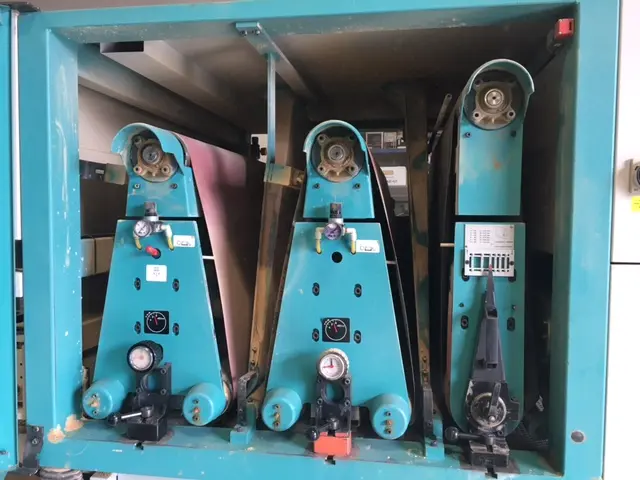

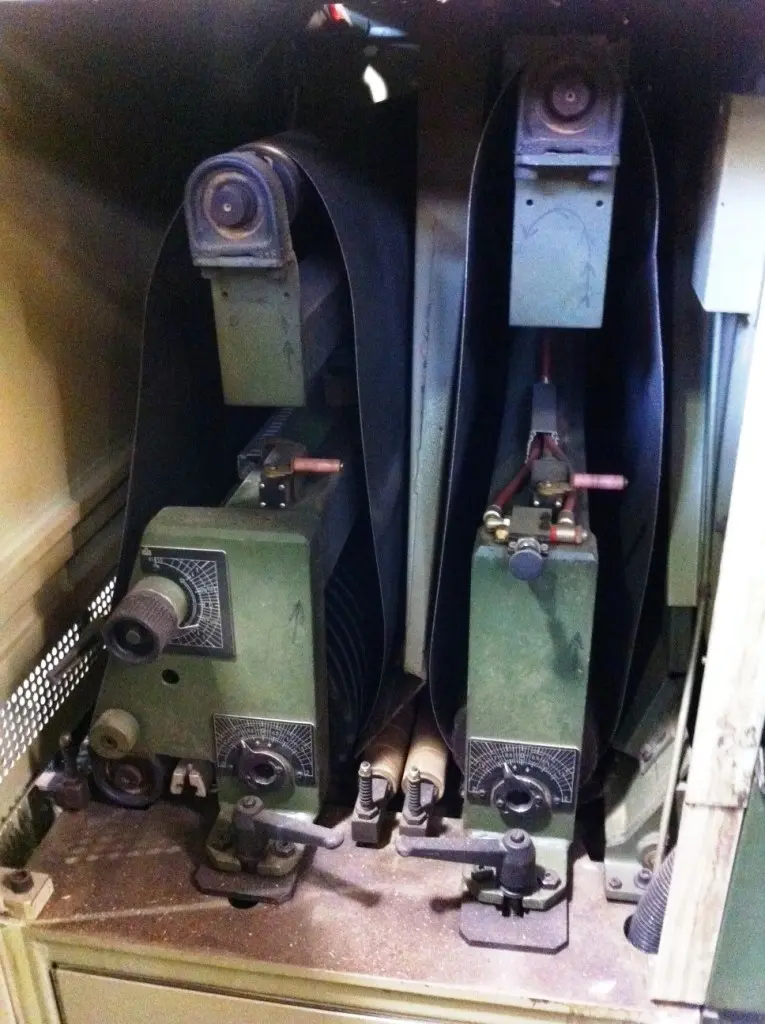

Head Configuration:

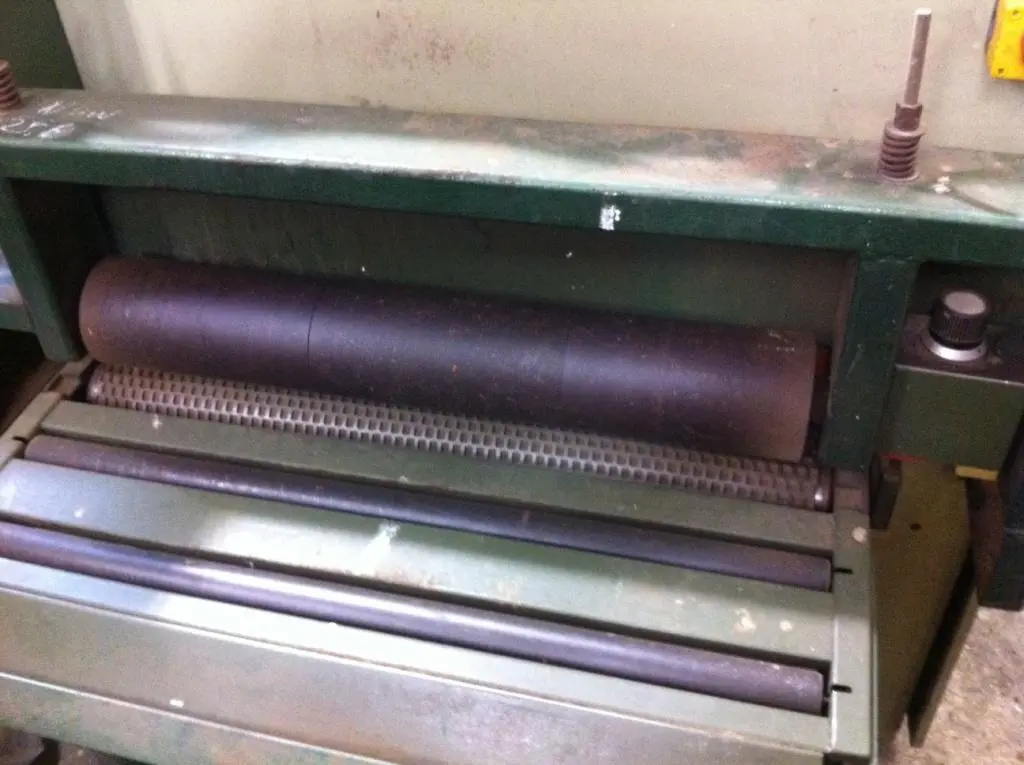

• 1st Head: Contact roll, 30 HP motor.
• 2nd Head: Combination head with rubber covered
• contact roll and finishing platen, 3­1/8″ wide “air
• inflatable/cushioned” platen, 20 HP motor.
• 3rd Head: Combination head with rubber covered contact roll and finishing platen, 3­1/8″ wide “air inflatable/cushioned” platen, 20 HP motor

Specifications:

• Abrasive belt size 43″ x 79″, with air tensioning & electronic abrasive belt tracking, all heads with abrasive grit sequence adjustment.

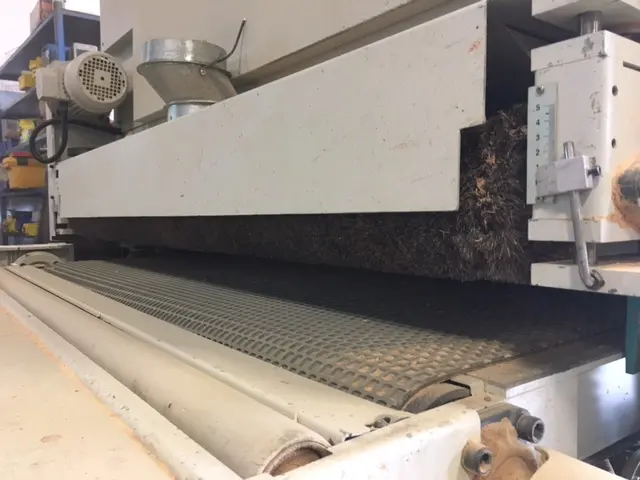

• Conveyor belt feed with 1 HP variable feed drive, 9 ­ 45 FPM feed speed with inverter control, joystick control for conveyor start and stop Infeed & outfeed rubber covered holddown rollers.
• 1/8″ ­ 6­1/4″ Max. motorized thickness opening with joystick control.

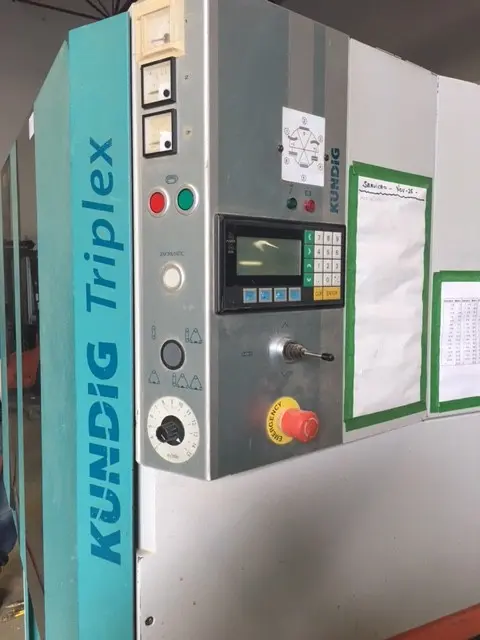

• LED readout of thickness, part “over­thickness” protection, automatic conveyor belt tracking.
• Constant Pass

Line Features:

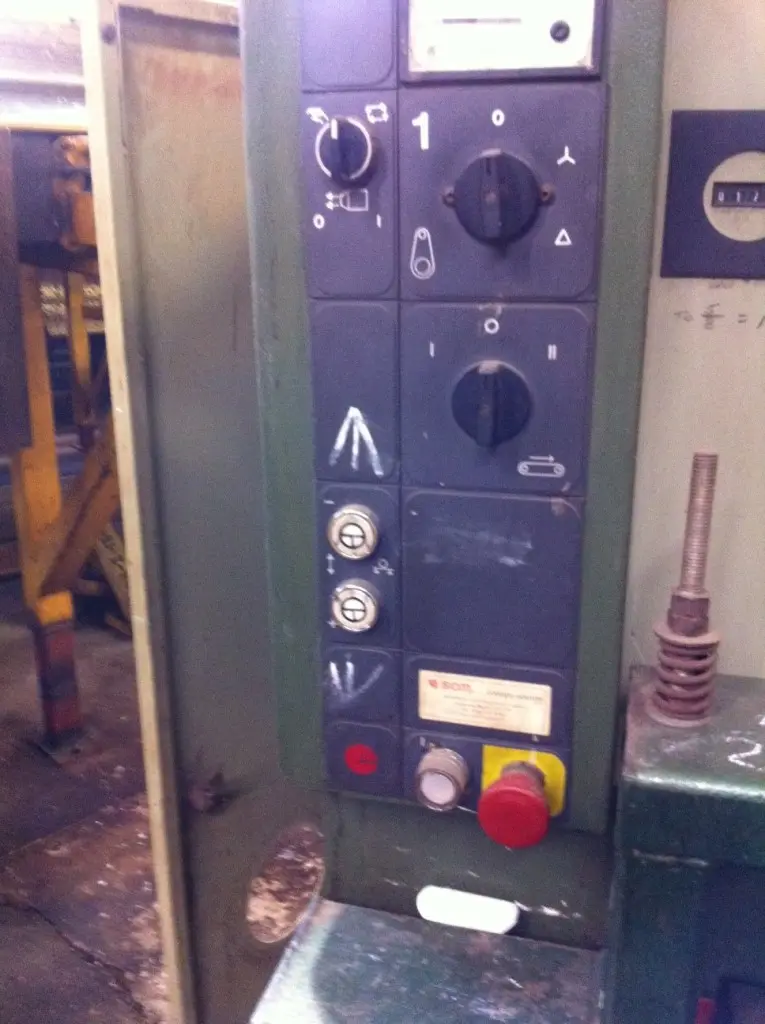

Emergency stop button, motor load meters, magnetic controls.
