SKU: 587-4

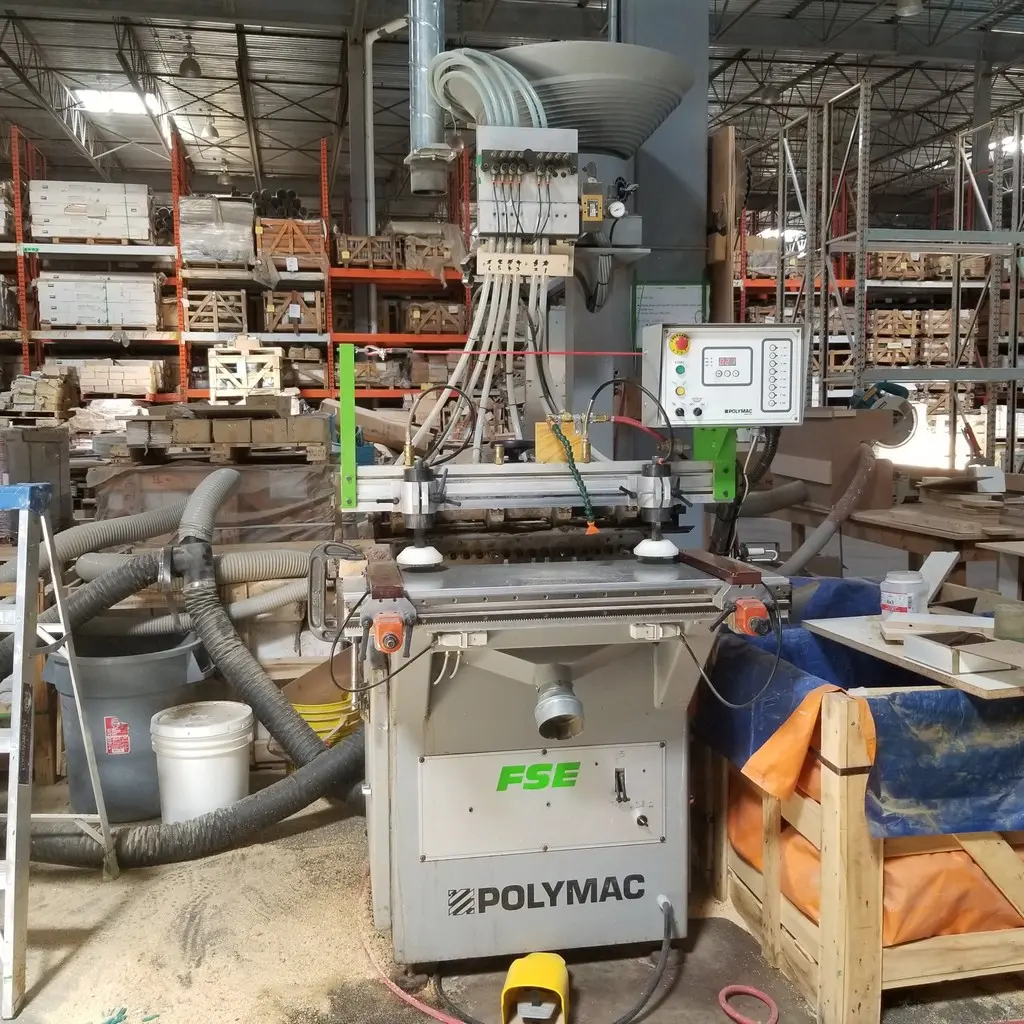

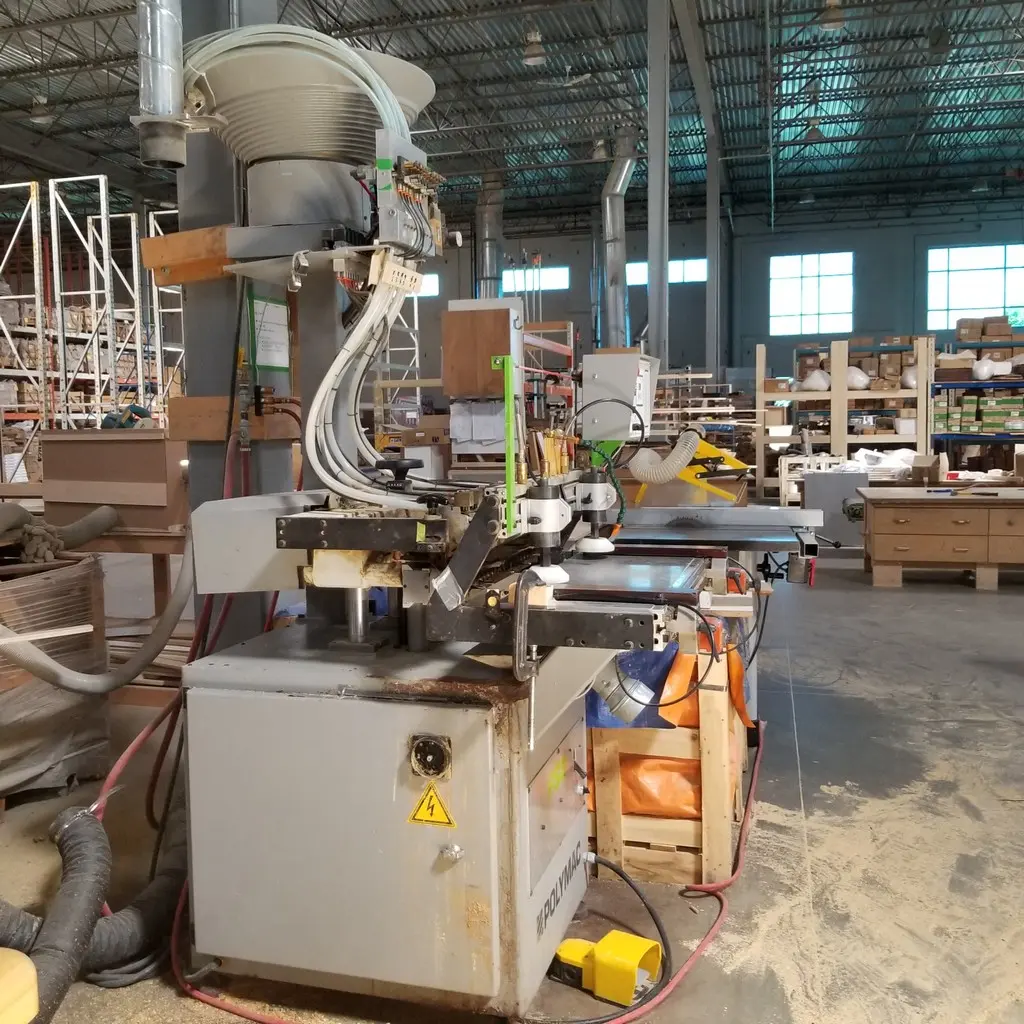

Biesse Polymac FSE Dowel Inserter

CAD $12,500.00

In stock

SKU: 587-4

Biesse Polymac FSE Dowel Inserter

CAD $12,500.00

In stock

Specifications:

  • Glue and Dowel Insertion System
  • (21) Spindle head (on 32 mm centers) fixed horizontally for end boring
  • (5) Glue injectors & dowel inserters
  • (2) Overhead pneumatic holddown clamps
  • Handles 8 mm – 10 mm dia. dowels
  • Max. boring depth 70 mm
  • Height adjustment w/digital readout for panel thickness
  • After the drilling cycle is complete, the head assembly traverses down to the glue & dowel injector line for the dowel injection
  • Quick cycle time
  • Function selector control for boring only, inserting only, or boring & inserting
  • Hydraulic brakes for adjustment of boring speed
  • 2.3 HP – 4,000 RPM motor
  • (2) Side fences
  • Front support table w/stop
  • Glue reservoir tank with pressure control & rinsing tank for glue nozzles
  • 6-Way dowel feeding vibrator
  • Foot pedal for starting cycle
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Weight 272.16 lbs
Dimensions 54 × 41 × 91 in
Brand

Model

Serial

Voltage

Phase

Ship Estimate
