SKU: 789-1

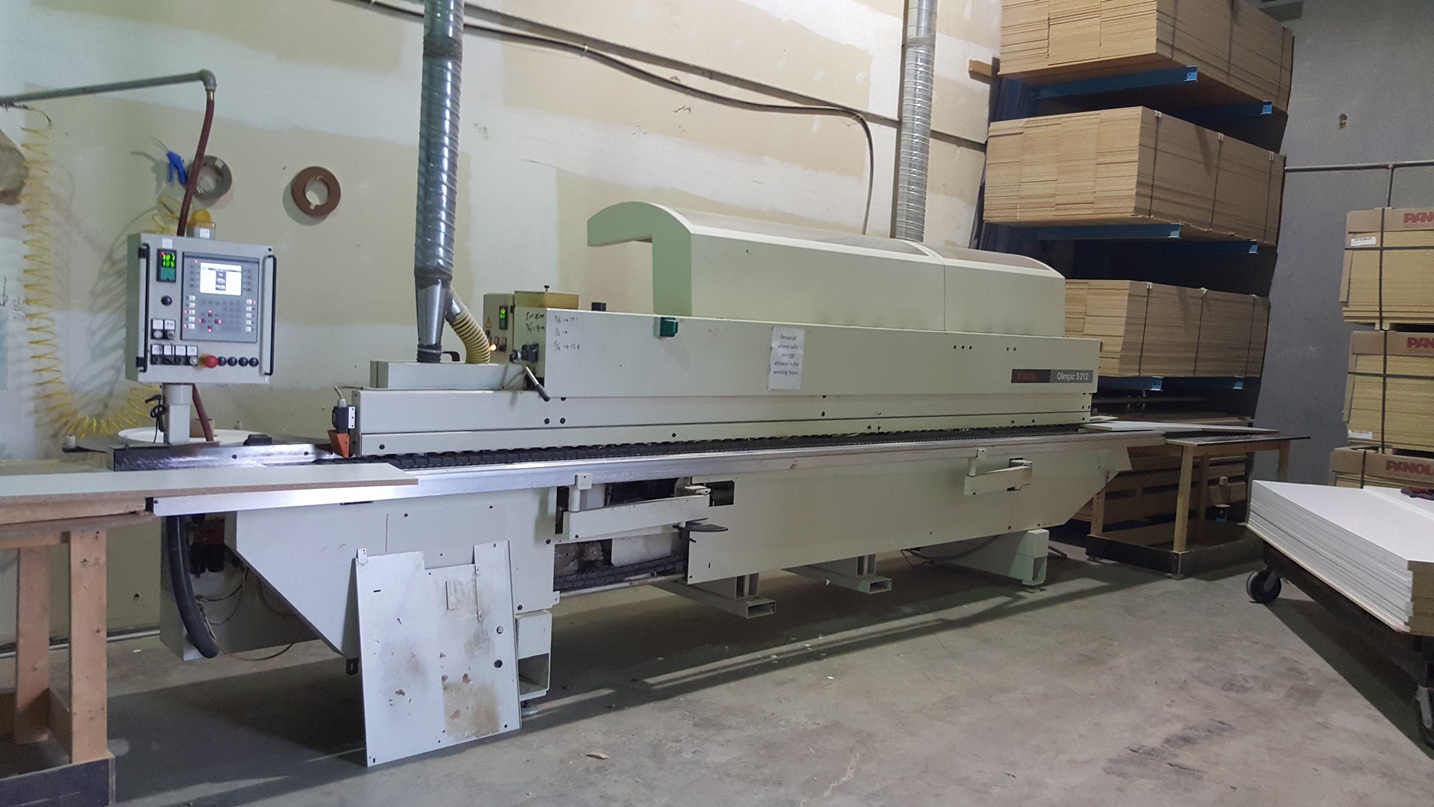

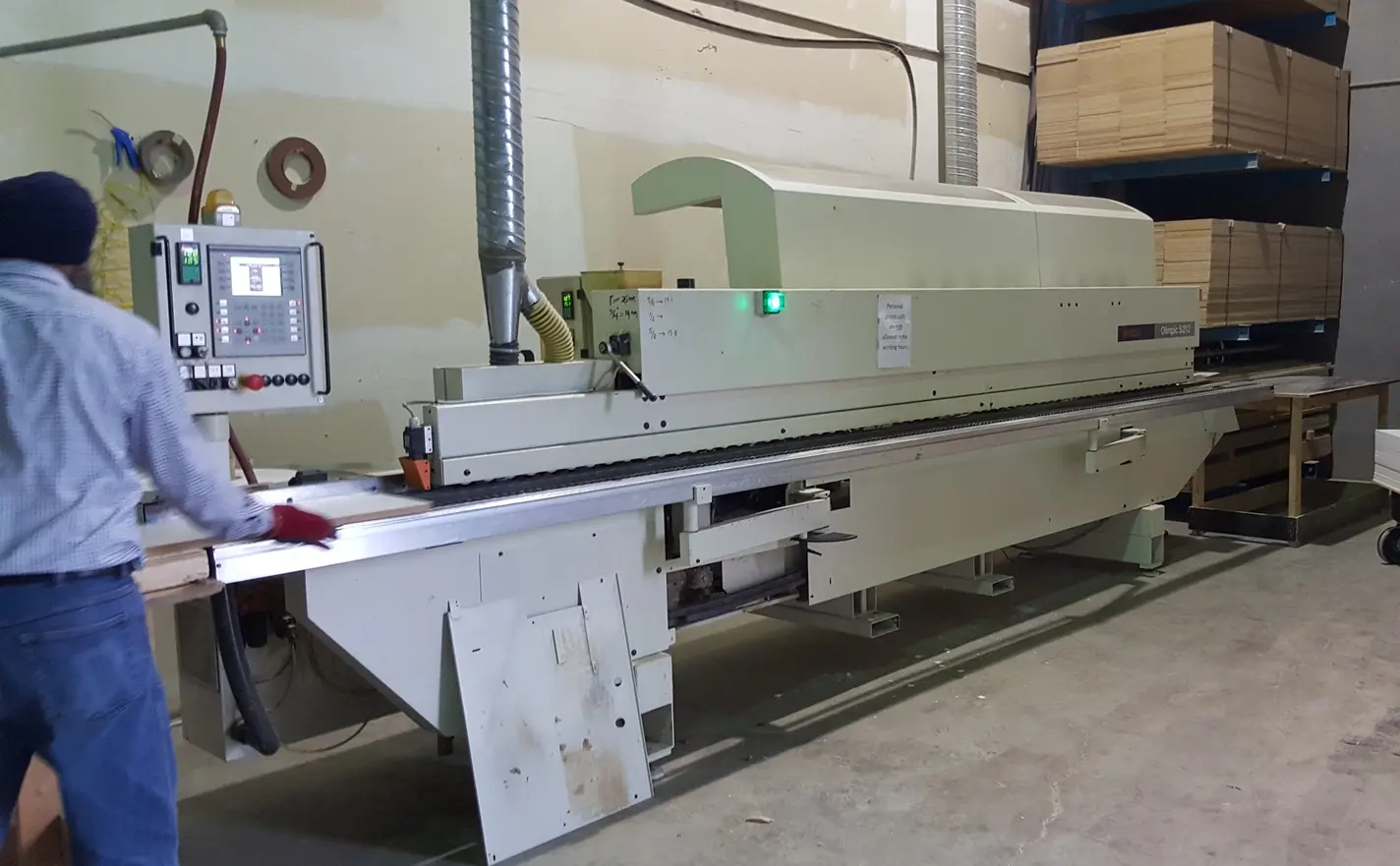

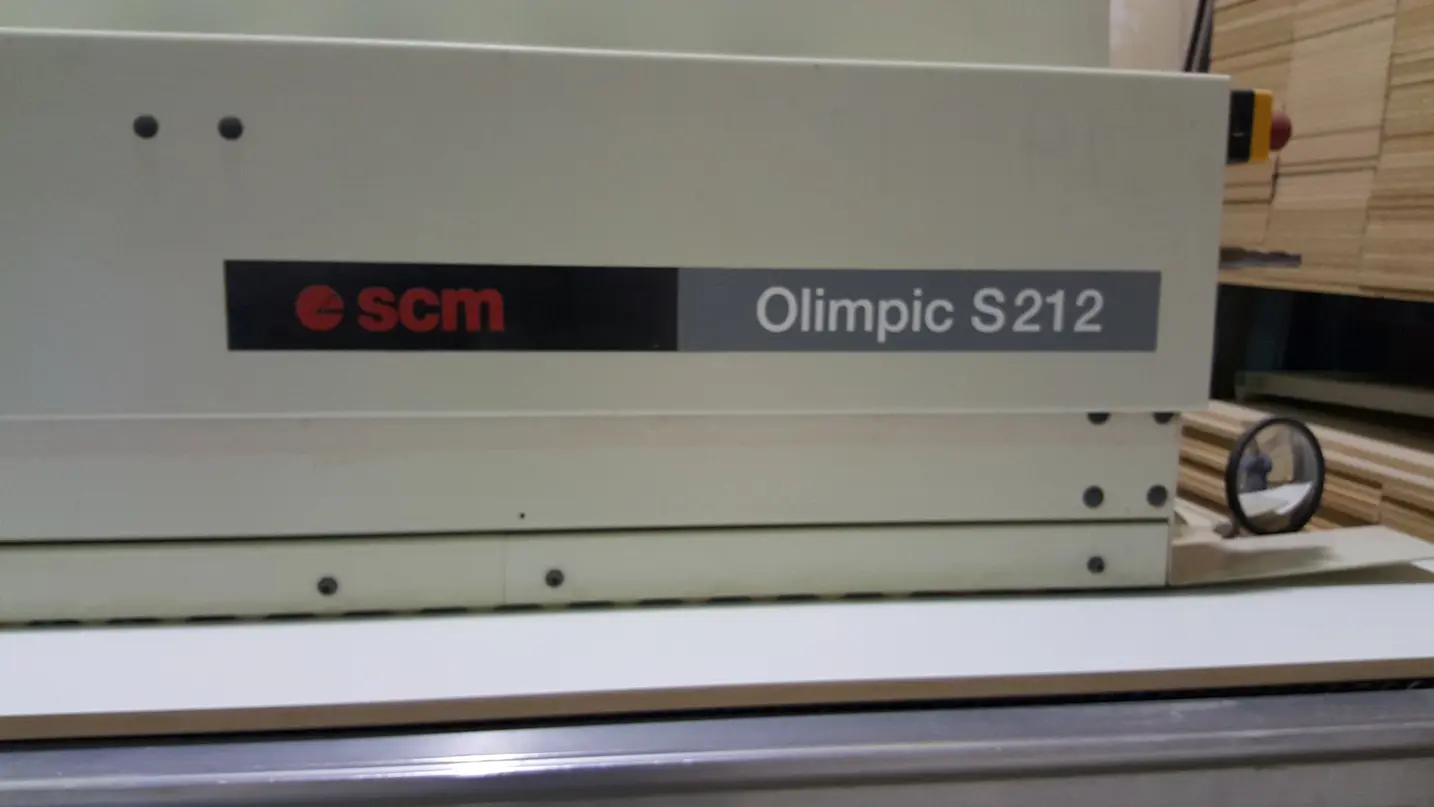

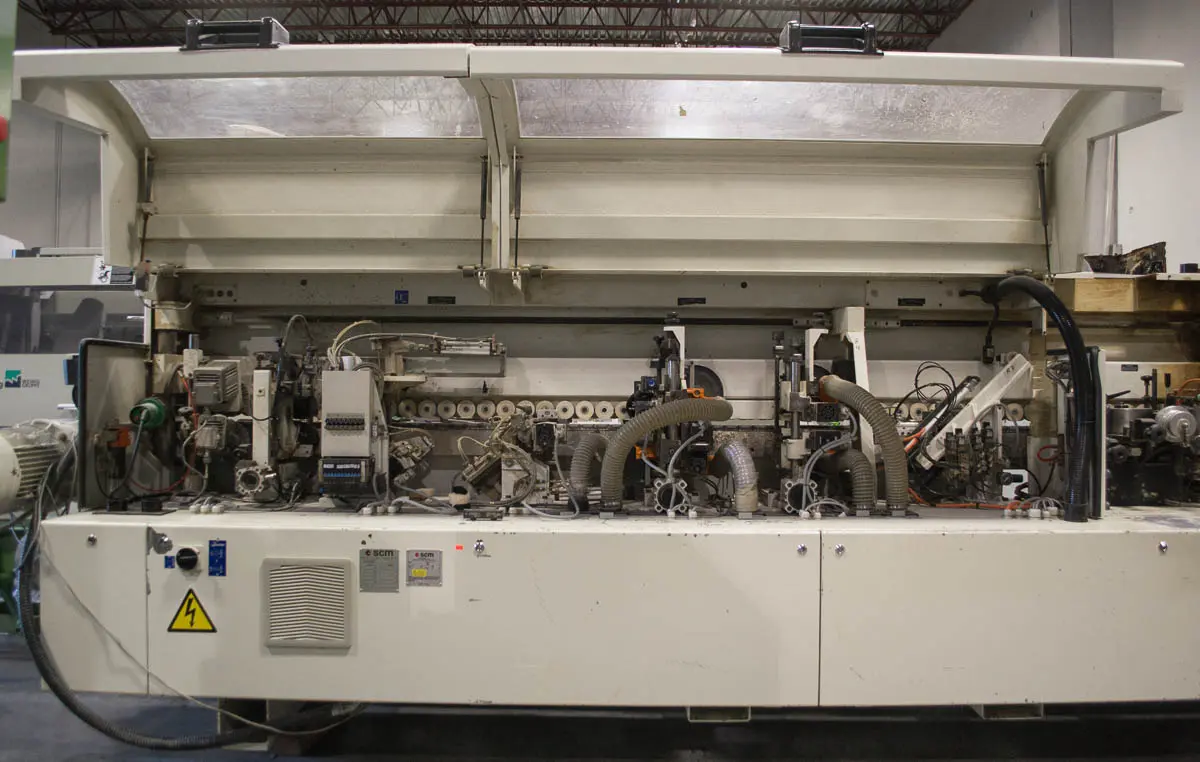

SCM S212 Edgebander

Out of stock

/

But wait, we have similar products

Specifications:

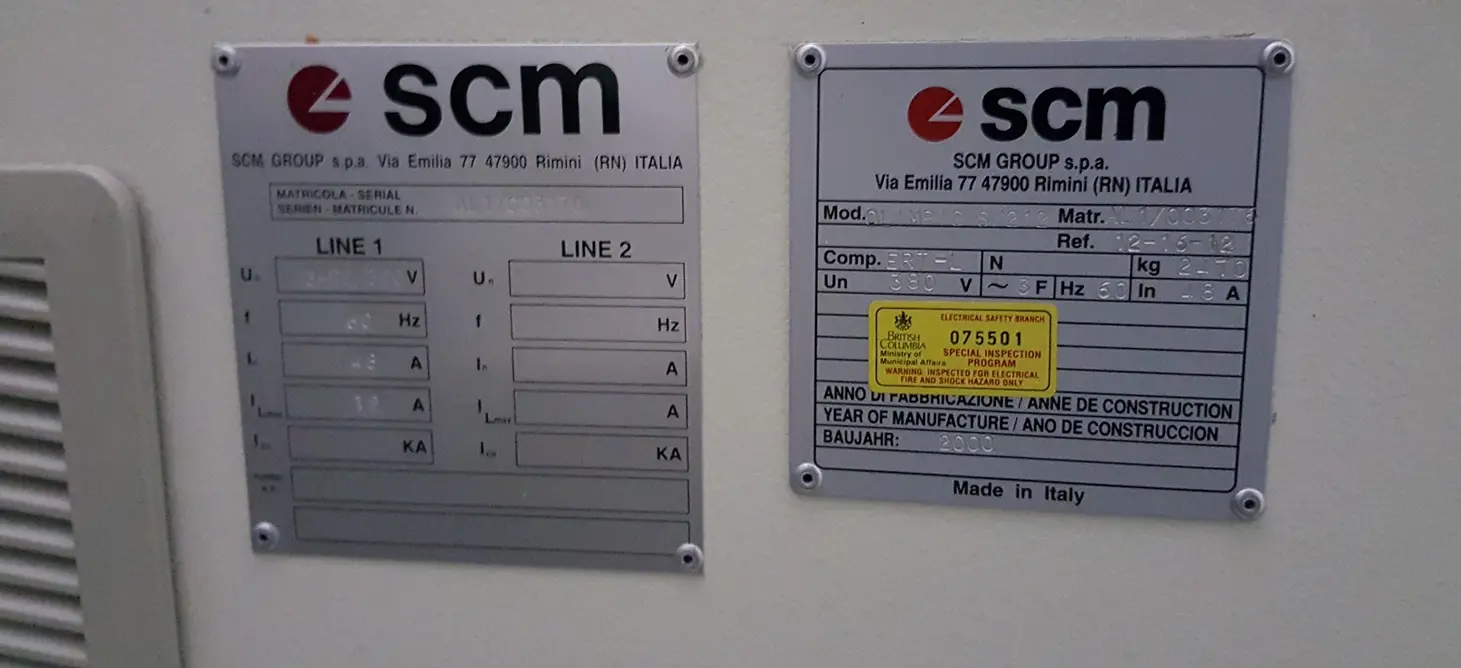

  • 3 phase
  • 380 V
  • 60 Hz
  • 35 A
  • Edge thickness capacity: 0.4 – 12 mm (½”)
  • 3 mm PVC capacity: minimum working width  4-¾”

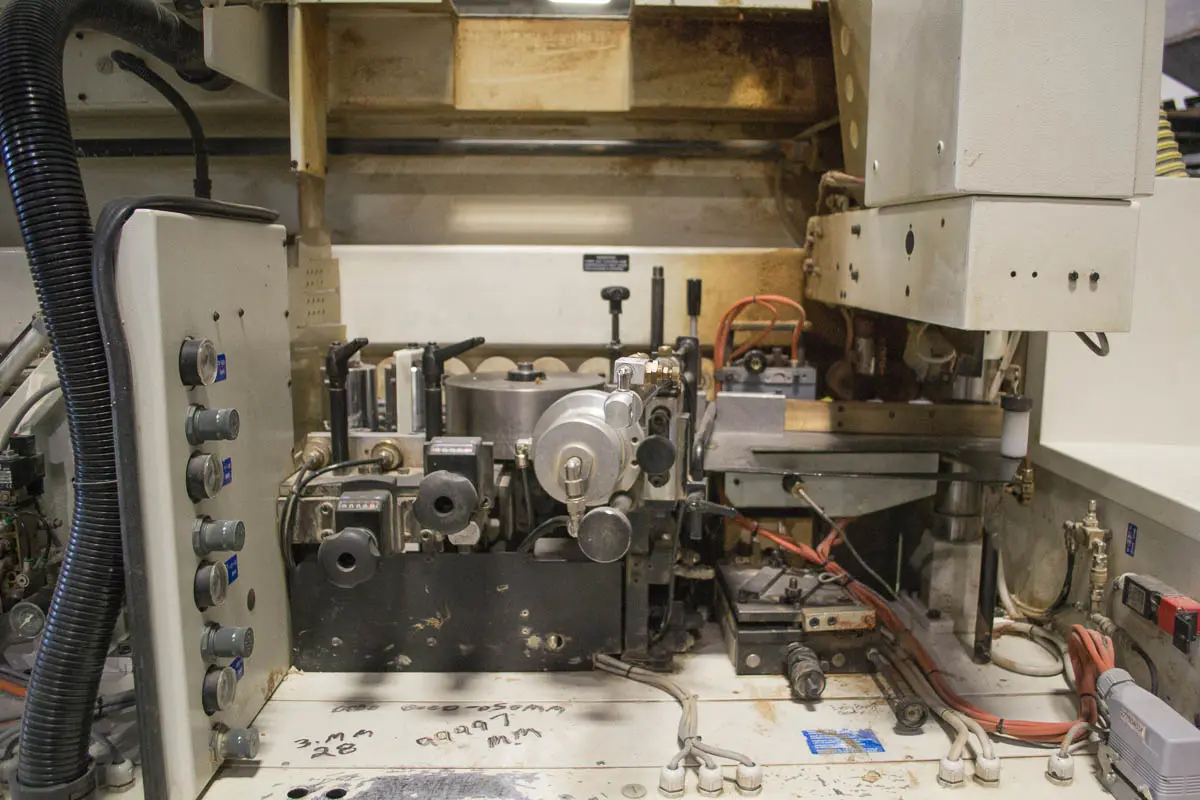

  • Hot melt glue application system with booster system for quick heat up. Comes with reverse glue applicator.
  • Guillotine shears can cut 3 mm PVC
  • Pneumatically controlled pressure section (all independently controlled)

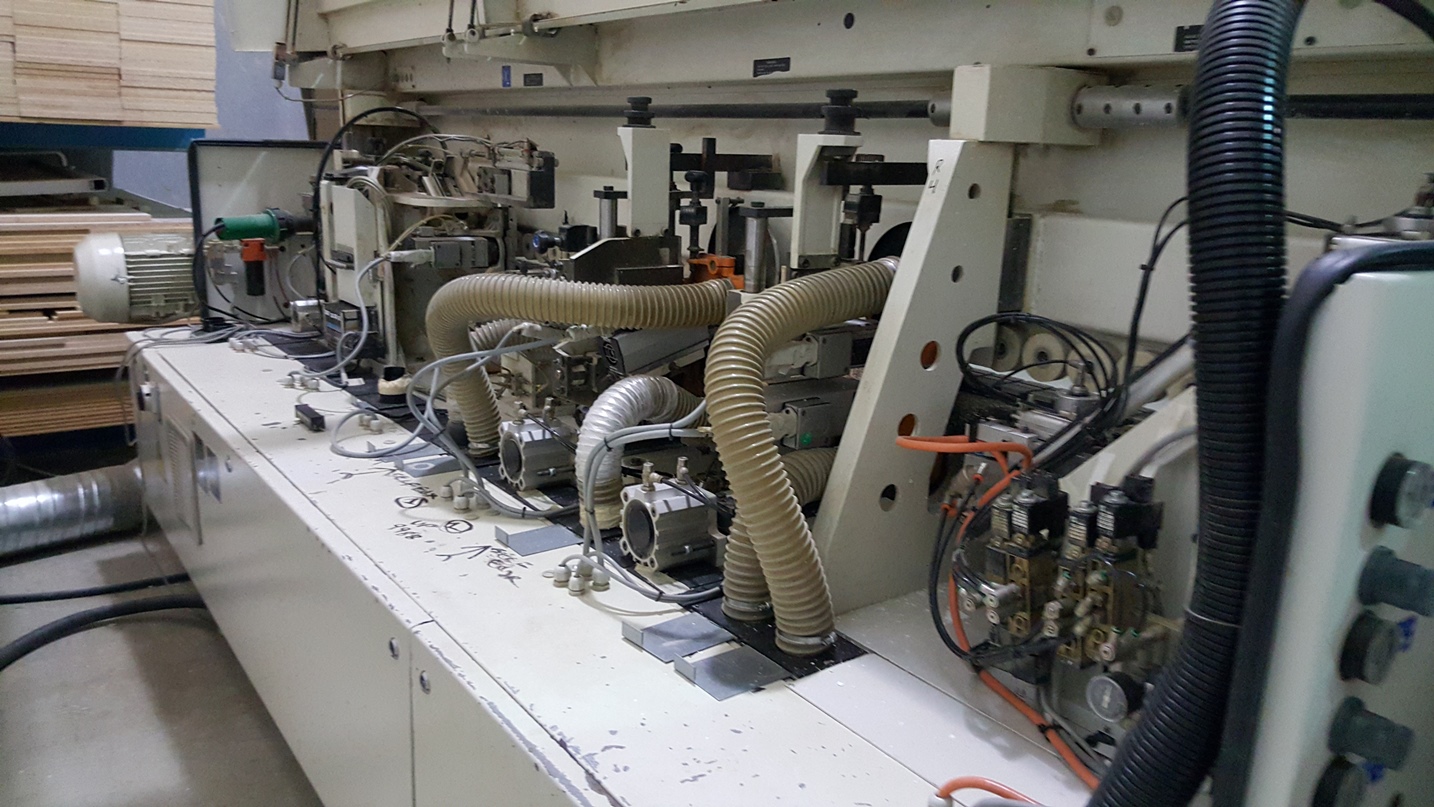

  • Workstations: Double motor end trim (1.3 HP 12,000 RPM motor each) pneumatic adjustment for 0 – 15 degrees chamfer cutting

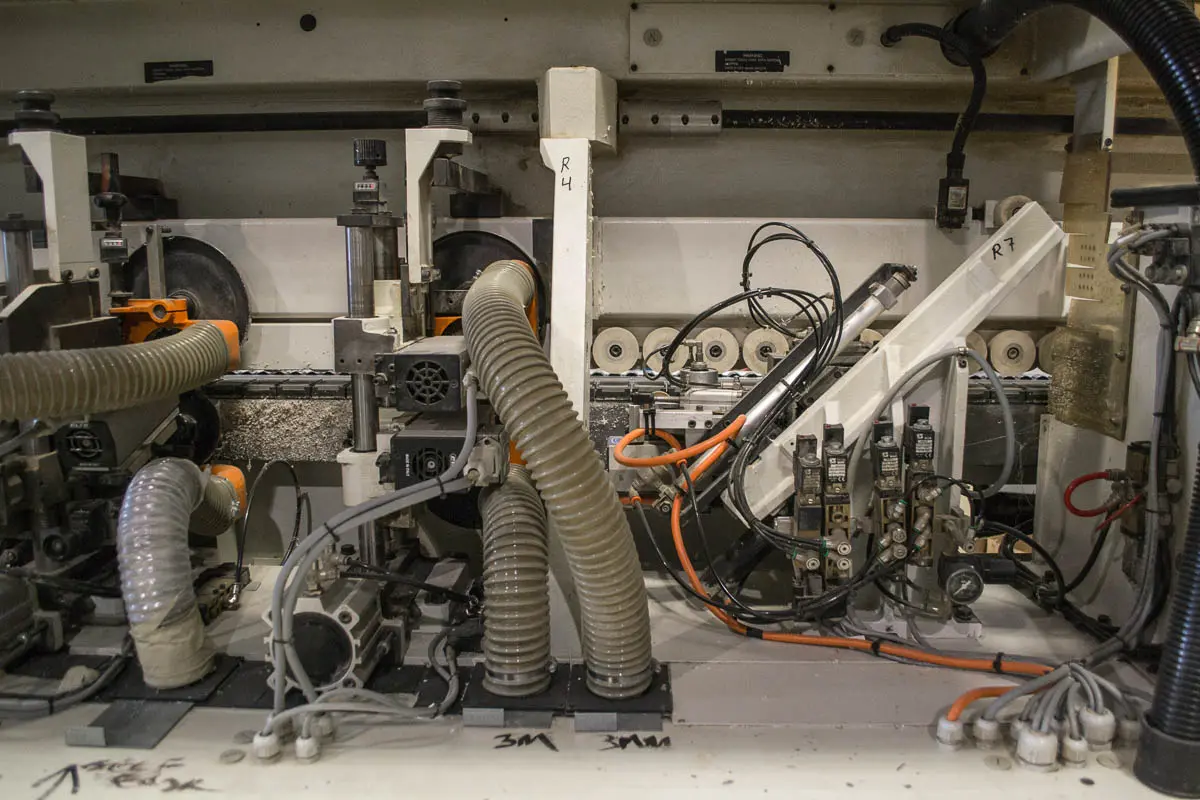

  • Top and Bottom Flush Trim: (2.5 HP) – 12,000 RPM motor each)
  • Top and Bottom Fine & Radius Trim Unit (2.5 HP – 12,000 RPM motor each) Bevels from 0 – 30 Degrees CORNER ROUNDING
  • Top and Bottom PVC Scrapers for 3 mm radius, pneumatic pressure control for scraping knives, digital readouts.
  • Top and Bottom Buffing (0.4 HP – 1,400 RPM each motor)
  • Single Feed Speed at 40 FPM, 5 HP feed drive, automatic chain track lubrication.
  • Hold down pressure beam with row of hold down rollers open from ⅜” – 2-5/16”

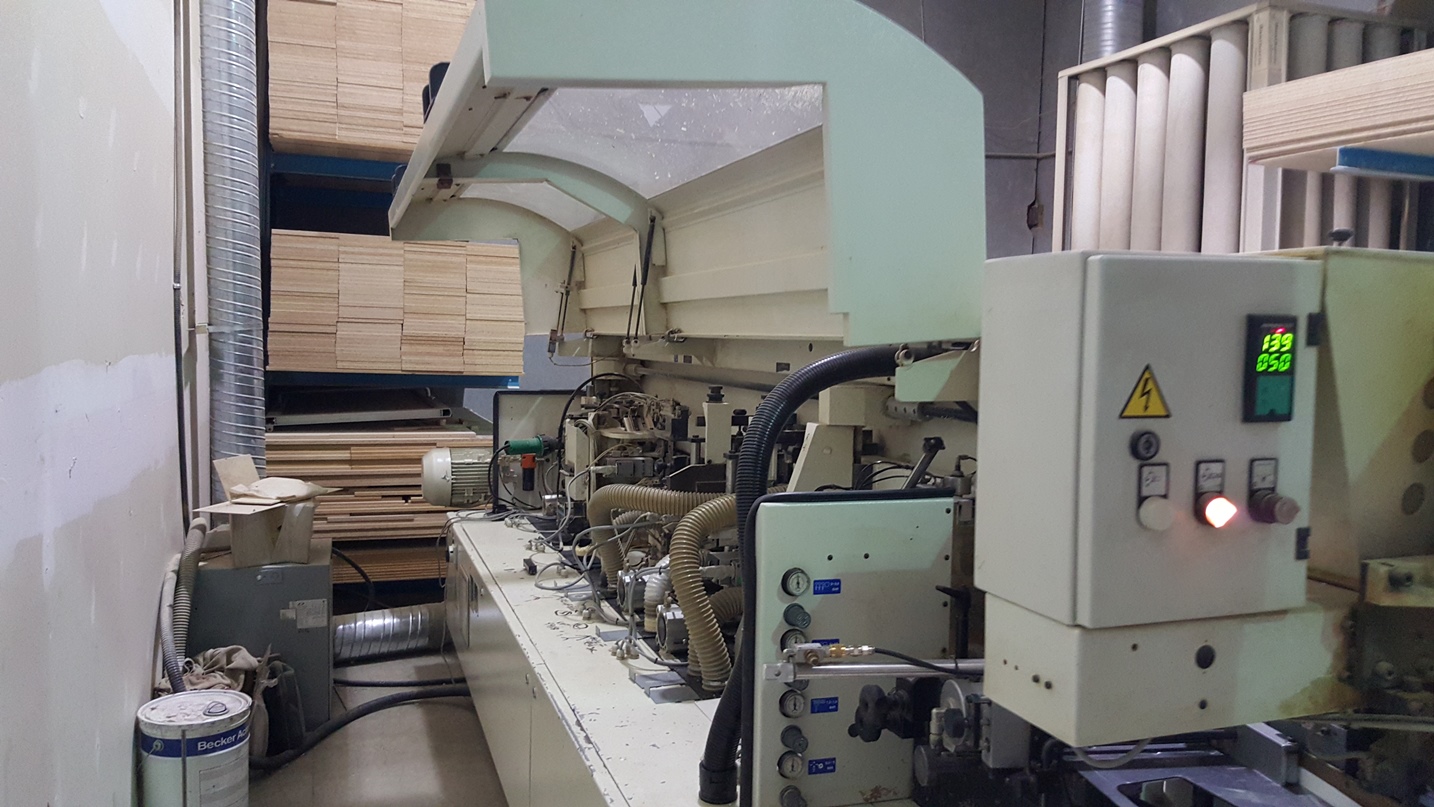

  • Sound proof cabins with window and interior lights
  • Heavy duty outrigger panel support with counter pressure
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.

Out of stock?

We have similar machines in used Edgebanders, Contact our used machienery experts for more details.

Please provide a valid full name.
Please provide a valid email address
Please type your message
Weight 2494.76 lbs
Dimensions 207 × 46 × 70 in
