Specifications

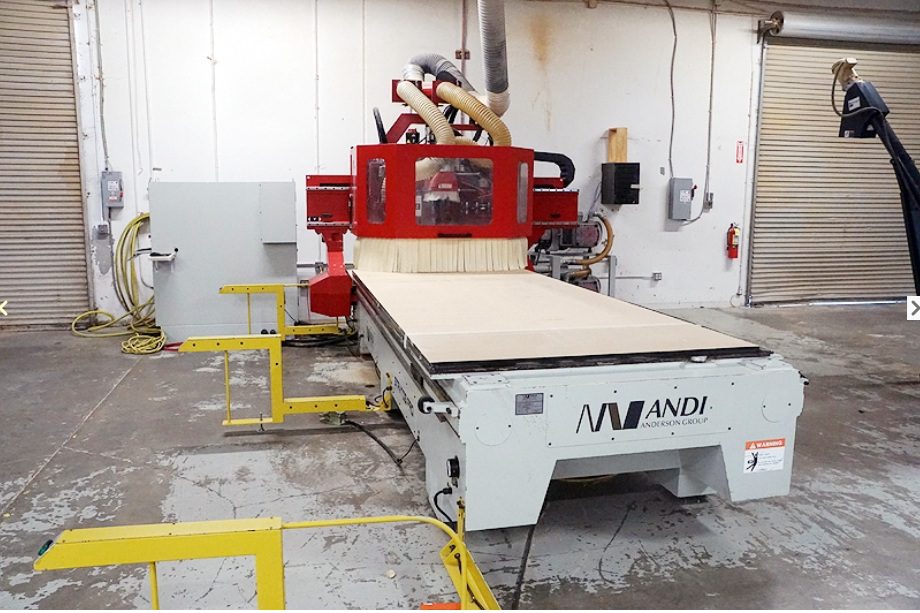

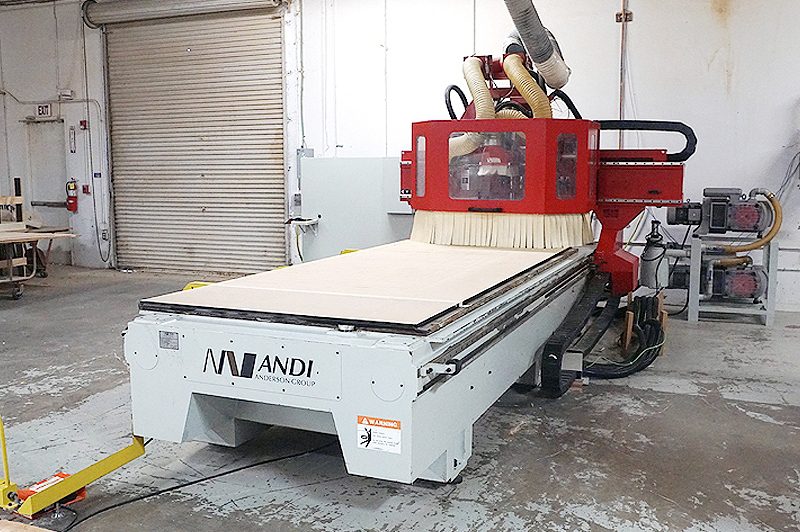

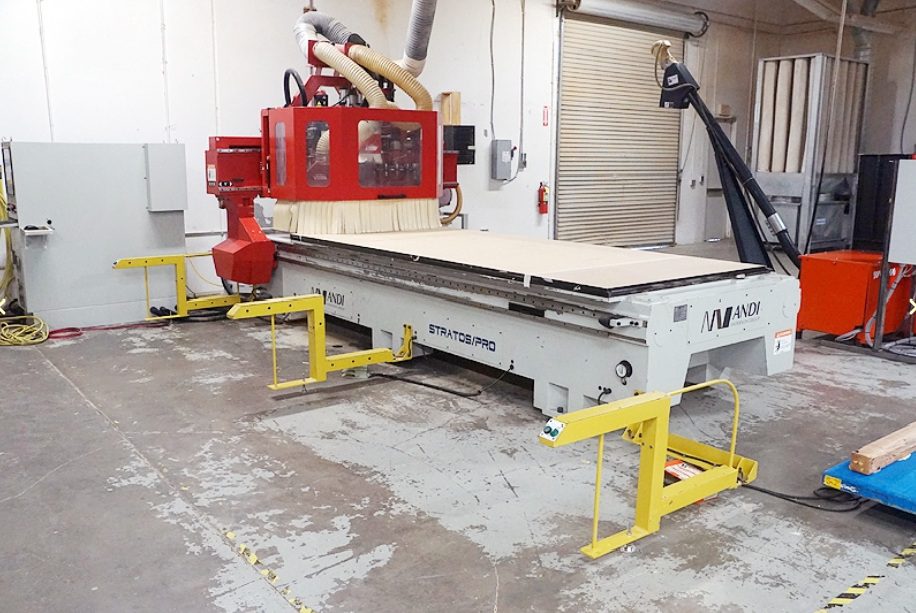

- Model: Stratos Pro
- S/N: FAANCST03269
- 2o Kw
- 208/240/480 V
- 110/96/50 A
- 3 Phase
- 5′ x 12′ Table (145.7″ x 63″)
- Table work height 35-1/2″
- Axis stroke:
- X-axis 3900 mm (153.5″)
- Y-axis 2180 mm (85.5″)
- Z-axis 350 mm (13.8″)
- Feed speed:
- X-axis 80 m/min
- Y-axis 60 m/min
- Z-axis 30 m/min
- Vertical Electro router spindle
- 7.5/11 Kw, inverter driven spindle
- 1,000 to 24,000 rpm speed range
- HSK 63F spindle mount
Automatic Tool Changer (12 Holders) Ride Along
- Drill spindles arranged in L-shape formation
- (7) Spindles in X-axis,
- (7) spindles in Y-axis (1 spindle shared)
- 32 mm spindle centers
- Programmable spindles for various drilling patterns
- (1) 1+1 horizontal drill block with opposing spindles mounted in X-axis
- (1) 1+1 horizontal drill block with opposing spindles mounted in Y-axis
- Fixed table moving gantry machine design
- Rack and pinion X-axis drive system
- Ball screw Y and Z-axis drive system
- THK linear table bearings
- Front lift up door safety access door
- (2) Becker vacuum pumps with rack
- Model VTLF 2.250/0-79
- Vacuum capacity 244/286 M3/h
- Mfg Year: 2014
- 6.6 Kw
- 230/460 volt three phase pump motors
- (2) Table vacuum work zones with foot pedal controls
- Freestanding electrical and computer control station cabinet
- Color monitor, keyboard and mouse
- Fanuc Servo controls
- Delta VFD inverter spindle speed drive
- Hand held operator controller
- Includes the machine operators manuals, tool holder changing fixture/wrench, wood table cart with misc supplies
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
