Specifications

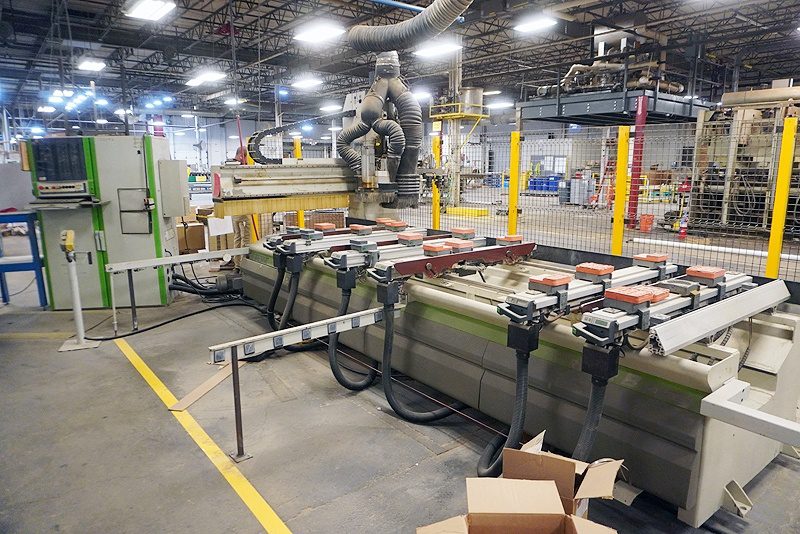

- Pod & Rail Design
- (6) Rails with (3–4) vacuum pods each
- Rail length: 52”
- Working area: 119” x 49”
- (2) Vacuum zones
- (10) Position ride-along tool changer
- Main router spindle: approx. 9 HP
- Vertical & horizontal boring unit
- Secondary motor: 2.5 HP
- Becker vacuum pump (Model Picchio 2200)
- Electrical: 230/400V, 3 Phase
- Control cabinet with monitor, keyboard, and PC
- Safety enclosure

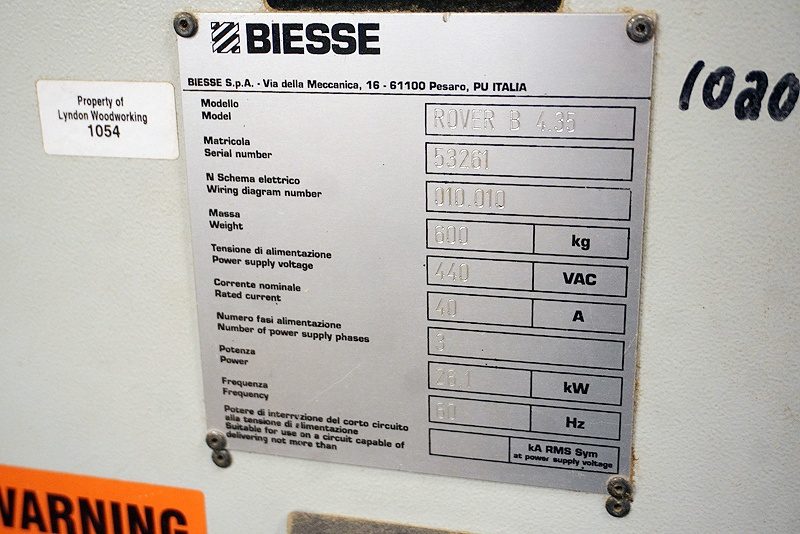

- Serial #: 53261
- Removed from production environment
- Sold as-is, where-is
- Buyer responsible for rigging and shipping
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
