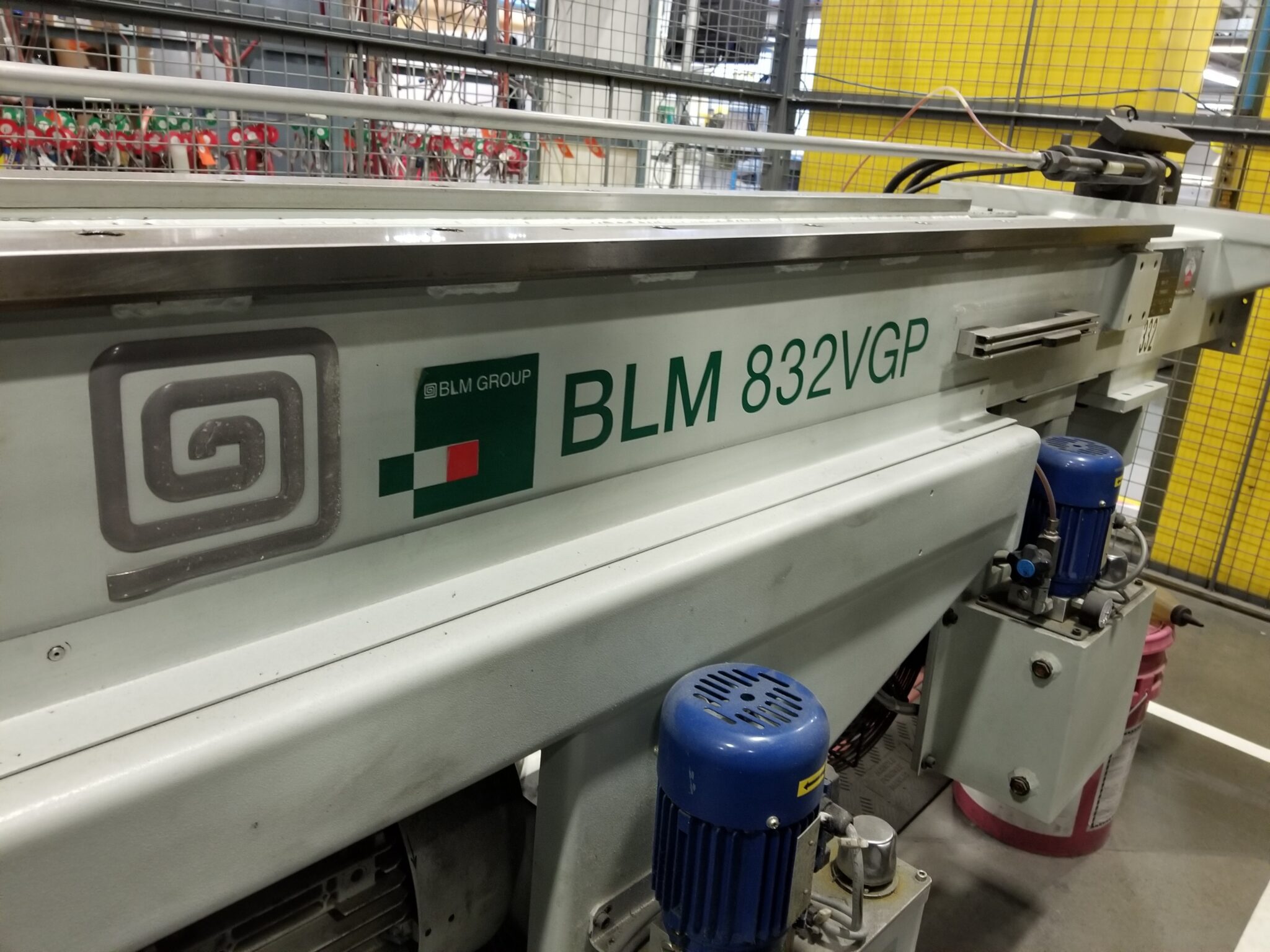

BLM 832S-VGP Precision Pipe Bender

Specifications

• Model: 832S-VGP
• Serial No. 113080203001
• Manufacture Year 2012
• 480 V
• 3 Phase
• 60 Hz
• 22 A

• ONLY 326 hours of operation

Technical Data

• Maximum bend capacity: R=450N/mm_
• Round Tube: min 4 mm-0.157″, max 30 x 2mm, 1.181″ x 0.078″
• Square Tube: 25 x 25 x 1.2mm, 1″ x 1″ x 0.047″
• Rectangular Tube: 30 x 20 x 2mm, 1.181″ x 0.787″ x 0.078″
• Oval Tube: 30 x 20 x 2mm, 1.181″ x 0.787″ x 0.078″
• Bending radius (increasable/reducible on request): min 20mm-0.787″, max 170mm-6.692″
• Usable length (increasable/reducible on request): 3000mm-9.842 ft
• Max tube length from tool post to collet: 3000mm-9.842 ft
• Max tube length from tool post to mandrel retraction unit: 4000mm-13.123 ft
• Positioning speed = X Axis: 900mm/sec
• Bend Arm speed = Y Axis: 200/sec
• Bend arm return speed = Y Axis: 320/sec
• Rotational speed = Z Axis: 360/sec
• Max installed power: 13 kW
• Hydraulic pressure: max 120 bar
• Noise level max 75 db
• Axis accuracy: X=+/- 0.1mm =0.004″, Y=+/-0.1, Z= +/- 0.1
• Average bends/hr: 800/1200
• Machine Weight (Net): 1500 kg=3307 lbs
• CNC Net Weight: 150 kg = 8377 lbs
• Machine Packing Dimensions: 5150 x 1100 x 1450mm, 16.9 x 3.6 x 4.7 ft
• CNC Packing Dimensions: 860 x 750 x 1980mm, 2.8 x 2.4 x 6.5 ft

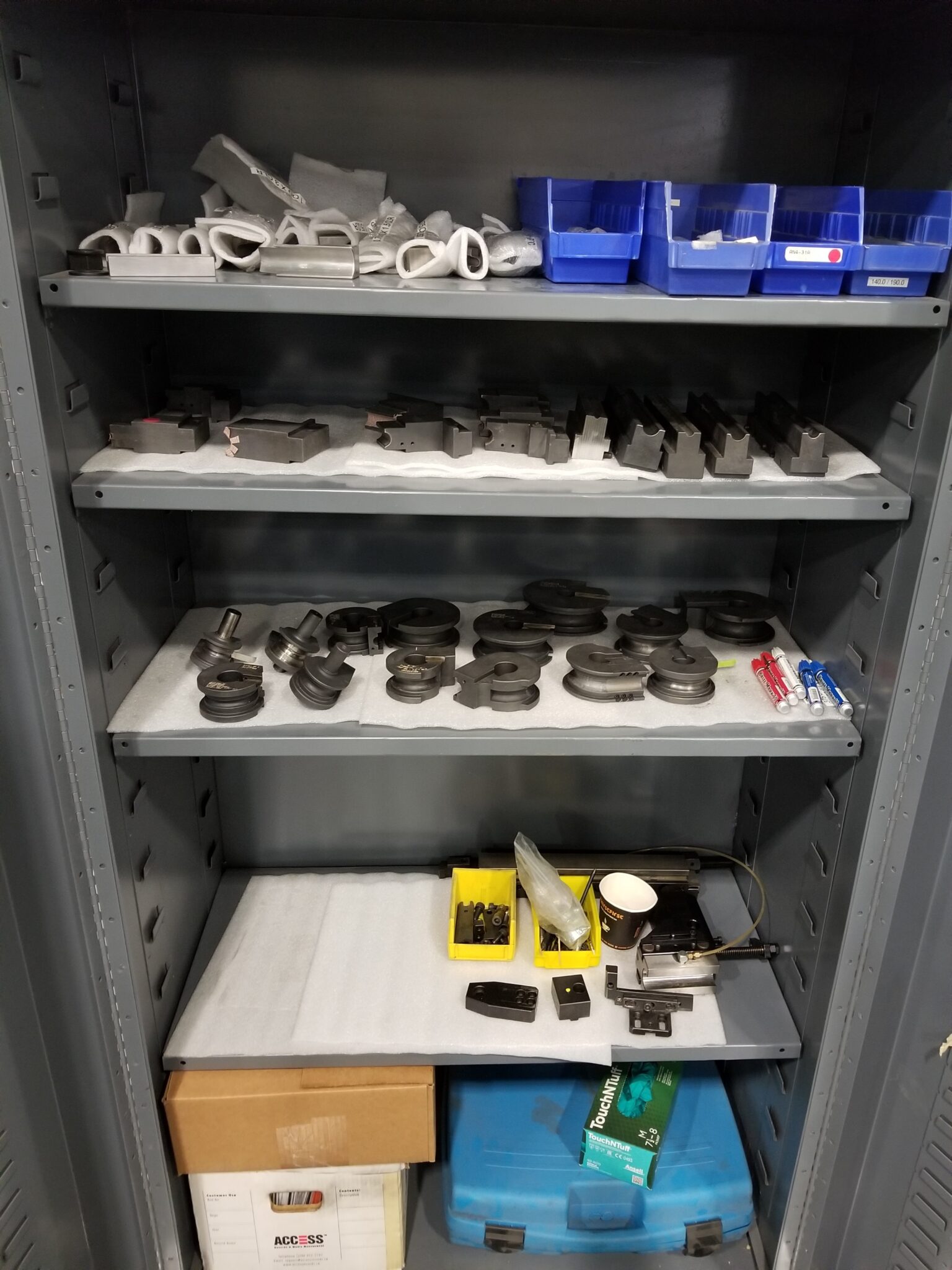

*Includes original operating manual & full list of tooling available*
