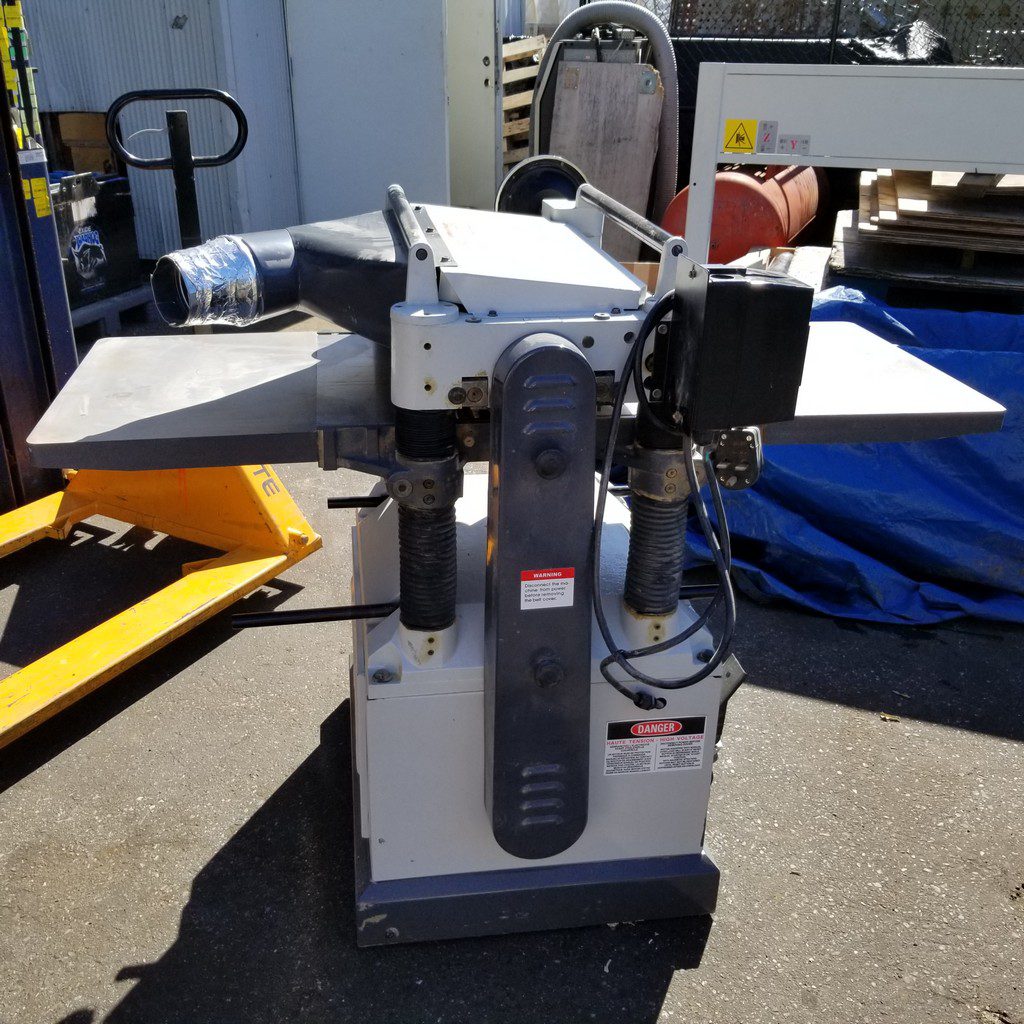

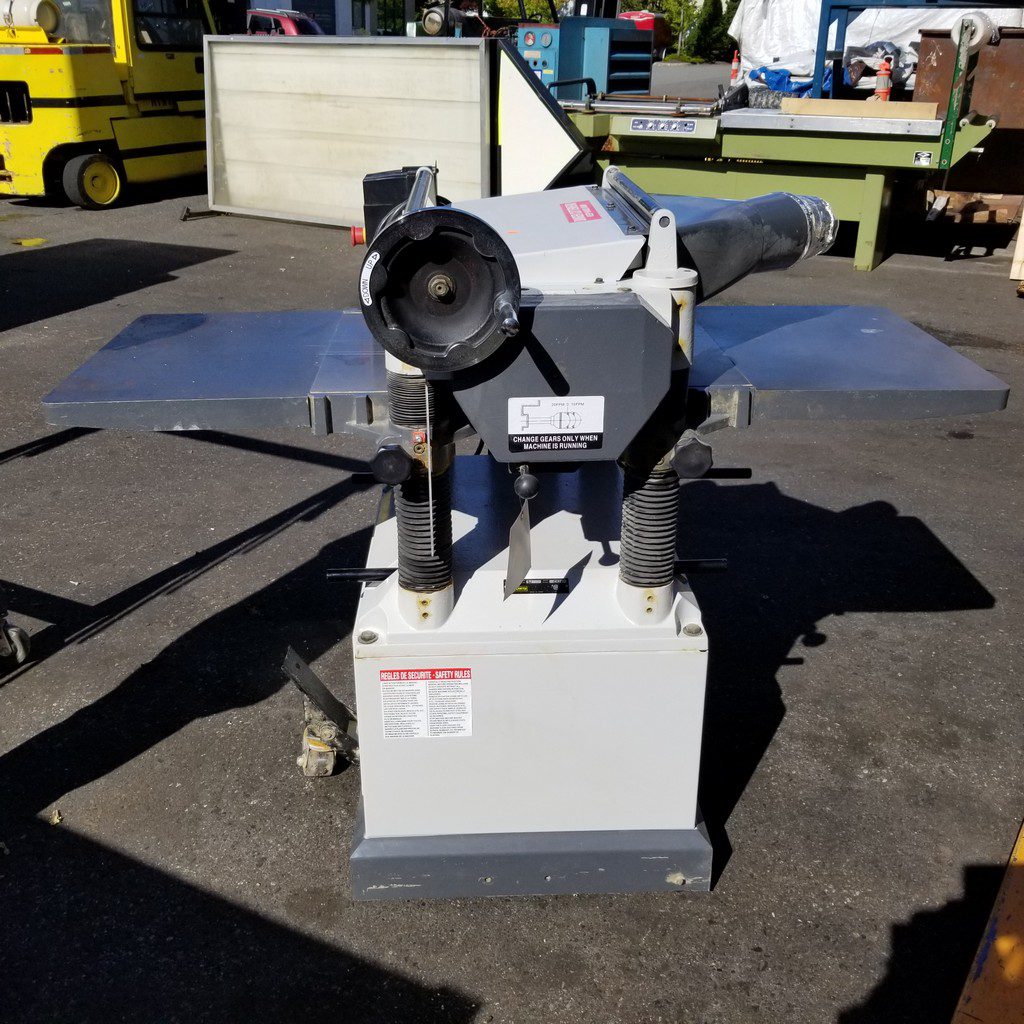

Craftex CX Series Planer

Specifications:

• Motor: 5 HP, 220 Volts, Single Phase, 25 Amps
• 3 ‘V’ Belts Drive.
• Cutter Head Speed: 5,000 RPM
• Cuts per minute: 20,000
• Feed Rate: 16 FPM and 20 FPM plus Neutral.
• Capacity: 20” width, 8” height.
• Minimum Stock Thickness: 3/16”
• Stock Thickness: 8”
• Cut Depth Planing Full Width – 1/8”
• Cut Depth Planing 6” Wide Board 1/8”
• Number of Cutter-Head Knives: 4 H.S.S Knives
• Cutter –Head Knives Size: 20″ x 3/4″ x 1/8″
• Table Size: 25-3/4” x 20”
• All Ball Bearing and Cast-Iron Construction
• Precision Ground Cast Iron In-feed and Out-feed Tables with Rollers
• Oil-Bath Gear Box supplies 2 speeds and Neutral to the in-feed and out-feed rollers.
• Powder Coated Paint
• Mobile Base with Locking Foot Pedal
• 5” Dust Port is Included
• Weight: 880 lbs.
• Length, Width & Height 56” x 39” x 45-7/8”

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
