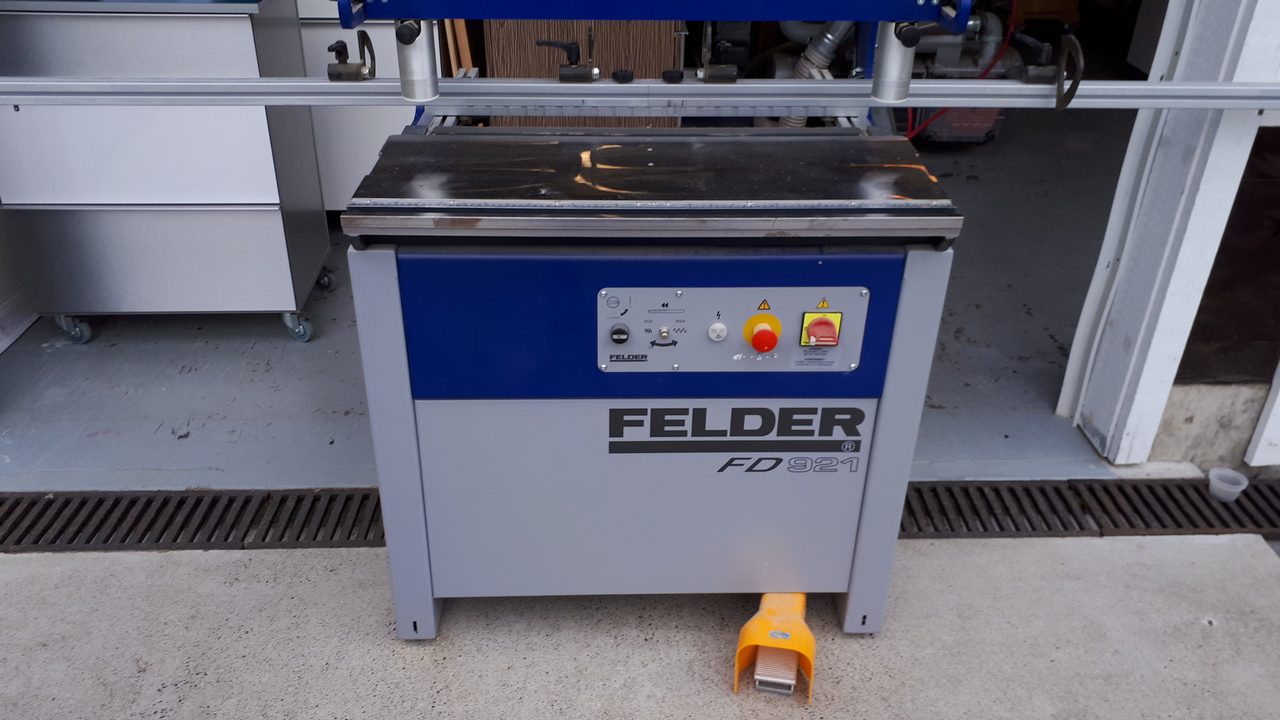

Felder FD921 Boring machine

Specifications:

• End stop: at 37 mm for cabinet hinges and line boring
• Motor power 2.0 HP (1.5 kW)
• Number of drilling heads 21 (11 rotate clockwise and 10 counterclockwise)
• Distance between axis of drills 32 mm
• drilling depth 70 mm (2¾”)
• workpiece size 850 x 3000 mm (33½” x 118⅛”)
• workpiece height 65 mm (2½”)
• 2x line boring fences 1500 mm (59”) with 2 adjustable end stops on each fence
• 5 Tool chucks with bayonet lock
• 100 psi air supply required
• Drill head
• 21 spindle unit, Quick-change chucks, 32 mm system
• Combination Adapter Unit for Cabinet Hinges
• Adjustable throat Adjustable depth up to 300 mm
• pivot the boring head to 45 degrees Boring unit tilts pneumatically
• Optional Mitre fence 45°
• Pressure cylinder: additional pneumatic workpiece clamps; max clamping height 85 mm
• Automatic drilling depth compensation unit: automatically compensates the vertical drilling depth according to the manually set horizontal drilling depth.
• Mitre fence: Mitre fence 90°
