SKU: 895-1

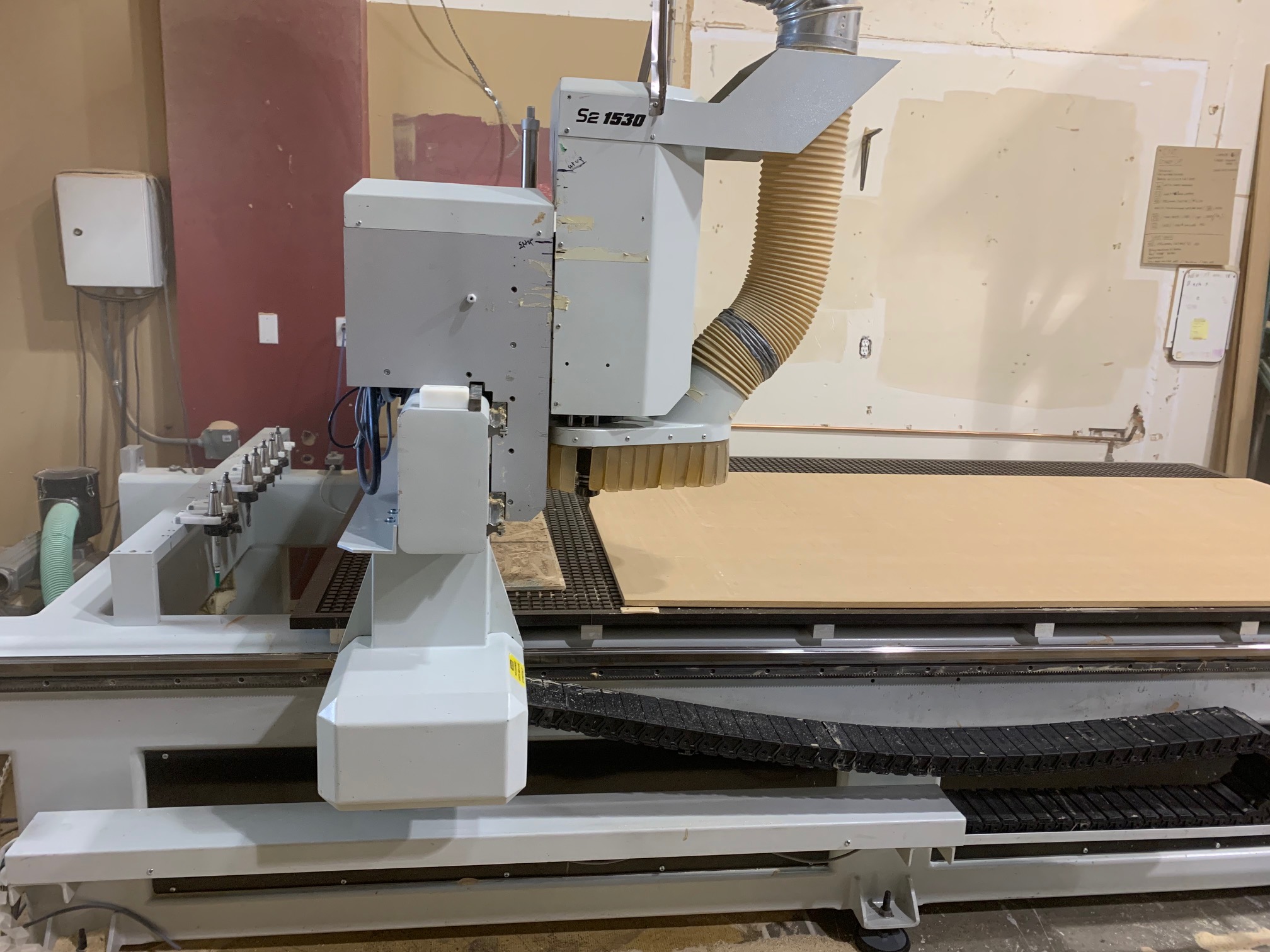

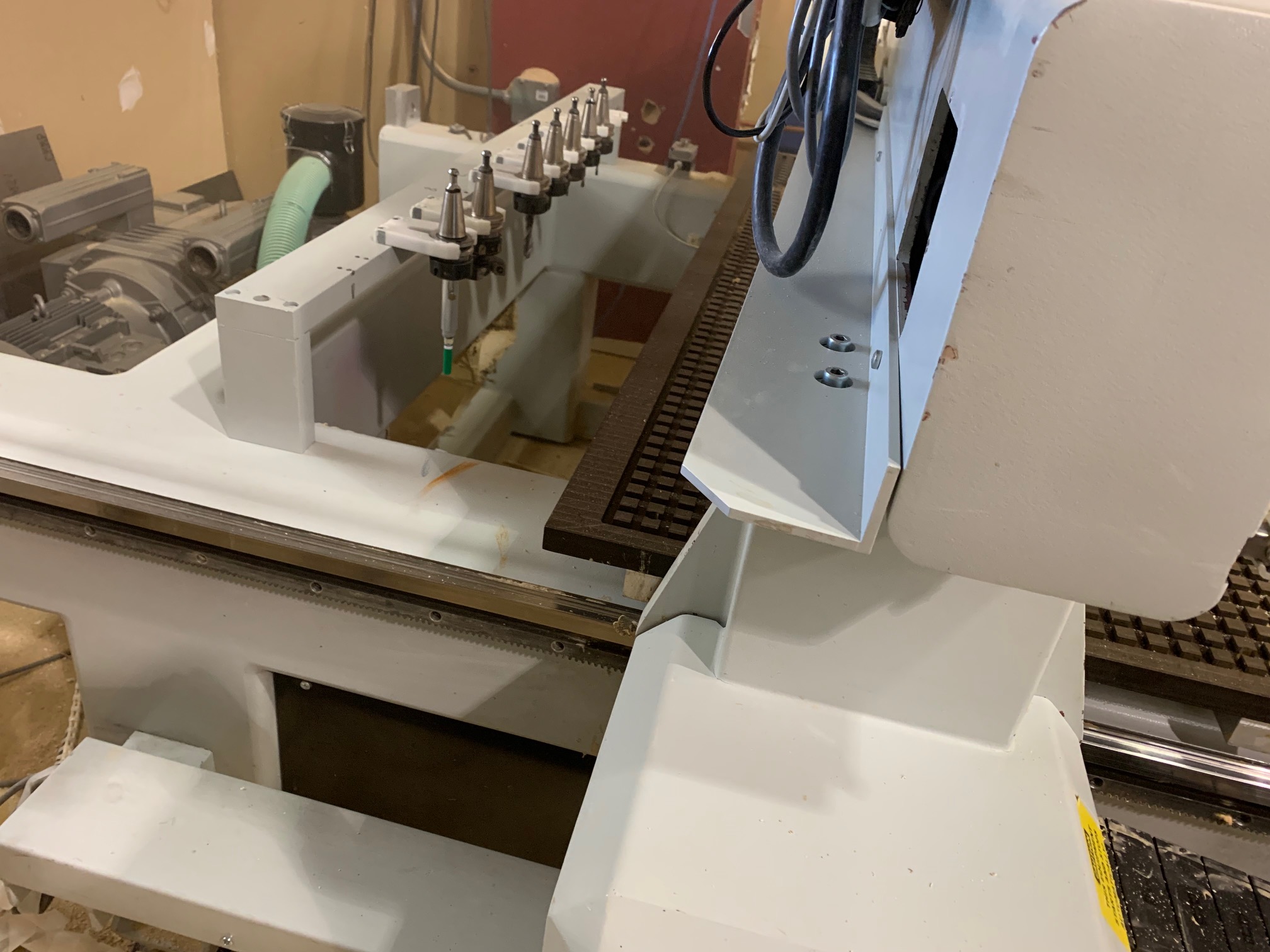

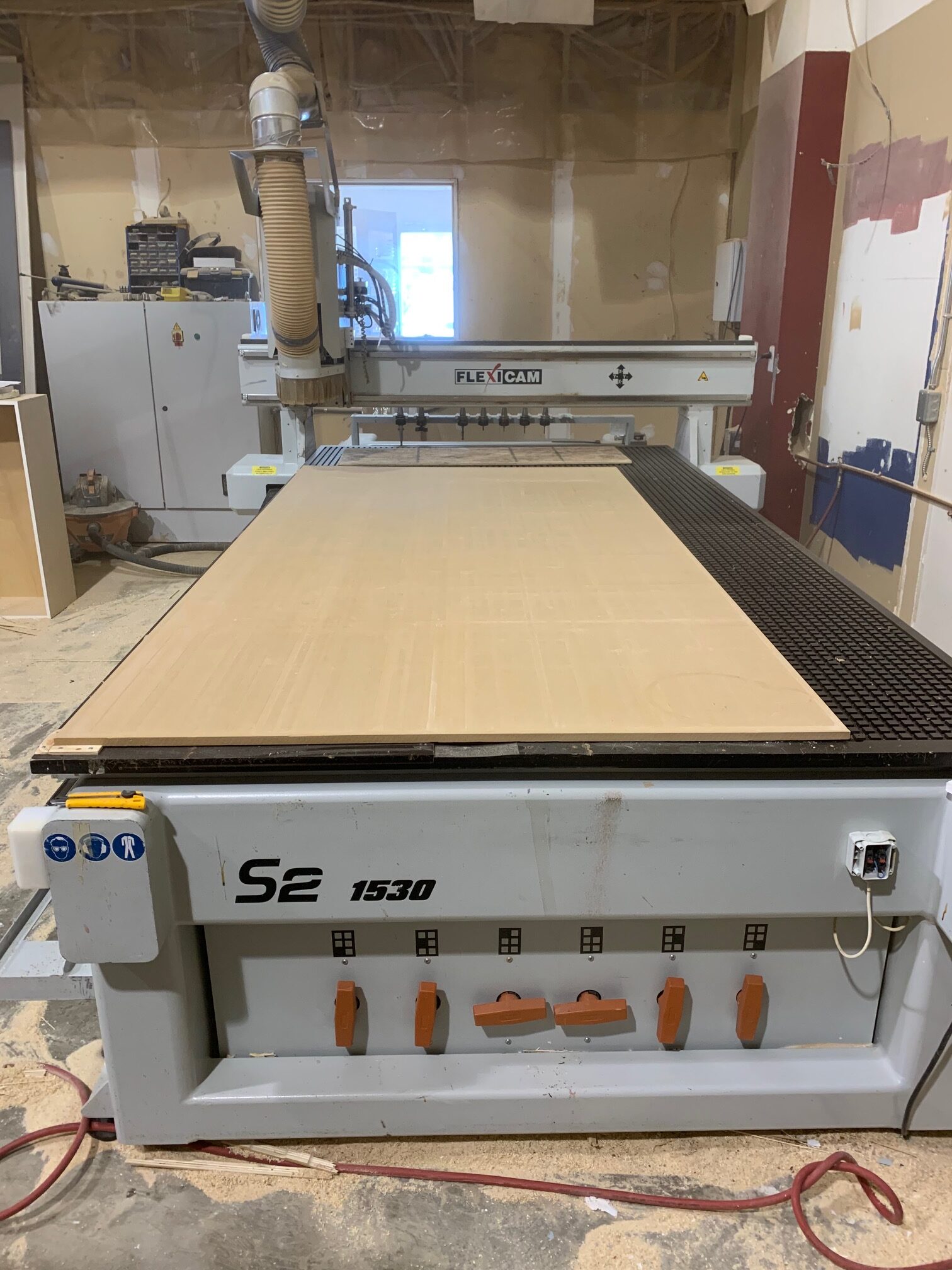

Flexicam Stealth CNC 5 x 10 Table

USD $30,966.00

In stock

Contact Us

Specifications

  • Space-saving fixed table – moving gantry design for small machine footprint
  • Single structure welded, stress relieved and machined all-steel baseframe, gantry and gantry feet
  • Steel structures are reinforced with heavy ribs to resist flex and dampen vibrations
  • Each machine design is efficiently optimized and validated by using Finite Element Analysis (FEA) to ensure quality, performance, and safety
  • Open machine bed for easy loading and unloading by forklift or overhead crane
  • High preload profiled linear bearings with cover strips on all axis
  • Brushless digital A/C servo drives and motors on all axis
  • Dual side drive and synchronised X-axis; no twist under load like applicable to a single center-mounted ballscrew or cantilevered design
  • Rack and pinion drive system on X and Y axis
  • High precision ballscrew on Z axis (anchored at both ends)
  • Low-backlash planetary gear boxes
  • Fully closed cable carriers prevent the cables from damage by chips and fine dust
  • High quality, shielded cables for energy chains are a guarantee of reliability
  • Z-axis clearance 200 mm, optional 280 mm
  • Z-axis travel 280 mm
  • Maximum axis speed 60 m/min (1,500 mm/s) depending on controller, motors and drives
  • Vacuum Pumps Included

SHIPPING: FULL TRUCK LOAD

  • Serial No: 08036024
  • MFG Year: 2008
  • 3 x 230 V
  • 50/60 Hz
  • 3 Phase
  • Short nose 8.9 HP
  • S1 Continuous 10.7 HP
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information
