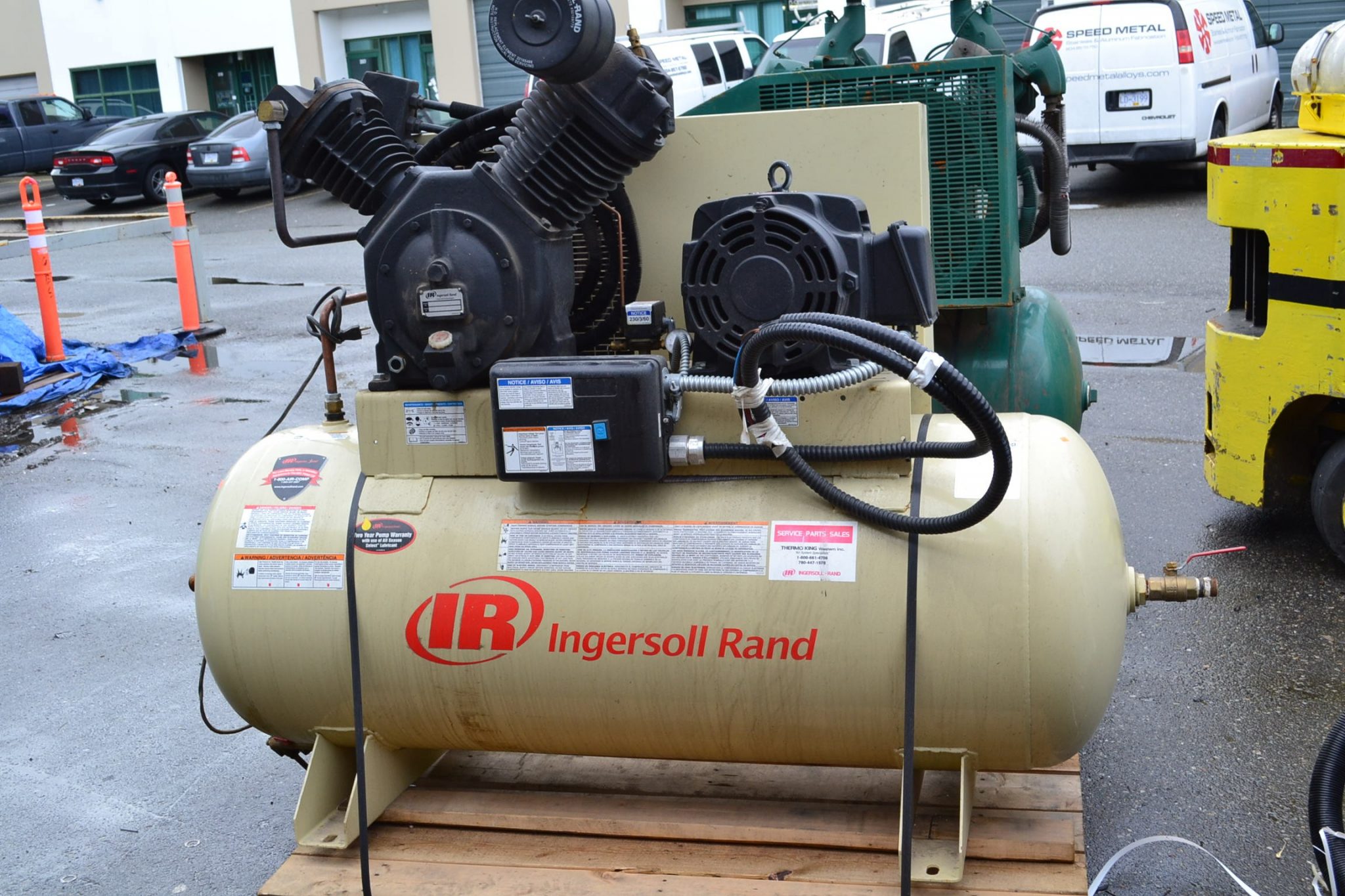

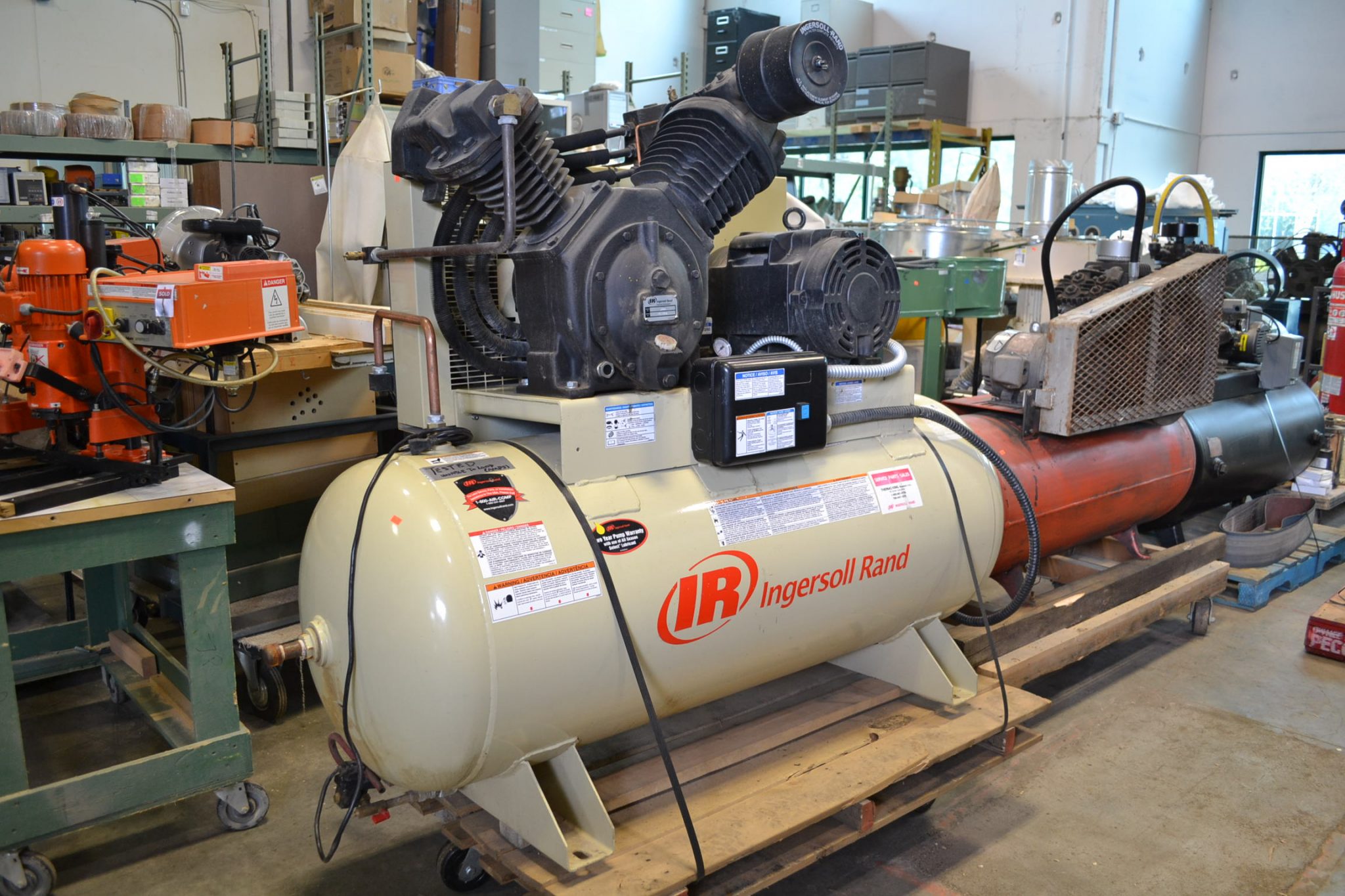

Ingersoll Rand 15 HP 120 Gallon Two-Stage Air Compressor (3 Phase)

Ingersoll Rand 15 HP 120 Gallon Two-Stage Air Compressor (3 Phase)

SKU: 591-2

CAD $3,600.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Features and Specifications:

  • Durable cast-iron oil-lubricated design for 100% continuous-duty application
  • Precision-engineered components for high reliability
  • Individually cast cylinders, overhung crankshaft and one-piece connecting rod for ease of maintenance and service
  • High-efficiency finger valves
  • 175 psig maximum operating pressure for applications requiring high air capacity and pressure
  • Rated for continuous duty (15,000 hours) when used with Ingersoll Rand’s All Season Select synthetic lubricant
  • Delivers 35 CFM @ 175 PSI
  • Model 7100E15-V
  • Motor: 15 HP, 230 V, 3 Phase, 60 hz
  • Pump: Industrial cast-iron two stage oil-lubricated pump
  • Tank: 120 gallon horizontal
  • Max pressure: 175 psi
  • Flow at max pressure: 50 cfm
  • Weight: 1,239 lbs
  • Dimensions: 72L x 28W x 56H
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.

Details

Weight562 kg
Dimensions72 × 28 × 56 in
Brand

Ingersoll Rand

Model

7100E15-V

Voltage

230 V

HP

15

Phase

3

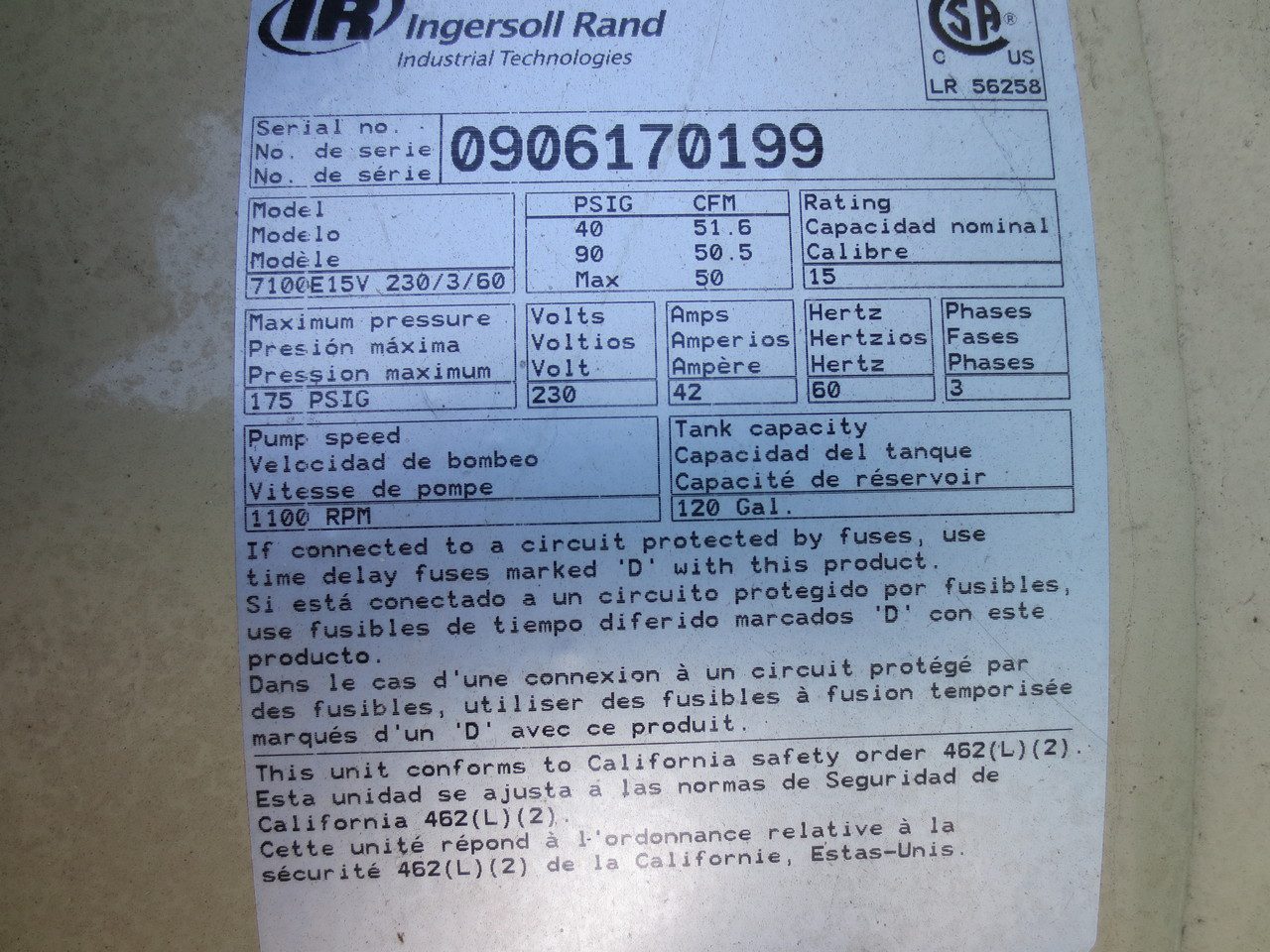

Serial

0906170199
