623-21 John Deer Bulldozer
623-21 John Deer Bulldozer623-21 John Deer Bulldozer623-21 John Deer Bulldozer623-21 John Deer Bulldozer623-21 John Deer Bulldozer623-21 John Deer Bulldozer623-21 John Deer Bulldozer623-21 John Deer Bulldozer623-21 John Deer Bulldozer623-21 John Deer Bulldozer623-21 John Deer Bulldozer
Contact Mitch Brennan:
Call +1 604 556 2225
Intl. 1 (855) 556-5121 Ext.1
Email

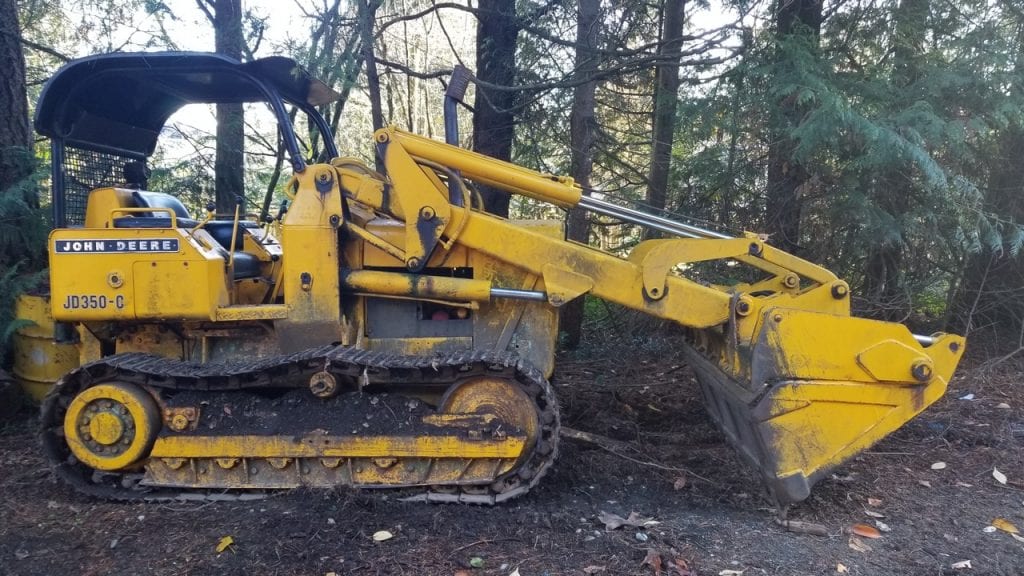

John Deer 350C Crawler Bulldozer

$14,500.00 CAD* (approx USD: 11165) or best offer

1 in stock

Call to Purchase

SKU: 623-21 Categories: , ,

SKU: 623-21

Condition:

Good

Location: Owner Location, Call to View

Ships to: Worldwide


Specifications:

  • 350C CRAWLER BULLDOZER 10,600 lb (5055 kg)
    • Transport Height……………………………………………….7 ft 7 in. (2.31 m)
    • Transport Length ………………………………………………11 ft (3.35 m)
    • Machine Width ………………………………………………….6 ft (1.83 m)
    • ENGINE…………………………………………………………….John Deere 300 Series
  • Number of Cylinders and Displacement:
    • Gasoline …………………………………………………………….. 3 cylinders, 152 cu in. (2.5 L)
    • Diesel ………………………………………………………………… 3 cylinders, 164 cu in. (2.7 L)
    • Air Intake System……………………………………………………….. Naturally aspirated
    • Bore and Stroke…………………………………………………………. 3.86 x 4.33 in. (98 x 110 mm) or
    • 4.02 x 4.33 in. (1.02 x 110 mm)
    • Net hp at 2500 rpm……………………………………………………..42 SAE hp (31 kW) DIN 32 kW
    • Maximum Torque at 1300 rpm………………………………………110 lb-ft (149 N•m)
  • Nozzle Opening Pressure:
    • New …………………………………………………………………… 3200 ± 50 psi (22 065 ± 345 kPa)
    • Used ………………………………………………………………….. 3000 ± 50 psi (20 685 ± 345 kPa)
  • Valve Clearance (Cold):
    • Intake…………………………………………………………………. 0.014 in. (0.38 mm)
    • Exhaust ……………………………………………………………… 0.018 in. (0.46 mm)
    • Oil Pressure at 2500 rpm……………………………………………..50 ± 15 psi (345 ± 105 kPa)
    • Static Injection Pump Timing ………………………………………..Timing lines aligned w/flywheel located at TDC
    • Dynamic Injection Pump Timing at Rated Load rpm*……….16 + 0 – 1° BTDC
  • Speeds:
    • Slow Idle…………………………………………………………….. 800 rpm
    • Fast Idle………………………………………………………………2650 rpm
    • Rated Full Load ……………………………………………………2500 rpm
    • Cylinder Pressure Hot (Min) …………………………………………350 psi (2415 kPa) cranking with injectors removed
    • Flywheel Teeth……………………………………………………………142

Note: *For latest information, see Dealer Technical Assistance Center (DTAC) Solution K000413.

  • TRANSMISSION
    • Model and Speeds……………………………………………………… Collar shift: 4 forward, 4 reverse
    • Lube Pressure at Fast Idle …………………………………………..17—33 psi (120—230 kPa)
    • Reverser Pressure at 2650 rpm:
    • (S.N. —278391) …………………………………………………120 ± 10 psi (830 ± 69 kPa)
    • (S.N. 278392— ) ………………………………………………….150 ± 10 psi (1030 ± 69 kPa)
  • HYDRAULIC SYSTEM
    • Pump Size ………………………………………………………………… 1.48 cu in. (24.3 cm3)
    • Flow (Min) New, at 2250 psi
    • (15 515 kPa) and 2500 rpm………………………………………14.0 gpm (53 L/min)
    • Pump Size ………………………………………………………………… 2.29 cu in. (37.5 cm3)
    • Flow (Min) New, at 2250 psi
    • (15 515 kPa) and 2500 rpm………………………………………21.6 gpm (81.8 L/min)
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.

Additional information

Brand

John Deere

Model

JD350C

Serial

350CB 259905T

  • Selection Required: Select product options above before making new offer.
  • Offer Sent! Your offer has been received and will be processed as soon as possible.
  • Error: There was an error sending your offer, please try again. If this problem persists, please contact us.

Make Offer

To make an offer please complete the form below:


$






$
Please wait...

Coast Machinery Group sells used, pre-owned machinery on a first come first served basis. All used machinery is not covered under any warranty unless otherwise stated and is provided "as-is". Descriptions and specifications are provided to the best of our knowledge (some information is communicated via 3rd-party sources). It is recommended that machinery be inspected prior to purchase to confirm the condition and specification. Additional charges such as crating, loading, export duties, taxes and delivery may apply.
