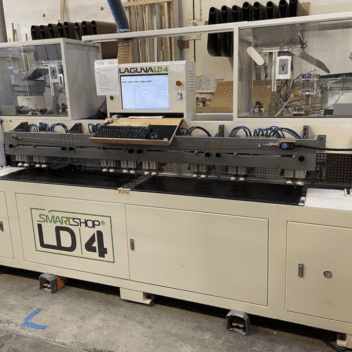

Laguna LD4 Smart Shop Lock Doweller

Specifications

Model: LD4

S/N: LD410-20517

• 220 V
• 30 A
• Single Phase
• 2,420 mm/95.2″ total work zone, left to right
•      Center fence creating two (2) independent zones, 1,197 mm/47.1″ each
• Two (2) foot pedal control
• Two (2) router units
•      2 HP
•      24,000 RPM
• Two (2) hopper and insertion units
•      Units are in enclosed cases with access doors
•      Speed control for each hopper
• Eight (8) sets of pneumatic clamps
•      Each set has two (2) vertical clamps and one (1) angle clamp
• PC control with standard keyboard and mouse
• Bar code scanner
• Automatic lubrication system
