SKU: 385-23

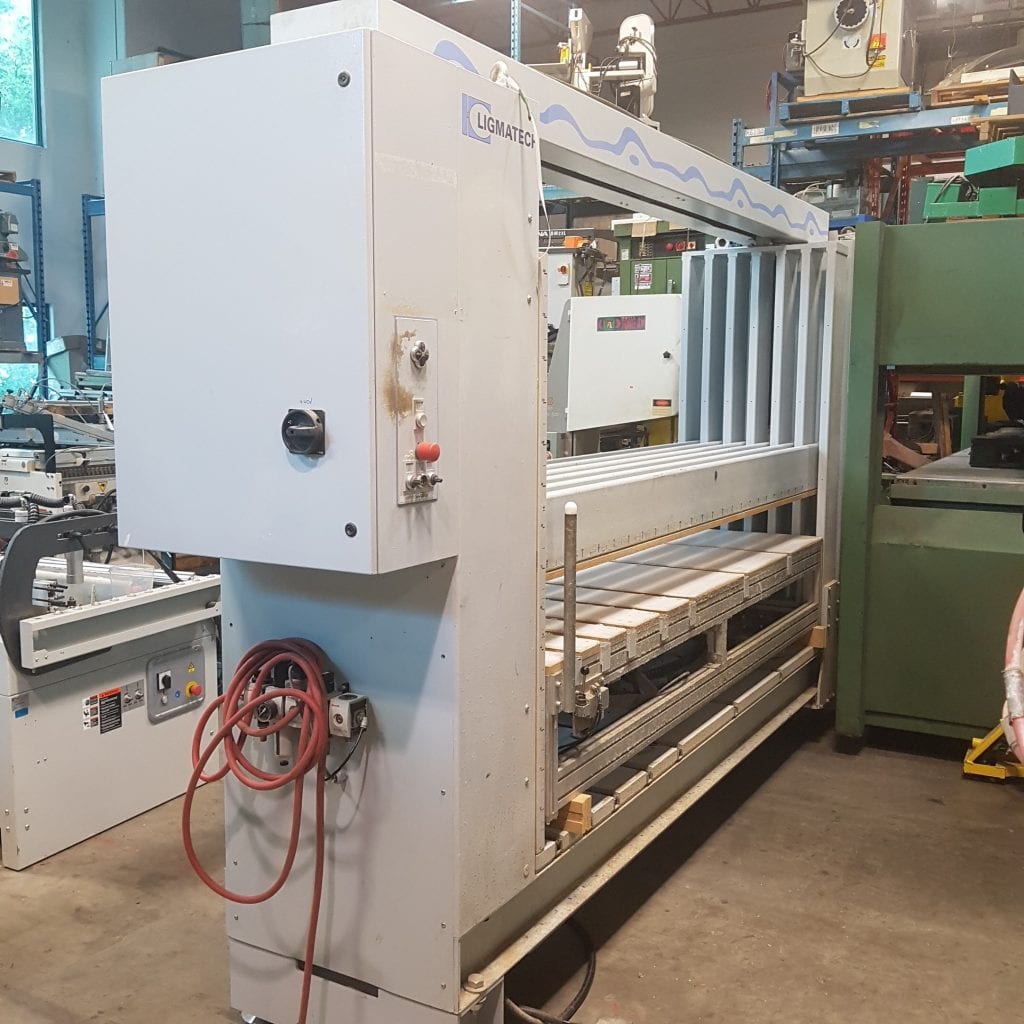

Ligmatech MPH 450/25/07 Case Clamp

USD $20,298.00

In stock

Contact Us

Used Ligmatech case clamp is for sale from Coast Machinery Group.

Specifications:

  • 480Y/277 V
  • Control Voltage: 24 V
  • Max Full Load Current: 3.5 A
  • Fuse: 16 A
  • Mfg Year: 2011

Features:

  • Horizontal interlocking pressure beam (push button control)
  • Vertical interlocking pressure beam (push button control)
  • 8 beam surface area (no need for pressure pads)

Working Capacity:

  • Length: 9.8″ – 98.4″ (250 -2,500mm)
  • Depth: 9.8″ – 27.5″ (250 – 750mm)
  • Height: 5.9″ – 55″ (150 – 1,400mm)
  • Motorized horizontal & vertical beams: simultaneous positioning or individually during set up.
  • Vertical & Horizontal interlocking pressure walls each with 8 individual beams, parallel movement, square clamp frame.
  • 2 Clamp Speeds: 5 FPM (1.5 MPM) or 10 FPM ( 3 MPM)¬† Adjustable pneumatic pressure regulator clutch system, stops beam at preset pressure resistance.
  • Features & Operation: Manual switch setting adjustable dwell timer opens clamp automatically/operator control panel built into left side of clamp.

Options:

  • Non powered assembly (knock up) table with manual movement mounted at the front of the machine as pictured.
  • Note: The pictured “blue” belt conveyor pictured behind is NOT included.
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
