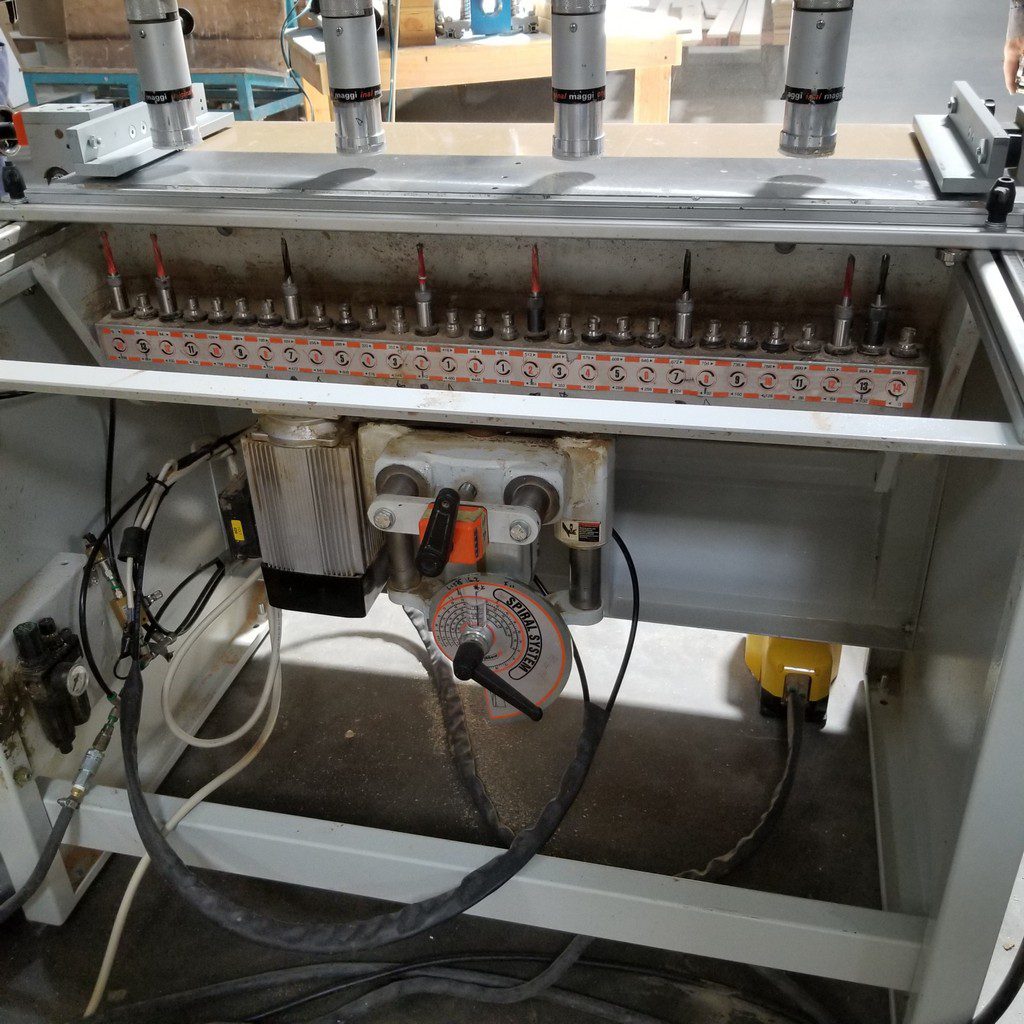

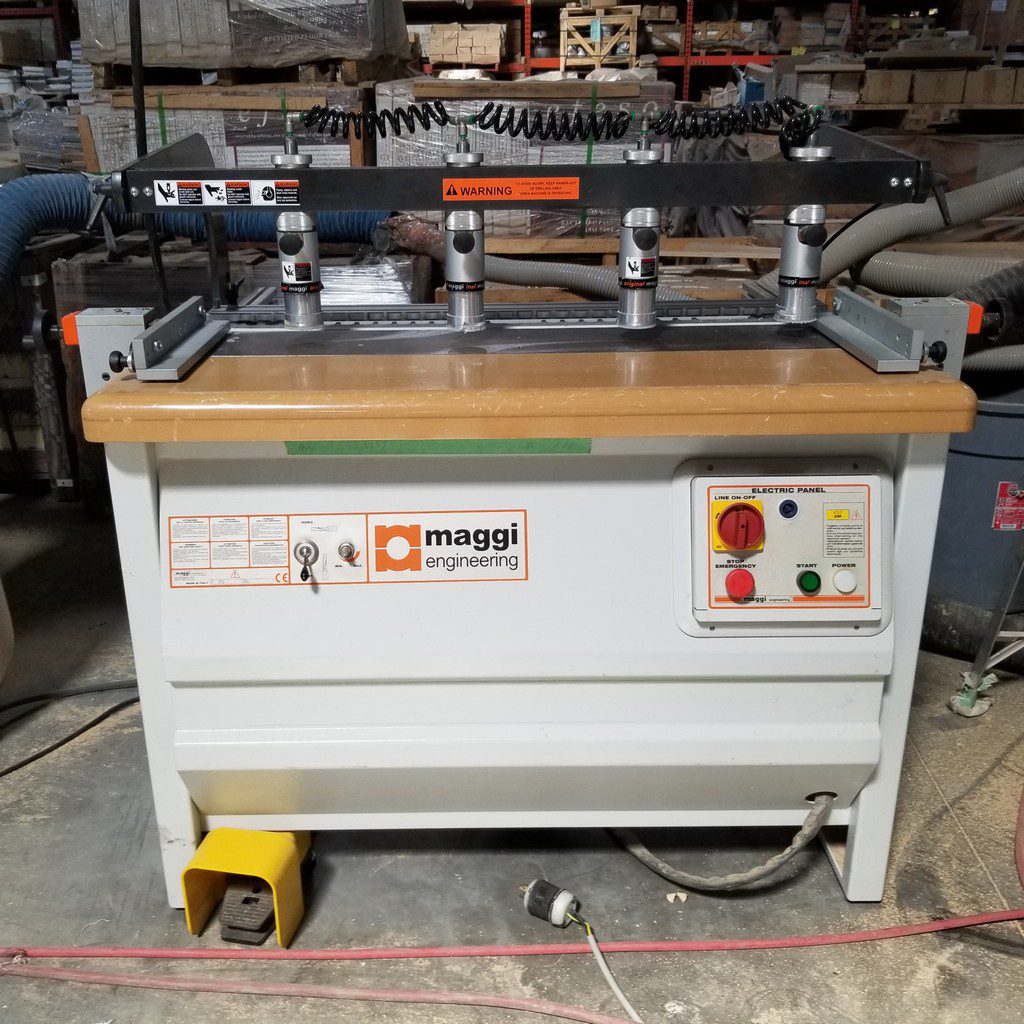

Maggi Boring System 29 Spindles V.230-60-3Ph

Maggi Boring System 29 Spindles V.230-60-3Ph

SKU: 587-24

CAD $5,200.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Specifications:

  • Number of Spindles 29
  • Interaxis Between Spindles 32mm/1.26”
  • Interaxis Between First and Last Spindle 896mm/35.28”
  • Boring Depth 65mm/2.56”
  • Dimensions of The Working Piece 960 X 3000mm/37.8” x 118.11”
  • Height of The Working Table 860mm/33.86”
  • Number of Clamps 2
  • Number of Motors 1
    • Motor Power 2 Hp
    • Motor R.P.M. 2800 Rpm
  • Dimensions of The Machine (W X L X H) 1507X960X1265mm/59.33”x 37.8”x49.8”
  • Net Weight 320 Kg
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.

Details

Weight 320 kg
Dimensions 38 × 59 × 50 in
Brand

Maggi

Model

Borring System 29 Spindles

Serial

1610503014

Manufactured Year

2005

HP

2HP

Phase

3 Ph

Voltage

230V 60Hz
