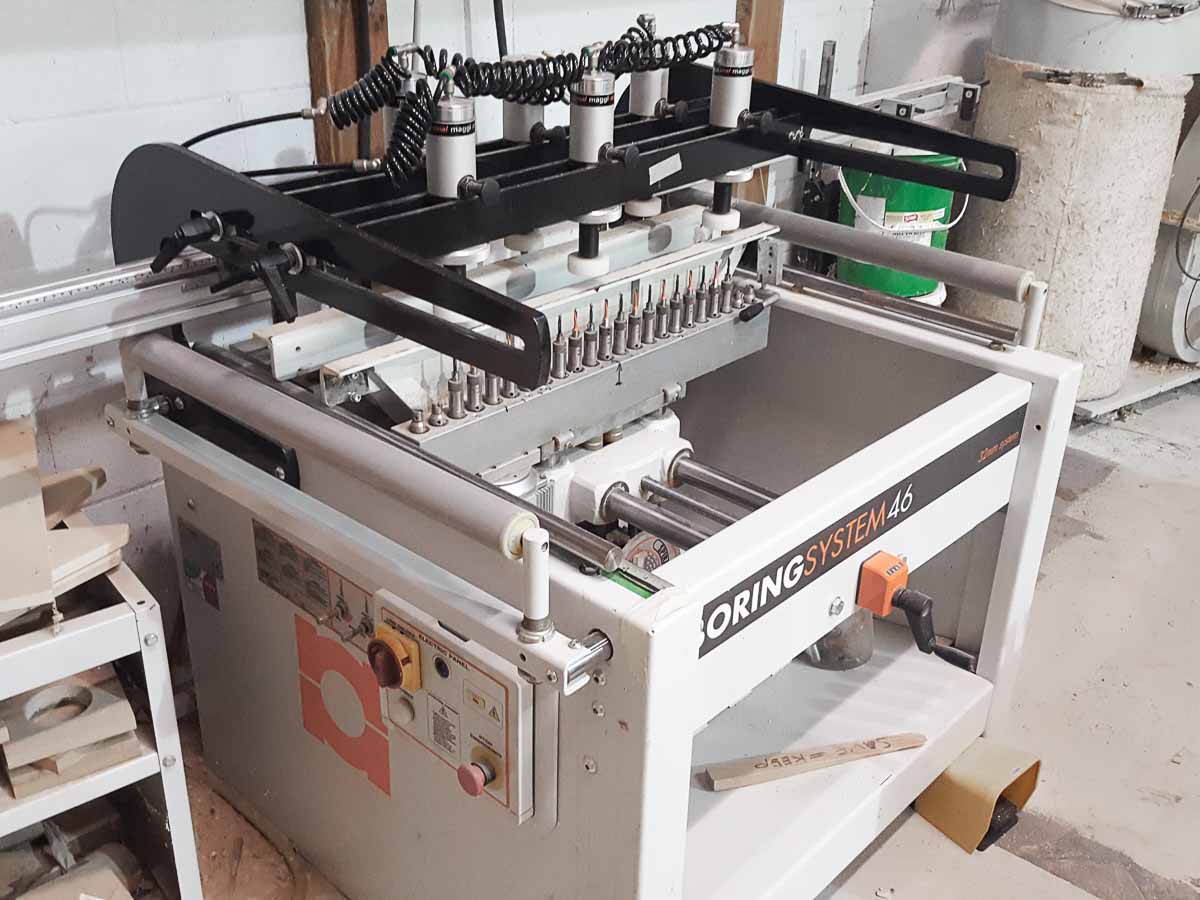

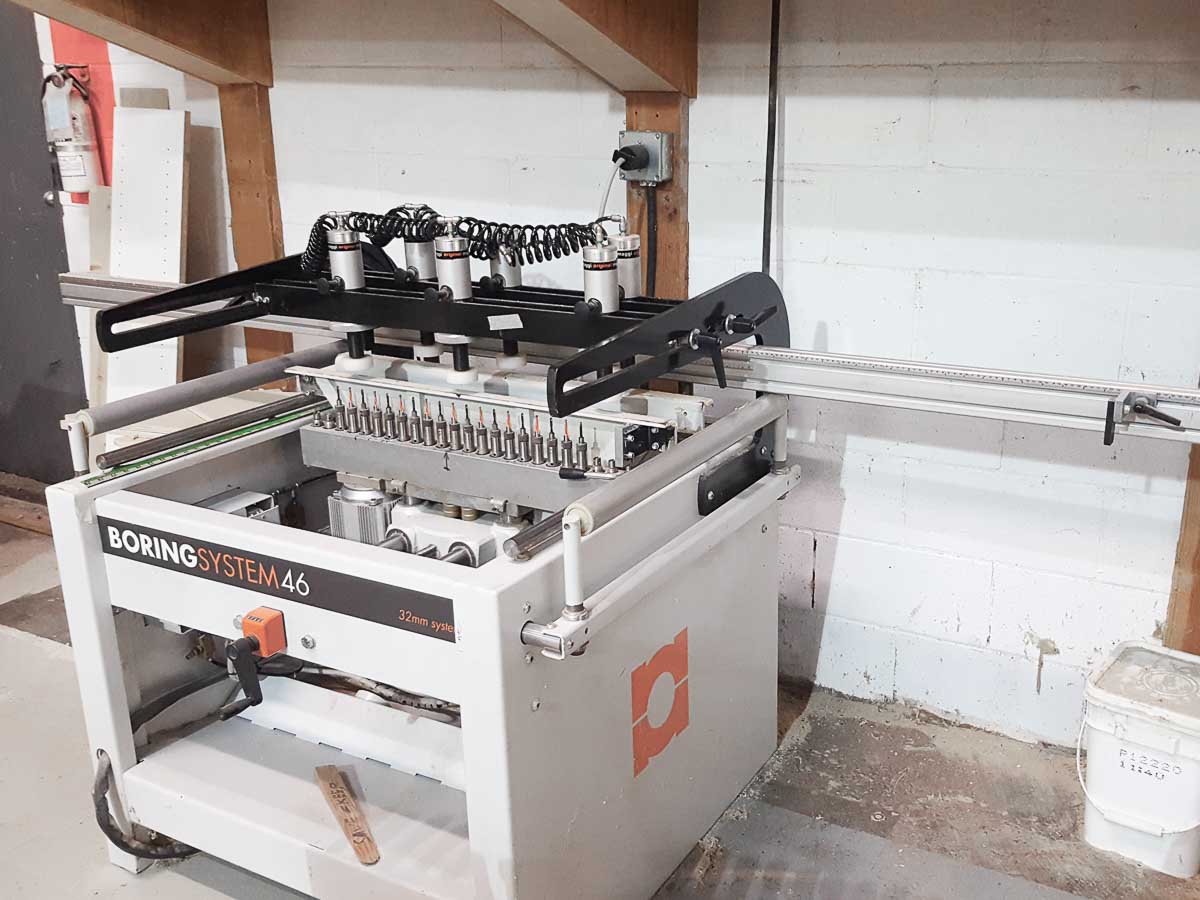

Maggi System 46 Boring System

Manufacturer Specifications:

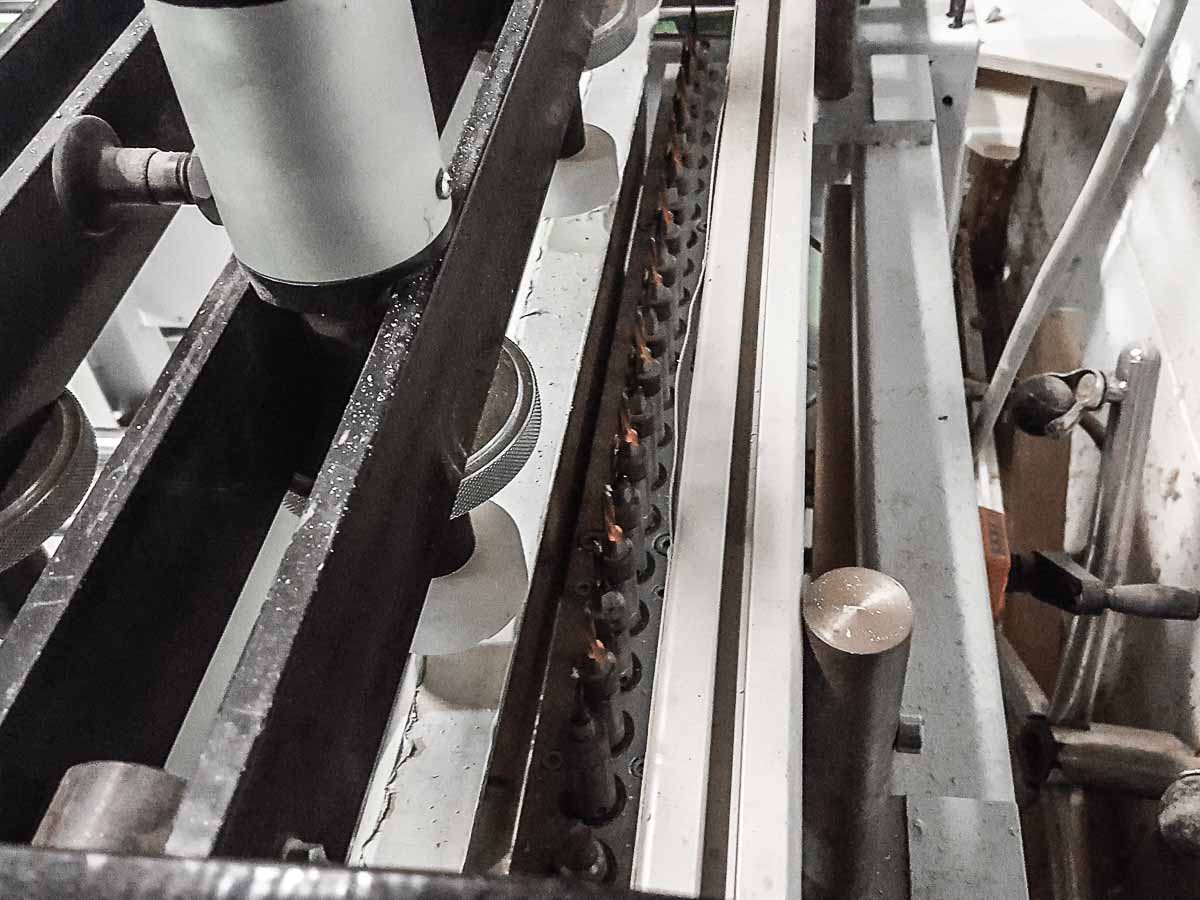

The Maggi System 46 Boring Machine provides (2) 23-spindle heads on 32 mm centers; distance between first and last spindle center of each head is 27-23/32″ (704 mm).

• Front end adjustment for quick and easy set-up.
• Boring depth is 2-1/16″ (55 mm).
• Side depth counter system; extractable 400 mm support rollers for long panels.
• Maximum distance between heads is 25-19/32″ (650 mm) and minimum width is 5-1/8″ (130 mm).
• This machine can be used for single or double row line drilling.
• Working air pressure 94 psi.
• Weight: 940 lbs.
