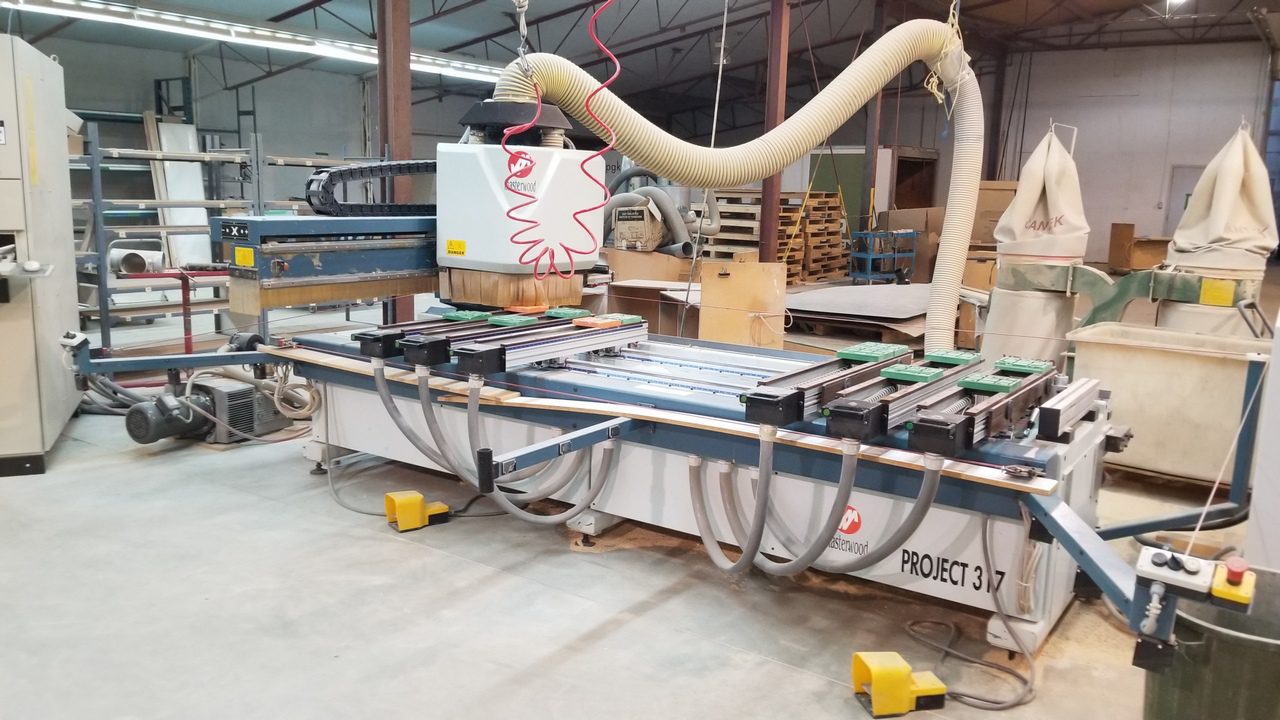

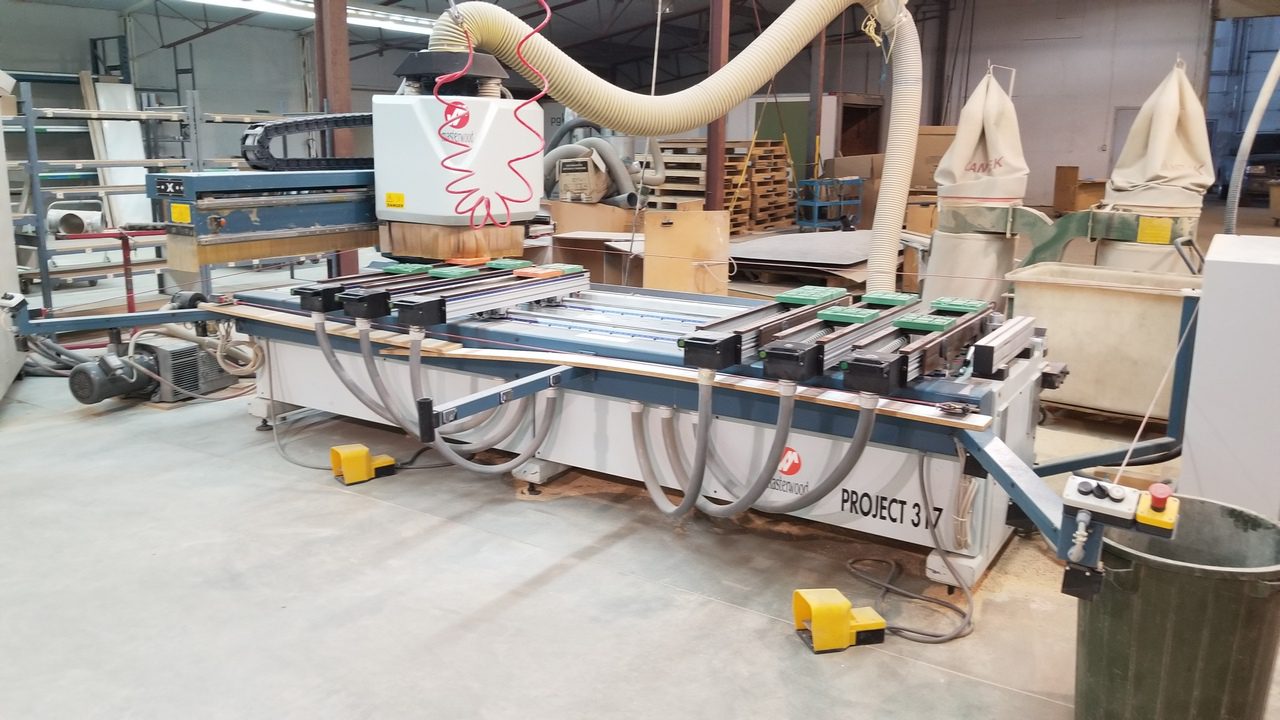

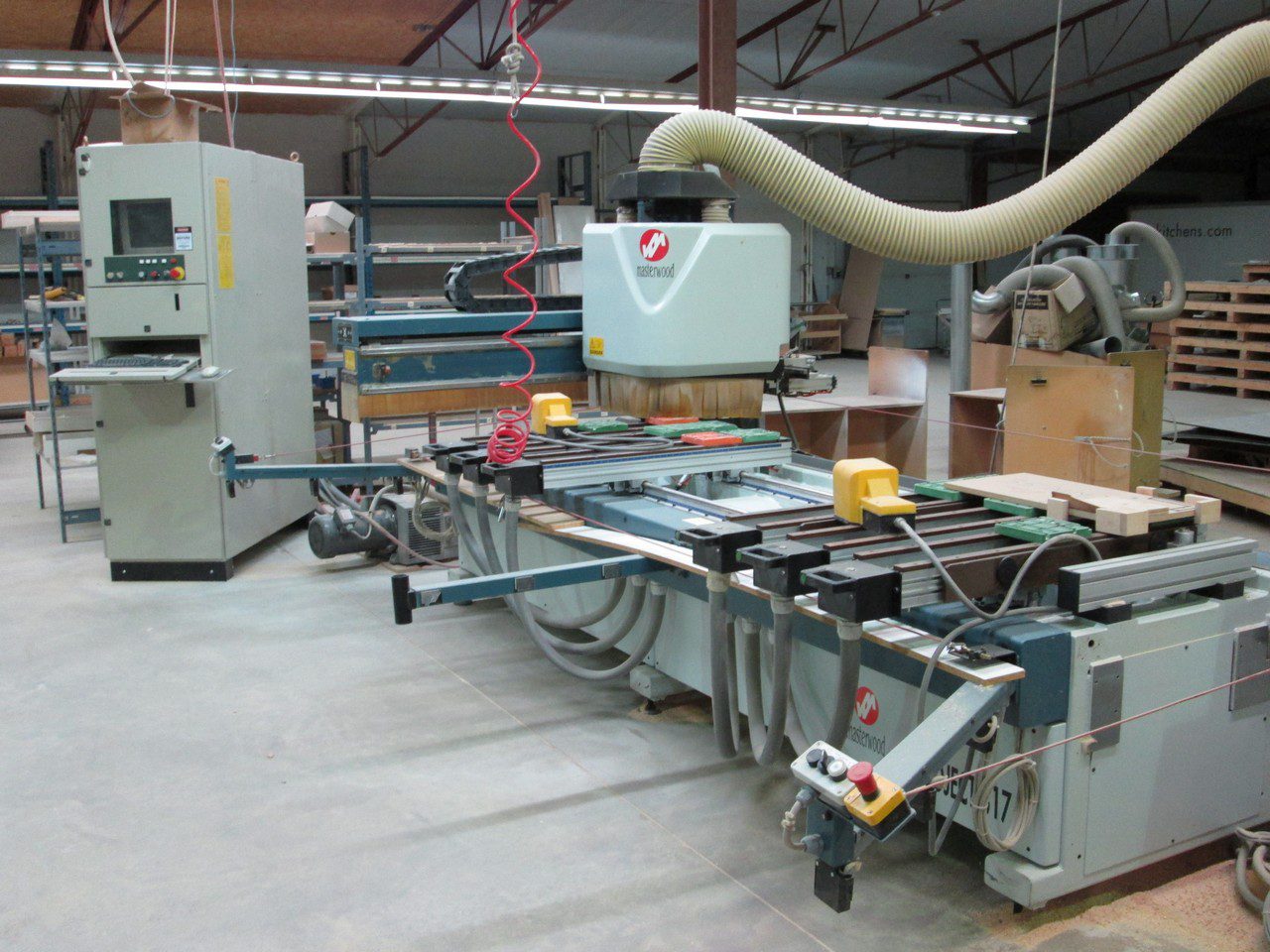

Masterwood PROJECT 317 Heavy Duty CNC Pt. to Pt. Machining Center

$9,500.00 CAD* (approx USD: 7315) or best offer

1 in stock

Call to Purchase

SKU: 581-2 Categories: ,

SKU: 581-2

Condition:

Excellent

Location: Owner Location, Call to View

Ships to: Worldwide


Features and Specifications:

  • Year of MFG 1999
  • 575 V, 28.5 A and 3 Phase
  • Working field “X” Axis 102″ (2,600 mm), “Y” axis 37.5″ (950 mm), “Z” axis stroke 5.9″ (150 mm), max material thickness is 2.36″ (60 mm).
  • Positioning Speed:”X” axis 164 FPM (50 MPM), “Y” axis 131 FPM (40 MPM), and “Z” axis 25 FPM (8 MPM).
  • Work area: (6) Adjustable panel supports, ea. with (2) vacuum pods; (4) panel lifting blades for heavy parts, (6) fixed pop-up rear stops, (1) side R/H stop, and (1) L/H stop
  • Machine bed is divided into (2) independent working zones with mirror-image capability
  • Boring Unit: 2 HP (1.5 kW) – 4,000 RPM motor, (10) Independent vertical boring spindles with (7) spindles in “X”-axis & (3) spindles in “Y”- axis.
  • (6) Horizontal spindles with (2+2) in “X”-axis & (1+1) in “Y”-axis;
  • (1) 12,000 RPM “X”-axis grooving saw with 125 mm dia. blade.
  • Machining: (1) 9 HP (6.7 kW) Vertically mounted electro-spindle router with ISO 30 adaptor & ceramic bearings, variable speed fr 6,000 – 24,000 RPM
  • (1) 4-Position automatic tool changer mounted to the machine head for “on the fly” ATC.
  • Operator & Machine Control: PC front end controller, Masterwood “MW 310” CNC + Windows operating system; multi-task software with graphic interactive editing & boring optimization program.
  • 14″ VGA Color monitor, MHZ processor, 64 MB SD RAM, 6.4 GB hard drive, 56 K modem, 1.44 MB floppy & CD ROM drives; Ethernet card, serial port, mouse & RS-232 port for remote programming from an office PC is possible.
  • Software includes realization of profiles & parametric drawings, graphic basic macros for simple & complex elaboration, graphic visualization of the surfaces to be machined, IN/OUT diagnostic,programming for drilling & routing operations with machine settings and tool editor.
  • Complete With: (1) 50 m³/Hr vacuum pump; safety light bars, manuals & docs.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.

Additional information

Weight1800 kg
Brand

Masterwood

Model

PROJECT 317

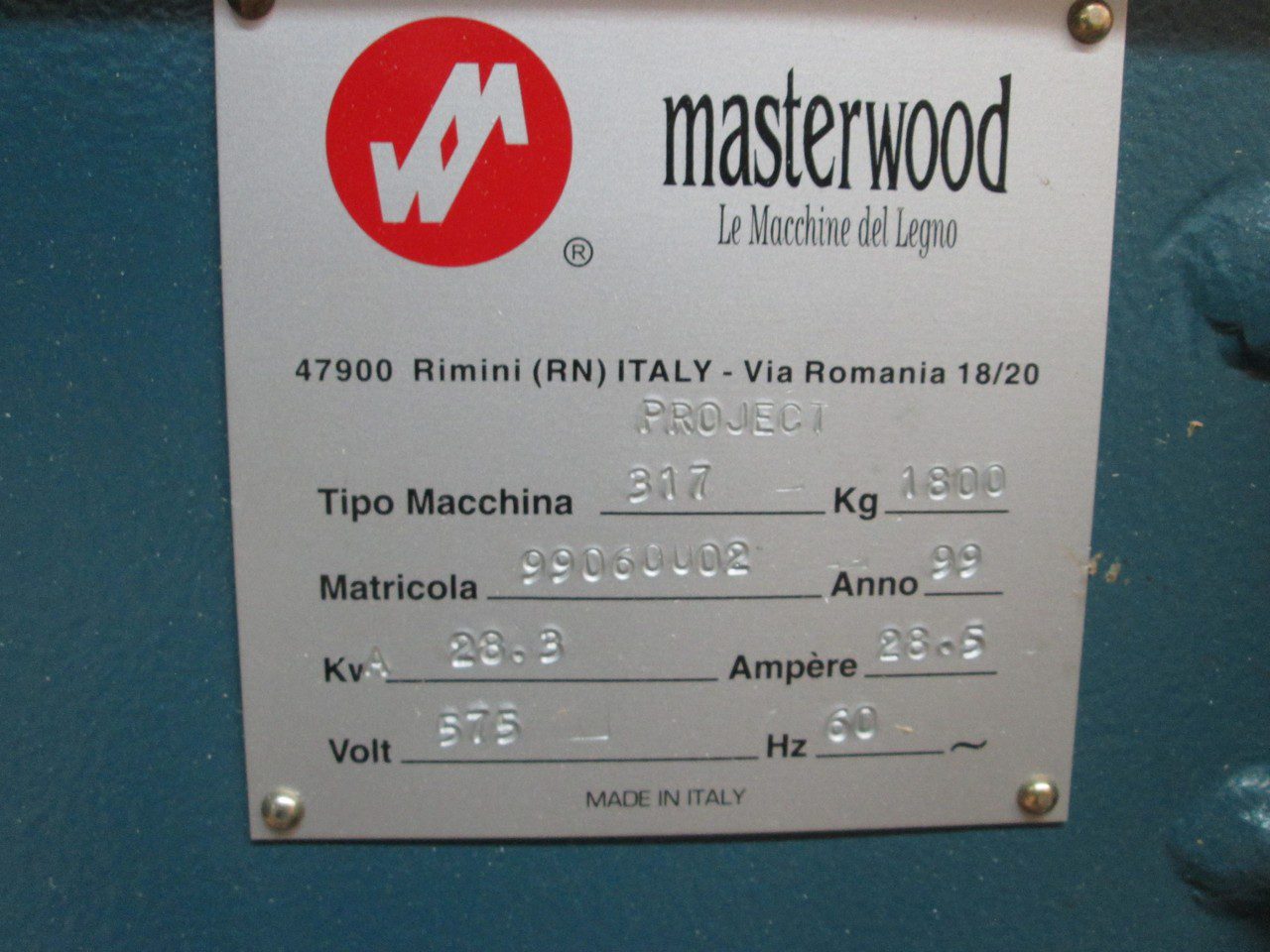

Serial

99060002

Manufactured Year

1999

Voltage

575

Phase

3

Amps

28.5
