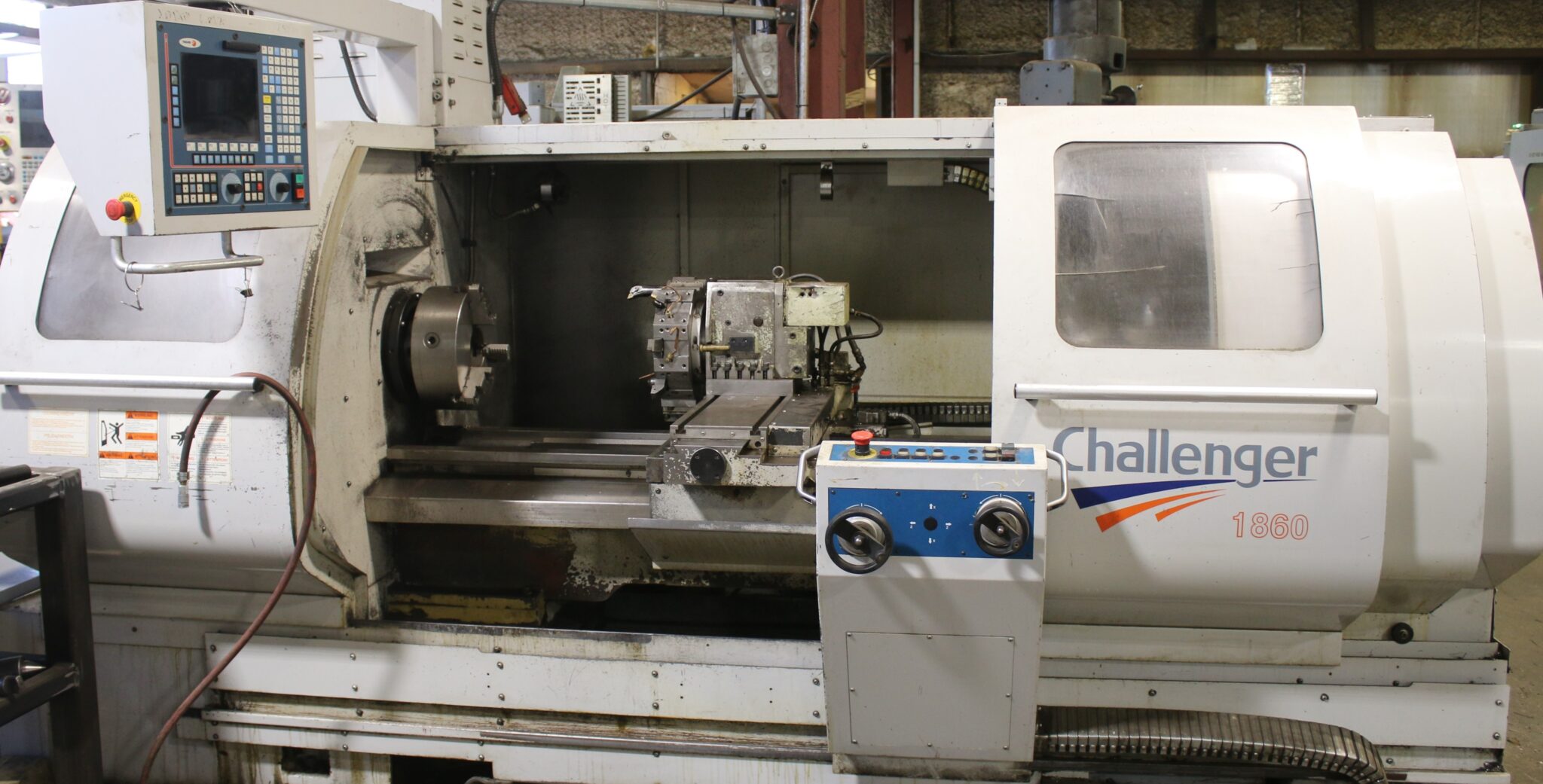

Microcut CHALLENGER BNC-1860 CNC Lathe

Specifications

• Model: BNC 1860
• S/N: 31116056
• 230 V
• 3 Phase
• Mfg Year: 2003

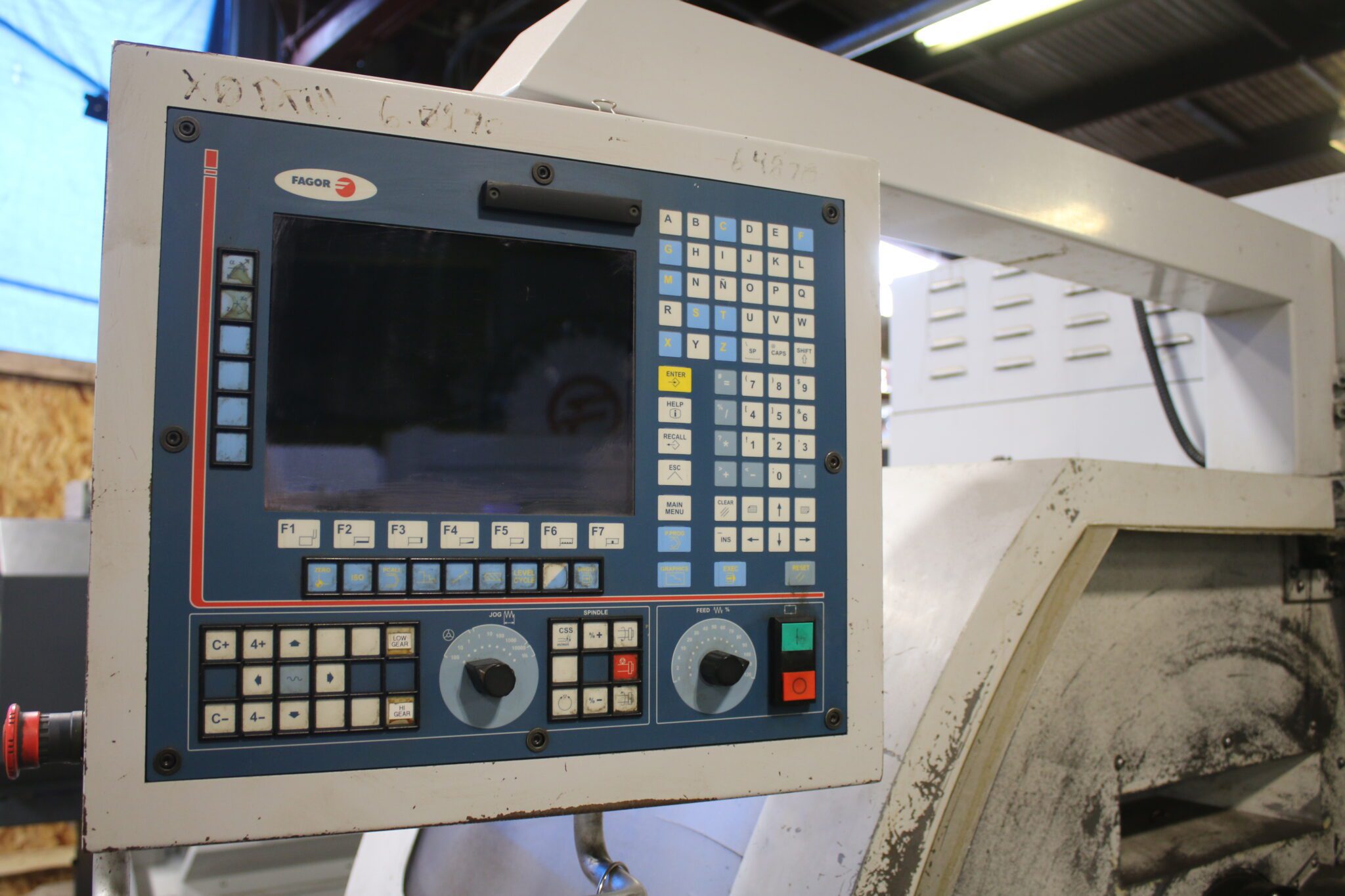

• CNC Control: FAGOR
• Max. turning length (Z-axis): 1501 mm
• Max. turning diameter over bed: 475 mm
• Max. turning diameter over cross slide: 239 mm
• Maximum travel length in the X-axis: 259 mm
• Number of spindles: 1 pc
• Max. power of the main spindle: 14.7 hp
• Max. rotary speed of the main spindle: 4500 rpm
• Total number of tools in the turret: 8 pcs
• Number of CNC controlled axles: 3 pcs
• Total power demand: 26.8 hp
• Weight of the lathe: 3803 kg

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
