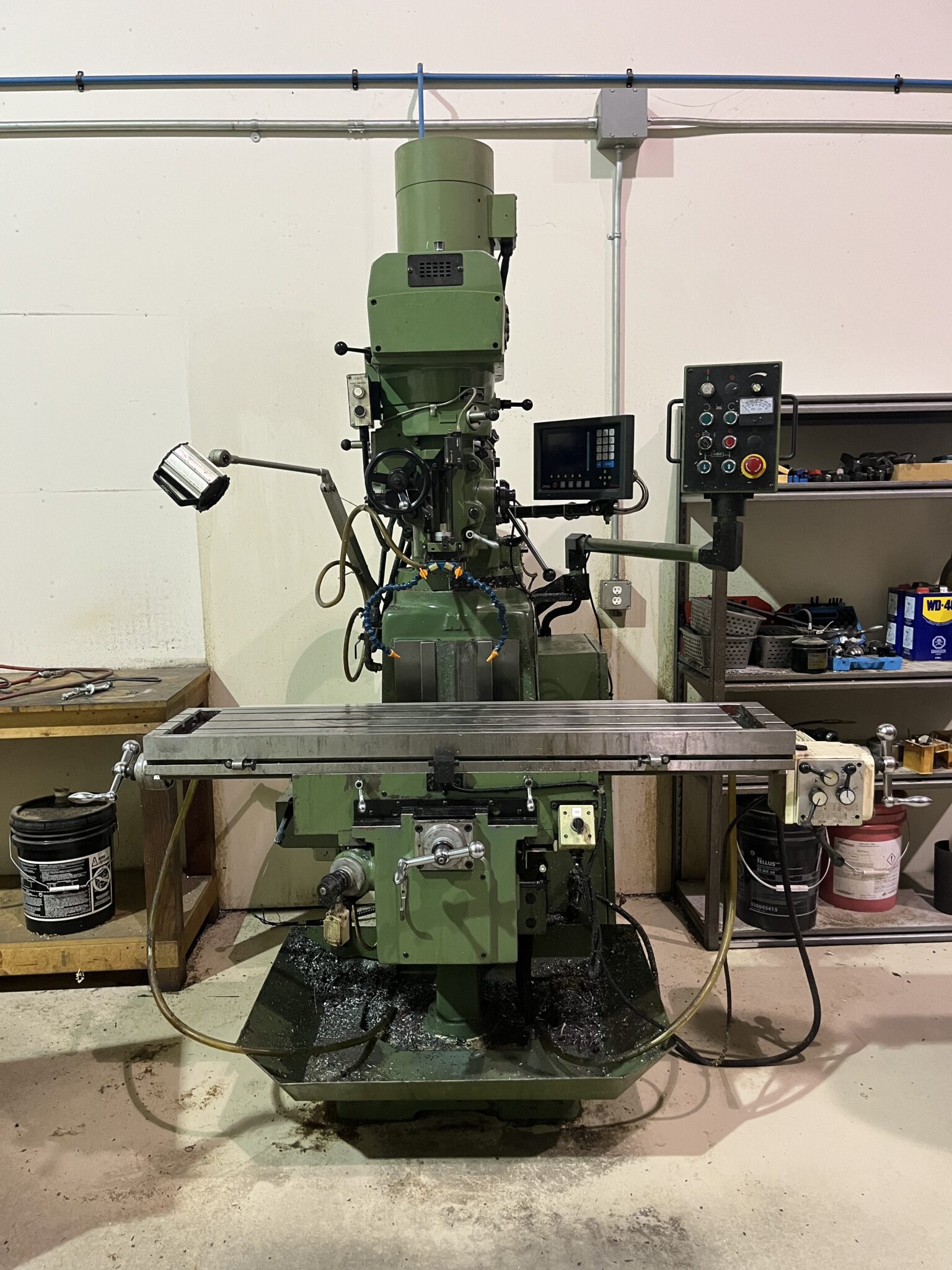

Microcut PBM-4EVS Vertical Milling Machine

Specifications

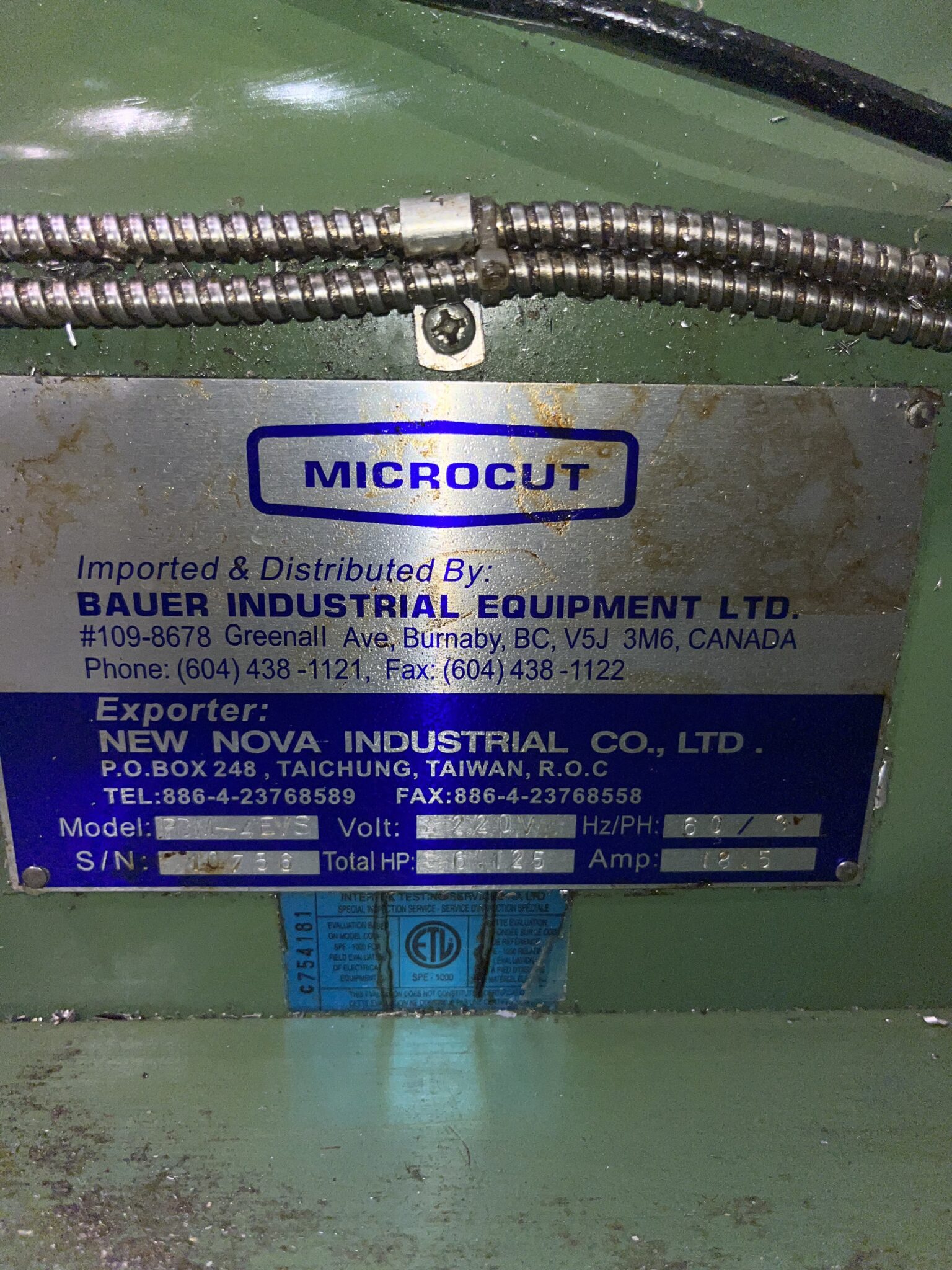

• Model: PBM-4EVS
• 220 V
• 18.5 A
• 3 Phase

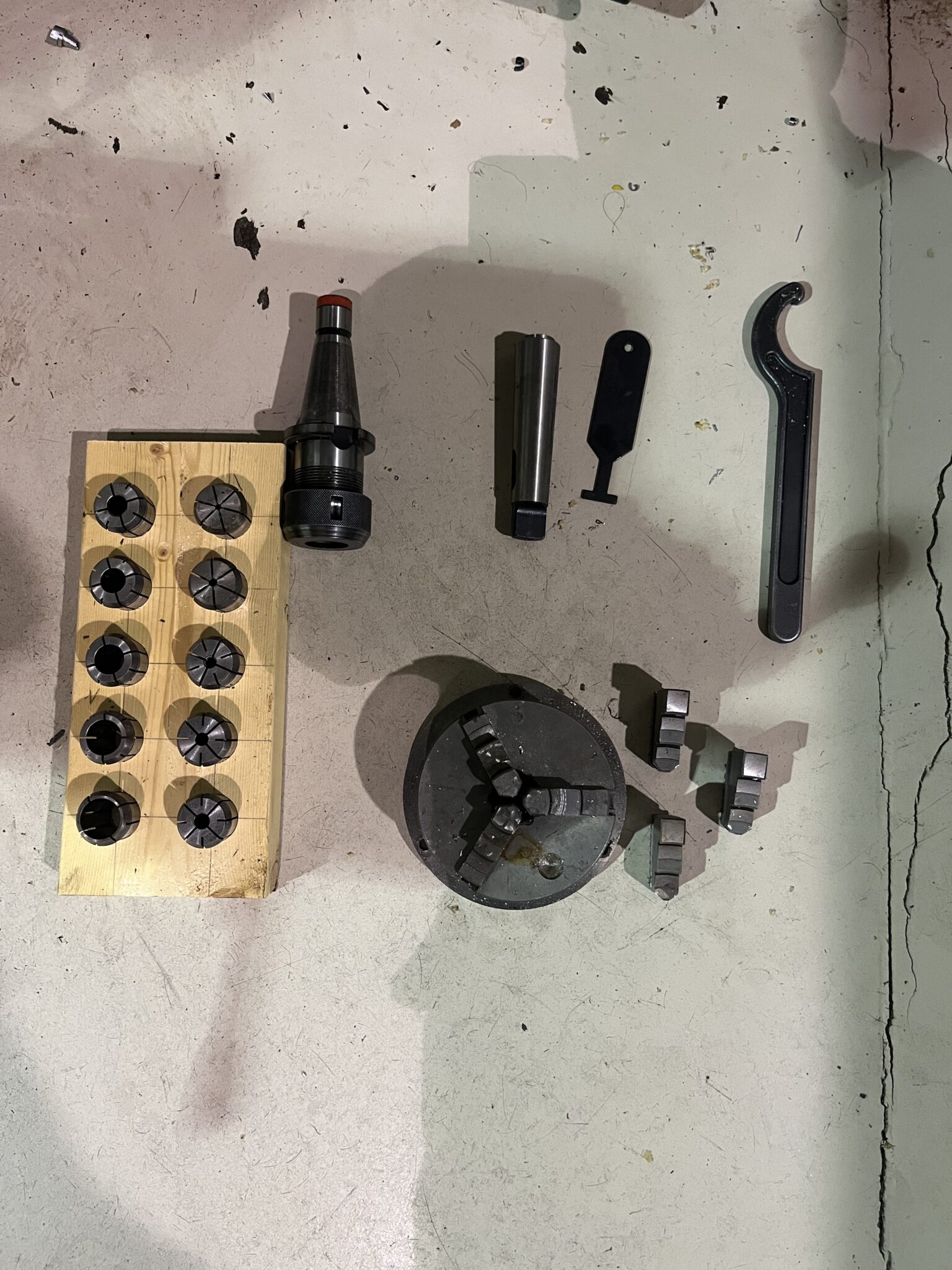

Comes with Indexer and lots of tooling

Comes with DRO

Spindle Taper: R-8, NT-30, NT-40

Diameter of Quill: R-8, NT-30, – 85.7mm, NT-40-100mm

Number of Spindle Speeds: 8 Steps or Variable

Rangle of Spindle Speeds: 4S 80-2720 RPM, 4VS 60-4200 RPM, 4EVS 10-3600 RPM

Spindle Travel: 127mm

Head Movement: 90 degree L and R – 45 degree F and B

Max Distance Spindle Nose tp Table: 446mm

Max Distance Spindle Centre to Column: 680mm

Min Distance Spindle Centre to Column: 200mm

Table Size: 254mm x 1270mm

Longitudinal Table Travel: 775mm

Table Cross Travel: 400mm

Number of T-Slots: 3

Size and Spacing of T-Slots: 16mm x 63mm

Max Table Load: 720 lbs

Knee Travel: 406mm

Weight: 2820 lbs

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
