SKU: 581-18

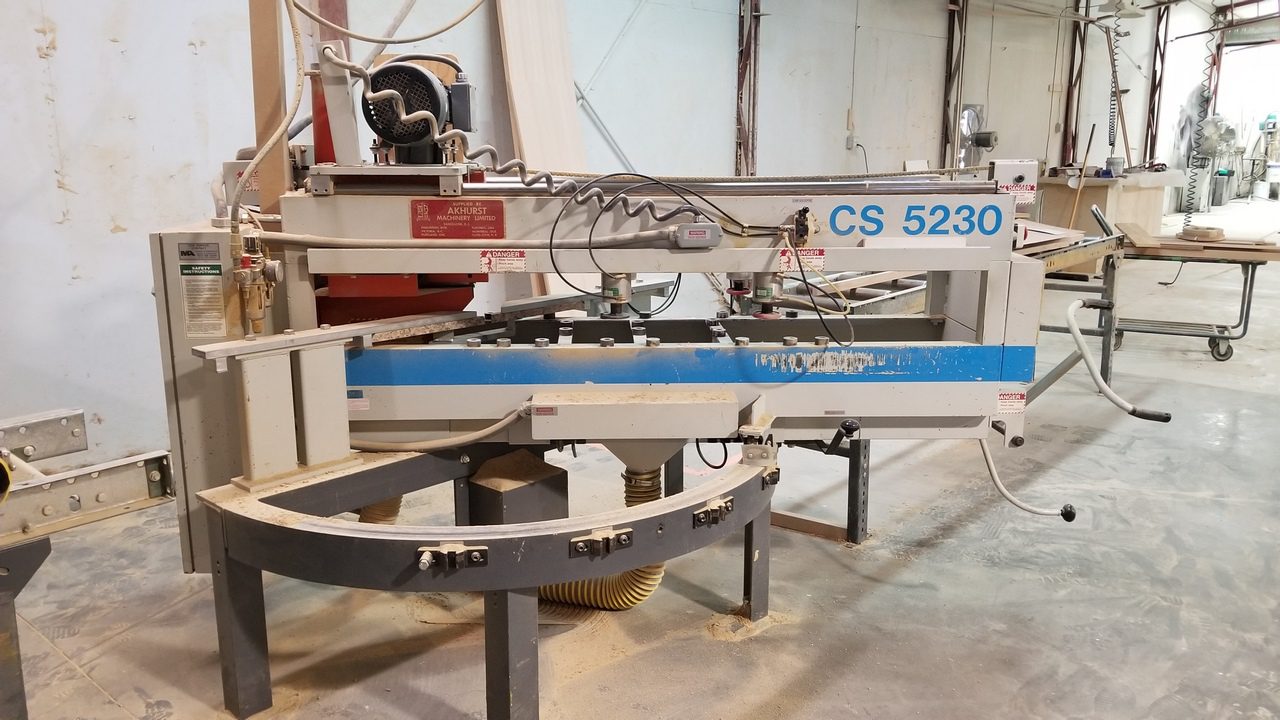

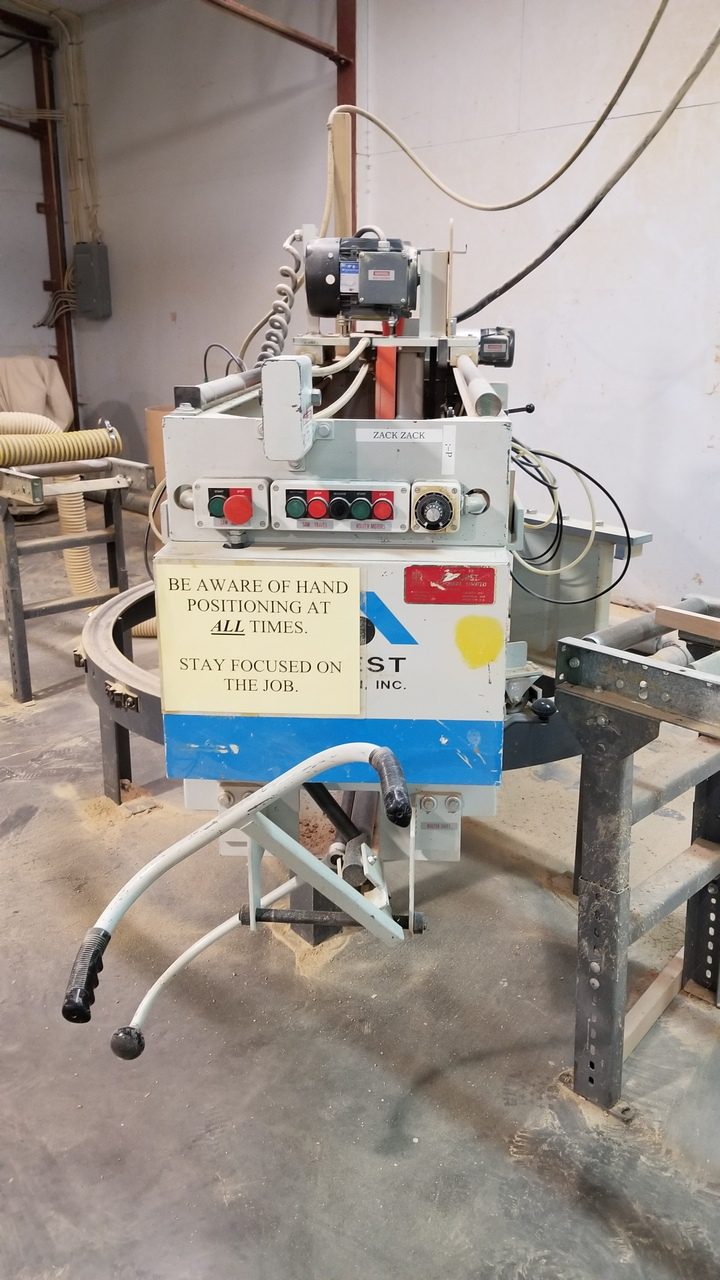

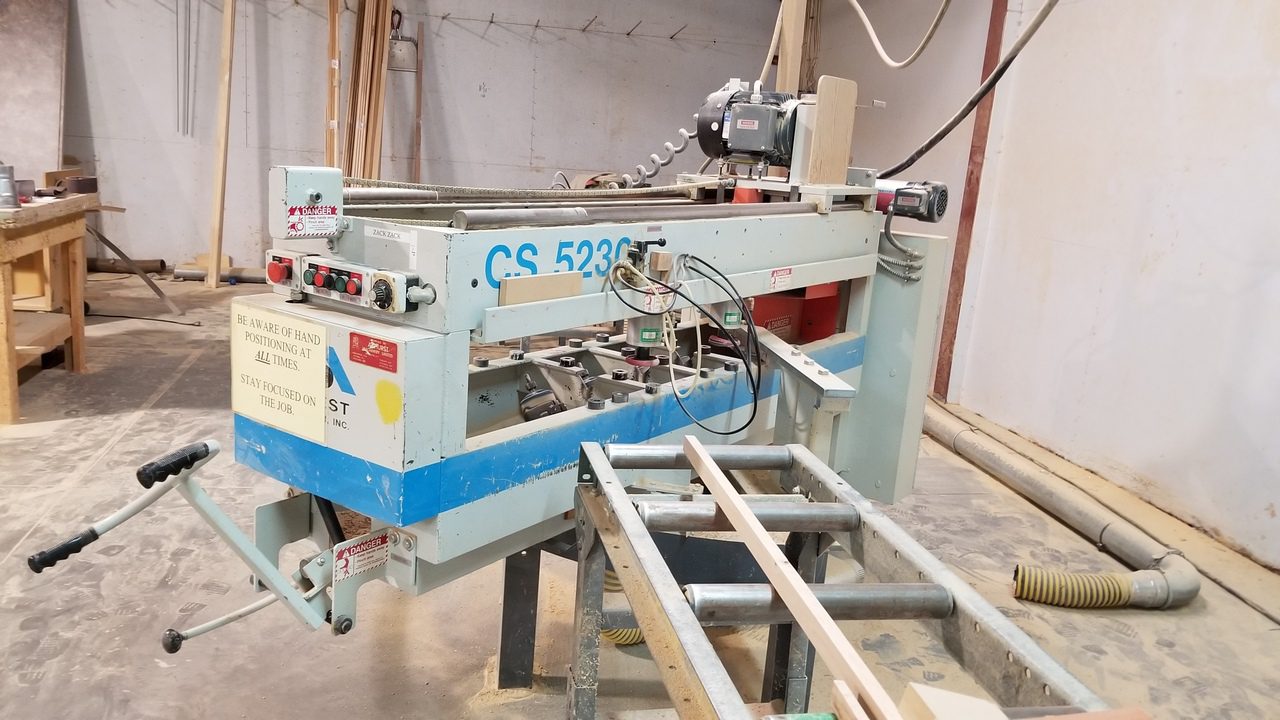

Midwest Automation CS 5230 Counter Top Saw

Out of Stock But wait, we have similar products

Features and Specifications:

  • For cutting off or mitering post formed and/or coved tops.
  • 5 HP – 3,400 RPM main motor, 0.5 HP drive motor,
  • Variable feed speed 0 – 45 FPM with 45 FPM fixed return speed,
  • 16″ blade dia. cap., 5-5/8″ depth of cut with build-down;
  • 3/4″ max. build-down and 4-7/8″ max. back splash height,
  • 42″ cross cut cap. at 90°,
  • 38″ at 22-1/2°, 30″ cut at 45°,
  • Fixed miter positions for 90°, 45°, 22-1/2°.

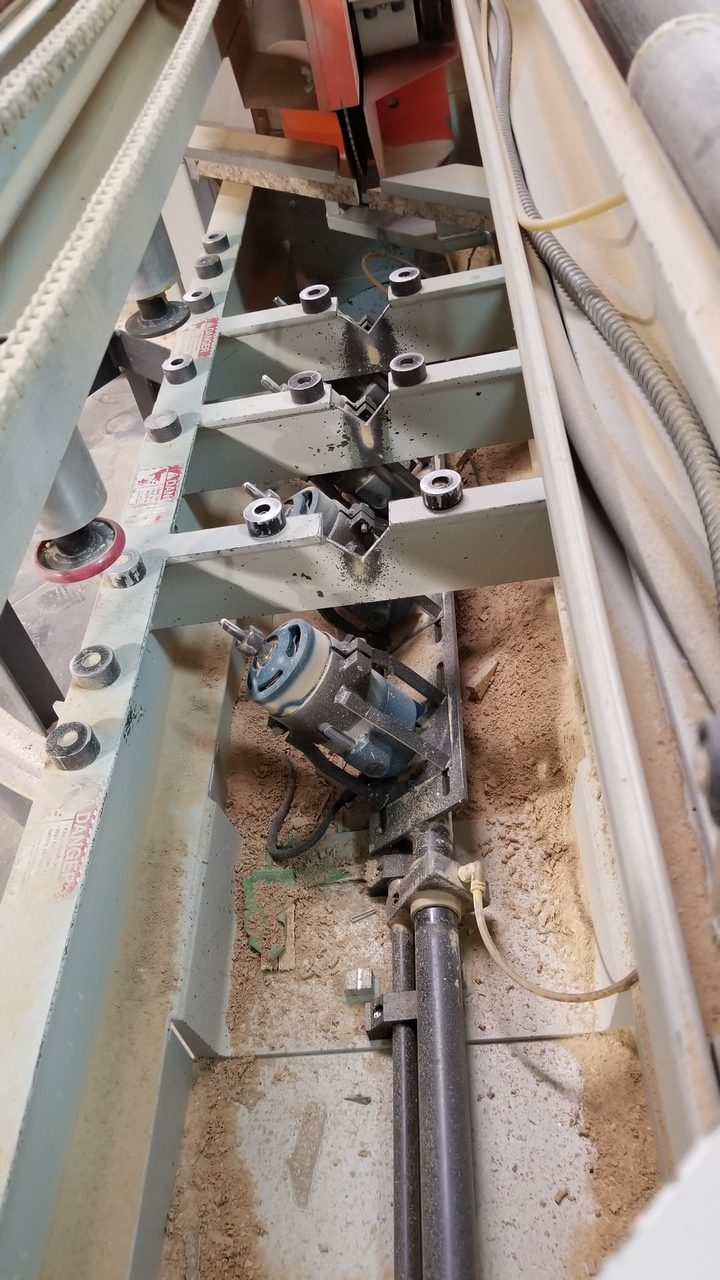

  • Equipped with: (4) 1.5 HP – 23,000 RPM router motors for routing the draw bolt mortises,
  • (4) pneumatic holddowns, standard fence,
  • OSHA guards and dust curtains,
  • (3) dust collection hook ups.
  • Includes: (1) sawblade and (4) router bits.
  • Complete with: 10′ Infeed & 10′ outfeed roller conveyor,
  • Laser mounting bracket,
  • Midwest manual countertop lifting device with (6) pods.
  • 220V, 60 Cy, 3 Ph.
  • Dimensions: 102″ L  x  78″ W  x  75″ H
  • Weight: 2,000 Lbs (estimate)

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
