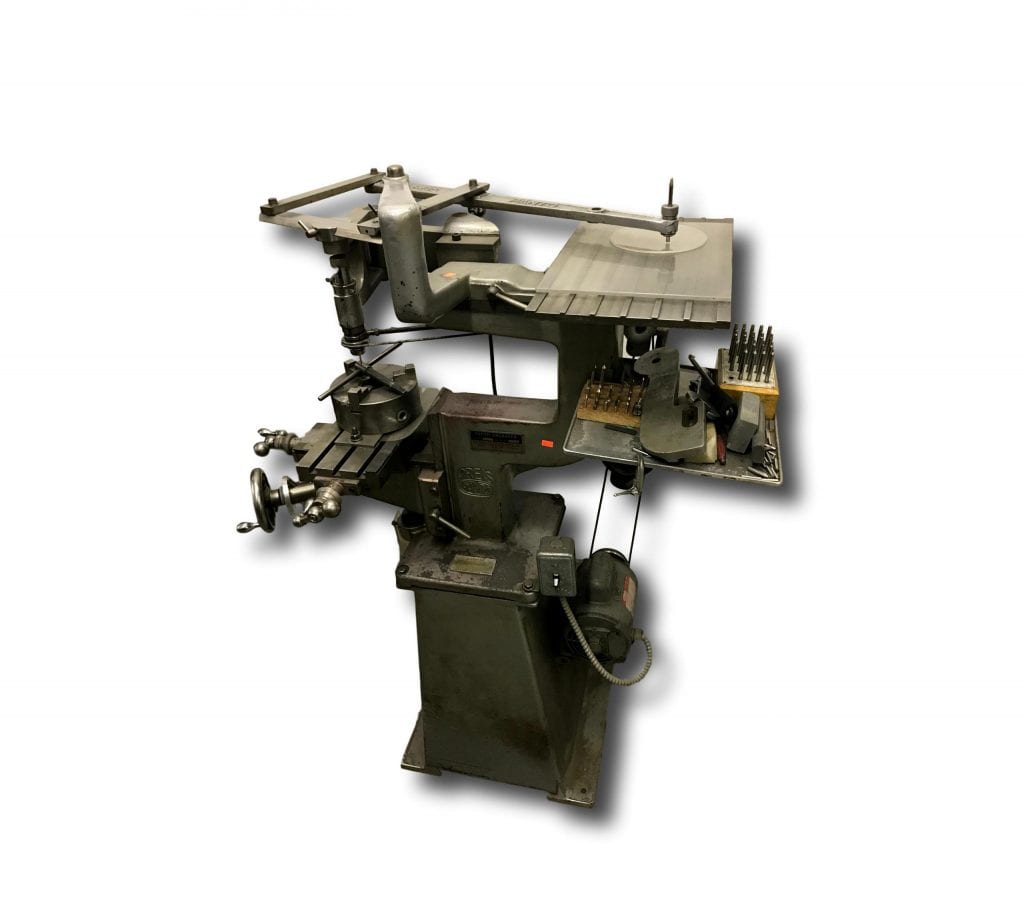

Pries 2-Dimensional Panto-Engraver Model 2D-4

• Brand: Preis Panto-Engraver
• 115V/1PH/60HZ
• S/N 6257
• Pantograph range: 1:1 to infinity
• Graduated from: 1:1 to 100:1
• Graduated in tenths from: 1:1 to 3:1
• Vertical feed coarse: 1/4″
• Vertical feed fine: .040″
• 6-speeds from 3500 RPM to 20,000 RPM
• Collet capacity: 1/10″ to 1/4″
• Work table size: 6″ x 12″
• T-slots: 13/32″ (3)
• Vertical feed: 6″
• Longitudinal feed: 7″
• Cross feed: 7″ Copy holder table size: 10″ x 18″
• 6 – dovetail grooves, 1-1/4″ wide
• Maximum height of template: 1″
• Feed screw dials graduate in .001″
• Motor: 1/2 hp, 3450 RPM
• Overall dimensions: 38″ x 21″ x 50″ high
• Size: Length: 43 in. Width: 32 in. Height: 51 in.
• Country of Manufacture: United States
• Weight (lbs, oz): 464

Note: will engrave to center of a 30″ panel

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
