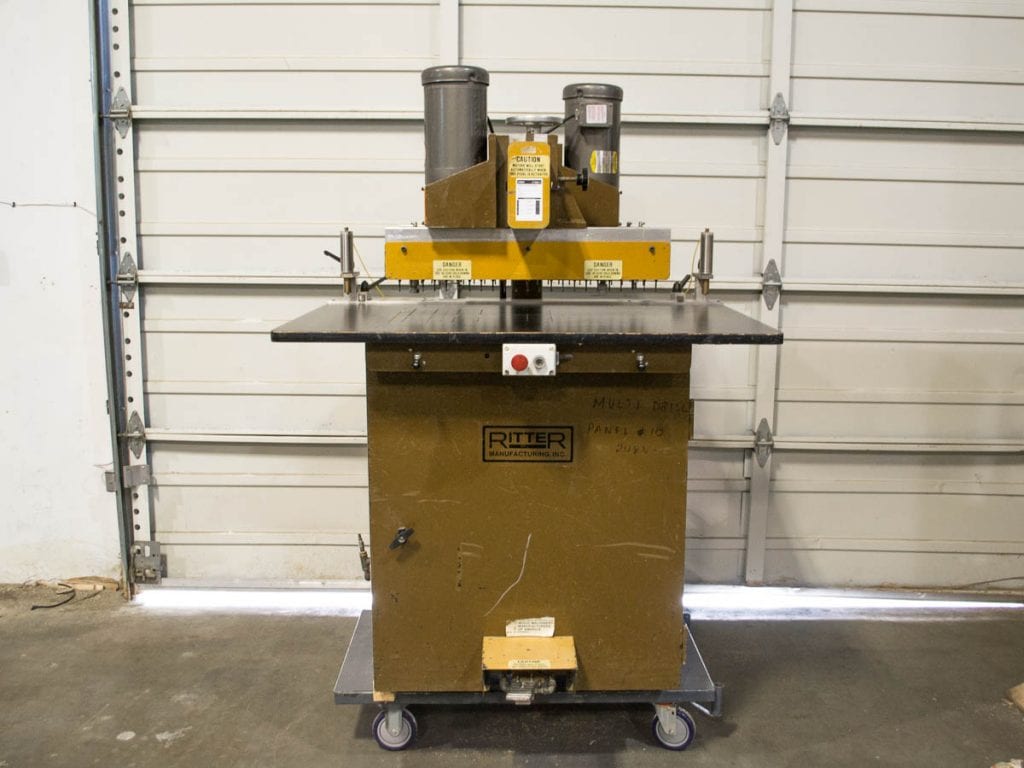

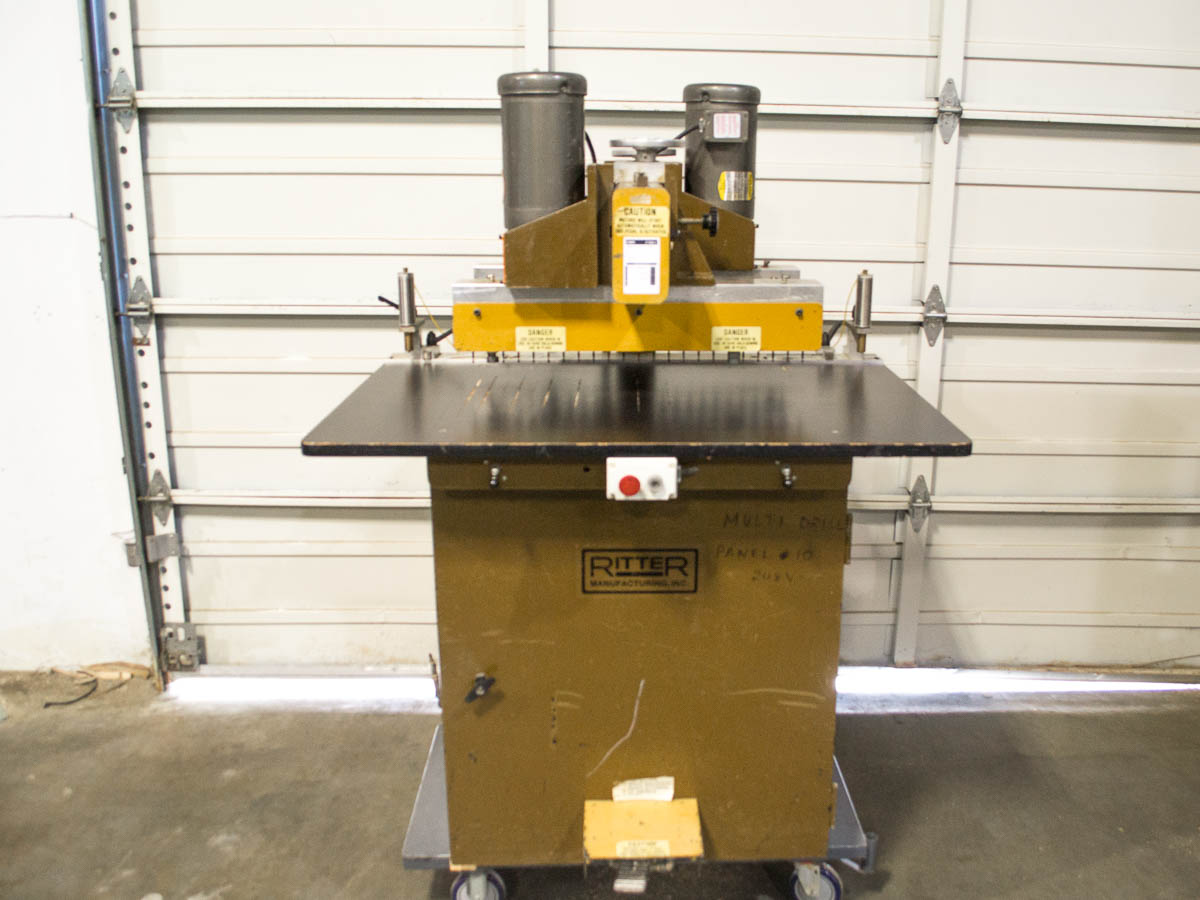

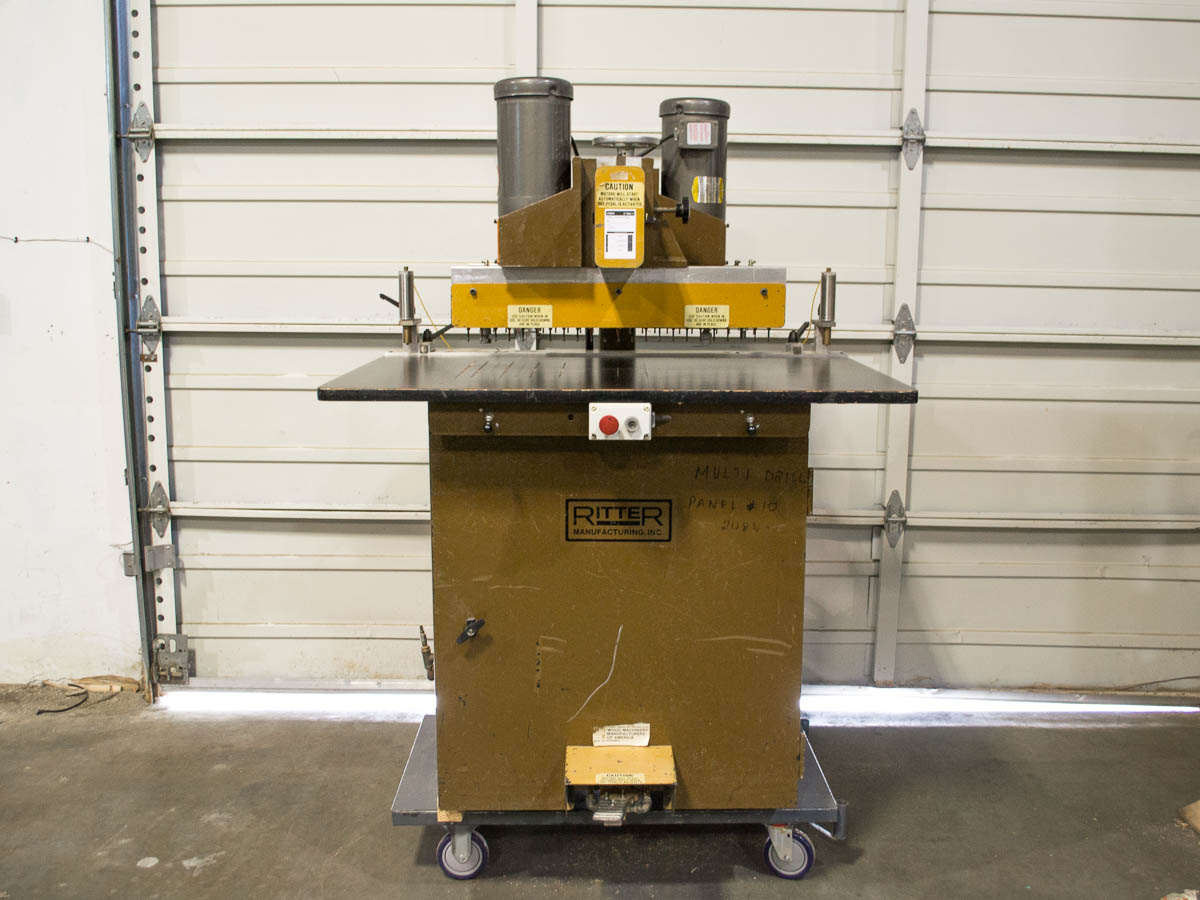

Ritter R46 Spindle Double Row System Drill

Ritter R46 Spindle Double Row System Drill

SKU: 502-1

CAD $4,100.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Manufacturer Specifications*:

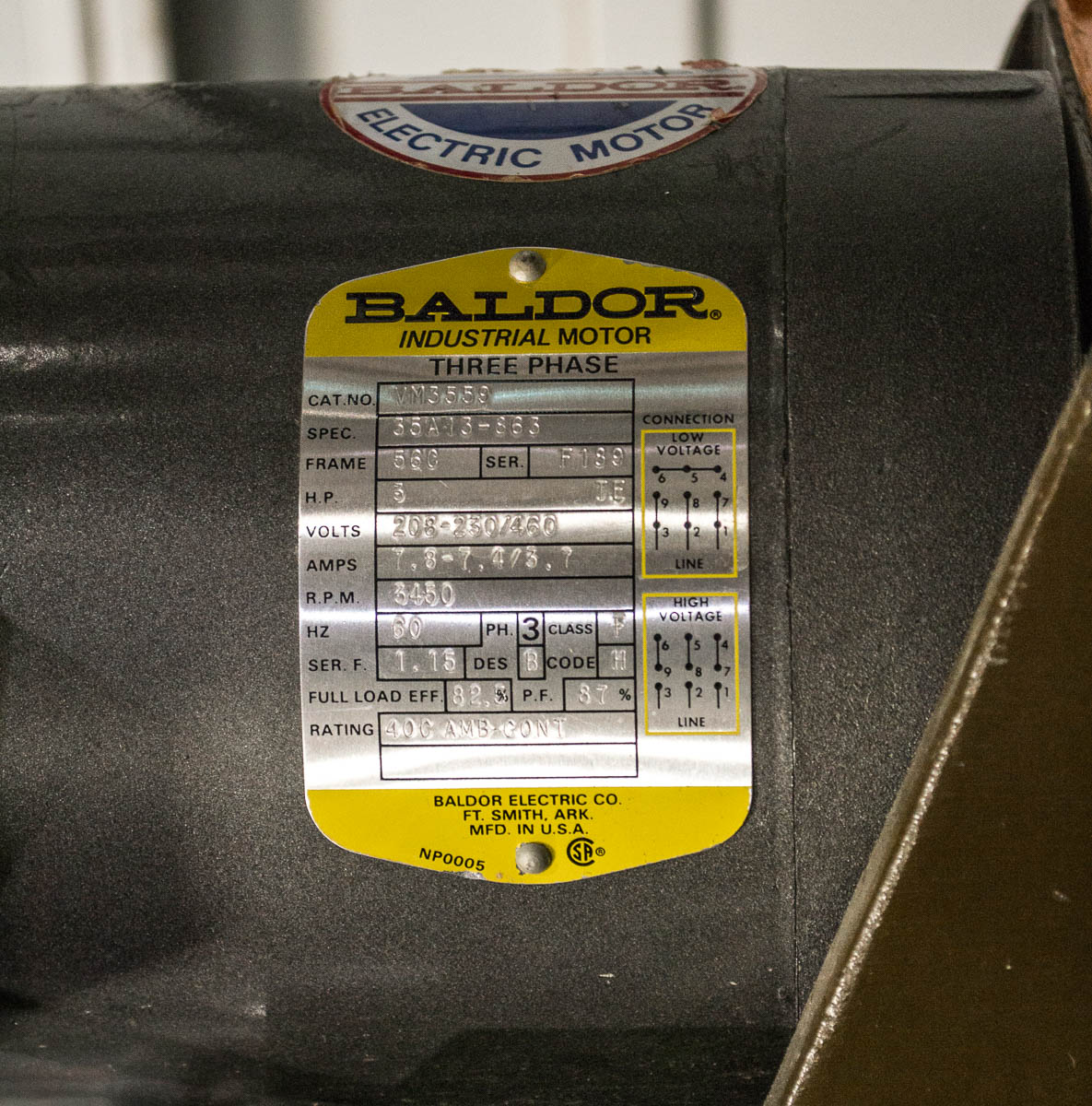

  • (2) 3 HP Spindle Drive Motors, TEFC

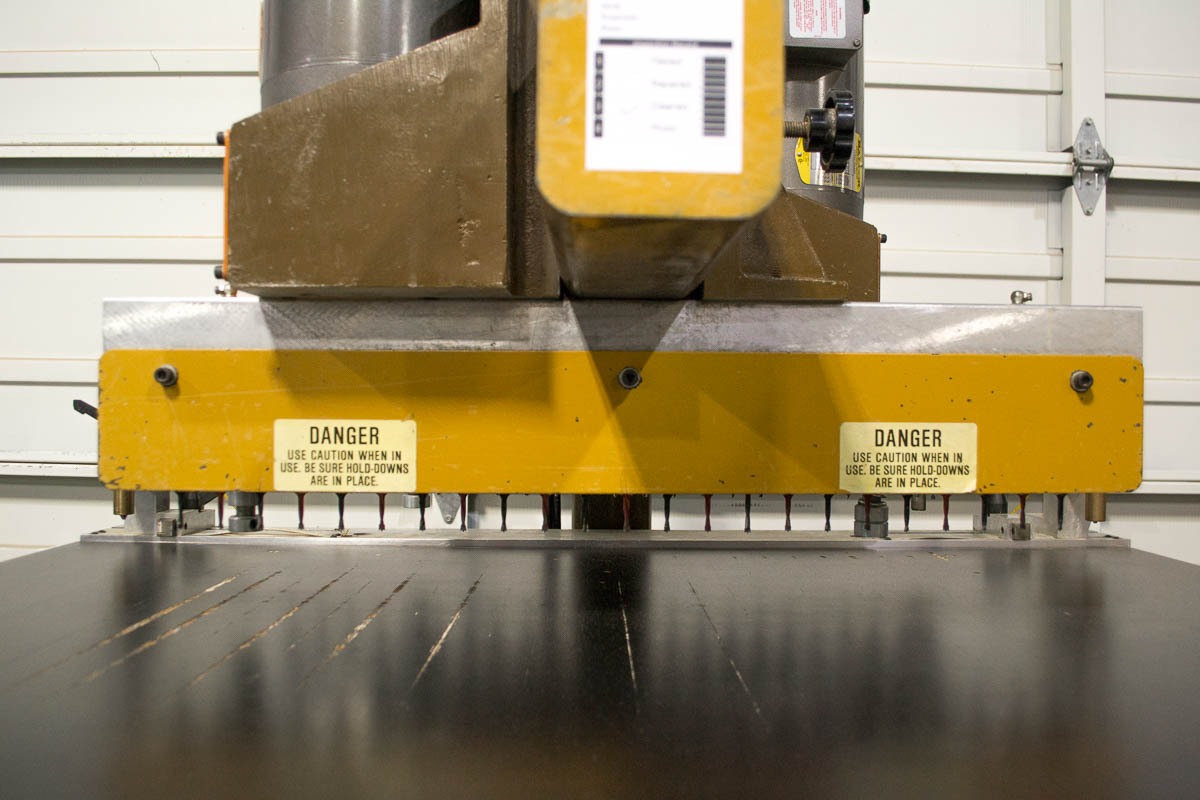

  • (2) 23-Vertical Gear Driven Spindle Rows
  • 32mm Spindle Centers
  • 10mm Bored Collets
  • 4″-24″ Centers Between Rows
  • Digital Readout Front Head Position Display
  • Precision Linear Head Ways
  • Rear Drill Row Nesting
  • 30″ X 48″ Work Table Surface
  • Wired 3-Phase 240/480 Volt, 60 Hz.
  • Foot Actuated Boring Cycle
  • Tooling Not Included
  • Crated Dimensions: 54″ X 54″ X 76″ and 1341 Lbs
  • Designed and Manufactured in the USA

*Call to confirm

Details

Brand

Ritter

Model

Ritter

Voltage

208, 230, 460

Phase

3

Serial

799
