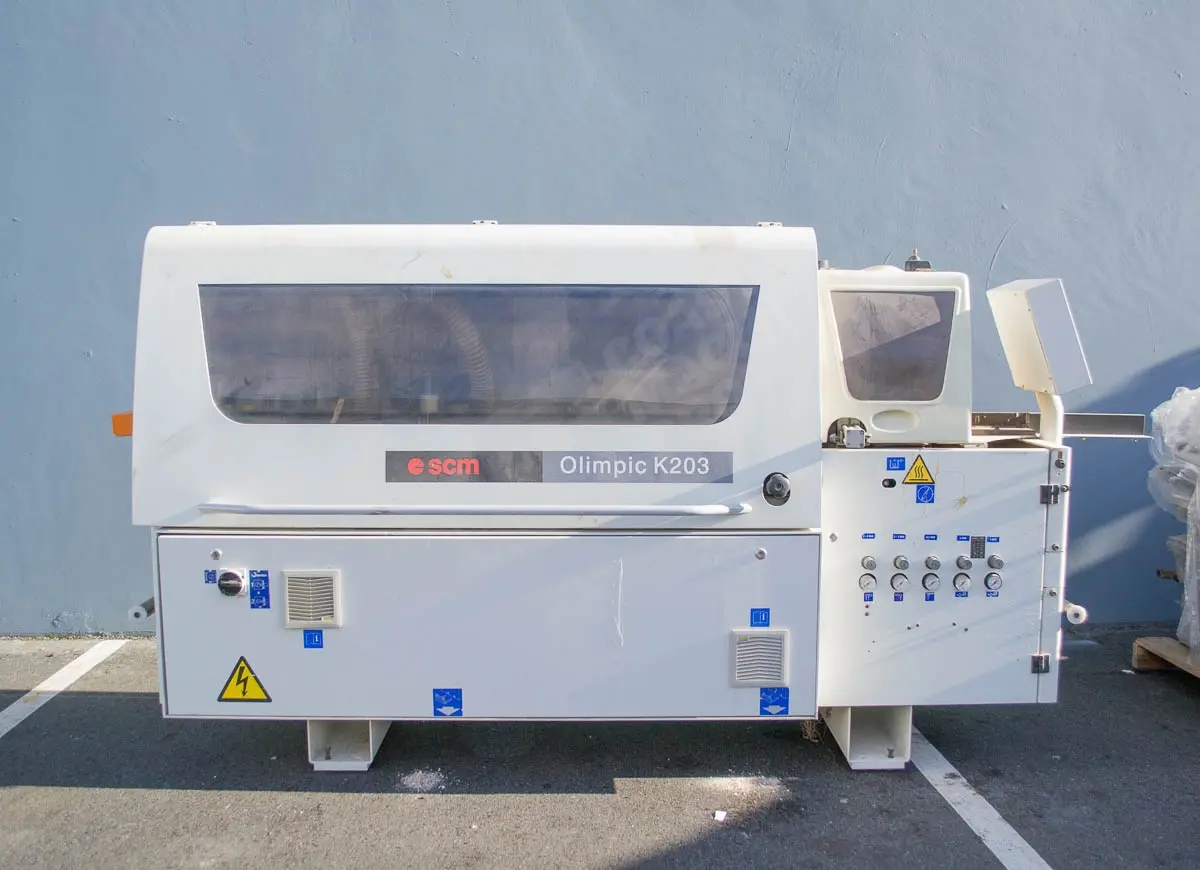

SCM K 203-A Edgebander

SCM K 203-A Edgebander

SKU: 477-4

CAD $12,500.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

  • 5/16″ (7.9 mm) Max. edge cap. for strip feeding, 1/8″ (3 mm) for coil feeding; 60 mm min.
    panel width and 160 mm min. length, panel thickness 10 – 50 mm.

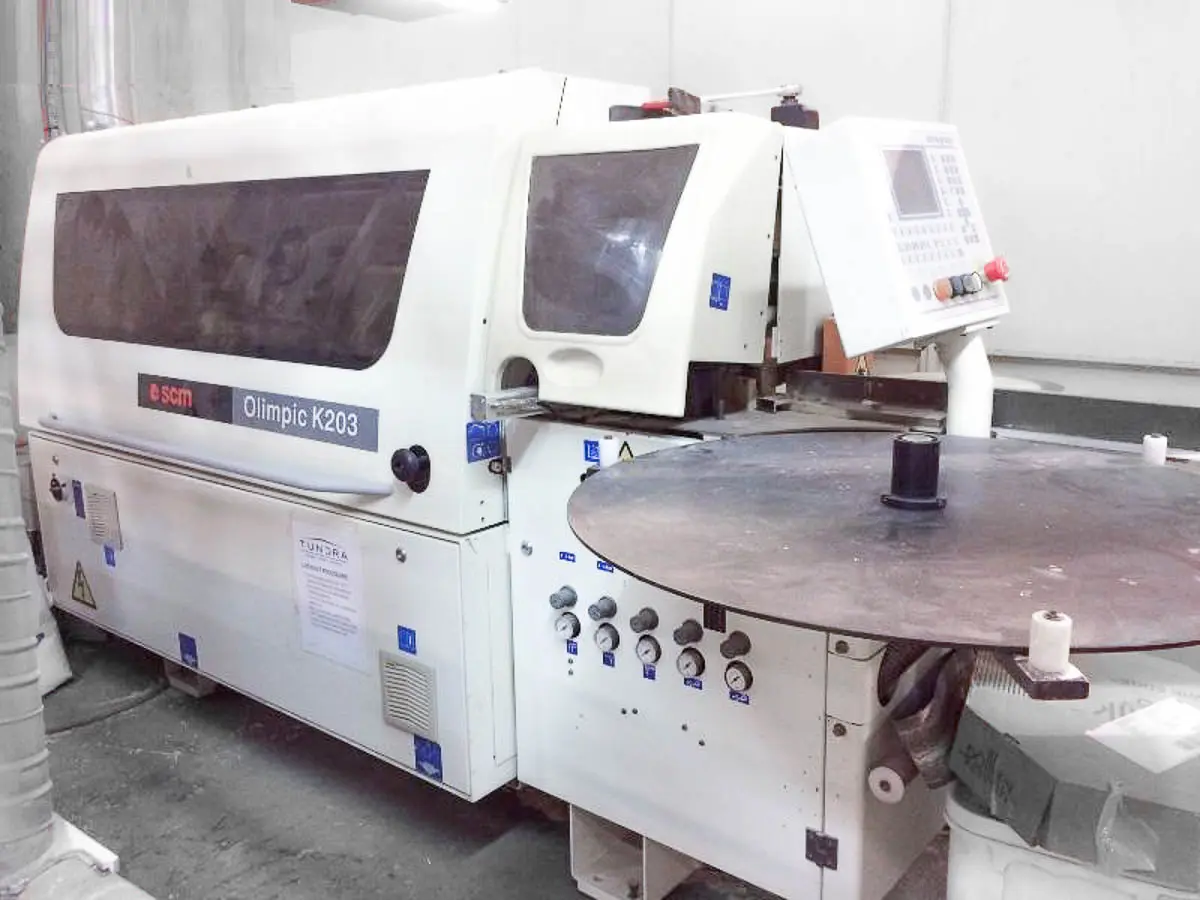

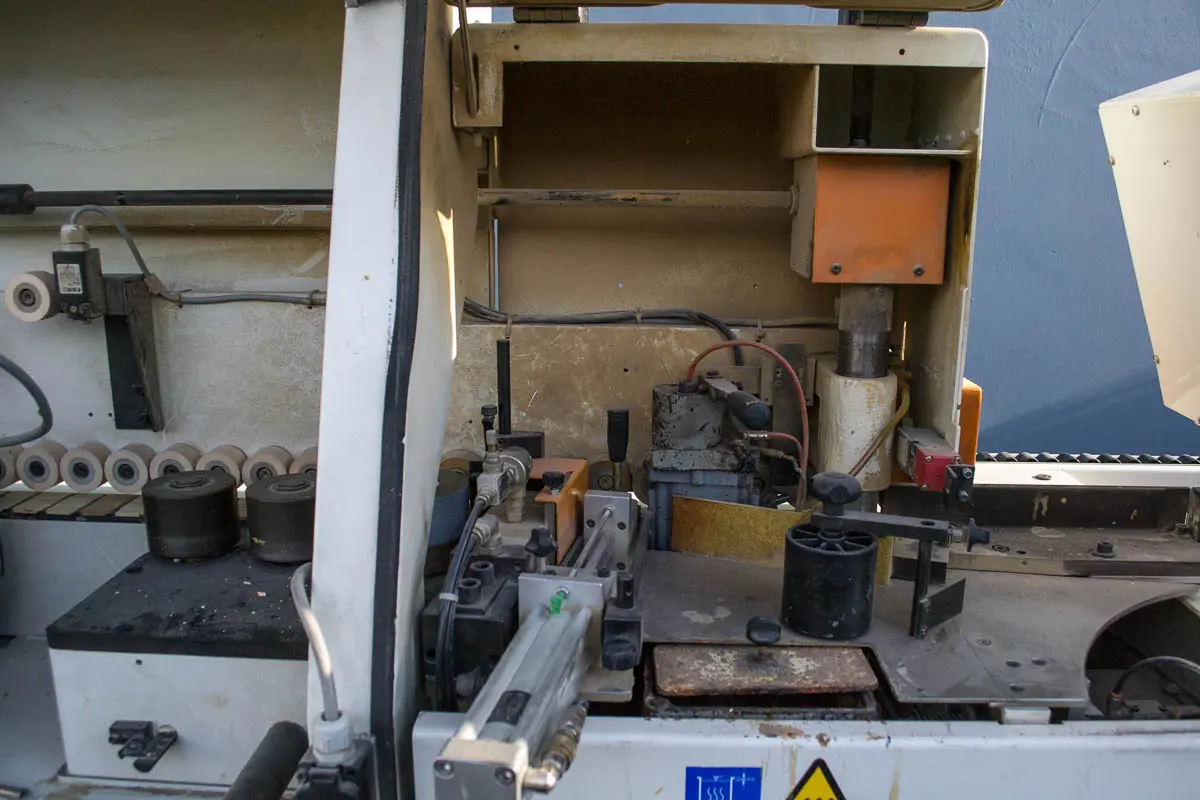

  • Equipped with: Automatic coil feed magazine & shear device up to 1.2 mm;
    semi-automatic magazine for feeding strips; Teflon coated glue pot (heat-up time 10 Min),
    1.2 mm cap. guillotine, 2-roll pressure unit w/mechanical setting.

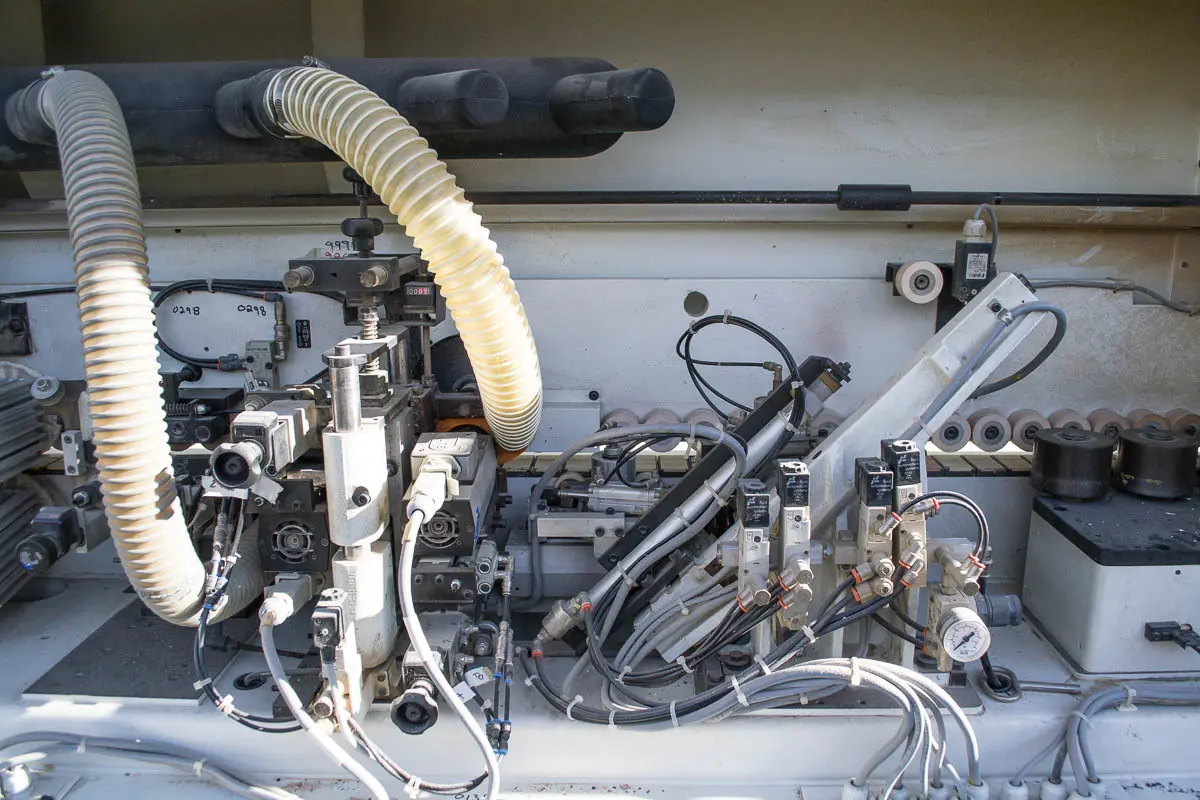

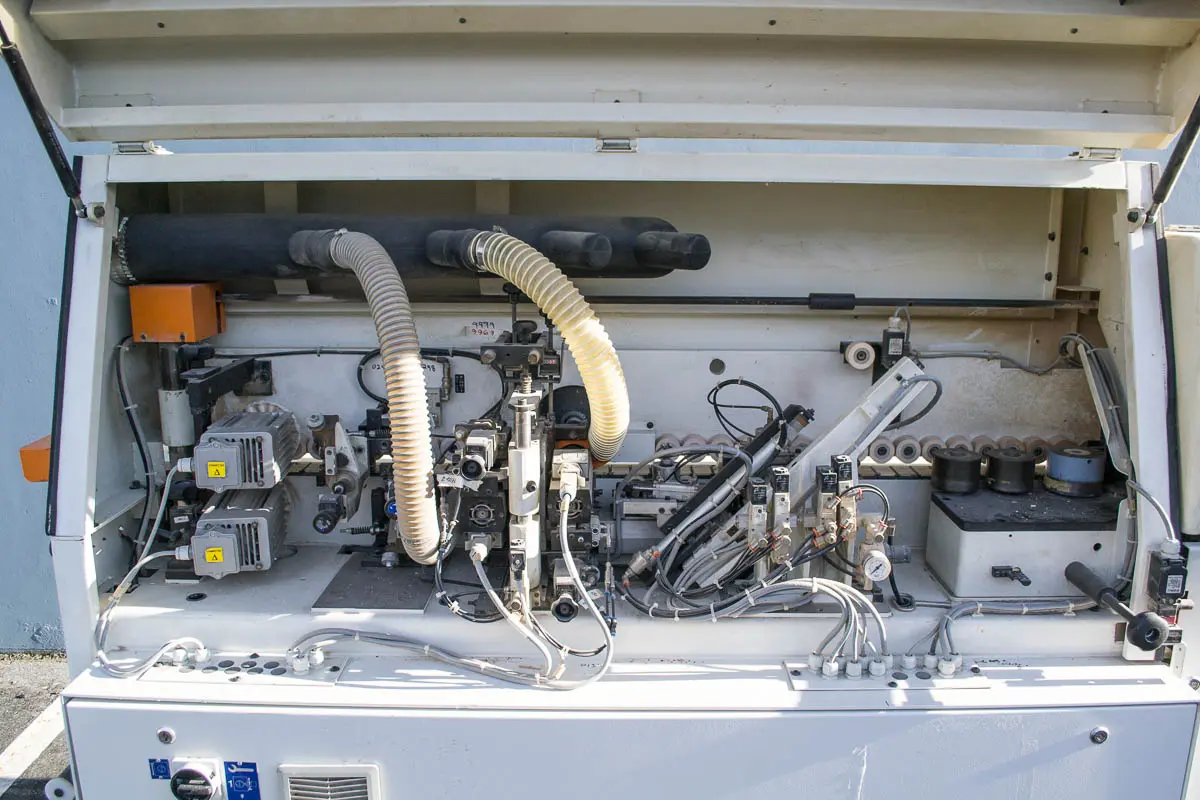

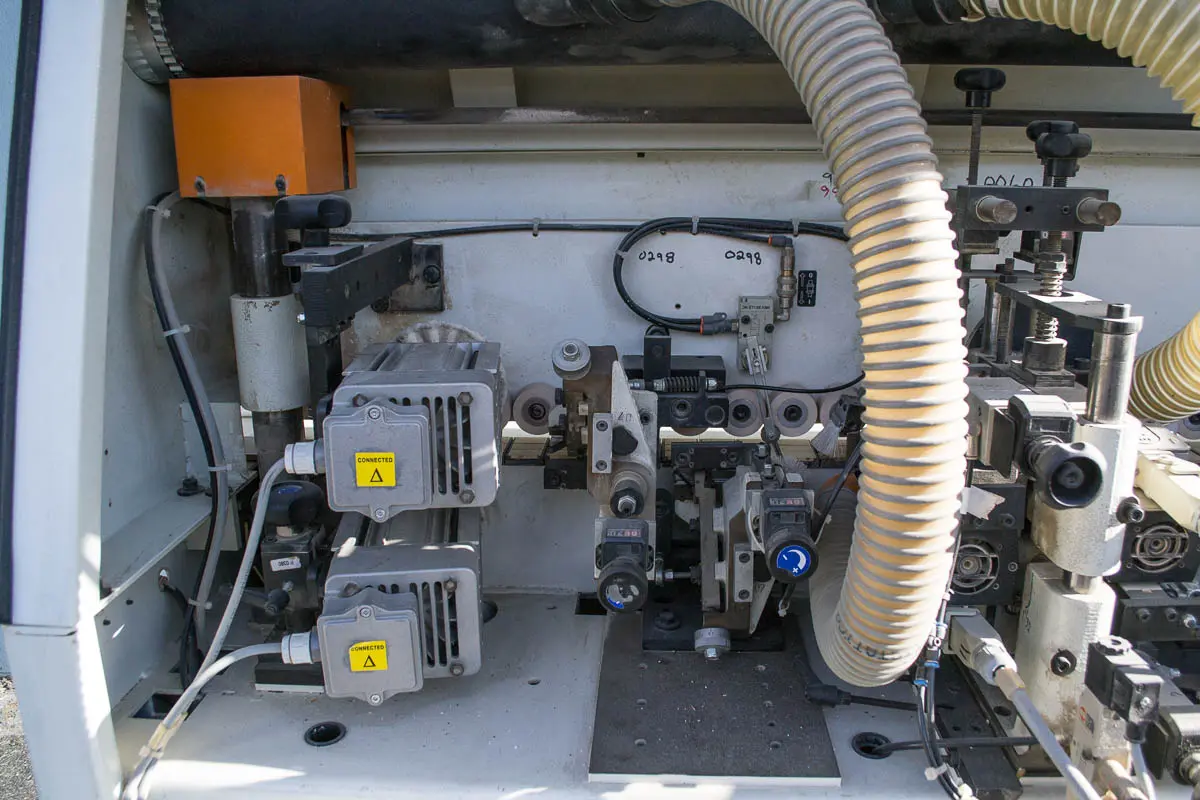

  • Workstations: Double motor front & rear end trim mounted on THK guides complete w/copying

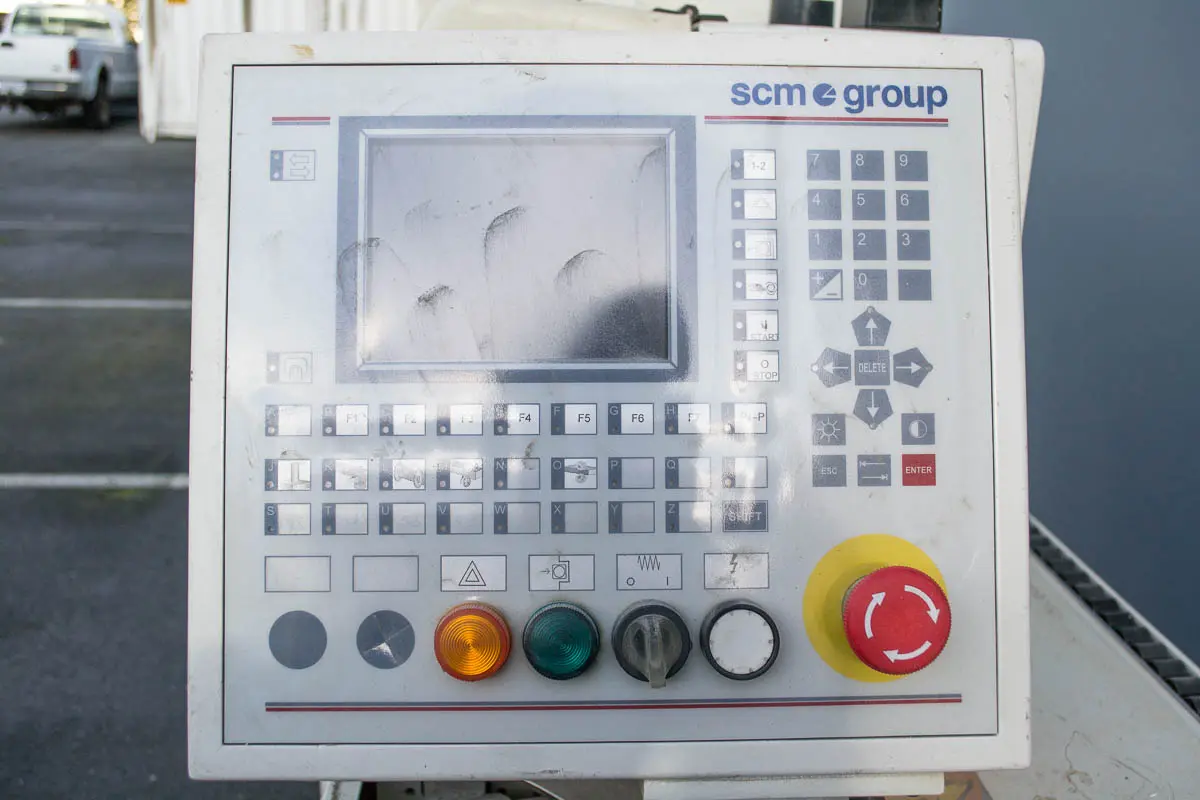

    device (0.4 HP – 12,000 RPM motor ea.), tilts 0° – 15° from the control panel with
    (2) preset positions
  • Top & bottom flush & bevel trims (0.7 HP – 12.000 RPM motor ea.), bevels 0° – 15° with
    precision digital indicators for quick setup

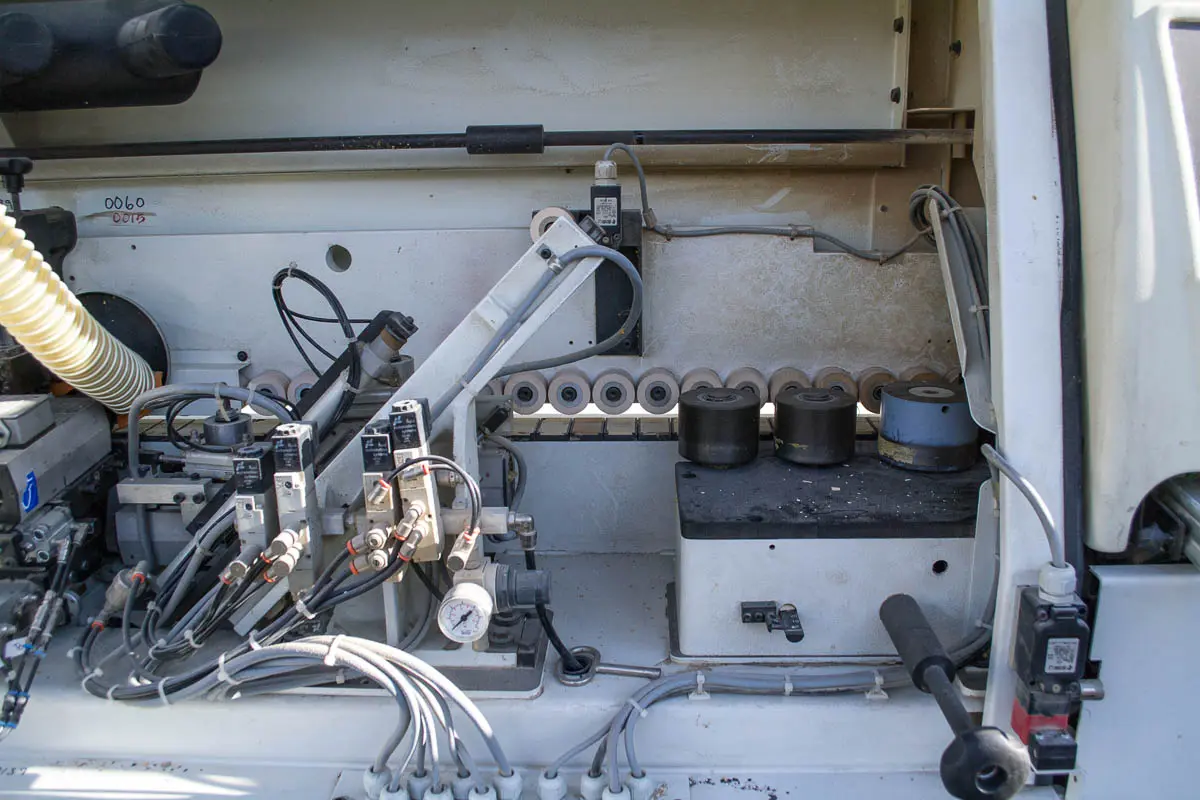

  • Top & Bottom Buffing
  • 27 FPM Fixed feed speed, 0.75 HP feed drive. – Complete with: Full cover sound enclosure,
    mechanical digital readouts for setup adjustments, frequency inverter, outboard panel
    support, and used tooling

Details

Brand

SCM

Model

K 203-A

Voltage

220

Phase

3

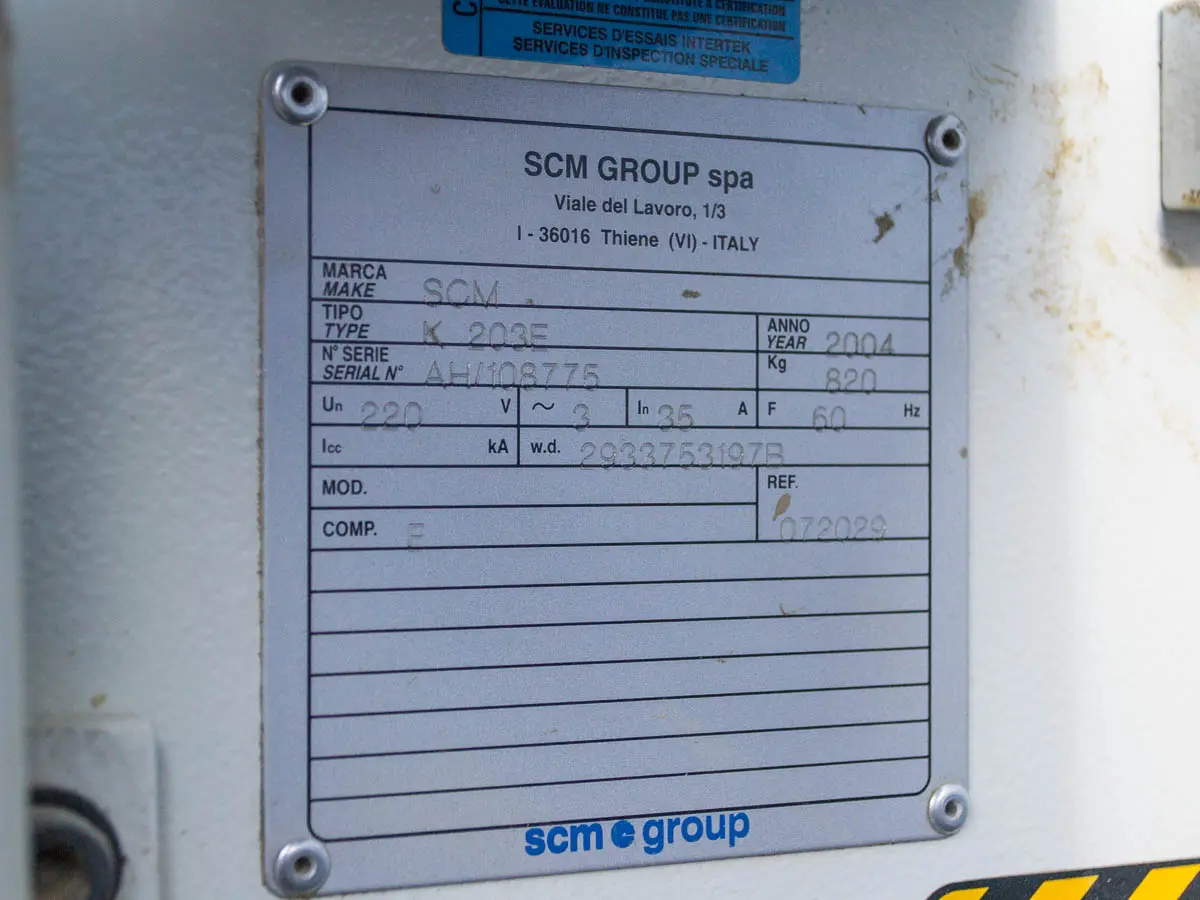

Serial

21224

Edge Thickness min-max, mm

.2 – 5

Material Thickness min-max, mm

8 – 40

Machine Length

8'

Feed Speed (M/min)

10.5
