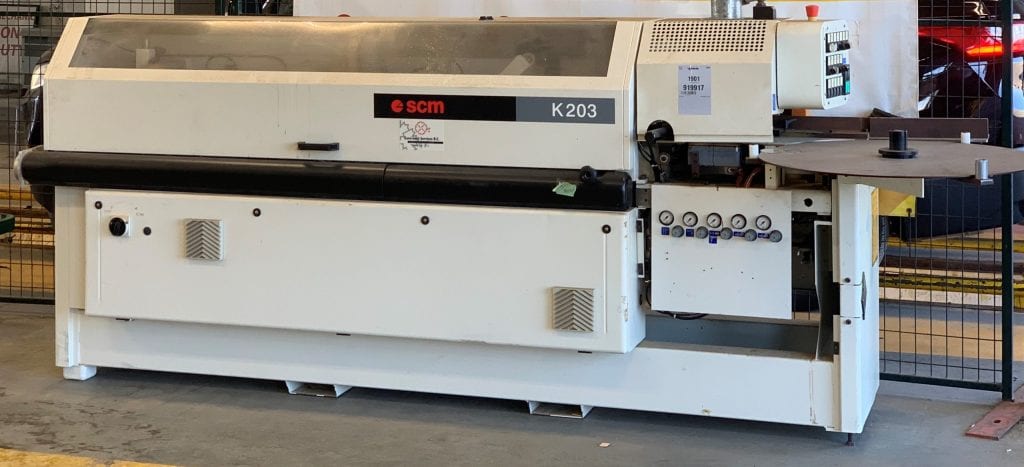

SCM K203E Edgebander

SCM K203E Edgebander

SKU: 762-1

CAD $12,500.00

In Stock

In stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

Specifications

  • 220 V
  • 3 Phase
  • Mfg Date: 2002



  • 5/16″ (7.9 mm) Max. edge cap. for strip feeding
    1/8″ (3 mm) for coil feeding
    60 mm min. panel width and 160 mm min. length, panel thickness 10 – 50 mm
  • Equipped with: Automatic strip & coil feed magazine
    Teflon coated glue pot (heat-up time 10 Min)
    3 mm cap. guillotine
    3-roll pressure unit w/pneumatic control

Workstations:

  • Double motor front & rear end trim mounted on THK guides (0.4 HP – 12,000 RPM motor ea.)
    tilts 0° – 15° from the control panel with (2) preset positions
  • Top & bottom flush & bevel trims with “quick release” mount and plug-in motors for quick tooling changes (0.7 HP – 12.000 RPM motor ea.), bevels 0° – 15° with precision digital indicators for quick setup. —
  • Top & bottom scraping unit w/pneumatic positioning from the control panel.
  • Top & bottom buffing unit (0.25 HP – 2,800 RPM motors). — 36 FPM Fixed feed speed, 0.75 HP feed drive.
