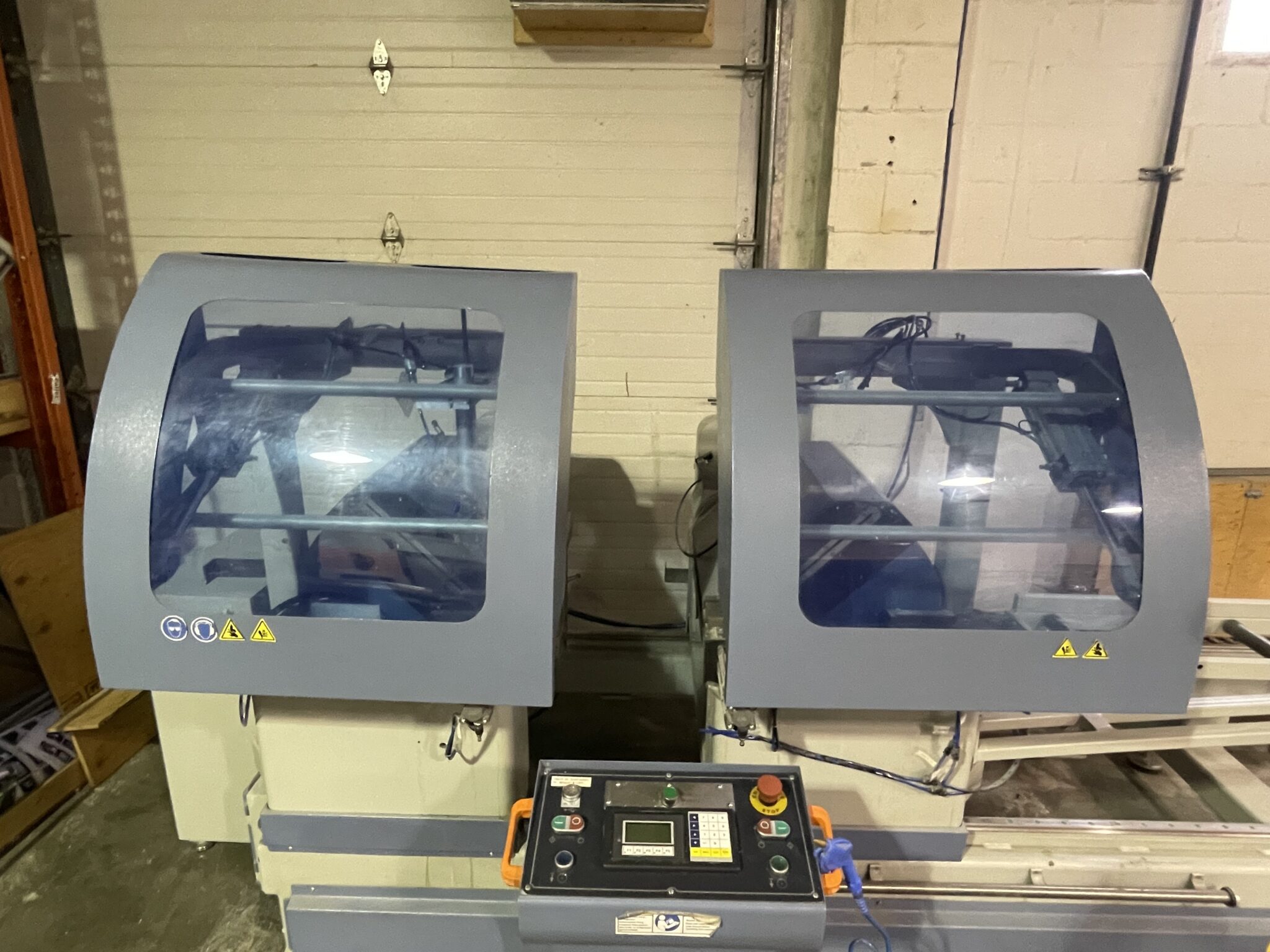

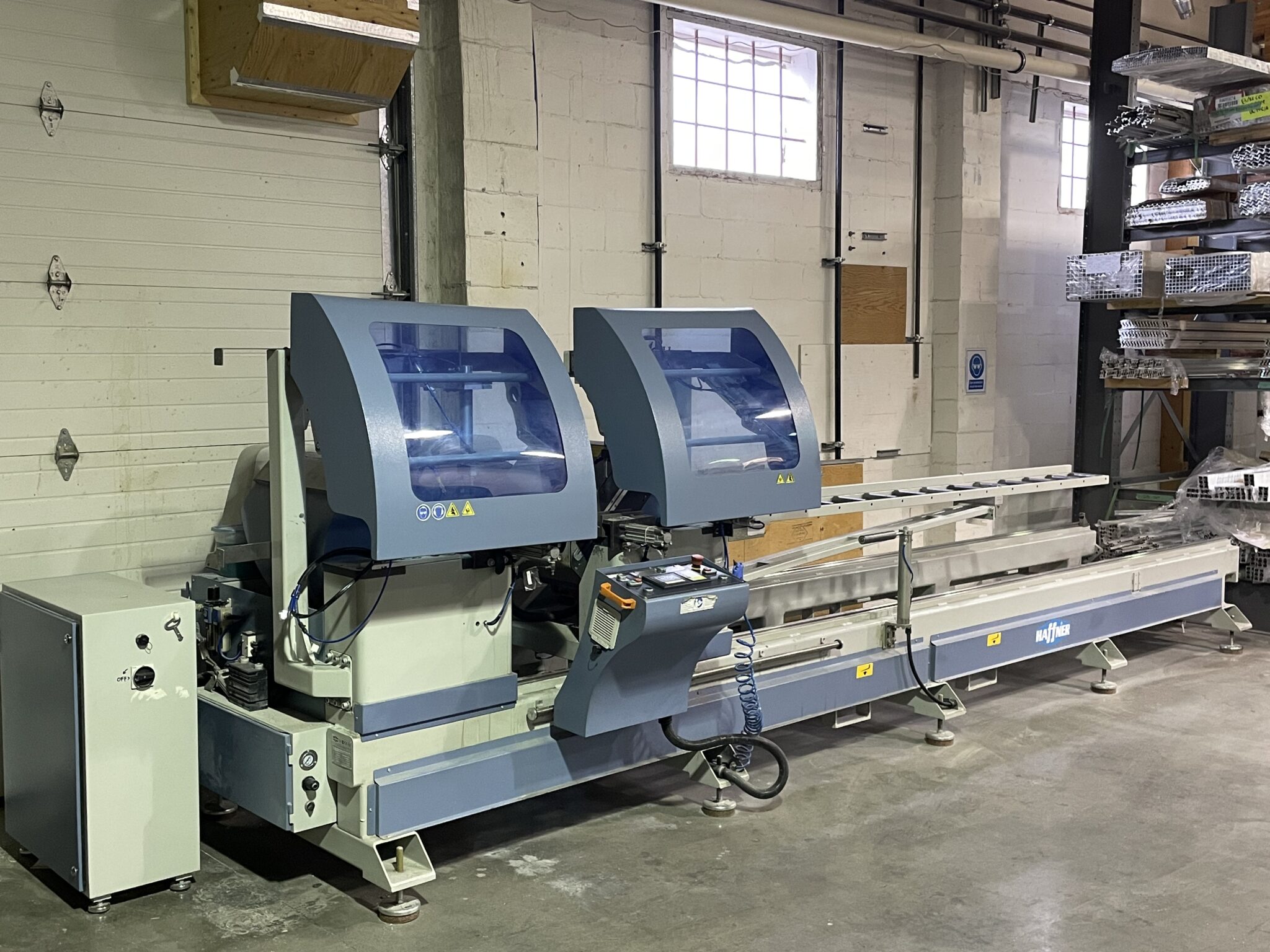

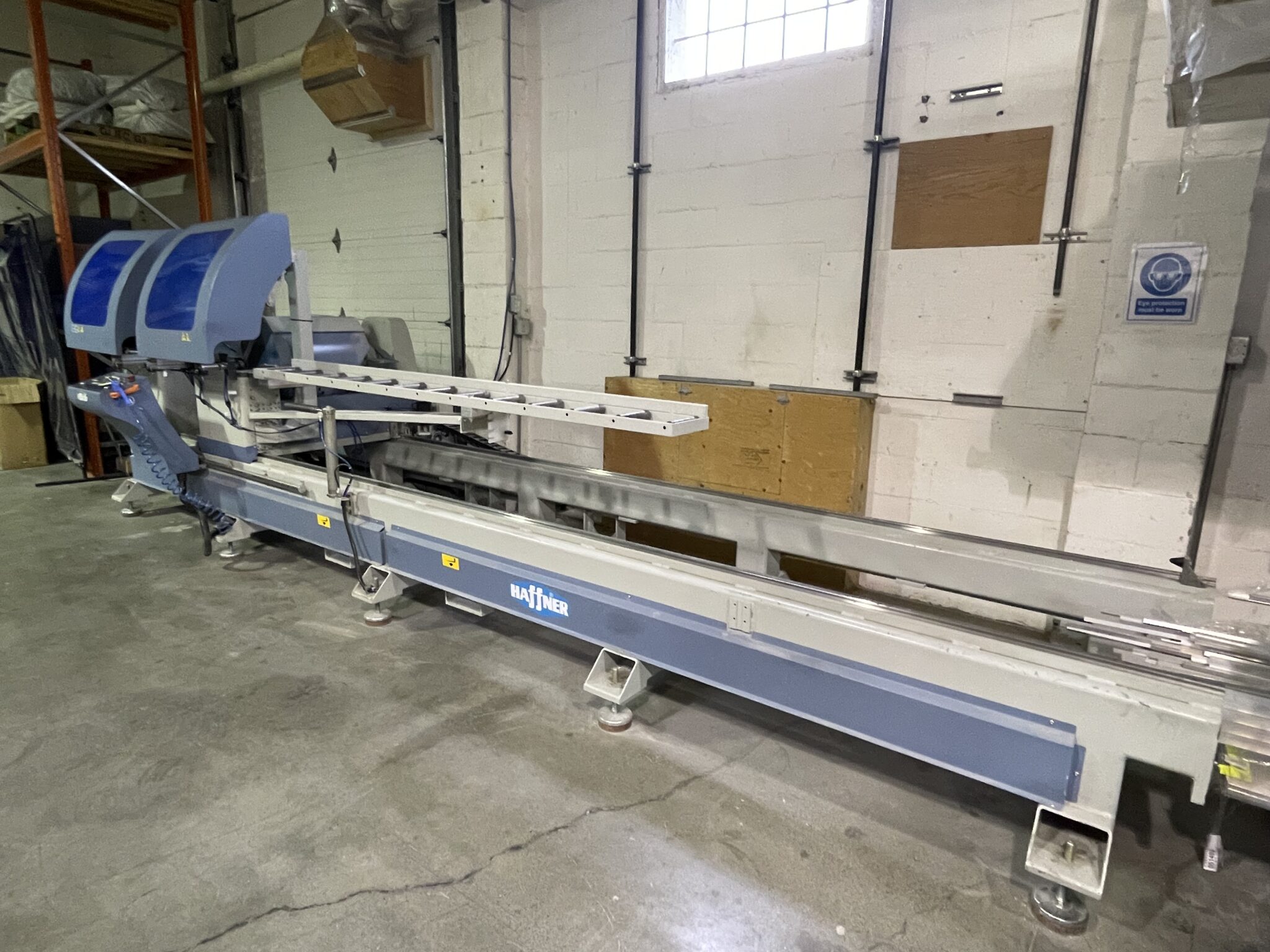

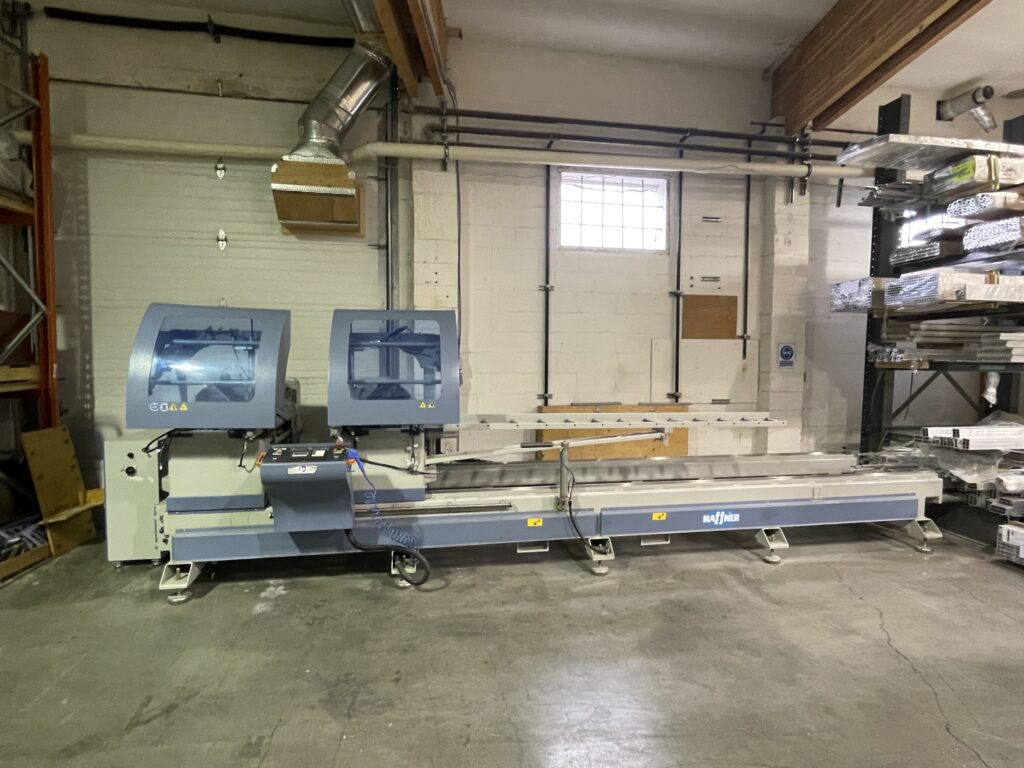

TT-450 Double Head Mitre Saw

Specifications

• Saw heads which can cut inward and outward
• Angles between 45°-90°/90°-135° can be adjusted manually
• Strong construction and linear bearing system ensures accurate length, angle and cutting
• 500mm diameter saw blade enables accurate cutting of different sizes of Aluminium and PVC profiles
• Standard profile length 4500mm • Automatic positioning of the mobile head by means of PLC control system
• Adjustable saw movement speed
• Pulse spray mist blade lubricant system
• Profile support conveyor on mobile head
• Automatic support roller for long profile cutting
• Ease of use by ergonomic design
• Automatic closing safety hood
• Horizontal and vertical clamping system to ensure optimum profile fixing
• Power supply: 400V, 3ph, 50-60Hz
• Total power 6.55kW
• Motor power: 3kW x 2
• Saw speed: 2800rpm
• Max profile width: 175mm
• Max cutting length: 4,500mm
• Min cutting length: 350mm
• Air pressure: 6-8bar
• Air consumption: 60 litres/min
• Machine height: 1,750mm
• Machine length: 8,000mm
• Machine width: 1,700mm
• Machine weight: 1,800kg
• Upgrades
• Motor – replaced for finer adjustment and accuracy
• New encoder strip
• PLC controller upgrade
• Custom clamping
• Upgraded lube system
• Extra blades
• Transformer included

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
