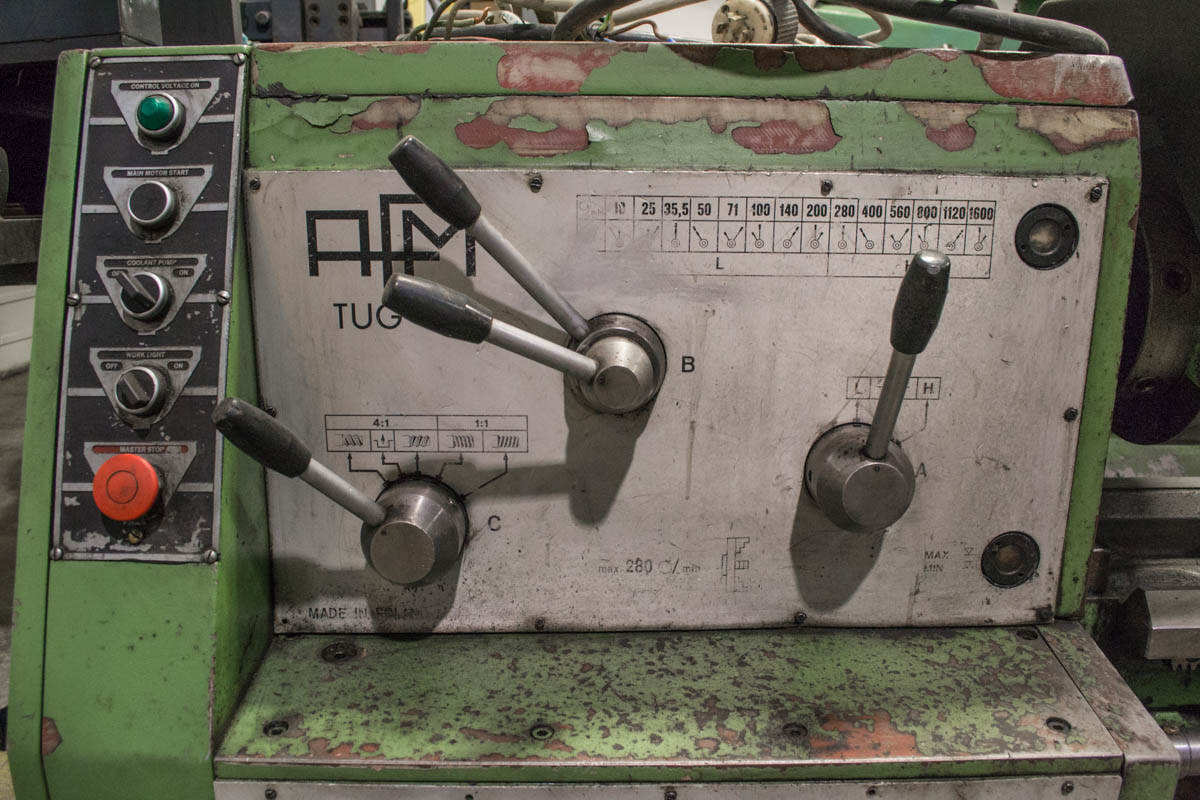

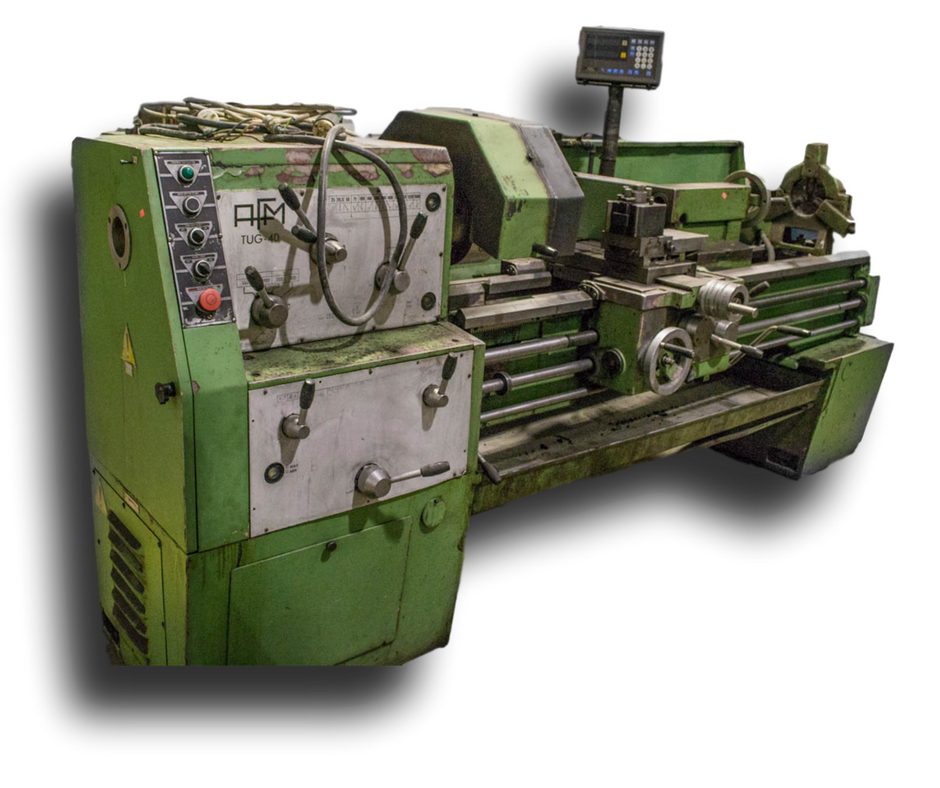

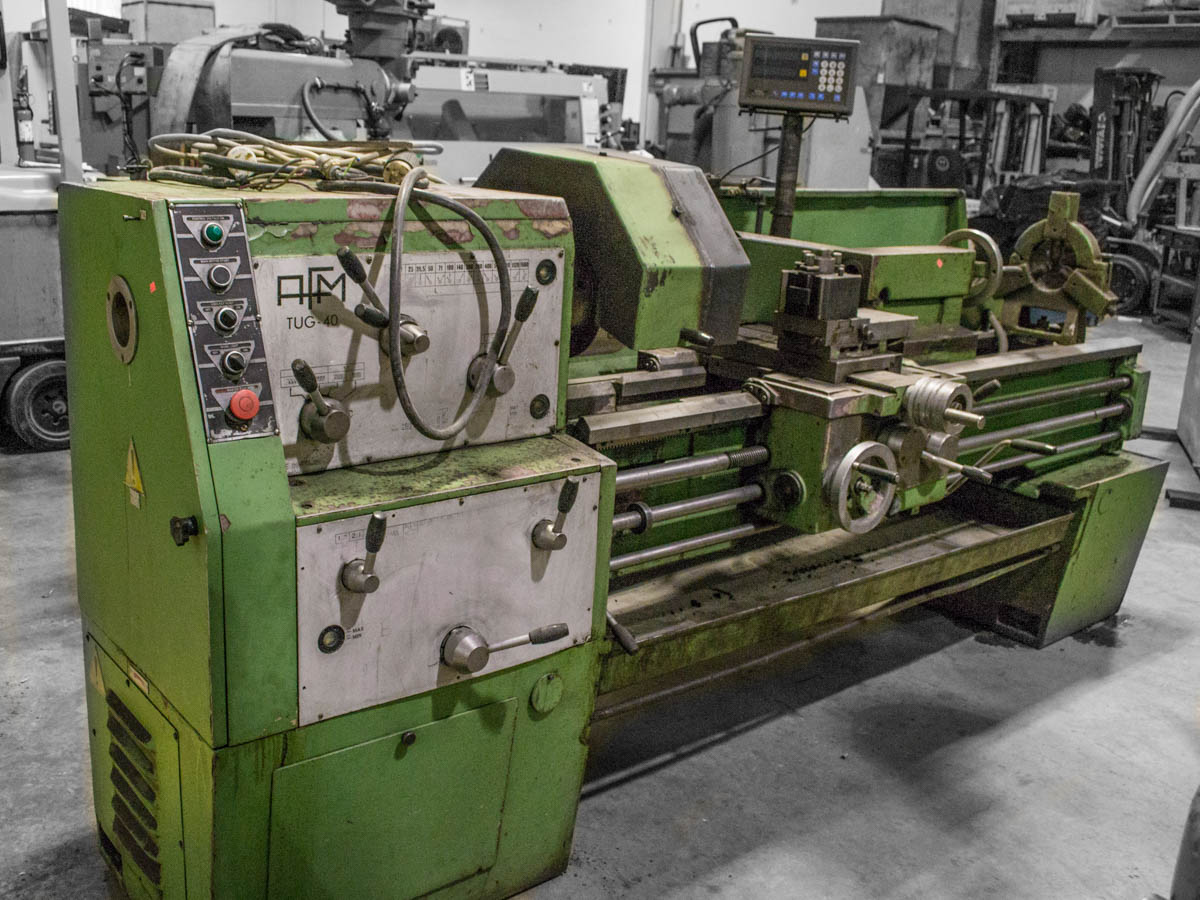

Tug-40 Engine Lathe

Technical parameters of Tug-40 Engine Lathe 1500 mm :

• Distance between centers: 1500 mm
• Center height: 217.5 mm
• maximum diameter of the rolling rails of the bed: 400 mm
• maximum diameter of turning over slide 240 mm
• maximum diameter of the rolling chosen. bridge: 640 mm
• turning length in selected. 156 mm
• torque on the spindle (at full power): 735.5 Nm 75 kGm
• maximum chip cross section (without copying device: 3.5 mm2
• number of speed stages Spindle speed: 14
• Spindle speed range: 16-1400 rpm – Speed variation: 1.41
• spindle diameter: 52 mm
• number of longitudinal feeds: 42
• longitudinal feed range: 0.045-3.36 mm / rev.
• number of transverse feeds: 42
• range of transverse feeds: 0,0225-1,68
• number of longitudinal feeds: 42
• range of fine feeds: 0,018-1,344 mm / rev.
• number of metric thread jumps: 32
• metric thread jumping range: 0.75-28 mm
• number of fine thread metric threads: 10
• thread jumping range.. : 0.3-0.9 mm
• number of inch thread jacks: 35
• inch thread pitch: 28-3 / 4 in.
• the number of inch threads.. : 19
• thread pitch range. : 70-7 1/2 w / cal.
• number of threaded modular threads: 28
• range of threaded modular threads: 0,375-14 II mm
• number of threaded DP threads: 35
• DP threading range: 56-1 1/2 II zw / cal.
• Length of bridging: 312 mm
• Taper seat: Morse No. 5
• Traveling of the tailstock: 180 mm
• Travel of the tailstock: 15 mm
• Screw travel (metric): 6 mm
• Power of the motor: 5.5 kW
• rated speed: 1450 rpm. 50 Hz
• electropump motor power: 0.125 kW
• rated revolutions: 2800 rpm 50 Hz
• Dimensions (LxWxH): 3150x1020x1250 mm
• weight of the machine: approx. 1900 kg

Please call for more information.
