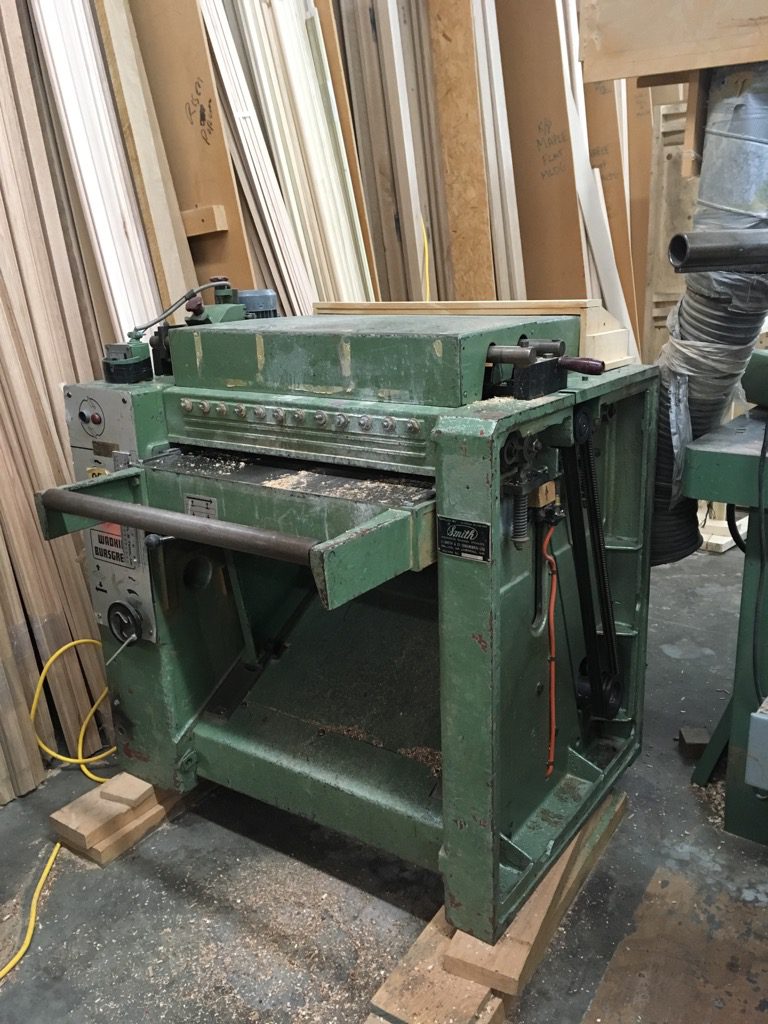

Wadkin Bursgreen BT 630 Planer

$5,500.00 CAD* (approx USD: 4235) or best offer

1 in stock

Call to Purchase

SKU: 669-1



Warranty: Call for details

- Return Policy

Location: Owner Location, Call to View

Ships to: Worldwide

Specification BT 500 BT 630 Capacity of machine 510 x 2300101 20 )< 9in 630 )< 230mm 25 ‘ 9in Length of table 765mm 30in 7650101 30in Length over outer rollers 11650101 46in 1165mm 46in Feed speeds (infinitely variable) 6-18m/min 20-60ft/min 6-18m/min 20-60ft/min Speed of cutterblock 5000 rev/min 5000 rev/min Speed of motor: 50 hertz 3000 rev/min 3000 rev/min 60 hertz 3600 rev/min 3600 rev/min Diameter of cutting circle 1130101 4-frin 1130101 4-frin Diameter of feed rollers 750101 3in 750101 3in Maximum stock removal 100101 tin 100101 tin Horsepower of cutterblock motor 5.5kW 7thp 5.5kW 7thp Horsepower of feed motor 0.75kW , hp 0.75kW ‘hp Minimum stock length 2900101 11 tin 290mm 11 tin Floor space 1200 )< 940mm 47t )< 37in 1200 )< 10700101 47 t )< 42in Net weight, approx, 660kg 1450lb 710kg 1560lb Gross weight, approx. 860kg 1900lb 910kg 2010lb

Additional information


Wadkin Bursgreen




220 V
