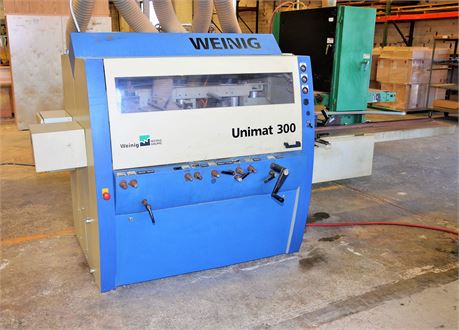

5-Head (B-R-L-T-B), working cap. 9-1/16″ x 4-11/16″
Mfg Year: 2005
Spindle sequence: Bottom 10 HP motor, right/left 10 HP, top 15 HP and bottom 10 HP motor. All spindles with mechanical brakes. (HP is typical for this model, but not verified)
Spindles 1-1/2″ dia. with cutter-head speed of 6,000 RPM. Mechanical digital readouts. “DigiSet” counters at left and top spindles for accurate setup. Mechanical digital readouts for chip-breaker and pressure element at top spindle.
Dual feed speed of 26 and 40 FPM, powered by a 1 HP motor; Carden feed drive (chainless feed system); hardened bed insert in front of 1st bottom head.
Receding chip-breaker & pressure element at top spindle. Side pressure opposite right spindle, spring loaded with (2) rollers; driven outfeed roller in bed.
Infeed straightening table 2 meter (6’6″), side pressure roller mounted to infeed table.
Full sound enclosure with mechanical interlock, Central lubrication system and manual table lubrication pump. Pneumatic switch to raise and lower first feed pendulum.
