4′ x 8′ Italpresse XL/6 Hydraulic Hot Press

4' x 8' Italpresse XL/6 Hydraulic Hot Press

SKU: 91274-30

CAD $26,000.00

Out of stock

Contact Mitch Brennan:
Call 6045562225 or
Intl. 1 (855) 556-5121 Ext.1
ASK ME

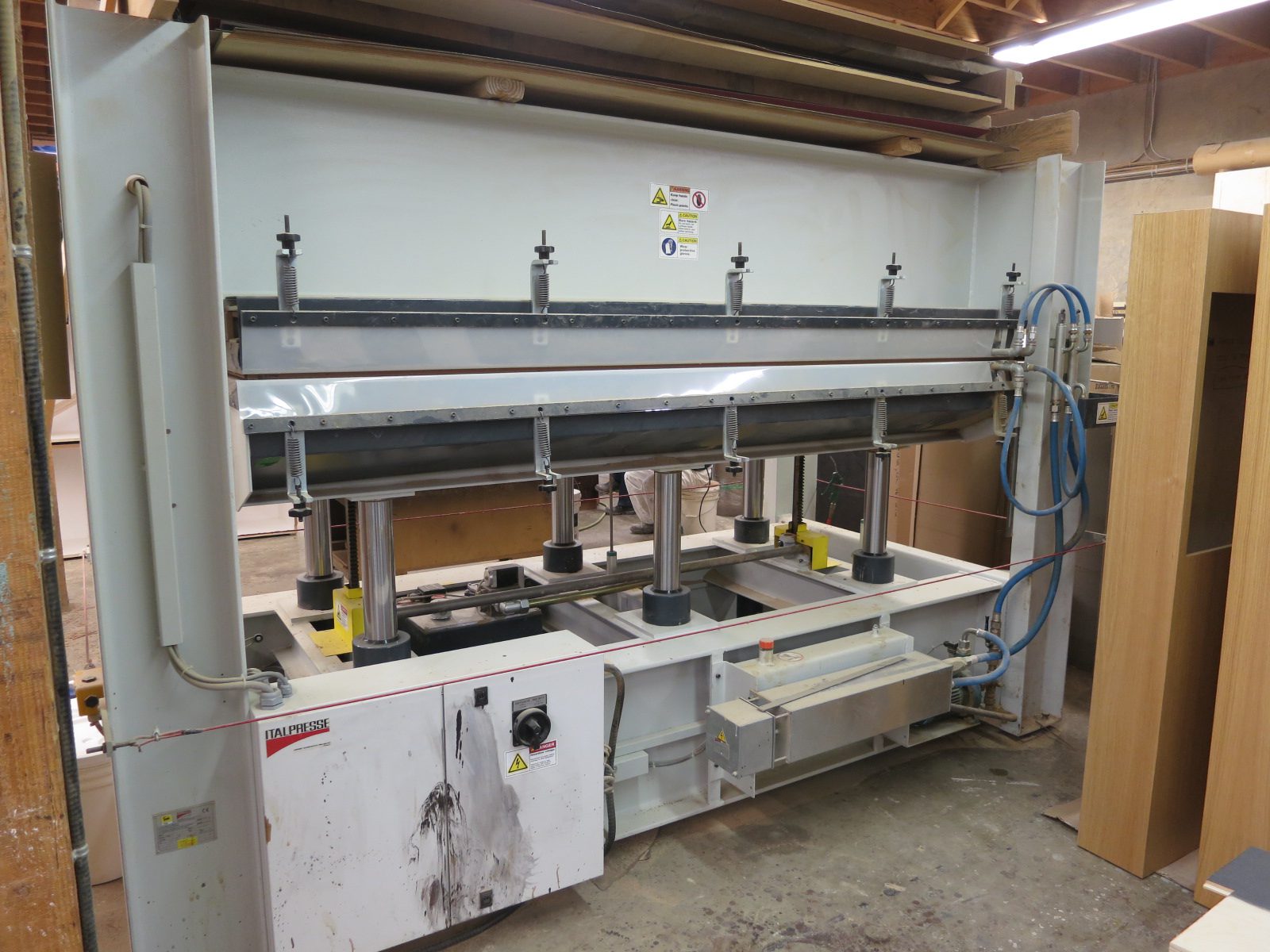

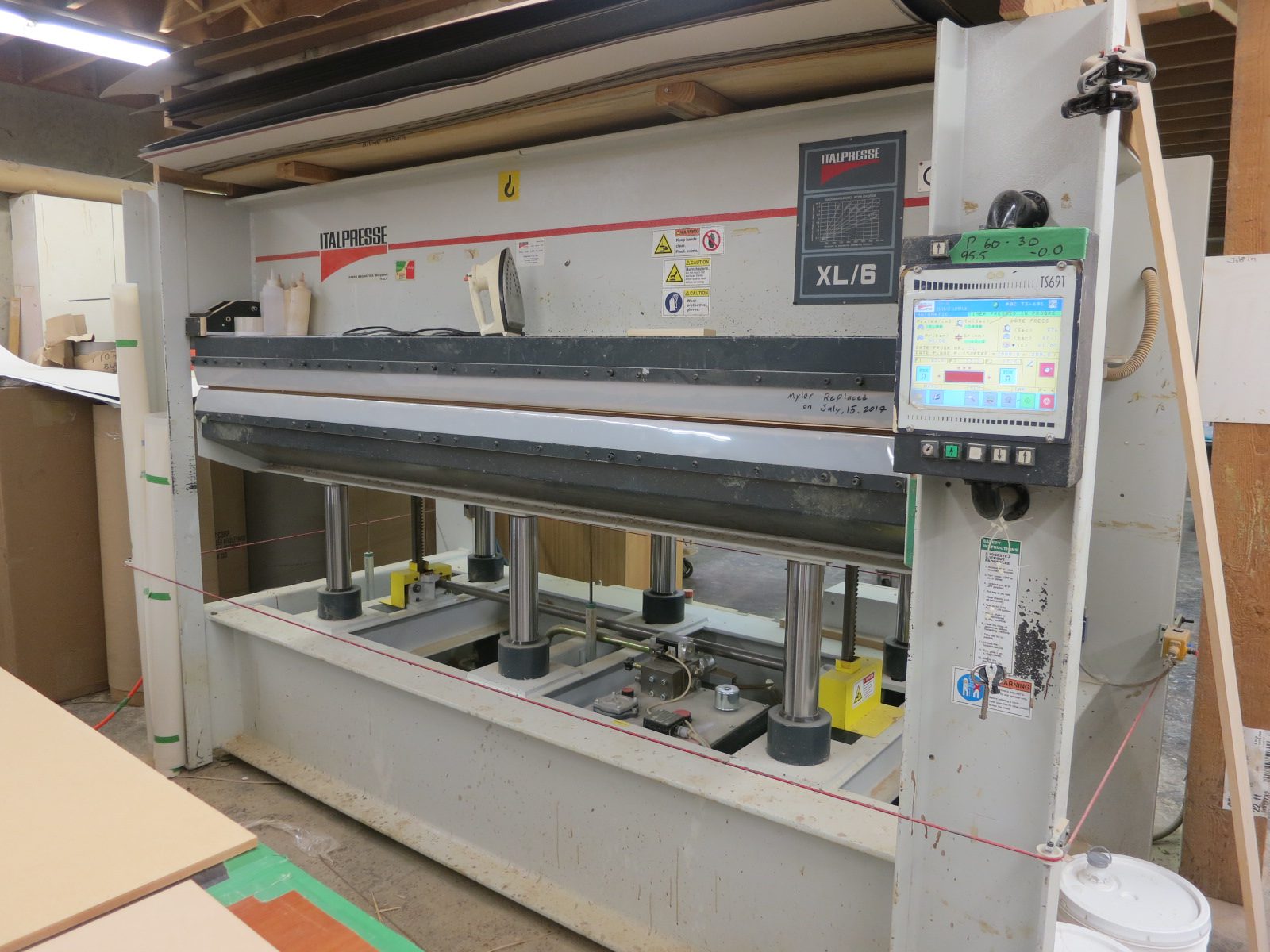

2500 x 1300 mm Italpresse “XL/6” Hot Press for Flat Lamination

  • Platens 98″ x 51″, Daylight 15-3/4″
  • 6 Upstroke press cylinders producing 132 tons of thrust
  • Max. laminating pressure – 66 psi
  • Manual loading on all four sides possible
  • Laminated steel press platens heated by circulation of thermal oil
  • Energy efficient 12 KW electrical resistance thermal oil boiler
  • Max. platen temperature 250 F.
  • Platens covered with spring tensioned, scratch and glue resistant mylar film
  • LCD operator interface for digital control of temperature, hydraulic pressure and pressing time
  • EFC electronic flatness system to detect deflection of the moving platen to prevent damage in case of improper loading

Please Call for more information.

Details

Dimensions130 × 71 × 81 in
Brand

Italpresse

Model

XL/6

Manufactured Year

2006

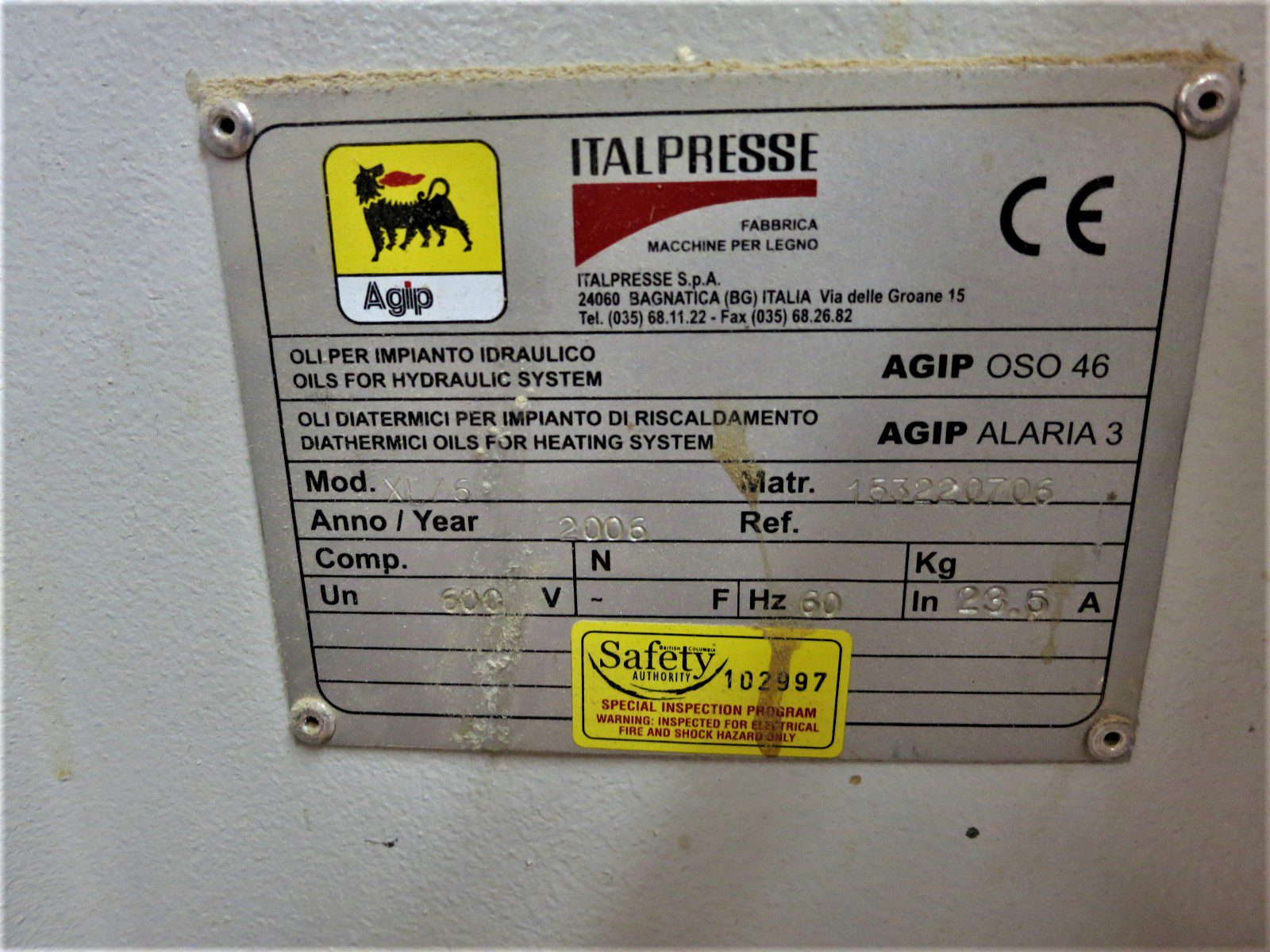

Serial

153220706

Voltage

600 V

Frequency

60Hz

Amps

23.5 A

Platen Dimension

2500 x 1300 mm

Thrust

120 Ton

No. of cylinder

6
