Biesse Skill 1536 GFT CNC

Specifications

Serial #: 74933 00

• 230V
• 41A
• 3 Phase

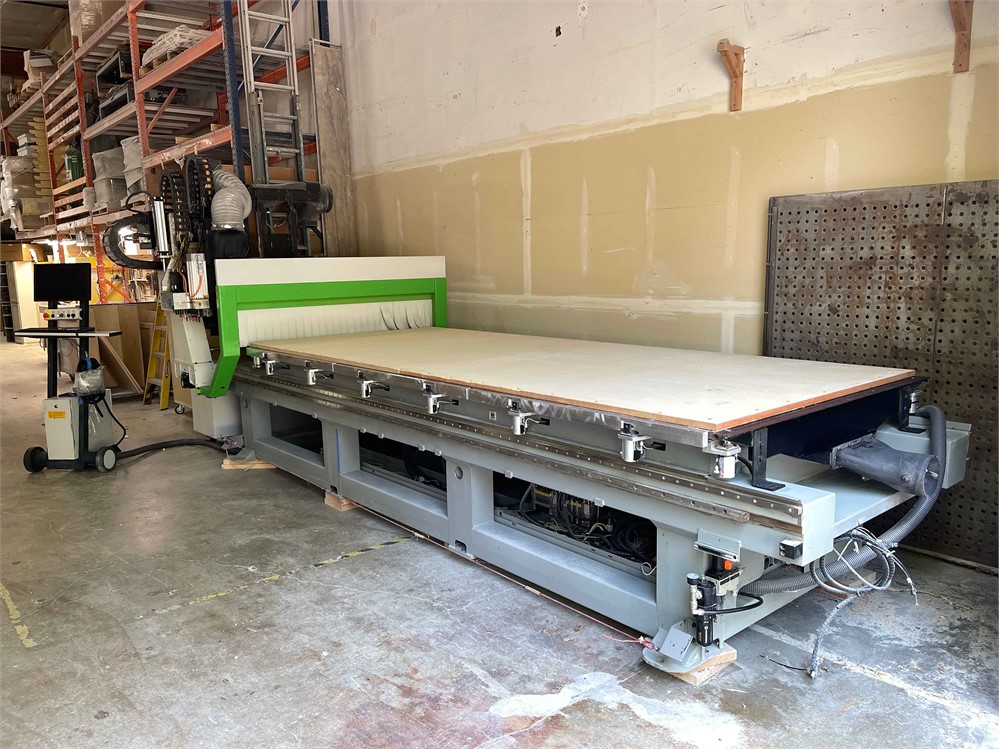

• 5′ x 10′ Nesting Bed (61″ x 148″ phenolic router table)

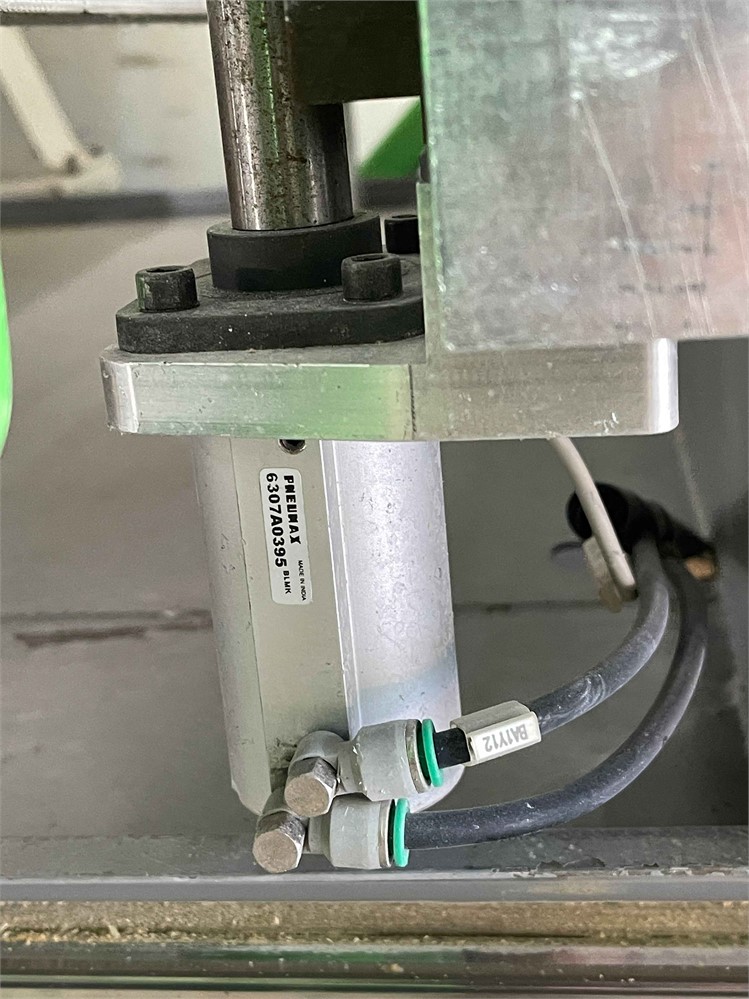

• Pneumatic reference stops
• Two (2) foot pedals for pendulum processing

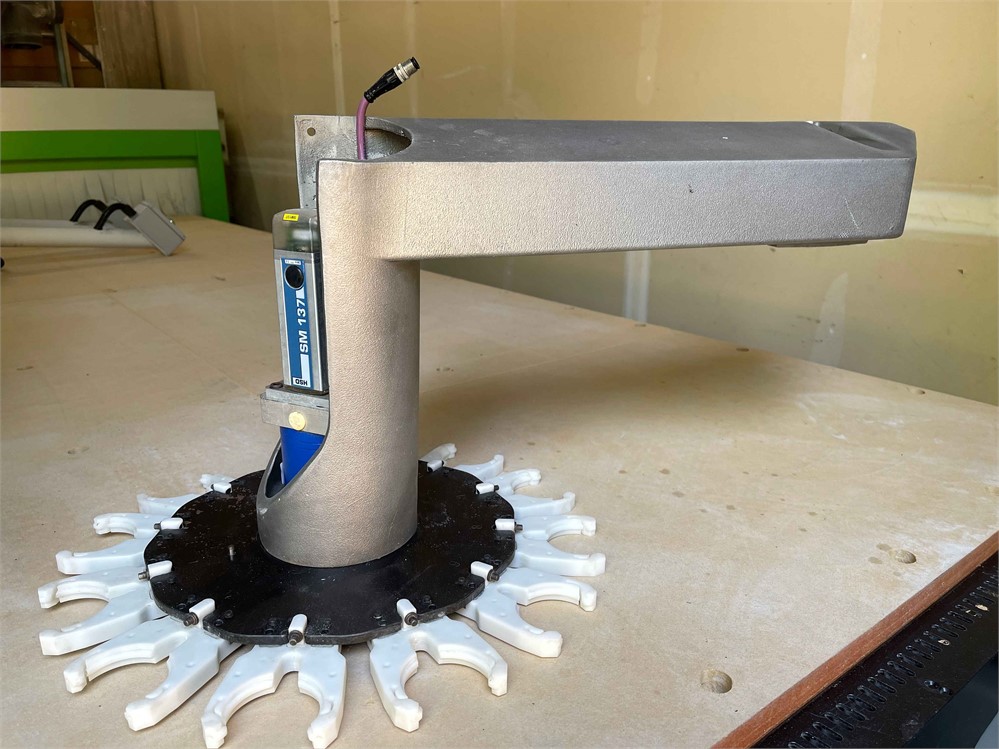

• Twelve (12) position rotary tool changer
• Automatic tool length measuring device
• Boring Block – Ten (10) vertical spindles
• Vacuum Pumps
• Mfg Date: 2012
• 16 HP Router  – Variable RPM
  • CW/CCW rotation
  • HSK, quick-change
  • Air blow-off nozzles
  • Air-cooled
• Pneumatic dust blast gates
• Sound enclosure
• Unloading device (rake) with top-mounted dust plenum
• Outfeed bottom-mounted dust plenum
• Front safety mats
• PC control on mobile cart
• Standard monitor, keyboard and mouse
• Centralized lubrication system
• External electrical transformer
• Comes with Side Panels.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
