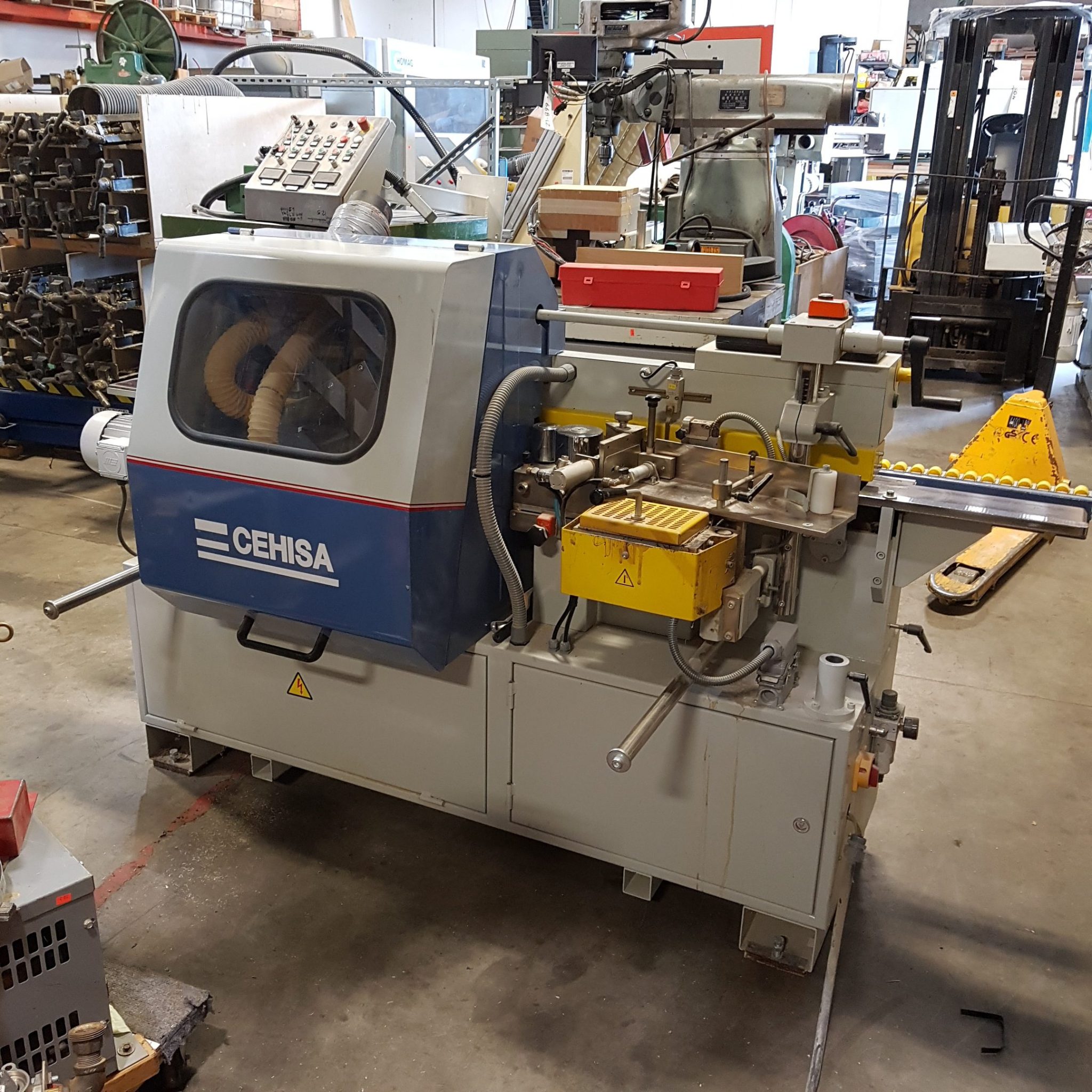

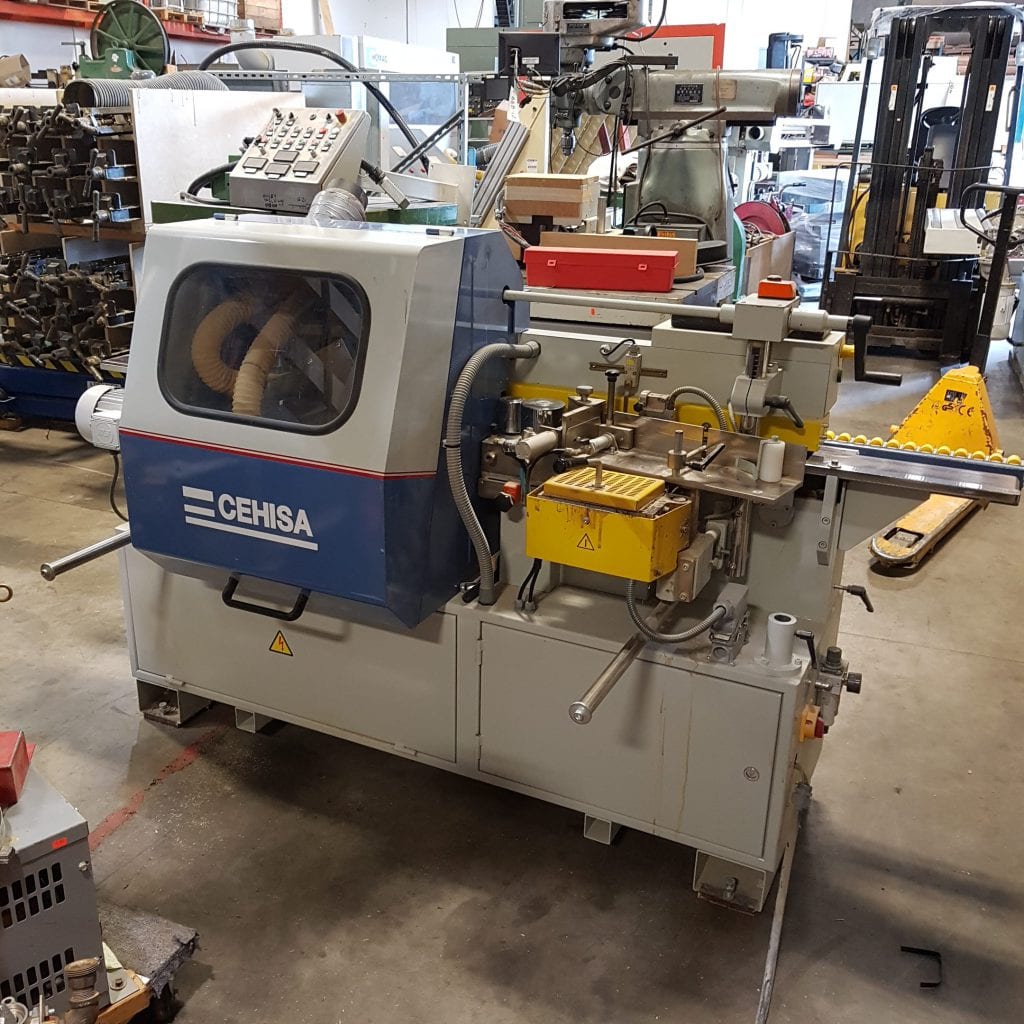

Cehisa Pro 7 Edgebander

Specifications

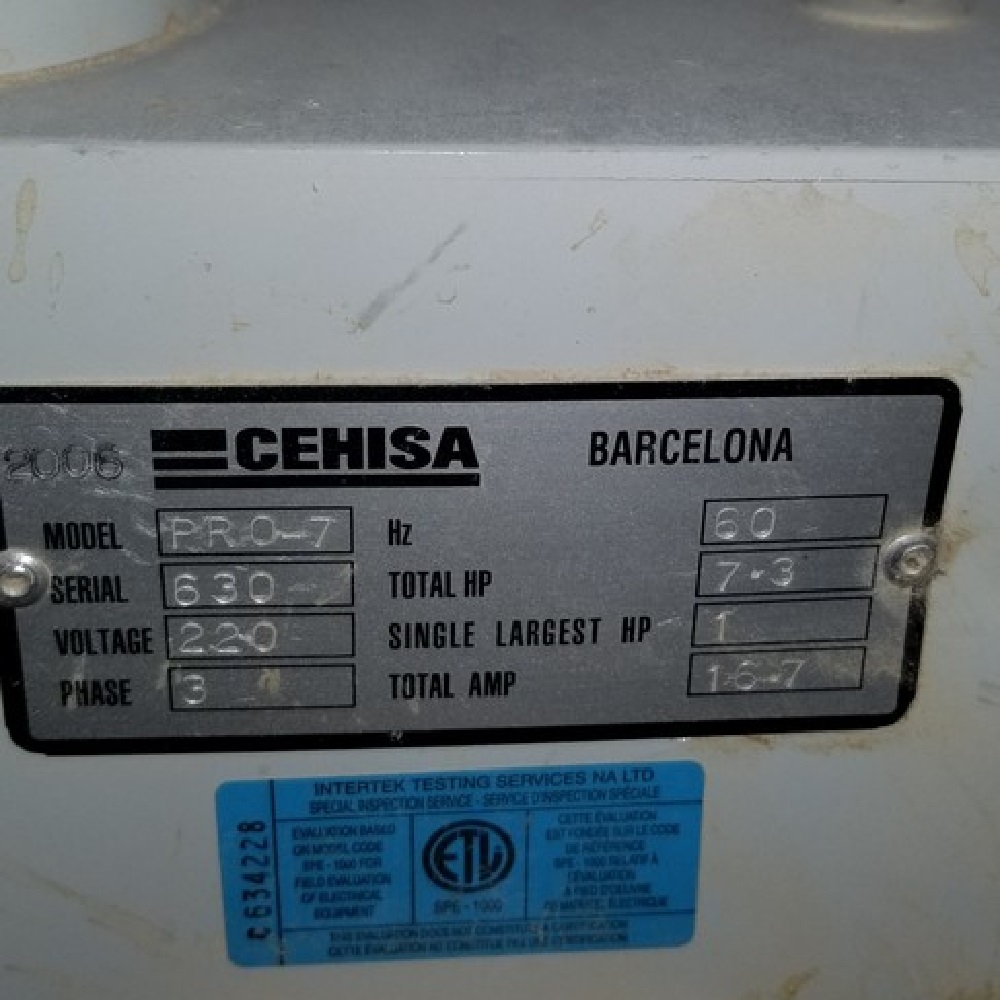

• Model : Pro-7
• Serial No : 630
• 220 V
• 3 Phase
• Total HP 7.3
• Single Largest HP 1
• Mfg year : 2008
• Feed speed : 10m/min
• 12,0000 RPM double blade end trim unit
• Top and bottom trim station
• Pressure roller

• 1.5 mm max. edgebanding thickness
• 5″ min. panel length
• 3″ min. panel width
• 3/8″ min. panel thickness
• 2″ max. panel thickness
• 1 HP feed motor with speed of 33 FPM
• (1) motorized pressure roller with (1) additional pressure roller
• 1/3 HP double blade end trim unit with a tooling speed of 12 000 RPM
• 1/3 HP top and bottom trim station equipped with digital readouts and carbide bevel tooling
• Automatic roll cutter and strip feed magazine
• Quick changeover for rolls or strip material
• Standard guillotine for cutting up to 1.2 mm PVC from the coil
• Quick melt glue pot with quick change disconnect for ease of maintenance or glue color change if required
• 10 to 15 min. heat up time depending upon voltage
• Digital thermostat with approaching temperature control (PDI) and auto temperature drop
• Machine weight: 1 244 lbs
• Machine floor space: 3′ x 8’4″ x 4′ tall
• 1.5 mm max. edgebanding thickness
• 5″ min. panel length
• 3″ min. panel width
• 3/8″ min. panel thickness
• 2″ max. panel thickness
• 1 HP feed motor with speed of 33 FPM
• (1) motorized pressure roller with (1) additional pressure roller
• 1/3 HP double blade end trim unit with a tooling speed of 12 000 RPM
• 1/3 HP top and bottom trim station equipped with digital readouts and carbide bevel tooling
• Automatic roll cutter and strip feed magazine
• Quick changeover for rolls or strip material
• Standard guillotine for cutting up to 1.2 mm PVC from the coil
• Quick melt glue pot with quick change disconnect for ease of maintenance or glue color change if required
• 10 to 15 min. heat up time depending upon voltage
• Digital thermostat with approaching temperature control (PDI) and auto temperature drop

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
