Capacity:
- High Inlet Temperatures Refrigerated Compressed Air Dryers
Capacity for flows based on 180°F, 82°C inlet (for typical applications where there is no after cooler installed upstream)
- Flow Capacity SCF(1) @ 175 PSIG : 145
- Use With Air Compressor Size (HP) : 30
- Flow Capacity SCF(1) @ 150 PSIG : 135
- Use With Air Compressor Size (HP) : 30
- Flow Capacity SCF(1) @ 125 PSIG : 125
- Use With Air Compressor Size (HP) : 30
- Flow Capacity SCF(1) @ 100 PSIG : 114
- Use With Air Compressor Size (HP) : 25
Capacity for flows based on 100°F, 38°C inlet (for typical applications where there is an after cooler installed upstream)
- Flow Capacity SCF(1) @ 175 PSIG : 197
- Use With Air Compressor Size (HP) : 2 x 20
- Flow Capacity SCF(1) @ 150 PSIG : 183
- Use With Air Compressor Size (HP) : 2 x 20
- Flow Capacity SCF(1) @ 125 PSIG : 170
- Use With Air Compressor Size (HP) : 2 x 20
- Flow Capacity SCF(1) @ 100 PSIG : 155
- Use With Air Compressor Size (HP) : 30

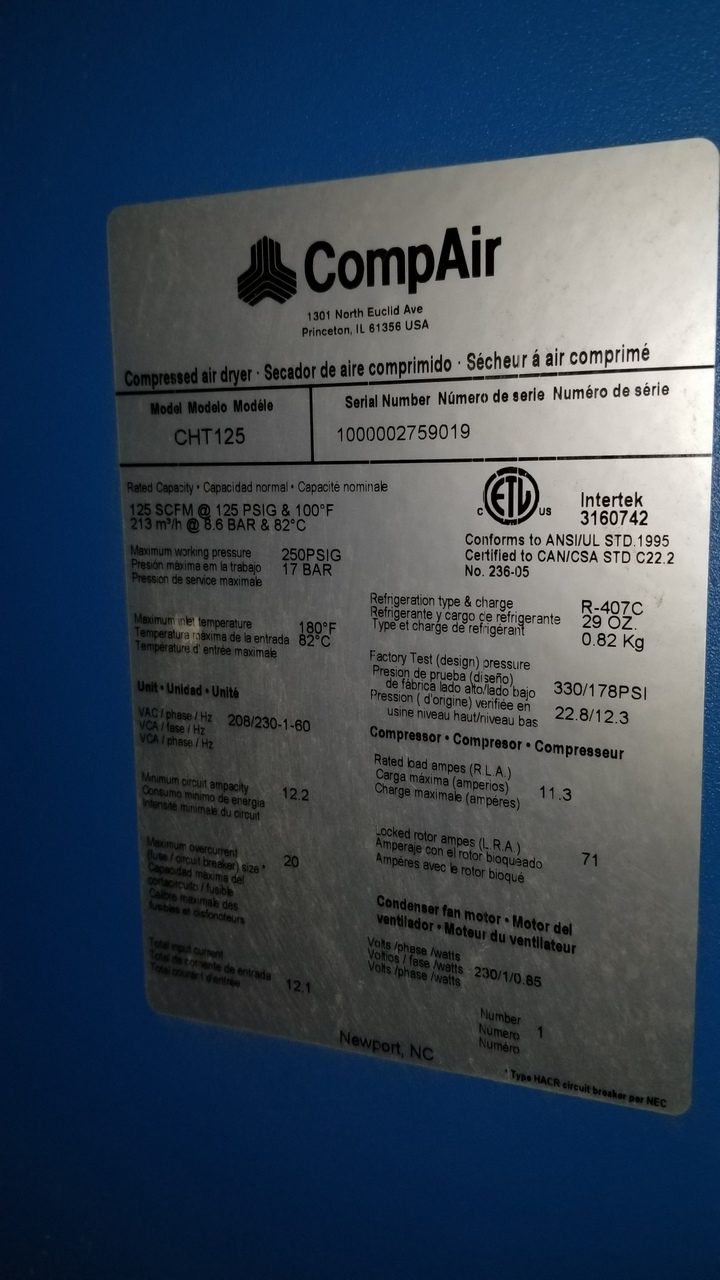

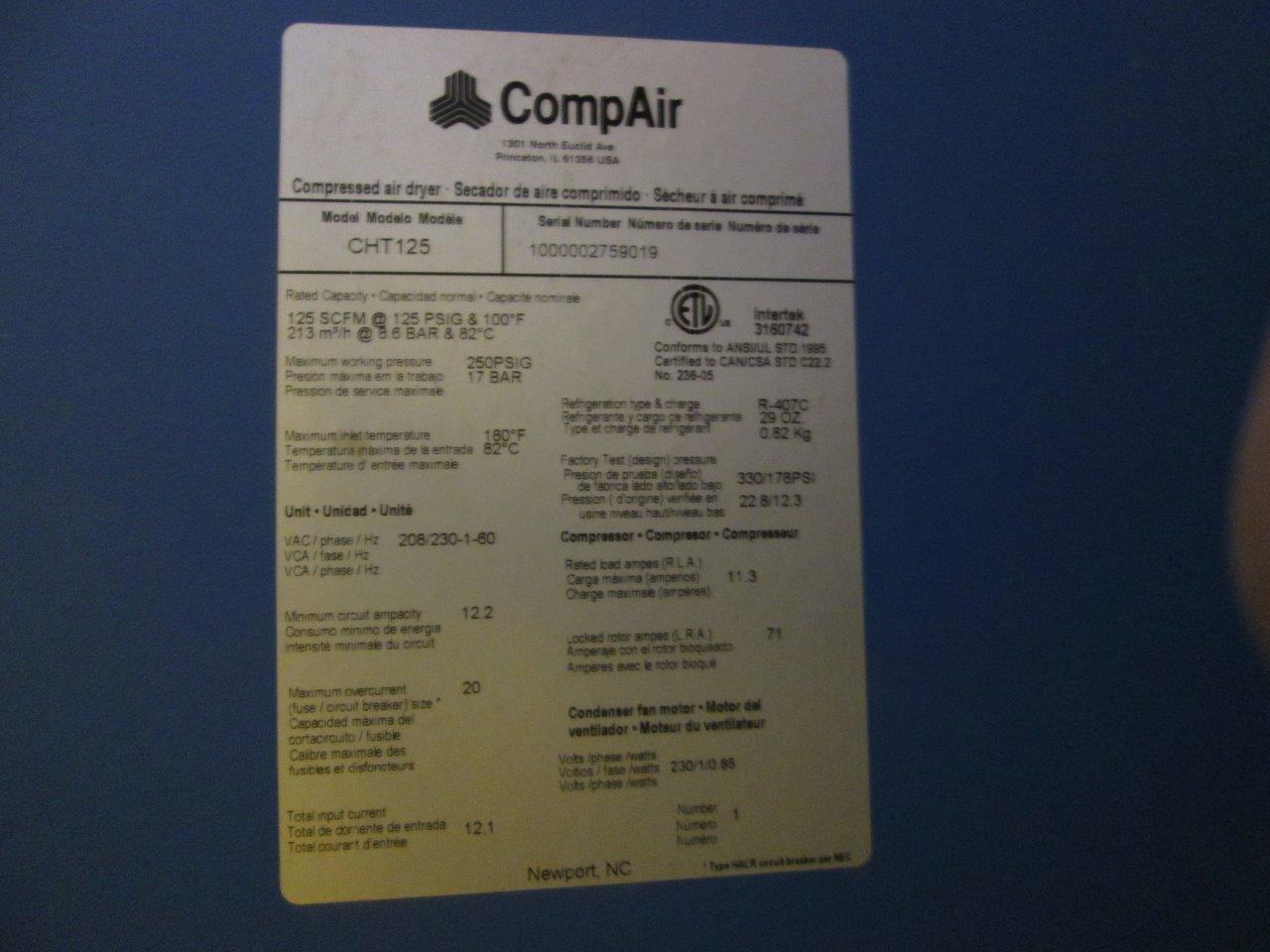

Features and Specifications:
- 230 V, Single Phase and 60 Hz
- Maximum Working Pressure : 250 PSIG 14 KG/CM²
- Maximum Inlet Temperature : 180°F 82°C
- Ambient Temperature Range : 35–110°F 2-43°C
- In/Out Connections NPT or BSP : 1″
- Dimensions IN (MM) : H-46 (1162) x W-17 (429) x D-17 (429)
- Weight LB (KG) : 189 (86)
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Brochure Available.
