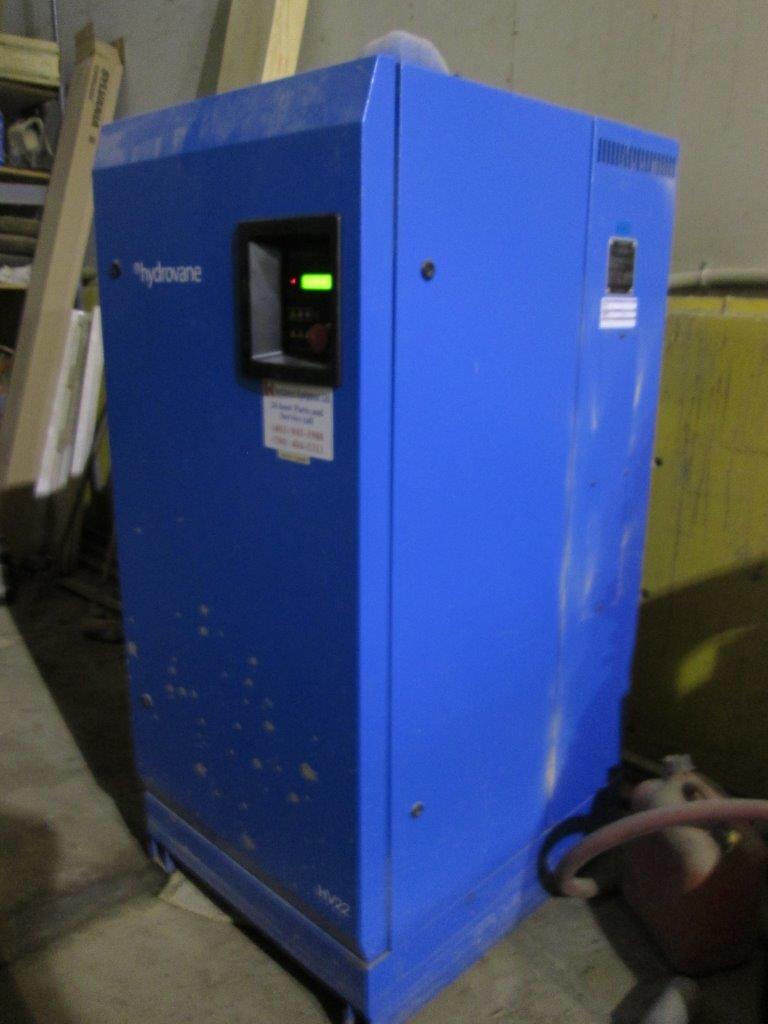

Gardner Denver Hydrovane HV22 Vertical Air Compressors

Features and Specifications:

• Fixed Type
• Enclosed fixed speed.
• Provide a high quality, reliable and compact compressed air solution.
• Its vertical design allows the compressor to benefit from the smallest footprint in its kW range.
• 460 V, 60 Hz, 22 Kw and 3 Phase
• Starter Type : DOL
• Maximum FAD m3/min (cfm) @ 8   Bar:   3.25 (114.6)
• Maximum FAD m3/min (cfm) @ 10 Bar:   2.83 (100.0)
• Dimensions (mm) D-850 x W-700 x H-1550
• Noise dB(A): 71
• Air Quality (mg/m3): <3
• Technology:  Lubricated

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Brochure Available.
