SKU: 581-34

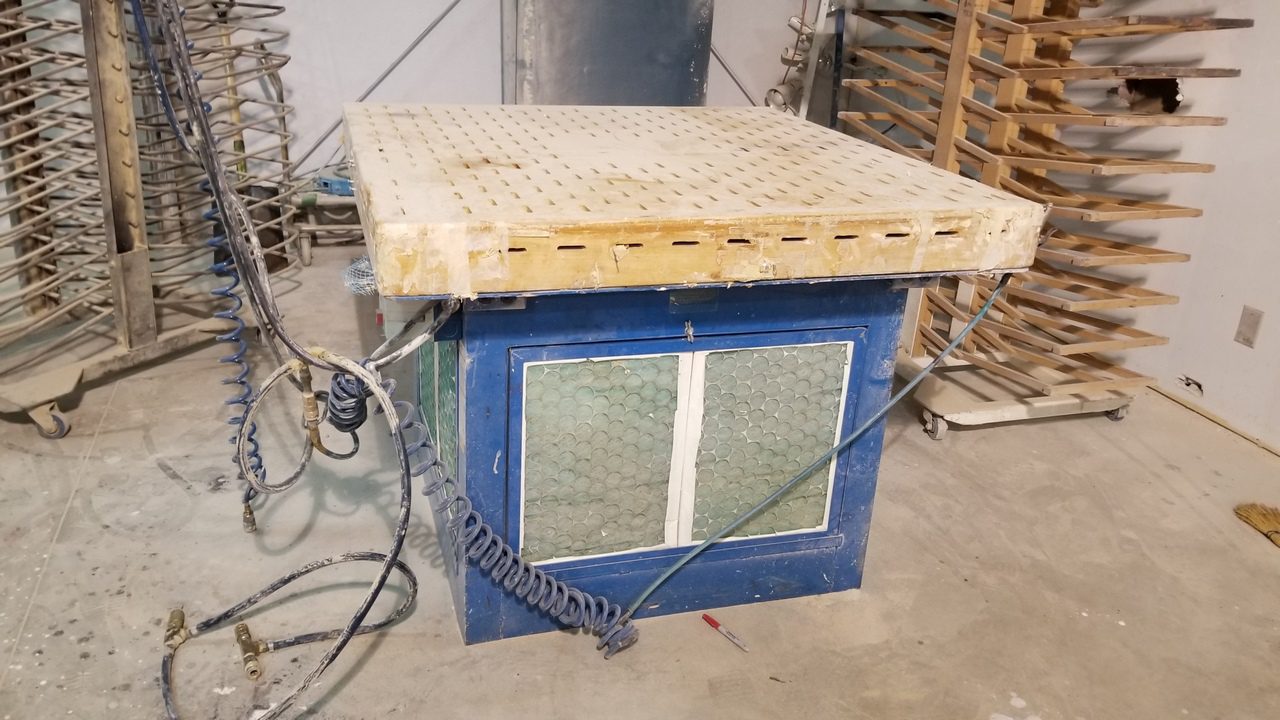

Denray Model 4800 Down Draft Table

Out of Stock But wait, we have similar products

Features and Specifications:

This has been a popular table in smaller shops. Model 4800 features the new tube filtration system, which cleans with a 99 percent capture rate at 1 micron. This table has been used in chair factories because its height can be ordered to 29 inch tall. They come with 4 – swivel casters including two that lock. When mobility is important this model line is your best choice.

  • MOTORS are (TEFC) Totally Enclosed Fan Cooled. MOTORS for hazard locations like spray areas are available.
  • RECEPTACLES You must bring power into them from an electrical source outside the table.
  • CASTERS Standard on the 4800 Model, cannot be added later.
  • HEIGHTS may be altered, call for information.
  • TOPS are 3/4 inch medium density fiber board (MDF) covered with a very durable sprayed-on urethane cover-non-marring, soft enough not to effect product being sanded.
  • HYDRAULIC MOTORS are available to run fans.
Size 48 x 48 inch Height: 36 inch
Weight 550 lbs
CFM 3400
Motor 2HP/3PH
Voltages 230 Volt
Sound Level 77 Decibels
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Brochure Available.
