Features and Specifications:

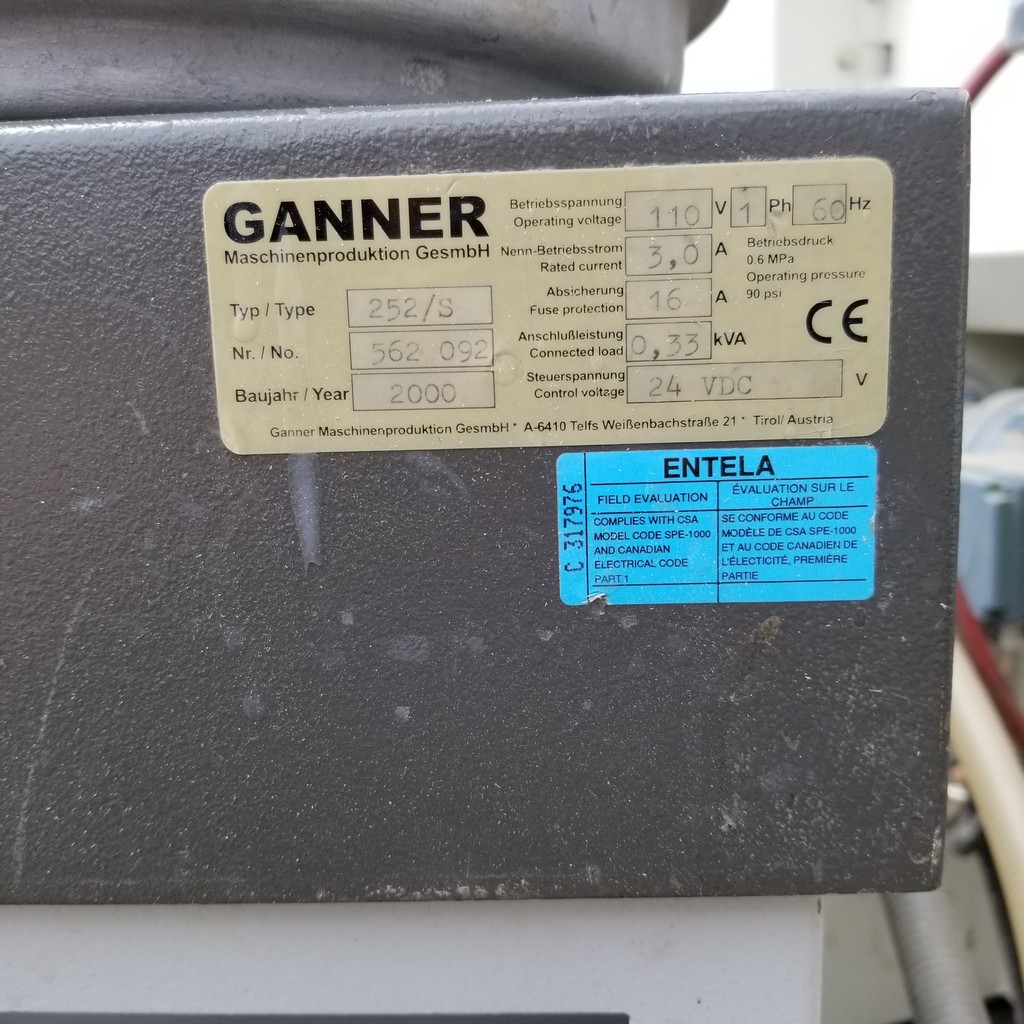

- Year of Mfg. 2000
- Elect./Voltage: 110 V, 60 Cy, 1 Ph.
- Dimensions: 26″ L x 26″ W x 44″ H
- Weight: 240 Lbs (estimate)
- Dowel sizes from 7 to 20 mm; stays constant for every dowel; dowel sizes 6 to 12 mm and length from 25 to 50 mm possible; dowel feeding by maintenance-free vibrator.
- Mechanical system of dowel selection for dowel diameter and dowel length; controlled by electronic limit switches with immediate error indication of incorrect dowel length (+/- 2mm);
- Immediate ejection of the defective dowel by pressing the error light button. Fully automatic maintenance-free electronic controller with program selection of cleaning, gluing, and gluing / inserting.
- 8-position selector switch regulates glue amount by means of an electronically controlled timer; essential for different dowel size and diameter and various glue viscosity.
- Closed glue system with conical seated front nozzle; eliminates hardening of the glue in the nozzle and need for routine cleaning of the glue system.
- 6 bar high-pressure system for glue injection for precise glue stream and clean dowel inserting.
- Glue/Water selector switch for rinsing the system; control light indicates low glue in glue pot.
- Maintenance-free pistol mechanism uses staple gun technology, repeat gluing/inserting by constant depression of the pistol trigger; revolver magazine of pistol provides constant supply of dowels;
- Dowels not inserted to the bottom of the hole but are regulated by the length outside the panel.
- No splitting of thin material or glue forced back out of the hole; no panel kick back or clamping the work piece or backstop is necessary; easy changing of machine or gun for use with different dowel diameter by modification kits. Will run dowel diameters of 6 mm, 8 mm, 10 mm, 12 mm dowel lengths: 20 – 50 mm (optional).
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
