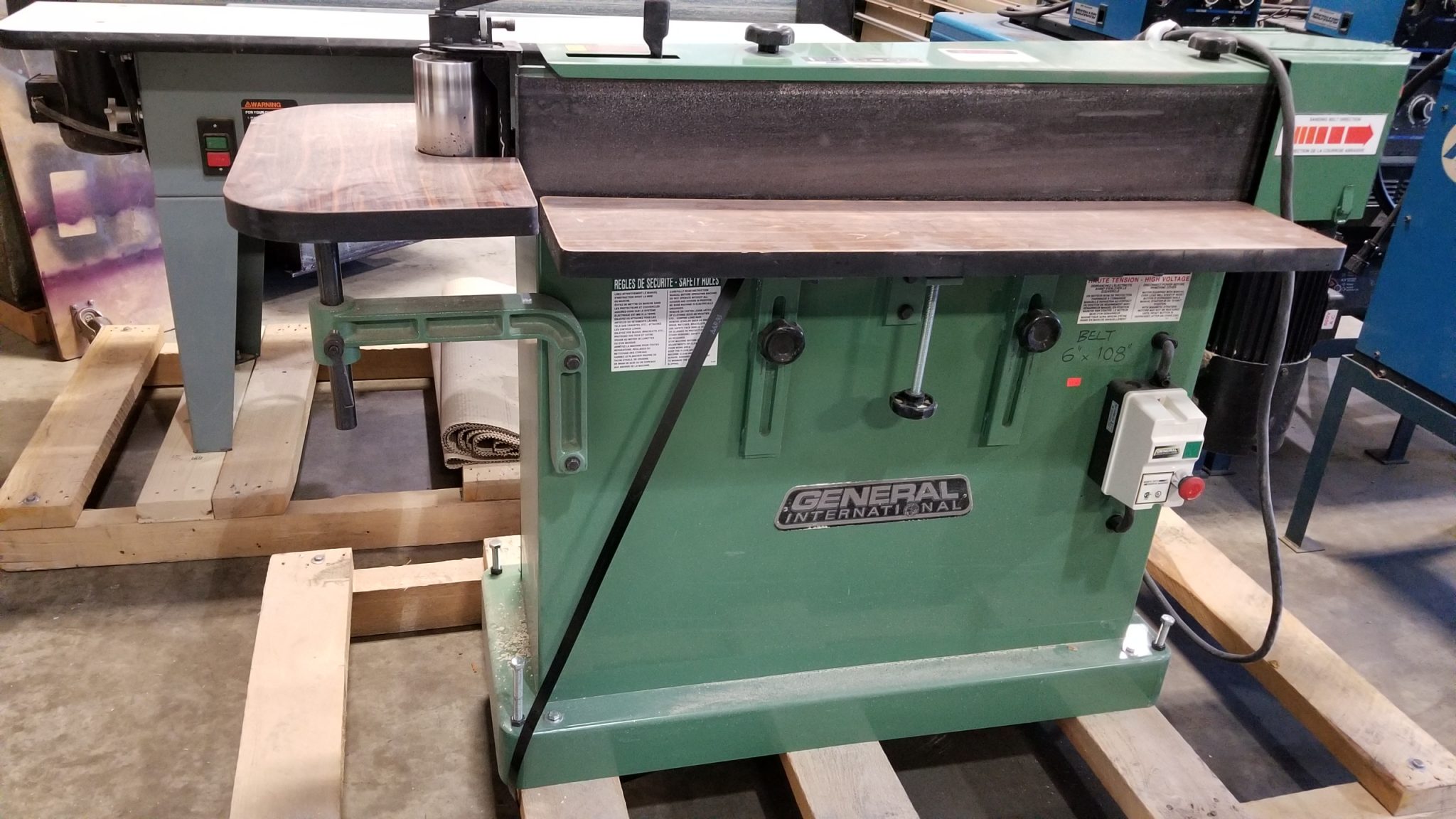

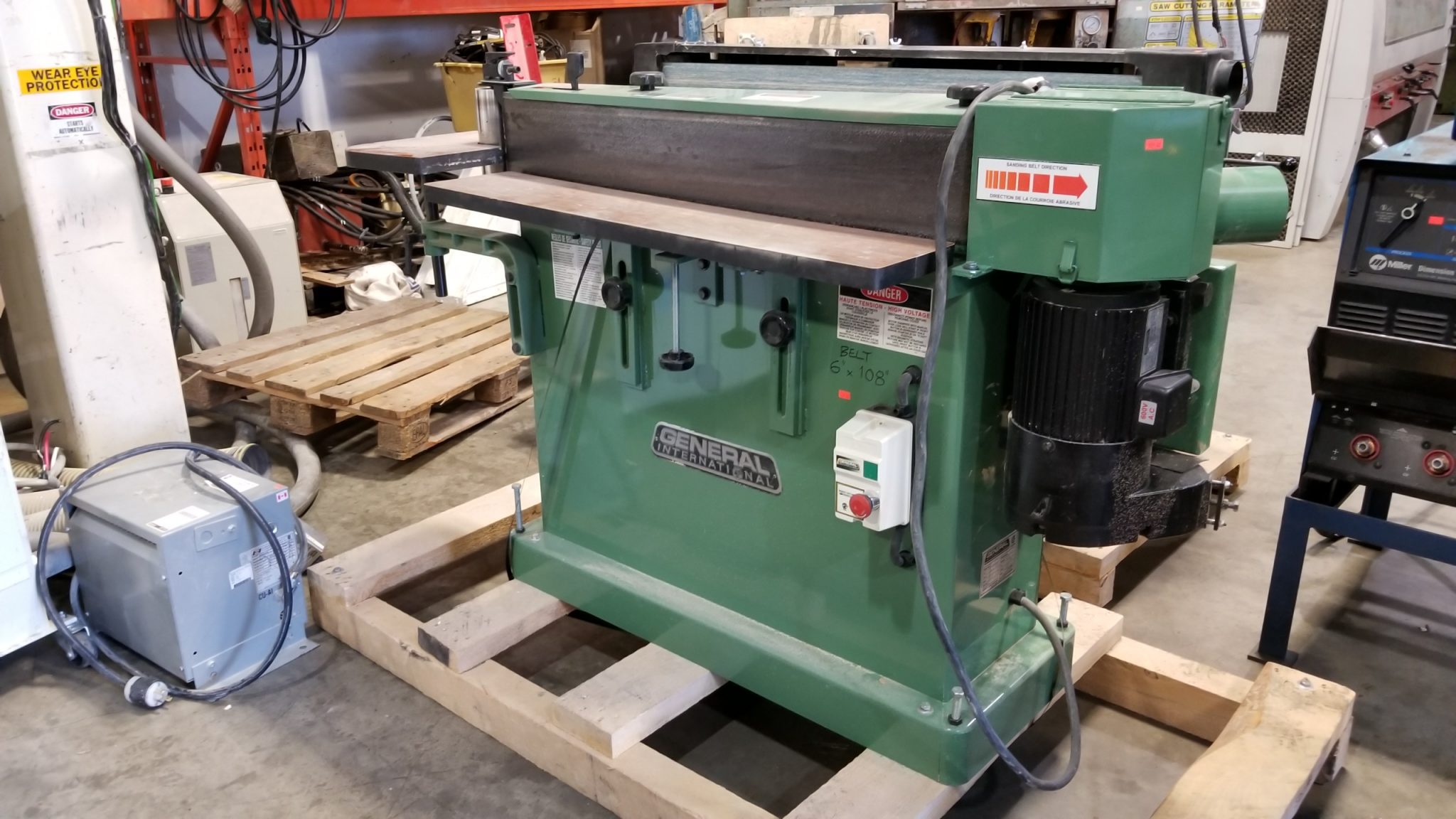

General International 15-0105 Edge Sander

Manufacturer Description:

• Length of oscillation:
• UP: 1/8’’ (3.2 mm)
• DOWN: 1/8’’ (3.2 mm)
• TOTAL: 1/4’’ (6.4 mm)
• Belt size: 6″ x 108″ (152 x 2743 mm)
• Belt speed: 3150 lin. fpm
• Front table size (l x w): 7 3/4” x 37″ (197 x 940 mm)
• Auxiliary table size (l x w): 11 3/4” x 19″ (299 x 483 mm)
• Dust outlet: 4” (102 mm)
• Base dimensions (l x w): 42” x 16 1/2” (1067 x 419 mm)
• Overall dimensions (l x w x h) 62″ x 20 1/2″ x 41″ (1575 x 521 x 1041 mm)
• Weight: 453 lbs (206 kg)

Features:

• Magnetic 2-step safety switch to prevent unintentional start-up is equipped with an extralarge easy access stop panel and a lock-out key to prevent unauthorized use.
• Tables can be adjusted up or down for full belt use.
• Front table can be inclined left or right.
• Innovative hinged dust hood accommodates oversized stock.
• Easy adjustment of abrasive belt tension with one knob only.
• Graphite backing reduces belt friction for longer belt life.
• Auxiliary table allows curved sanding.
• Heavy steel base ensures a solid stable.
• Oscillation feature.
