SKU: 583-3

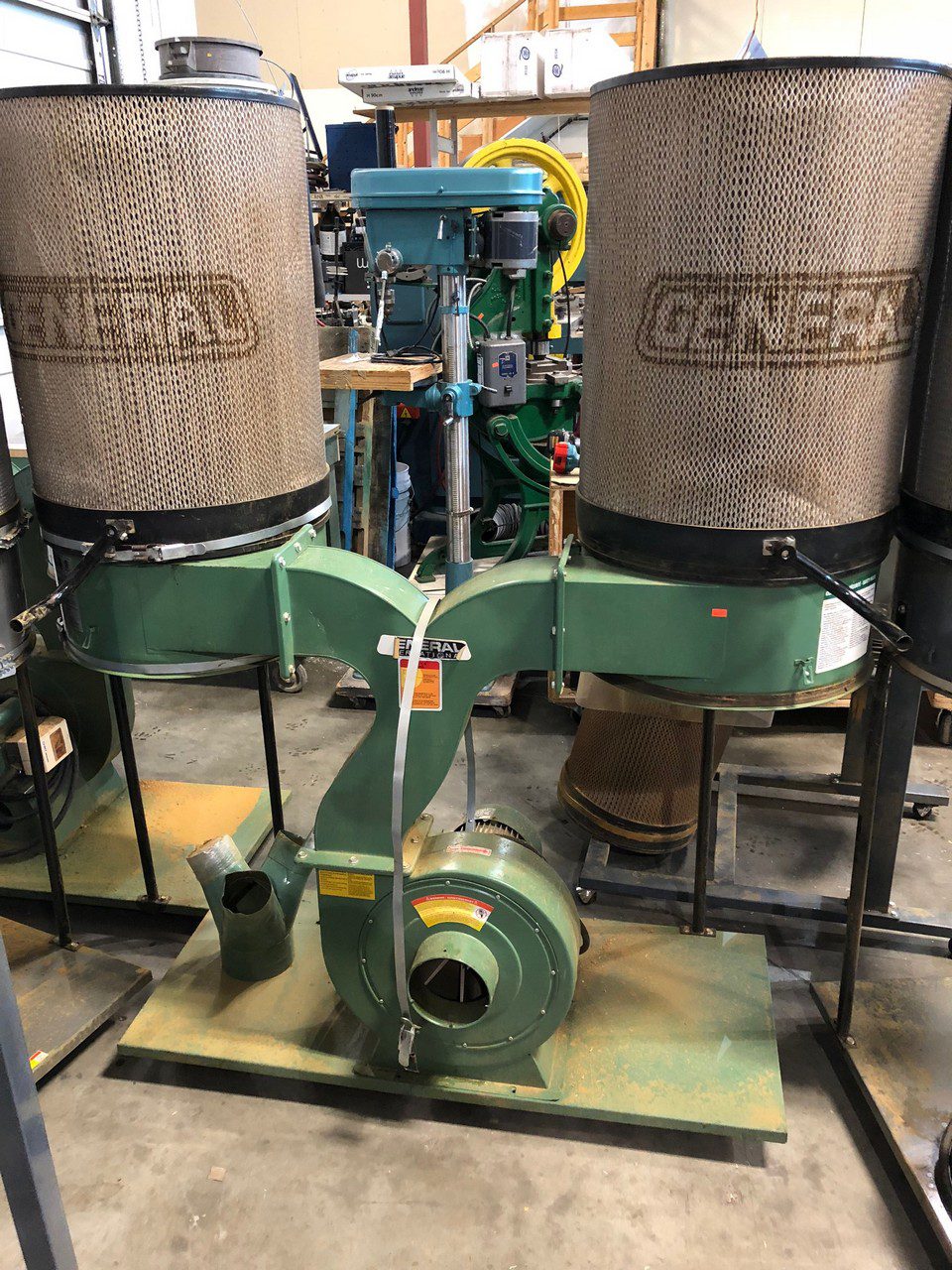

General International 3 HP Dust Collector Model 10-210 M1

Out of Stock But wait, we have similar products

Features and Specifications:

  • Heavy-duty motor design with a continuous duty rating for industrial applications
  • Base mounted on 4 swivel casters for total mobility and stability
  • Precision spin-balanced aluminum impeller for smooth operation, minimal noise and to reduce the risk of sparking
  • Equipped with 2 micron filter bags (not included on “CF” canister filter model)
  • Quick-release bag clamps with metal straps
  • Safety switch with key, prevents unit from being started when key is removed
  • Collection bags made from extra thick, transparent, recyclable plastic
  • Inlet diameter: (1) 6 in. (152 mm)/(or 3) 4 in. (102 mm)
  • Airflow capacity: 2280 CFM
  • Blower wheel diameter: 12 in. (305 mm)
  • Sound rating: 80 to 95 dB
  • Bag diameter: 20 in. (508 mm)
  • Bag capacity: 83 Gal. (377 l)
  • Static pressure 15-9/16 l of water
Inlet diameter (1) 6” (152 mm) / (or 3) 4″ (102 mm)
Airflow capacity 2280 cfm
Blower wheel diameter 12” (305 mm)
Sound rating 80 to 95 dB
Bag diameter 20” (508 mm)
Bag capacity 83 gallon (377 l)
Static pressure 15 9/16” of water
Overall dimensions (L x W x H) 60” x 32 5/8” x 76” (1520 x 830 x 1930 mm) – 10-210A
61” x 21 5/8” x 74 3/4” (1550 x 550 x 1900 mm) – 10-210ACF

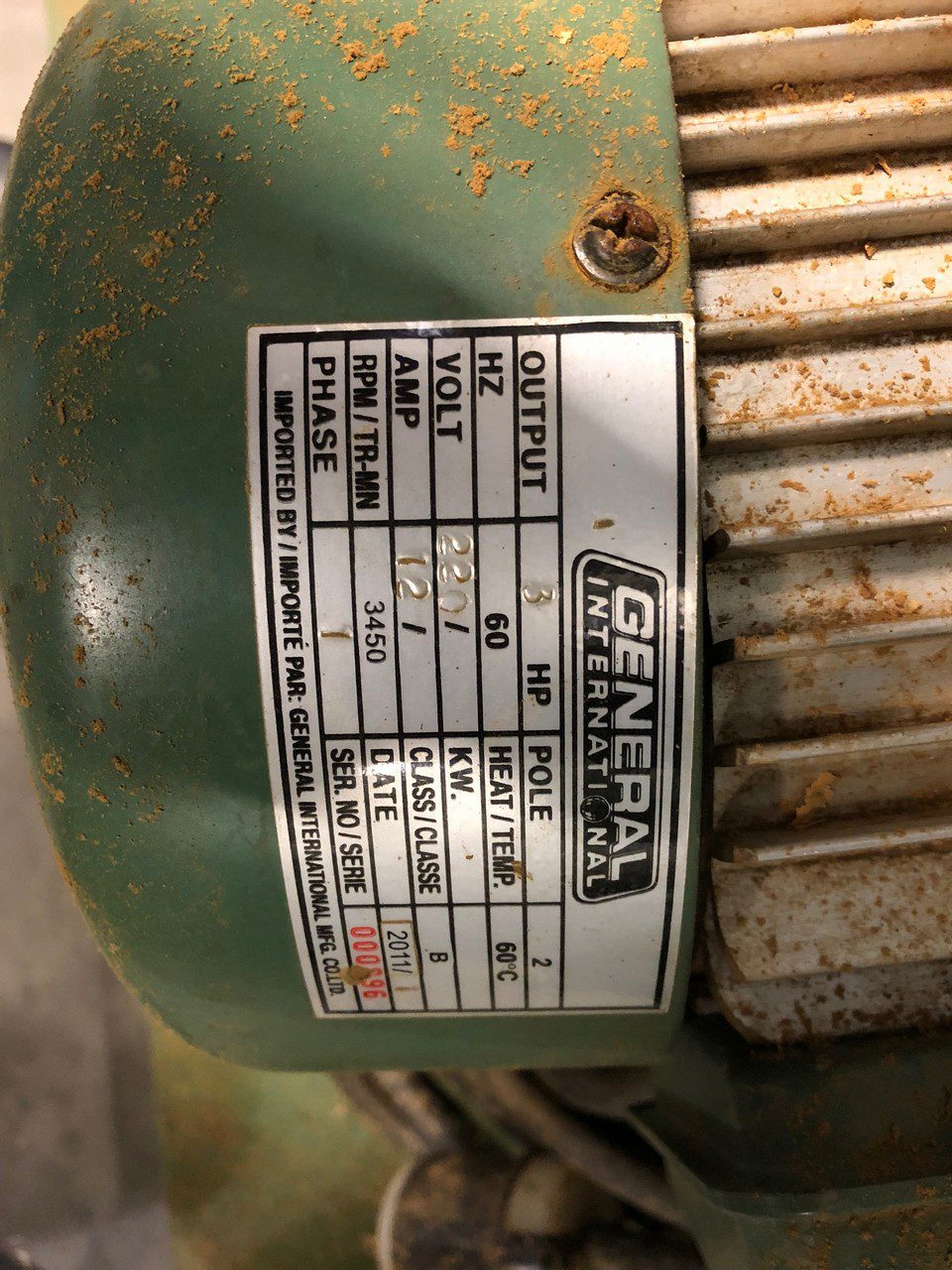

Motor M1 3 HP, 220 V, 1 Ph, 12 A
Weight 165 lbs (75 kg) – 10-210A

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
