SKU: 583-2

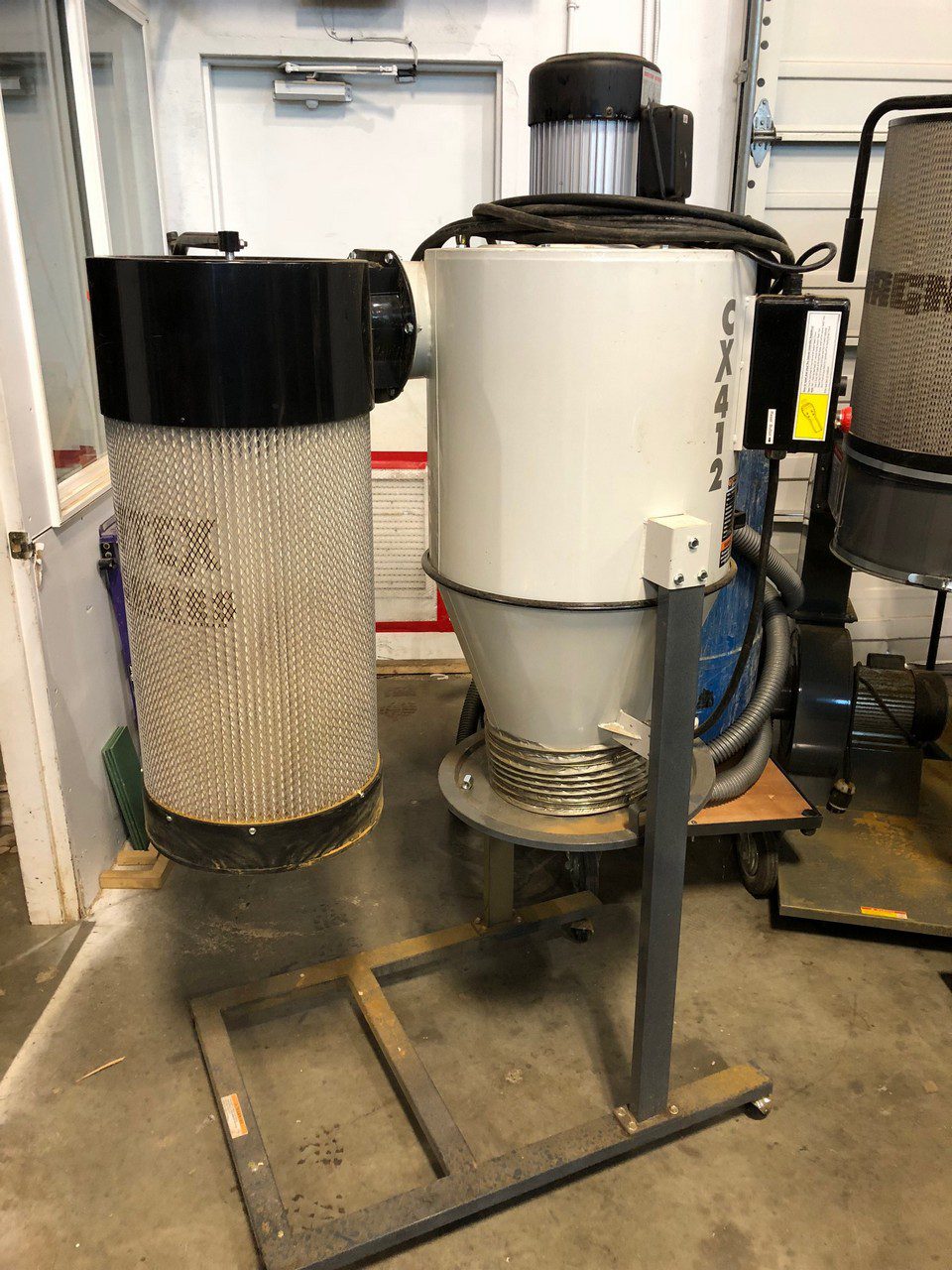

Craftex CX412- 2 HP Cyclone Dust Collector

Out of Stock But wait, we have similar products

Features and Specifications:

  • MFG Date : March 2016
  • Ultra high efficiency separation
  • 1 micron canister with manual hand crank for cleaning

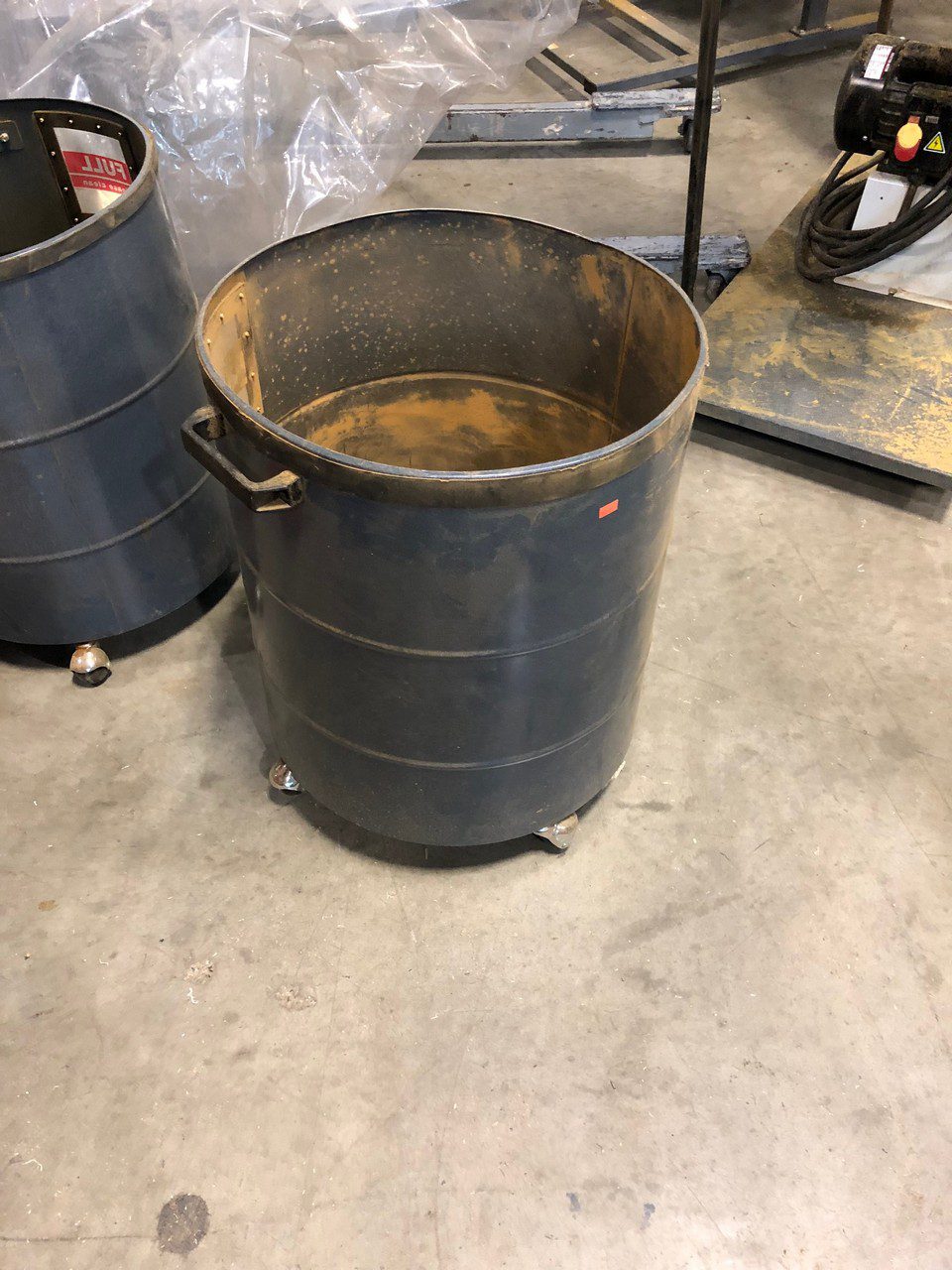

  • 28 gallon steel drum with quick release levers and castor wheels
  • Remote Control with timer setting automatically shuts the machine off after 2, 4, 6 or 8 hours
  • 4 Wheel castors for portability
  • Powder coated paint
  • Made in Taiwan

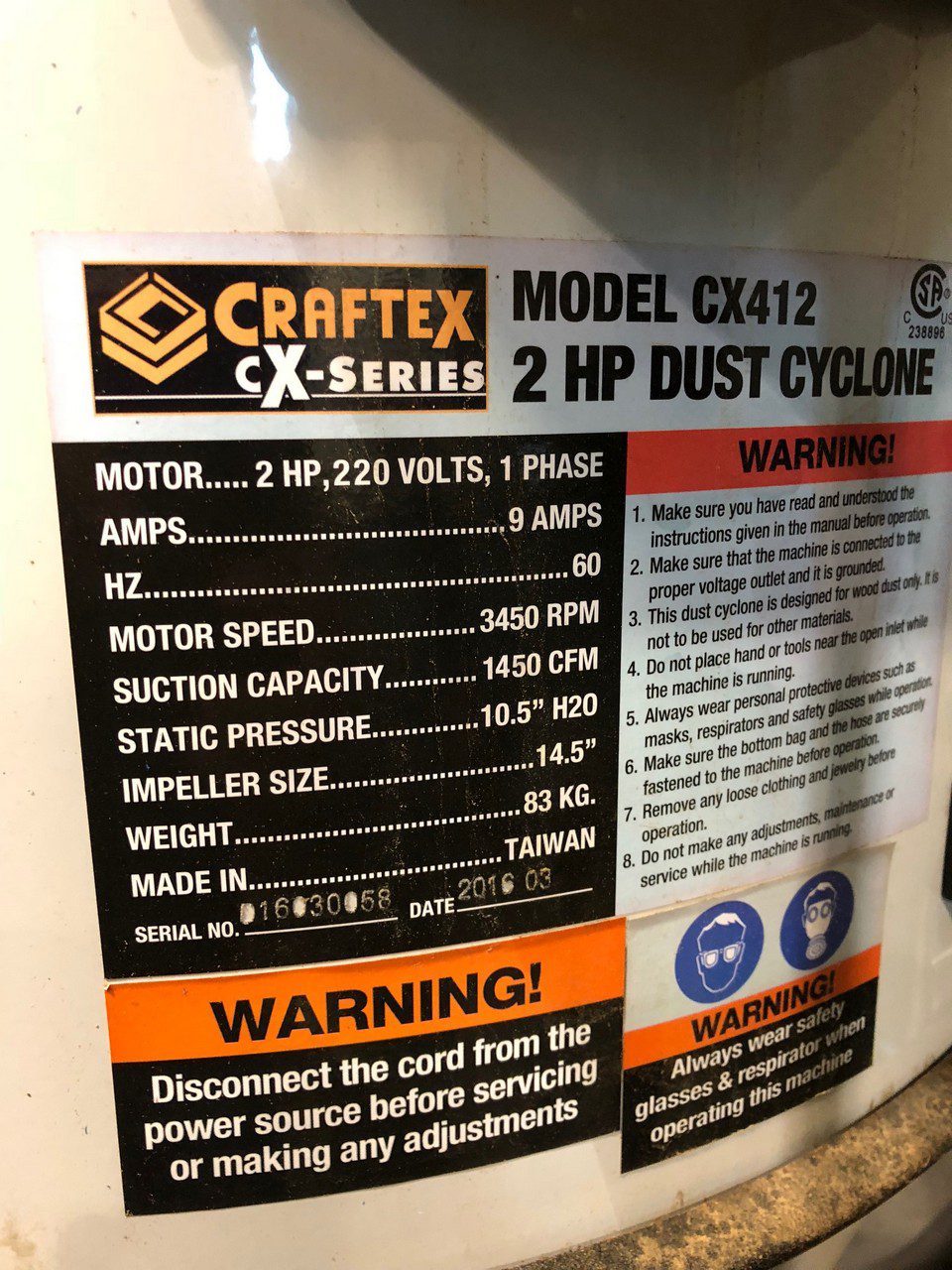

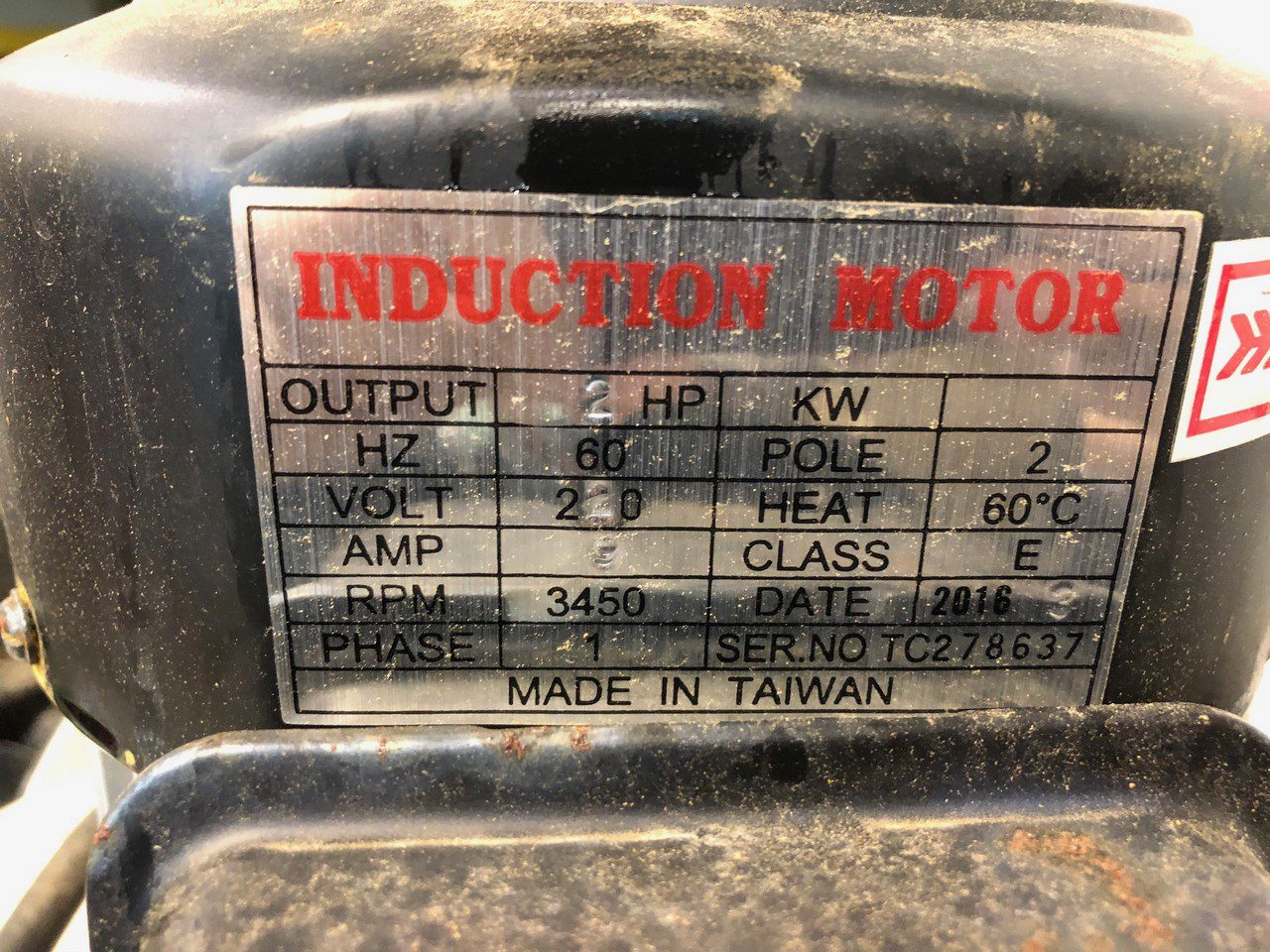

  • Motor: 2HP, 220V, Single Phase, 60Hz
  • Amps: 9 Amps
  • Motor Speed: 3450 RPM
  • Steel Drum Capacity: 28 Gallons
  • Suction Capacity: 1450 CFM
  • Static Pressure: 10.5″ H2O
  • Noise Level at 36″: 76 Db
  • Impeller Size: 14.5″
  • Switch: ON/OFF Magnetic Switch
  • Inlet Size: 6″ (with 4″ Y Inlet)
  • Assembled Dimensions: 41.5″ x 26.5″ x 71″
  • Package Size: 45″ x 28.5″ x 37″
  • Weight: 83 Kg

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
